ALLNET Switch unmanaged industrial 3 Port 2.5GBit 90W / 1x PoE BT / 2x SFP 1G/2.5G / Fanless / DIN / IP40 / ALL-SGI8003P-2.5G

Your rating:
Average rating
Rating for ALLNET Switch unmanaged industrial 3 Port 2.5GBit 90W / 1x PoE BT / 2x SFP 1G/2.5G / Fanless / DIN / IP40 / ALL-SGI8003P-2.5G
( 0 / 5 ) 0 ratings
ALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5GALLNET ALL-SGI8003P-2.5G
ALLNET ALL-SGI8003P-2.5G
This image may differ from the desired article.
192,66 EUR
( 229,27 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x ALLNET Switch unmanaged industrial 3 Port 2.5GBit 90W / 1x PoE BT / 2x SFP 1G/2.5G / Fanless / DIN / IP40 / ALL-SGI8003P-2.5G
Lieske Part No.:1928777
Mfg Part No: ALL-SGI8003P-2.5G
UPC/EAN: 4038816205735
Weight:0.3 kg

Product information for ALLNET ALL-SGI8003P-2.5G:

ALLNET Switch unmanaged industrial 3 port Gigabit 90W / 1x PoE BT 90W / 2x SFP 1G/2.5G / fanless / DIN / IP40 / ALL-SGI8003P-2.5G Highlights: With 1*10/100/10002.5G Hi-PoE 90W ports and 2*2.5G/1000M SFP ports Fiber optic ports provide 2 modes through the dip switch, 2.5GM mode and 1000M mode to adapt to different needs Supports relay alarm for power failure, network error and PoE off Supports PoE Auto-check function specially designed to solve the problems of frozen devices it can automatically detect the frozen PD devices and restart the output of the ports of the PSE, as well as restart the PD device. This significantly reduces the maintenance effort for the technology. Supports 6KV surge protection, 6KV contact / 8KV air ESD protection. Supports working temperature -30°C~65°C. The ALLNET ALL-SGI8003P-2.5G is a state-of-the-art 3-port industrial switch that combines impressive performance with outstanding functions. This switch is characterized by its 1 *10/100/1000/2.5G high-performance copper PoE port, which supports up to 90W PoE devices. Supported PoE technologies include IEEE802.3af/at and IEEE802.3bt with a maximum power of 90W. In addition to this powerful PoE port, the Switch 2 offers additional 2.5G/1000M SFP ports for optional SFP modules that are suitable for both copper and fiber optic connections (see accessories). The SFP slots can be easily switched between 2.5GM mode and 1000M mode using a DIP switch.
A standout feature of the switch is the built-in PoE Auto-Check feature, which is specifically designed to resolve issues with frozen PoE devices. This intelligent feature automatically detects frozen PD devices and resets the output of the PoE copper port to ensure smooth functionality. This significantly reduces maintenance costs and the technology remains in reliable operation.

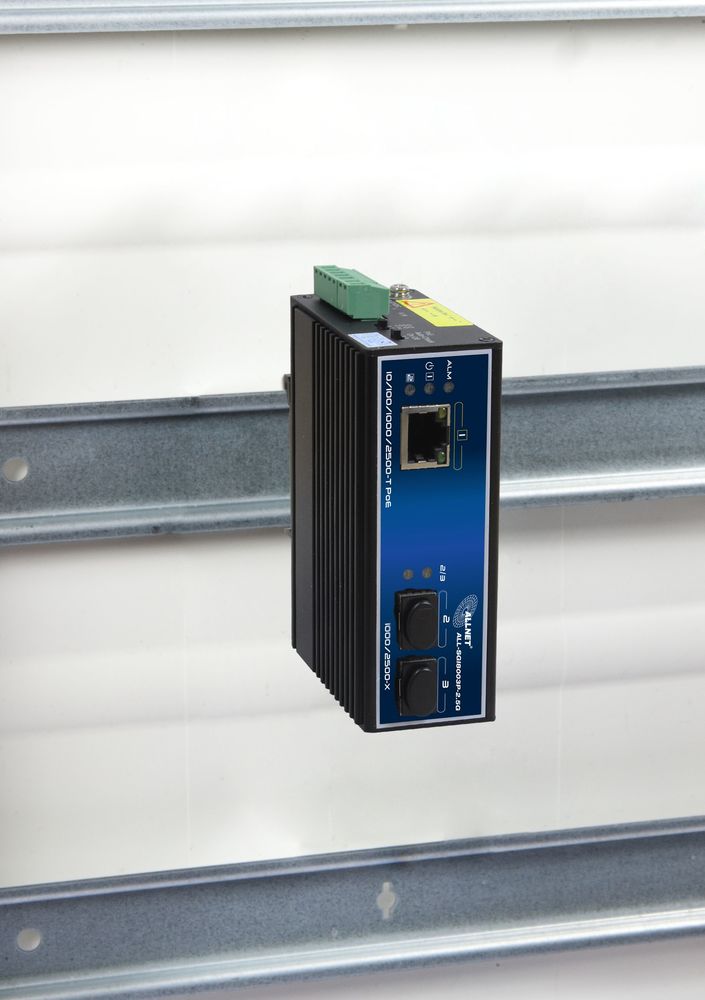

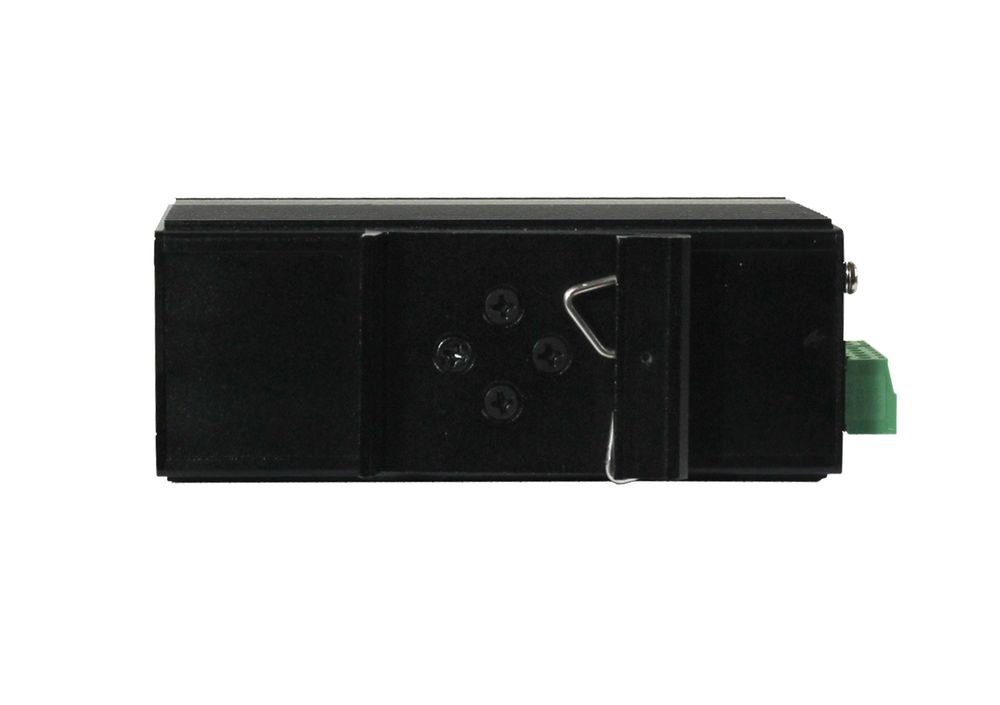

The switch is DIN rail compatible and is ideal for applications in security networks, video surveillance systems, network technology and AP installations. In environments where high network speeds and significant PoE performance are required, such as WIFI6 infrastructures, the switch proves to be a perfect choice.
The scope of delivery includes a manual, a DIN rail terminal and a 5-way Phoenix terminal for the power connection. A power supply is not included, but suitable power supplies are available as accessories. With the ALLNET ALL-SGI8003P-2.5G you are relying on a technologically advanced product that fits seamlessly into your demanding network requirements. Front panel: Application: Dimensions: Technical Details: Parameter Specifications Power supply Powered by power adapter Range of voltage DC 48~57V Consumption Self consumption< Downlink ports Ports 1 10/100/1000/2.5GBase-T 90W PoE RJ45 Uplink ports Ports 2~3 supports 2 modes of 2.5G/1000Base-X PoE Auto-check If detect the frozen PD device, restart it Working mode of
fiber ports It can be selected 2.5GM or 1000M work mode by dip switch Relay alarm 1 channel relay alarm output for power off, ports PoE off, ports link down Cable and distance Use cat5e/6,100m max Standard IEEE802.3, IEEE802.3u, IEEE802.3z Switch fabric 15Gbps Though put 11.16Mpps Buffer 1M bits MAC address table 8K Indicator Power: 2 *red

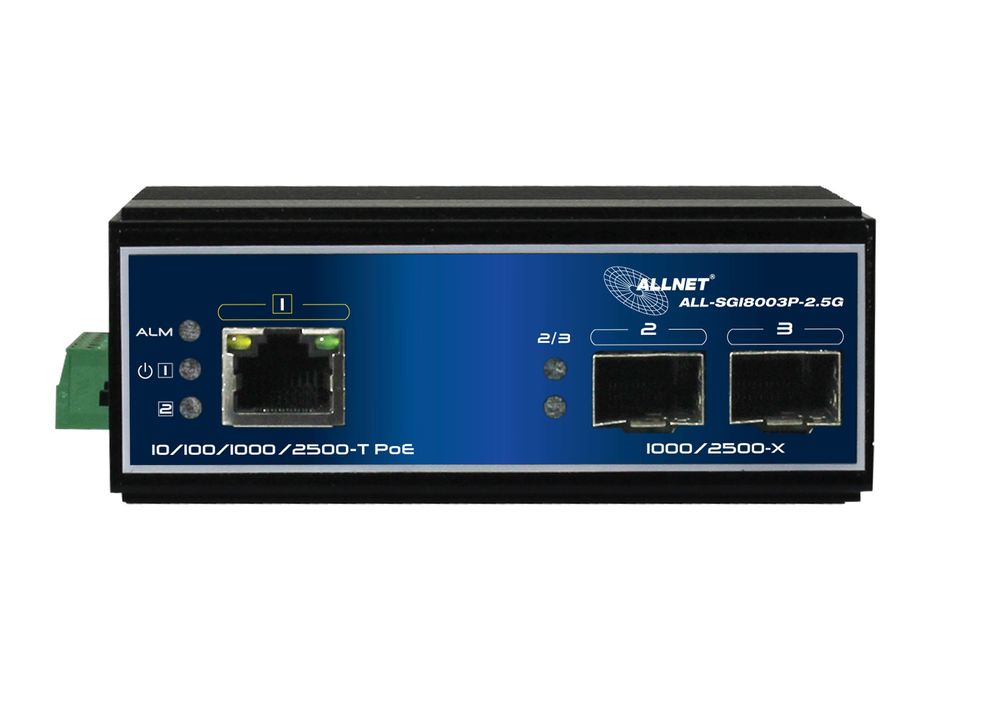

Uplink2~3: Green LEDs indicate Link/Act
Downlink 1: Yellow LED indicate PoE, green LEDs indicate Link/Act
Downlink 1: Yellow LED indicate PoE, green LEDs indicate Link/Act Protection Surge: 6KV, standard: IEC61000- 4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2 Working temperature -30°C~60°C Storage temperature -40°C~85°C Humidity 0~95%(No condensation) Dimension (L×W×H) 101 mm×65 mm×36mm Material Aluminum Color Black Net-weight 300g Marks CE
