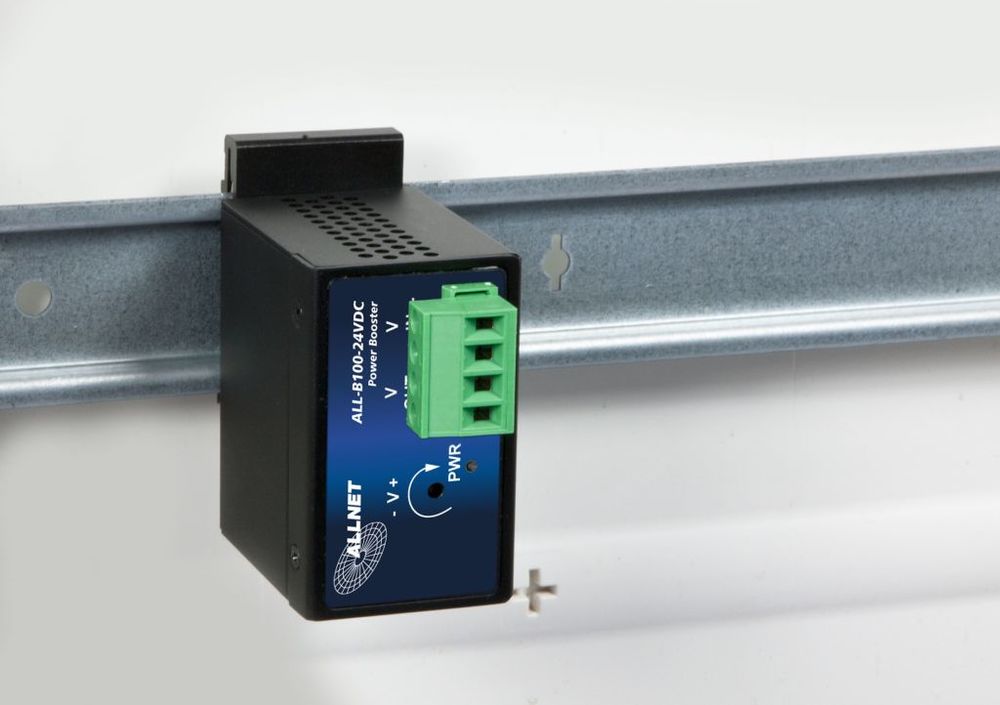

ALLNET ALL-B100-24VDC / Power Booster 24VDC to 48~55VDC max. 95W HUT/DIN mounting

Your rating:
Average rating
Rating for ALLNET ALL-B100-24VDC / Power Booster 24VDC to 48~55VDC max. 95W HUT/DIN mounting
( 4.3 / 5 ) 12 ratings
ALLNET ALL-B100-24VDC
This image may differ from the desired article.
91,64 EUR
( 109,05 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x ALLNET ALL-B100-24VDC / Power Booster 24VDC to 48~55VDC max. 95W HUT/DIN mounting
Lieske Part No.:167693
Mfg Part No: ALL-B100-24VDC
UPC/EAN: 4038816058737
Weight:0.001 kg

Product information for ALLNET ALL-B100-24VDC:

ALLNET ALL-B100-24VDC / Power Booster 24VDC to 48~55VDC max. 95W HUT/DIN mounting
Highlights:Robust Industrial 95W "Power Booster\dlashvoltage increase from 24V DC to 55V DC to supply the PD devices with 95W
input voltage 24V DC
Output voltage from 48V DC to 55V DC variably adjustable
Extended operating temperature: -40°C to +75°C
The durable power booster" boosts the voltage from 24V DC to up to 55V DC and thus supplies your PD devices with a power of up to to 95 watts. The "Power Booster was developed specifically for environments where 48V DC is not available. In environments with 24V DC, 95W can still be generated. Even in unfavorable working environments, a constant output voltage to power your PD device can be guaranteed. Thorough testing ensures the functionality of your security, transport and telephony applications, providing you with a reliable partner.
Technical data:
LED
PWR: Green:ON- power ready.
OFF – no power input
Overload current protection
Present

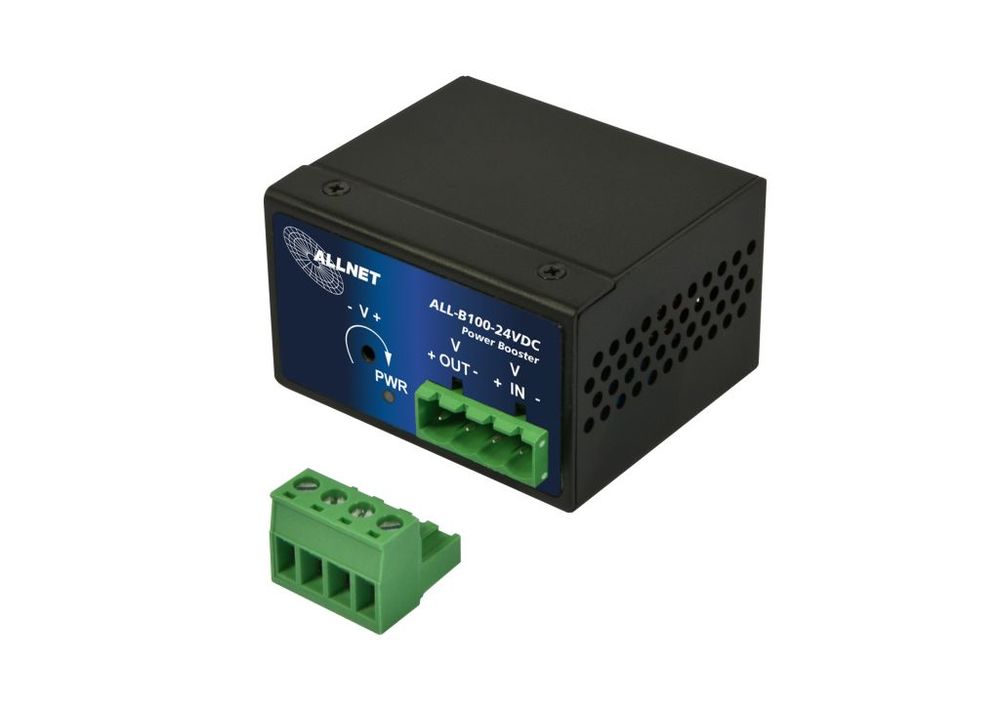

Removable Terminal Block / Power Connector
4 pin terminal block.
24VDC Voltage Input,
2 pin for 48 to 55 VDC Voltage output
Removable Terminal Block
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24 /14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Voltage Adjustable Knob
To adjust voltage output from 55VDC to 48VDC to meet your existing application
Booster Power
Maximum Booster power 95watts at 24VDC input
Operating Temperature
  • 40°~75°C thoroughly tested.
  • Operating Humidity
    5% to 95% (Non-condensing)
    Storage Temperature
    -40°~85° C
    Housing
    Rugged Metal, IP30 Protection
    Case Dimension (LXWXD)mm
    59x36x49mm (LxWxD)

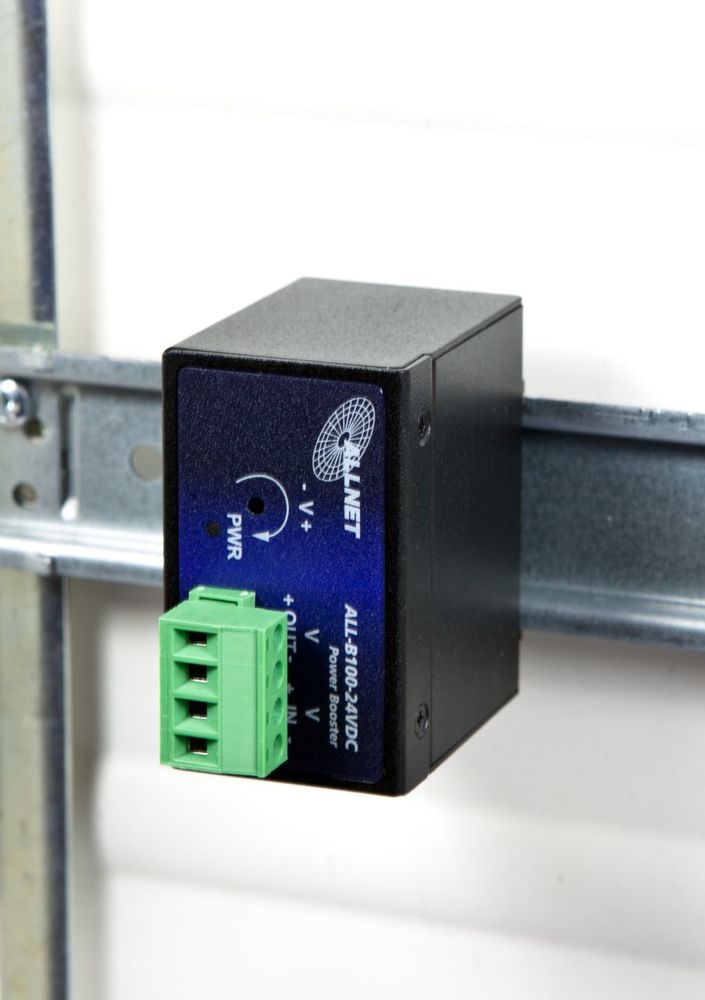

    Installation mounting
    DIN Rail mounting and Wall Mounting
    Certifications:
    Safety
    IEC EN60950 -1
    EMC/EMS
    CE, FCC, VCCI
    EMI
    FCC Part 15 Subpart B Class A,
    CE EN 55022 Class A
    EN 50155 / EN 60068-2-6
    Vibration
    EN 50155 / EN 60068-2-27
    Shock
    EN 50155 / EN 60068- 2-32
    Free fall
