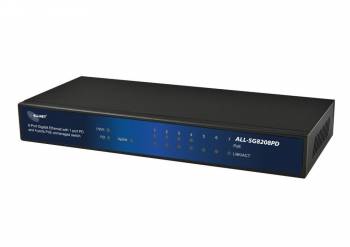

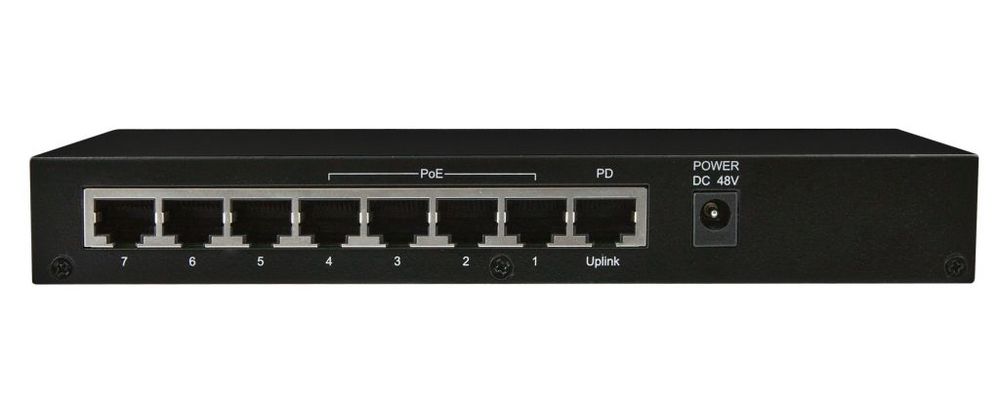

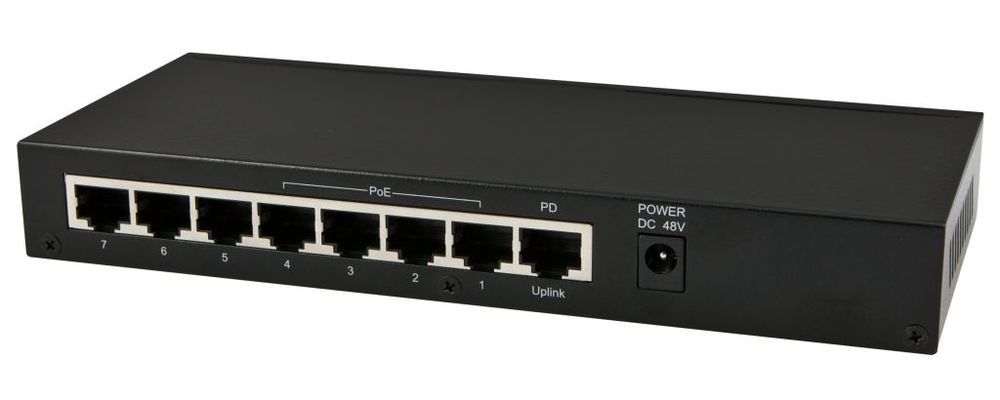

ALLNET ALL-SG8208PD / unmanaged 8 Port Gigabit Switch, 4x Giga PoE AF + 2x Giga TX

8-port 10/100 / 1000M Ethernet PoE Switch with 2-port PoE and 1-port PD Highlights: 8-Port 10/100 / 1000BaseT (X) with 4 PSE port and 1 PD Port Compliant with IEEE 802.3af PSE and 4x IEEE802.3at PD input Metal case with Palm, Size No. power supply needed When powered over PD PortFANLESS designThe device is a powerful, high-performance Gigabit Ethernet switch, with all 8 ports capable of 10/100 / 1000Mbps auto-negotiation operation (NWay) Which Means The Switch Could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia applications andimaging. More over, the 10/100 / 1000Mbps auto-sensing ability Provides An Easy Way to migrate 10 / 100Mbps to 1000Mbps network with no pain. This switch supports PoE pass-through, having Both PD (Powered Device) and PSE (Power Sourcing Equipment) features in one single device, Which Means The Switch Could get power from the PD port by connecting to a PSE device and supply power on the 4 PSE ports for connected devices via CAT 5e or better twisted cables. By Integrating the Data Transmitting cable and power cord, it Eliminates the effort constructing your network. You could Easily connect a wireless AP or a VoIP phone (PD) devices to this switch without looking outlets for them. Over Current Protection and circuit shorting protection are therefore supported to Ensure the safety. The switch is plug-n-play without any software to configure and therefore fully compliant with all kinds of network protocols. More over, the rich diagnostic LED indicators on the front panel Provide the operating status of individual port and whole system.Technical Details: IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet (PD INPUT) IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3x flow control features Number of ports: 5 10/100 / 1000BaseT (X) with 2 PSE and 1 port PD port Transmission Method: Store and Forward Filtering / Forwarding Council 1000Mbps port? 1,488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps Buffer Memory 128K Bytes framebuffer MAC Table 4000 Transmission Media 10 / 100BaseTX Cat. 5 UTP / STP 1000BaseT Cat. 5E UTP / STP Led Indicators Device: Power 1x 1x 1x uplink PD via Port: each 1x LINK / ACT 2x PoE PSE Power Supply 48V / DC with 36W or 1x Port PoE Power Budget IEEE802.3at INPUT Powered from PD port: 25W & quot, Uplink PD & quot, Powered from PD port and 36W Power Adaptor: 36W (The power adapter is for optional) Dimensions 115 × 85 × 26 mm (L x W x H) Weight 0.4kg Operating Temperature 0 to 50 ° C Humidity 10 to 90 % RH (non-condensing) Certifications FCC Class B, CE
