ALLNET Apollo Wireless AP WIFI6 ? AX3000 ? 2x2 ? IP67? 2.5GbE? ALL-WAPC0522AXO-3000 ? Apollo content_copy

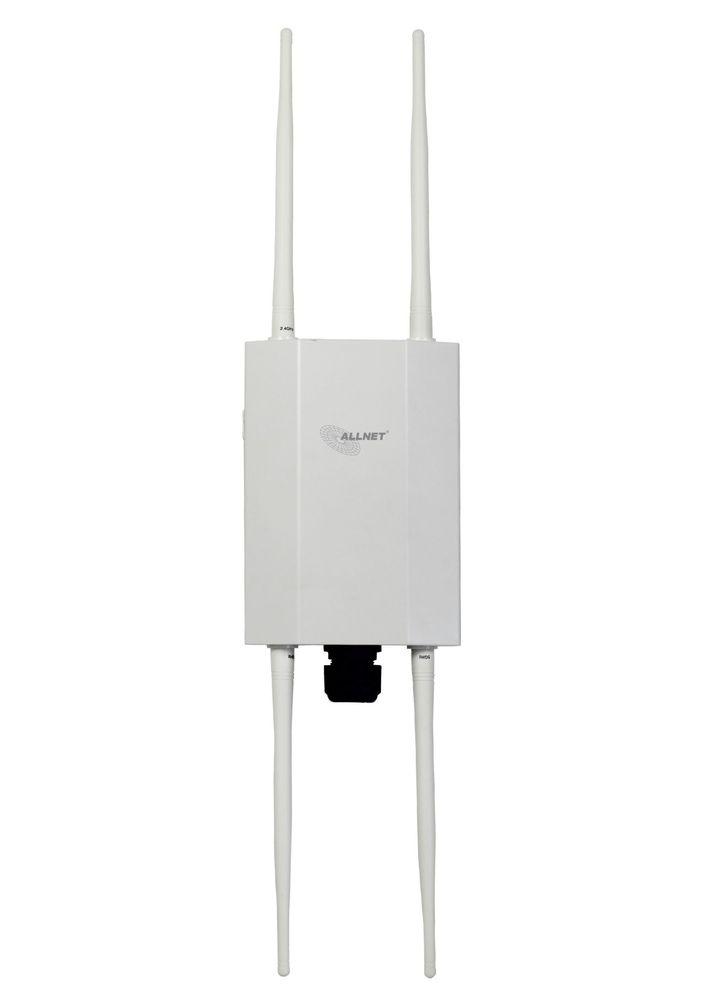

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Outdoor IP67 • 2.5 GbE • ALL-WAPC0522AXO-3000 • Apollo Highlights: Dual concurrent 802.11ax architecture and backwards compatibility with 11ac/a/b/g/n client devices 2x2 antennas Supports up to 1,200 Mbps in the 5 GHz frequency band and 574 Mbps in the 2.4 GHz frequency band IP67-certified, weatherproof and dustproof housing withstands harsh environments 2.5 GigE PoE+ compatible port for easy placement in places where power outlets are few Choice of cloud or on-site management options depending on network architecture and administrative permissions Cloud visibility and control from anywhere Setup in minutes with app-based Step-by-step instructions Quick scan device register, remote monitoring and troubleshooting Real-time system metrics, analytics and remote configurations No access point licensing or subscription fees OFDMA uplink and downlink improves transmission to APs and client devices Target wake-up time for energy-saving client and IoT devices MU-MIMO uplink and downlink for optimal signal and reception security for up to 2 devices The ALLNET Apollo Series ALL-WAPC0522AXO-3000 Outdoor IP67 is a sophisticated WiFi 6 access point that expands and deepens the potential of WLAN in high-density environments. This device offers comprehensive enterprise hardware in an advanced housing that also ensures optimal thermal heat dissipation. This enables more efficient performance and significantly reduces power consumption, while achieving maximum speeds of 2402Mbps in the 5GHz frequency band and 573Mbps in the 2.4GHz frequency band with up to 2x2 spatial streams. The access point can be easily mounted on walls or masts, which makes its installation and use even more flexible.Technical Details Basics: ALL-WAPC0522AXO-3000 Main Chipset IPQ5016
ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (Reserved) 128MB NAND RAM 512MB DDR3 Transmit Power (Combined) 2.4GHz: 22dBm 5GHz: 24dBm Bluetooth N/A Interface 1x 10/100/1000/2500Mbps RJ45 Port Operating Temperature -20 ~ 60°C Dimensions (W x L x H) 190 x 124 x 47 mm Enclosure Material Plastic (Top Cover)
Metal (Bottom Cover) Certification (Generic) Non-DFS FCC, CE DFS Fully Technical Details: Fully ALL-WAPC0522AXO-3000 Apollo Entry 2x2 Entry AP Wireless Radio Specification Access Point Type Outdoor IP67, dual radios concurrent,
5GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode,
2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz,
5725MHz~5850MHz
Supported radios and channels will be varied based on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n:Orthogonal Frequency Division Multiple (OFDM)
802.11ax supports very high throughput(VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput(VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm 5GHz: 24dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streams to be allocated to different
clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption 25W Power Source Standard IEEE802.3at
DC IN 12V/2A Antenna External Antennas 2.4GHz: 4dBi R-SMA-Male
5GHz: 5dBi RSMA-Male

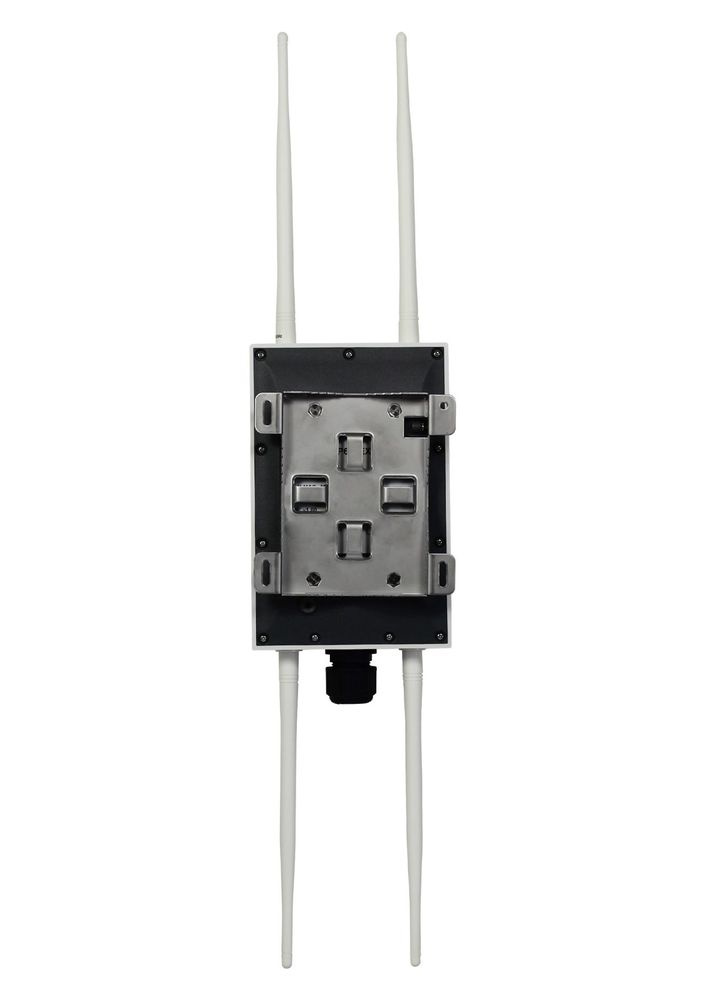

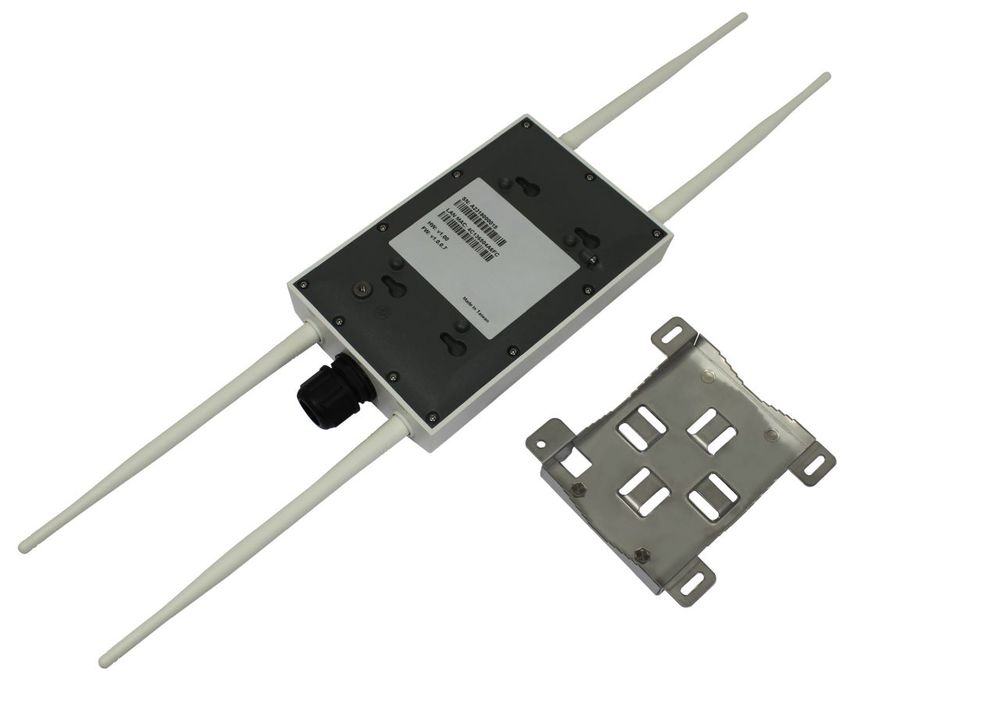

R-SMA Female-Connector on AP for additional Antennas. Interfaces Networking Interface One(1) 10/100/1000/2500 Mbps Ethernet Ports IP Rating IP67 Mounting Ceiling or Wall Mounting Mount Access Point on the wall or Pole via included accessories Mechanical < Environment Dimensions(LxWxH) 190 x 124 x 47 mm Operating Temperature: -20°C~60°C
Humidity: 0%~90% typical Storage Temperature: -30°C~80°C
Humidity: 0%~90% typical Marks FCC
Subpart15 B
Subpart C 15.247
Subpart E 15.407
CE
EN 300 328
EN 301 893
EN 50385
EN 55032
EN 55024
