ALLNET Apollo Wireless AP WIFI6? AX3000? 2x2? Indoors? 2.5GbE? ALL-WAPC0522AX-3000 ? Apollo

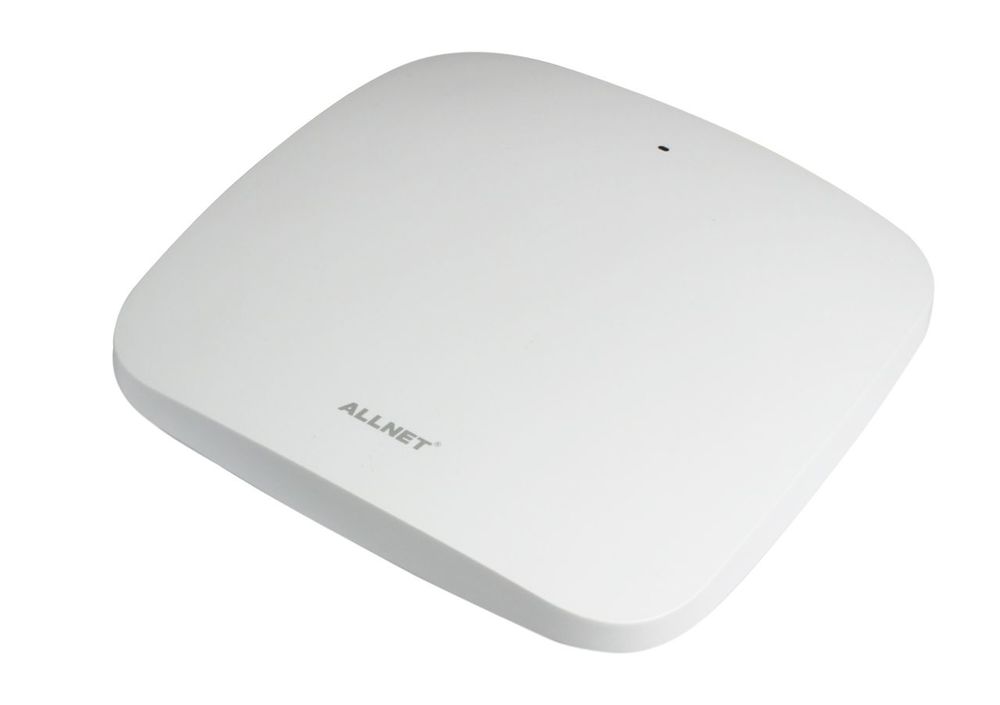

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo Highlights: Dual Concurrent 802.11ax architecture and backward compatibility with 11ac/a/b/g/n client devices Support for WPA3 and WPA2 AES authentication 5 dBi integrated 2x2 antenna Supports up to 2,400 Mbps in the 5GHz frequency band and 574 Mbps in the 2.4GHz frequency band Supports 5GHz DFS channels Local and remote management via FitController Controller without fees 2.5 GBit 802.3af PoE port for easy placement up to 328 feet from a power source Choice of AP and WDS modes to meet your management and deployment needs. ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, providing the user with incredibly fast and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 2,400Mbps on the 5GHz frequency offers! Additionally, it is protected by world-class WPA3/WPA2PSK AES encryption protocols for unparalleled security. Security. Technical Details Basics: Basic ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP Main Chipset IPQ5018
ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (reserved)
128MB NAND RAM 512MB DDR3 Transmit Power

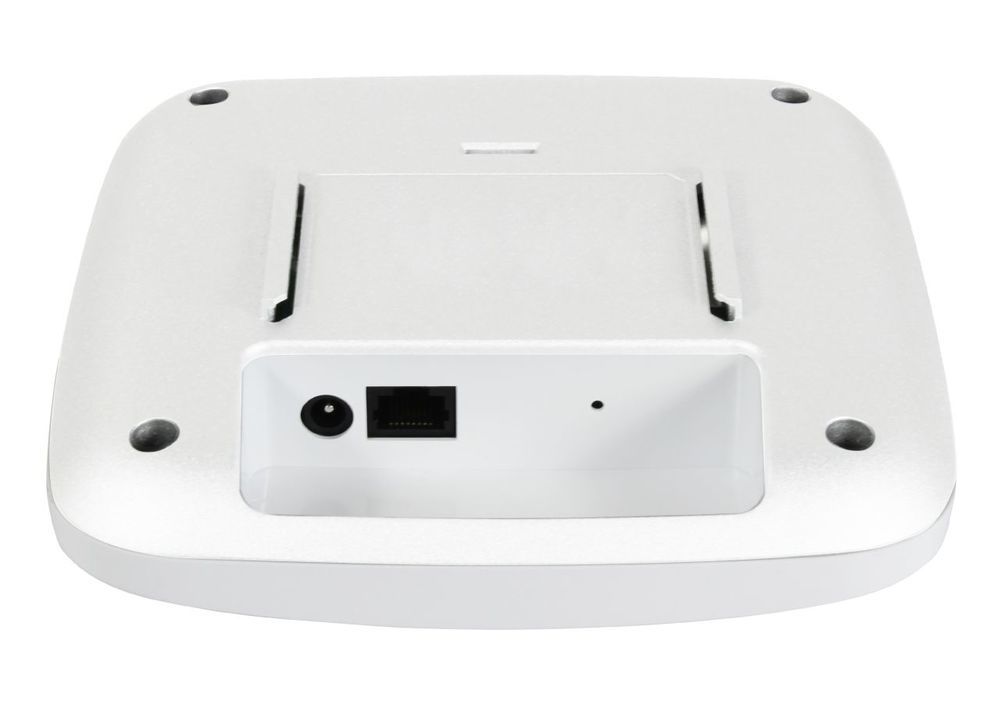

(Chain + Combining Gain) 2.4GHz: 21dBm 5GHz : 21dBm Interface 1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN
1x Reset Button
1x DC Barrel Jack Operating Temperature 0 ~ 40°C Dimensions (W x L x H) 160 x 160 x 30mm Enclosure Material Plastic (Top Cover) Metal (Bottom Cover) Certification (Generic) FCC, CE Fully Technical Details: Fully ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP Wireless Radio Specification Access Point Type Indoor, dual radios concurrent,
5GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode,
2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz , 5470~5725MHz,
5725MHz~5850MHz
Support radios and channels will be varied on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11ax supports very high throughput (VHT )—HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz 802.11a/g/n: BPSK , QPSK, 16-QAM, 64-QAM
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm 5GHz : 21dBmMaximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streams to be allocated to different
clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption (TBD, estimated) 17.4W PowerSource Standard IEEE802.3at
DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi
5GHz:5dBi
BLE2.4GHz:4.5dBi (reserved) Interfaces Networking Interface One 10/100/1000/ 2500 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Ports (reserved) Reset Button One(1) Reset Button

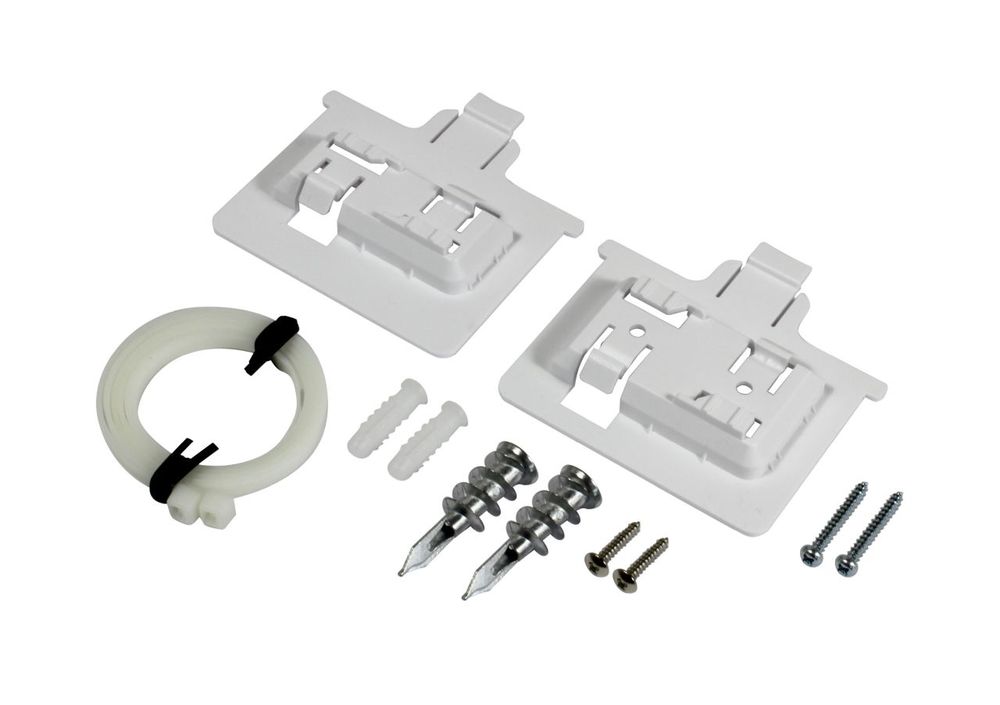

(Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical Channel Data Rate Transmit Power (Typical AVG.) Receive Sensitivity Tolerance = +/-1.5 dB 2.4GHz 5GHz 2.4GHz 5GHz Combine EIRP Combine EIRP 802.11b 1M 21 25 - - - 95 - 11M 21 25 - - -88 - 802.11g/a 6M 21 25 21 26 -92 -92 54M 18 22 18 23 -74 -73 802.11n HT20 MCS0 21 25 21 26 -92 -92 MCS7 18 22 18 23 - 74 -72 802.11n HT40 MCS0 21 25 21 26 -91 -89 MCS7 18 22 18 23 -72 -64 802.11ac VHT20 MCS0 21 25 21 26 -92 -92 MCS8 17 21 17 22 -67 -67 802.11ac VHT40 MCS0 21 25 21 26 -91 -89 MCS9 17 21 17 22 -66 -64 802.11ac VHT80 MCS0 - - 20 25 - -86 MCS9 - - 17 22 - -61 802.11ac VHT160 MCS0 - - 20 25 - -83 MCS11 - - 16 21 - -59 802.11ax HE20 MCS0 21 25 21 26 -92 -92 MCS11 16 20 16 21 -62 -61 802.11ax HE40 MCS0 21 25 21 26 -90 -89 MCS11 16 20 16 21 -59 -58 802.11 ax HE80 MCS0 - - 20 25 - -86 MCS11 - - 16 21 - -56 802.11ax HE160 MCS0 - - 20 25 - -83 MCS11 - - 15 20 - -53
