ALLNET Apollo On-Prem Hardware Controller / Management & Provision of max. 100 APs and switches Apollo series ALL-AC100

On-Premises Management Network Controller Discover the future of network management for small businesses with our On-Premises Management Network Controller.
We understand that time and resources are valuable, which is why we have revolutionized the installation and management of access points and switches. No more complicated setup processes - just plug in and get started straight away. Our intuitive interface allows you to register, configure and seamlessly integrate your devices into your network with just a few clicks.
Our On-Premises Management Network Controller is the solution that makes your work more efficient and productive. Simplify your network management and focus on what really matters - growing your business. Experience the future of network management, today. Highlights: Managed Accesspoints and Physical Interfaces: Software Features ALL-AC100 Controller Dashboard Manage Access Point / Switch Status
Channel Utilization
Online AP
Online Switch
AP Usage
Switch Usage
2.4Ghz or 5Ghz Client Ration
Number of Online Switch
Number of Offline Switch
Number of Online AP
Number of Offline Switch
Number of client device in 2.4 GHz radio
Number of client device in 5 GHz radio Throughput
Client
Traffic: Total, Download, Upload Traffic
Top Access Point
Top Clients
Top SSIDs
Top Applications Topology Show Label Redundant Clients Throughput
Client Name
Traffic: Total, Download, Upload
Filter: Favorite, Time, SSID, OS, Client, Last Associate AP, IP Display, Client Name, MAC, Access, Last Seen, Last Asso. AP, SSID, IP, OS, Vendor, RSSI, Rate, Band
Access Control
Export Configure SSID Display
SSID
Radio
Enabled
Hidden
Security
Captive Portal
Splash Page
Bandwidth Limit
Scheduling
Application Analysis Add SSID Wireless
Name
Enabled
Hide
Radio
Security Type: WPA2-PSK/WPA3 -PSK/WPA2-Enterprise/WPA3-Enterprise
802.11r
802.11w: All clients/Allow 11w-clients only
Client IP Mode: NAT Mode/Bridge Mode
Default VLAN Enable Application Analysis Advanced Setting L2 Isolation
Dynamic Client VLAN Pooling
Band Steering: Type, RSSI Threshold, Client Percent
BCMC Suppression
Bandwidth Limit
Per Client: Download/Upload
Per SSID: Download/Upload
Recommendation: Application, Bandwidth
Captive Portal
Authentication Type: Click-through, EnGenius Authentication, Custom Radius, Voucher Service
Redirect URL :
• Redirect to the URL that the user was trying to visit
• Redirect users to a specified URL after login
Advanced Setting: Session Timeout/Idle Timeout/Walled Garden/HTTPS Login
Splash Page
Splash Page Type: External Splash Page URL/Local Splash Page
Schedule
Scheduling
Quick Template
Access Control
Block List
VIP List Radio Setting Indoor Controller User Radius Users
Display
Name
Email
Authorized SSID
Create Date
Status
Add User
Email
Name
Password
SSID Authorization Authorized SSIDs
Display
Name
Email
Authorized by
Authorized Date
De-authorize Firmware Upgrade AP
Firmware Lists: Model, Firmware Version, Upload Date, Actions
Maintenance Window
Upload
Upgrade Now Switch
Firmware Lists: Model, Firmware Version, Upload Date, Actions
Maintenance Window
Upload
Upgrade Now Alert Setting AP
Basic: AP go offline for event with severity
Professional: Configuration changed within network Switch
Basic: AP go offline for event with severity
Professional:
• Configuration changed within network
• Switch Port link status change
• Switch STP port status change
• Switch LBD status change VLAN Settings Display
VLAN ID
Name
Voice VLAN: Protocol, Bridge Priority
LLDP Voice VLAN
Voice VLAN ID
QoS Priority
Mode
OUIs: OUI Address, Description
Quality of Service
Trust Mode
Scheduling Method
Queue Mapping: CoS, DSCP Jumbo Frames: MTU Size General Settings Network Country, Time Zone
IGMP Snooping: Version, VLANs
Local Credential: Username, Password
SNMP: SNMP State, Community AP
LED Light
Syslog Server: Status, Log Server Address, Log Server Port
Message for Blocked Client Advanced Settings
Presence Reporting: Server Location, Key, Interval
Traffic Log
Multicast to Unicat Switch
LED Light
Syslog Server: Status, Log Server Address, Log Server Port Access Control Blocked List
VIP List
Analyze Event Logs Device Event
Time
Device
Event Type
Description / Detail System Event
Time
Device
Event Type
Description / Detail Config Log
Time
Device
Event Type
Description / Detail Team Members Display
Name
Email
System Permissions
Network Managed
Status
Last Login
Action Invite New Member
User Email
Networks
Permission Organization Inventory Devices
Network
Model
Serial Number
MAC Address
Registered Time
Registered By Register Device
Pending Approval: Serial Number, Model, MAC
Manually: Serial Number System Information Usage
CPU
Memory
Disk
System Up Time
Software Version
Check for Update Email Alerts Mail Server
SMTP Server
SMTP Port
Authentication
User Name
Password
From Email Address
To Email Address
Subject Backup Display Name
MAC address
Model Name
WAP IP
LAN IP
Client (2.4G/5G)
FW Version
Network
Uptime
Last Update
Mesh Mode
Action: Detail/Reboot
Throughput
Channel Utilization
Radio: 2.4GHz/5GHz, Unlock. Enabled, Channel, Target TX Power, Channel Width
WLAN: SSID, Status
Mesh: Don't allow this AP to join the Mesh network
Location Details Device Information Model Name Serial Number MAC Address Configuration IP Address
Firmware
Subnet Mask
Gateway
Topology
LED Light
LED Blinking
2.4 GHz Channel Radio 2.4GHz and 5GHz
Unlock
Enabled
Channel
Target Tx Power
Min. Bitrate
Client Limit
Channel Width
Discard 11a/b/g
Mesh:Don't allow this AP to join the Mesh network IP Addressing Static
DHCP
IPv4 Address
Subnet Mask
Gateway
DNS Server 1
DNS Server 2
Management VLAN Logs ADD Filter Time
Event Type
Description Clients Filter Favorite
Time
SSID
OS
Client
IP List Client Name
MAC
Access
Last Seen
SSID
IP
OS
Vendor
RSSI
Rate
Band
Download Access Control VIP
Block
Normal Export CSV file Switch Display Name
MAC address
Model Name
WAP IP
LAN IP
Ports (Active/Total)
FW Version
Network
Uptime
Last Update
Action: Detail/Reboot
Port View: Speed, Disconnected, Disabled, PoE, Uplink , Blocked
VLAN: Name, Tagged, Untagged
Status: PoE, STP, IGMP Snooping, LLDP, QoS, Voice VLAN Detail Device Information Model Name
Firmware
Serial Number
MAC Address
Configuration
IP Address
Subnet Mask
Gateway
Topology
LED Light
LED Blinking
Voice VLAN
Jumbo Frame
IGMP Snooping
STP
LLDP
QoS Summary Ports Speed
Dsconnect
Disabled
PoE
Uplink
Blocked System Config. Spanning Tree
LLDP
Voice VLAN
QoS
IGMP Snooping
Jumbo Frame
Local GUI
Debug Log Upload Ports Port
Label
Enabled
Voice VLAN
Speed/Duplex
PoE
PVID
Untagged VLAN
Tagged VLAN
Isolation
Rate Limit (Tx/Rx)
QoS Configure Enable
Label
Speed/Duplex
VLAN: • PVID • Enabled

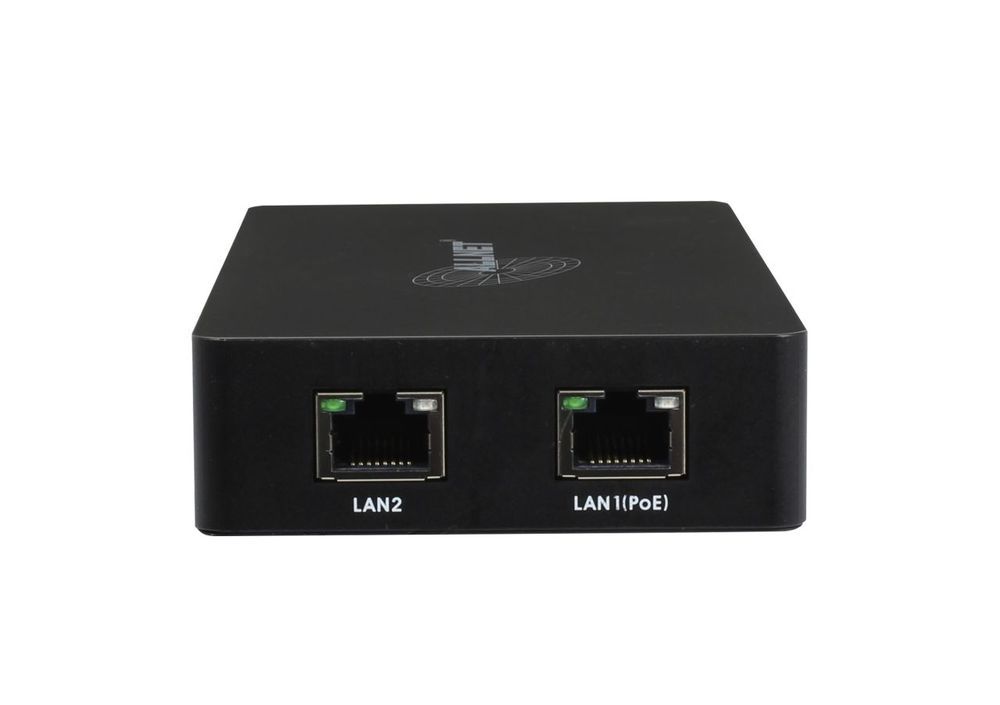

Voice VLAN ALL-AC100 Main Chipset Qualcomm ARM A53, 1GHz Dual-Core Description On-Premises Network Controller SPI/NAND Flash Memory eMMC 8GB RAM 1GB DDR4 Interface 2x 1GbE LAN
LAN1 PoE IN Dimensions
(W x D x H) 153x77x25mm Operating Temperature 0°C to 40°C Certificaton
(Generic) FCC
CE
