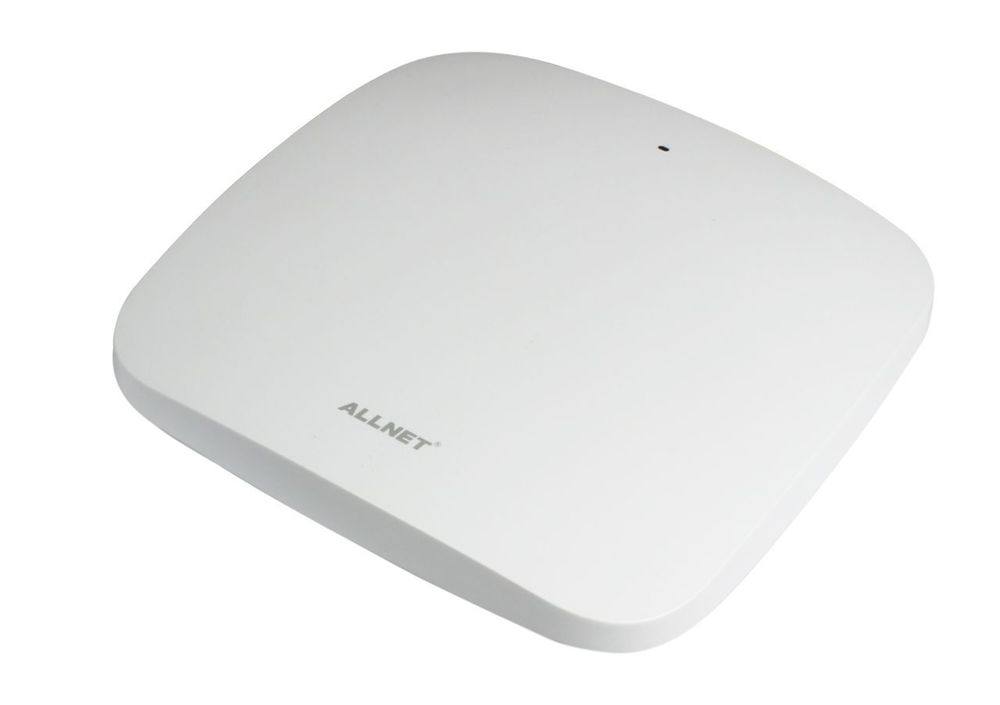

ALLNET Apollo Wireless AP WIFI6 • AX5400 • 2x2:2 4x4:4 • Indoor • 2.5 GbE • ALL-WAPC0544AX-5400 • Apollo Highlights: Dual concurrent 802.11ax architecture and backward compatibility with 11ac/a/b/g/n client devices Support for WPA3 and WPA2-AES authentication 5 dBi integrated 2x2 antenna Supports up to 2,400 Mbps in the 5GHz frequency band and 574 Mbps in the 2.4GHz frequency band Supports 5GHz DFS channels Local and remote management via FitController controller with no fees 1 GB 802.3af PoE port for easy placement up to 328 feet from a power source Choice of AP and WDS modes to meet your management and deployment needs. ALLNET Apollo Series ALL-WAPC0544AX-5400 is an advanced WiFi 6 access point that expands and deepens the capabilities of WiFi for use in high-capacity environments. The feature-rich, enterprise-level hardware can be offered in a slim and flat package while achieving optimal heat dissipation to operate more efficiently and consume less power for maximum 4x4 spatial streams at 4804 Mbps in the 5GHz frequency band and 573 Mbps in the 2.4GHz frequency band.Physical Interfaces: Technical Details Basics: Basic ALL-WAPC0522AX-5400 Apollo Pro 2x2:2 4x4:4 Main Chipset IPQ5018
ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (reserved)
128MB NAND RAM 512MB DDR3 Transmit Power
(Combined) IPQ5018@2.4GHz: 21dBm QCN6024@5GHz: 27dBm Interface 1x 10/100/1000/2500Mbps RJ45 Port
1x Reset Button
1x DC Barrel Jack Operating Temperature 0 ~ 40°C Dimensions (W x L x H) 160 x 160 x 30mm Fully Technical Details: Fully ALL-WAPC0522AX-5400 Apollo Pro 2x2:2 4x4:4 Wireless Radio Specification Access Point Type Indoor, dual radios concurrent,
5GHz 802.11 ax 4x4 MU
MU-MIMO is backwards compatible with 802.11 ax/
ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU MU-MIMO is backwards compatible
with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz,
5725MHz~5850MHz
Supported radios and channels will be varied depending on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11b: Direct
Direct-sequence spread spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11ax supports very high throughput (VHT)
—HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT)
—VHT 20/40/80 MHz
802.11n supports high throughput (HT)
—HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio
–VHT40
MHz (256 256-QAM)
802.11n/ac/ax packet aggregation: A
A-MPDU, A A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm 5GHz: 27dBm
Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streams to be allocated to different
clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption (TBD, estimated) 18W PowerSource Standard IEEE802.3at
DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi
5GHz:5dBi Interfaces Networking Interface One 10/100/1000/2500 Mbps Ethernet Port Reset Button One(1) Reset Button

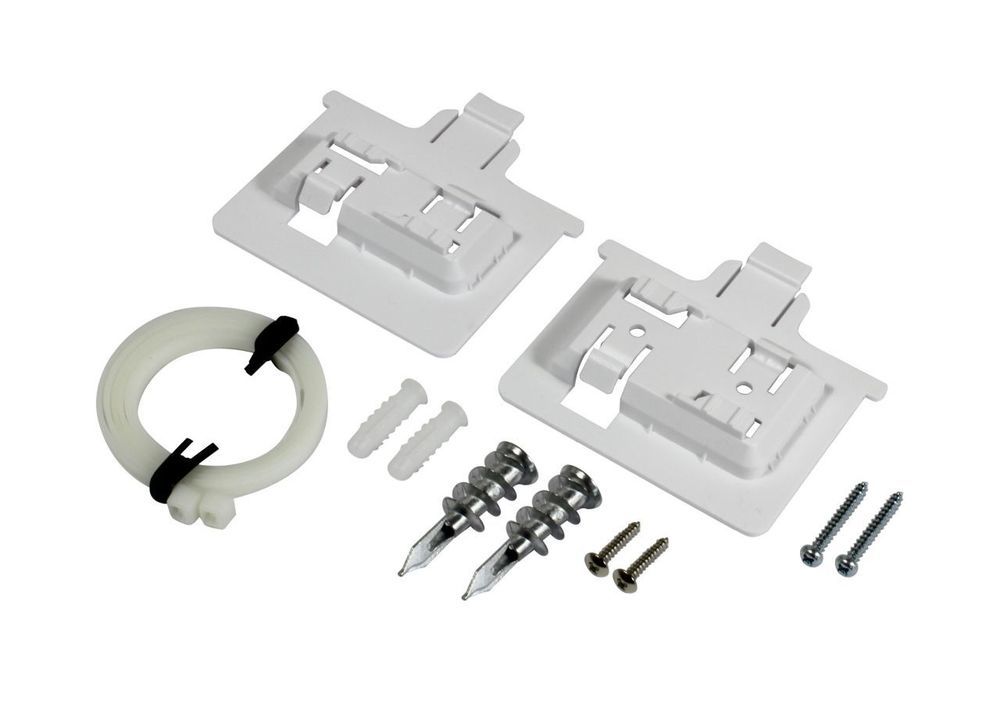

(Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical Wireless Radio Specification AccessPointType Indoor, dual radios concurrent, 5GHz 802.11 ax 4x4 MU MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU MU-MIMO is backwards compatible with 802.11 b/g/n/ac FrequencyRadio 2.4GHz: 2400MHz ~ 2495MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz,
5725MHz~5850MHz
Supported radios and channels will be varied on the configured regulatory domain. SupportedRadioTechnology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct Direct-sequence spread spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT) —HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256 256-QAM) 802.11n/ac/ax packet aggregation: A A-MPDU, A A-SPDU SupportedModulationType 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM TransmitPower(Combined) 2.4GHz: 21dBm 5GHz: 27dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streamsto be allocated to different
clients simultaneously on both download and upload sides. TxBeamforming(TxBF) Increasing signal reliability and transmitting distance. Power MaximumPowerConsumption(TBD,estimated) 18W PowerSource Standard IEEE802.3at DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi
5GHz:5dBi Interfaces NetworkingInterface One 10/100/1000/2500 Mbps Ethernet Port Reset Button One(1) Reset Button
( Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical Channel Data Rate Transmit Power (Typical AVG.)
Tolerance = +/-1.5 dBm Receive Sensitivity (Per-chain) 2.4GHz 5GHz 2.4GHz 5GHz Combine EIRP Combine EIRP 802.11b 1M 21 25 - - -95 - 11M 21 25 - - -88 - 802.11g/b 6M 21 25 27 32 -91 -88 54M 18 22 25 30 -75 -71 802.11n HT20 MCS0 21 25 27 32 -92 -88 MCS7 18 22 25 30 -74 -71 802.11n HT40 MCS0 21 25 27 32 -89 -86 MCS7 18 22 25 30 -71 -68 802.11ac VHT20 MCS0 21 25 27 32 -92 -88 MCS8 17 21 24 29 -70 -66 802.11ac VHT40 MCS0 21 25 27 32 -89 -86 MCS9 17 21 23 28 -67 -63 802.11ac VHT80 MCS0 - - 27 32 - -81 MCS9 - - 23 28 - -59 802.11ac VHT160 MCS0 - - 27 32 - -80 MCS11 - - 22 27 - -53 802.11 802.11ax HE20 MCS0 21 25 27 32 -92 -88 MCS11 16 20 21 26 -63 -59 802.11ax HE40 MCS0 21 25 27 32 -89 -86 MCS11 16 20 21 26 -61 -57 802.11ax HE80 MCS0 - - 27 32 - -81 MCS11 - - 21 26 - -52 802.11ax HE160 MCS0 - - 27 32 - -80 MCS11 - - 21 26 - -52
