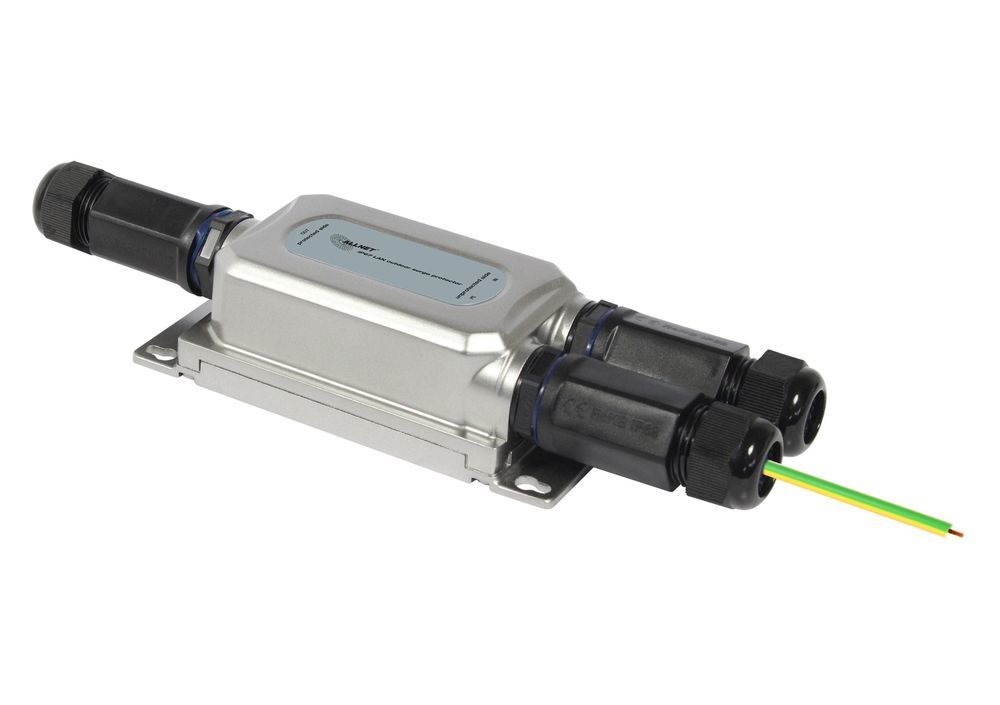

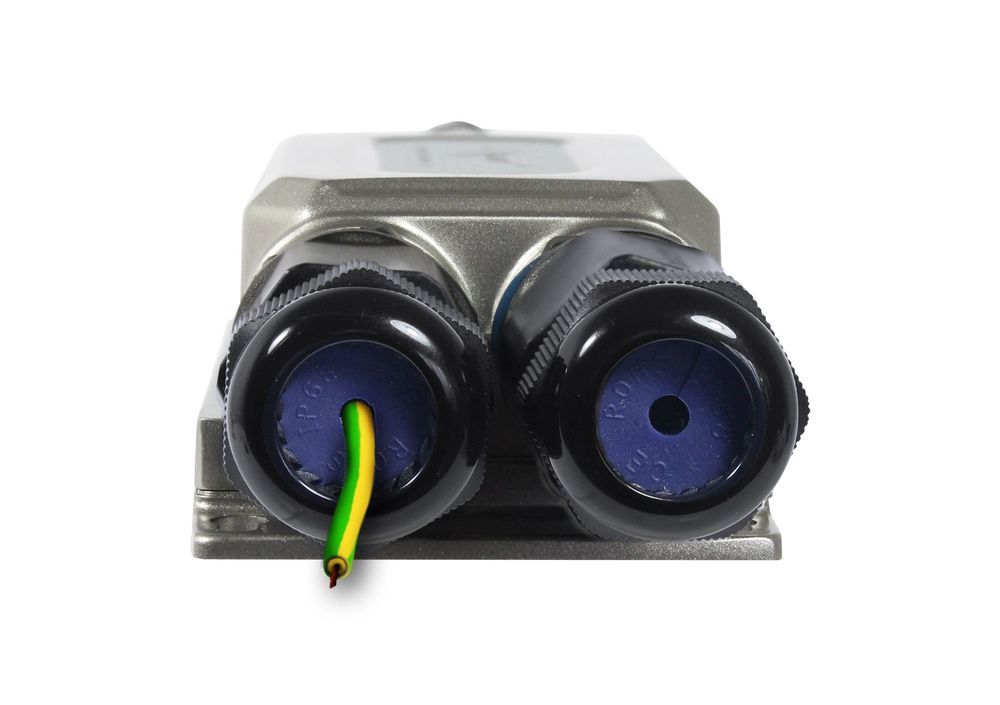

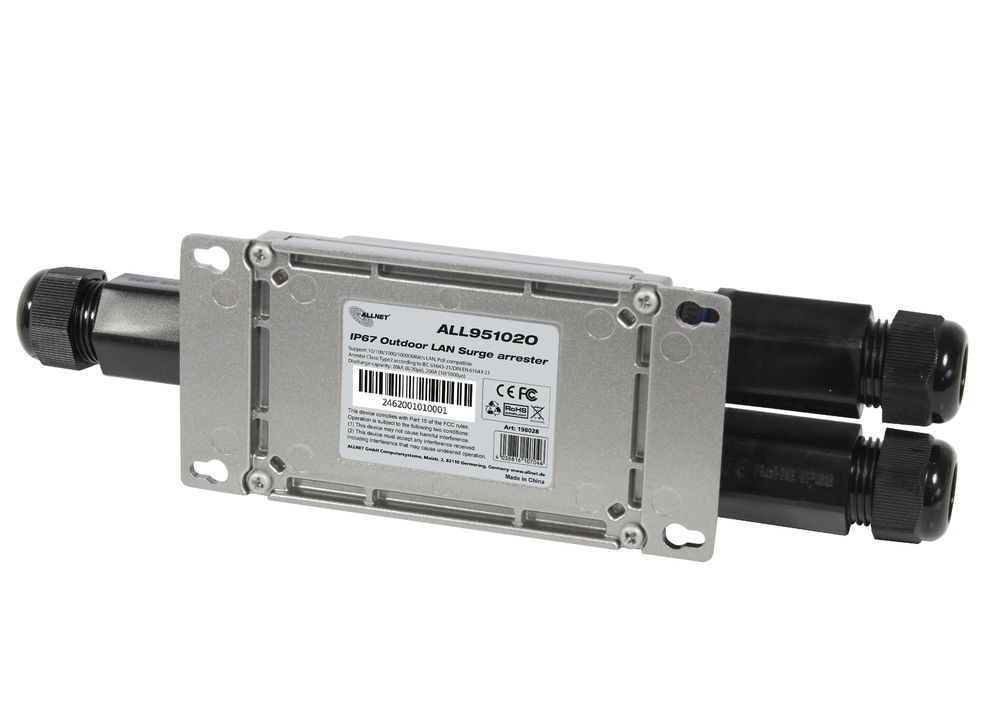

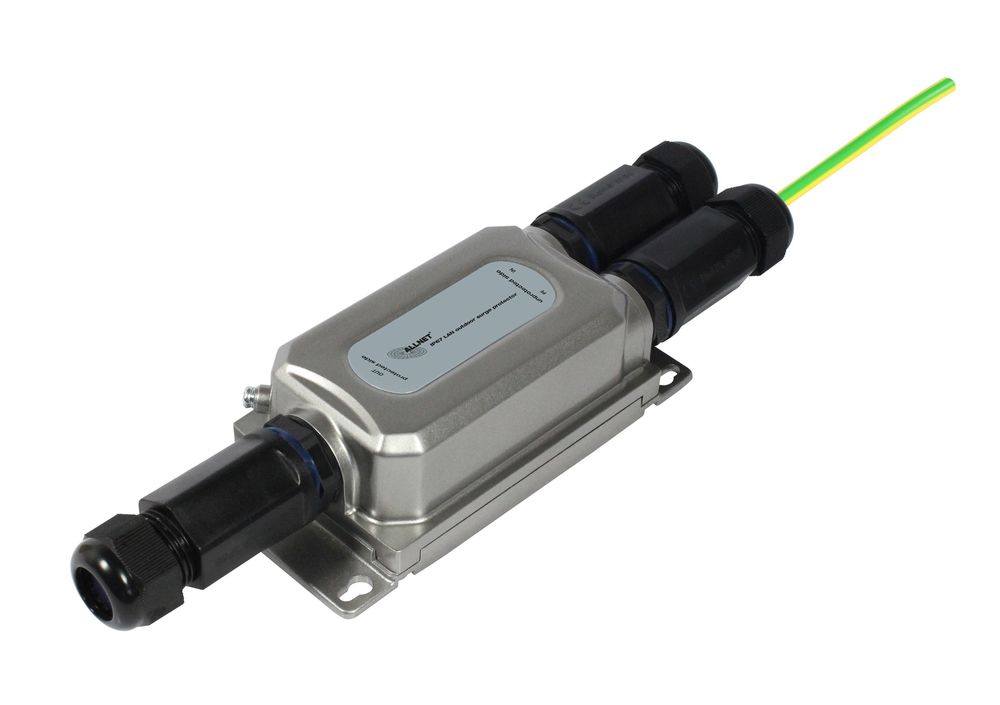

ALLNET TP Cat 6 Surge/Lightning Protection Surge Protector ALL95102O IP66 Outdoor

Highlights: Plug and Play installation IP66 outdoor weatherproof housing Reliable protection against surges for all devices with a network connection Protect your network devices from surges caused by lightning strikes The ALLNET ALL95102O is the new IP66 weatherproof surge protection from ALLNET. The ALL95102O offers reliable protection against damage to sensitive devices. The ALLNET surge protection, housed in the IP66 weatherproof housing, is simply plugged between the network cable and the device to be protected.
This takes over the protection of the device against overvoltage immediately and without configuration. Together with regular surge protection and potential equalization, the infrastructure in safety-relevant areas can be permanently protected, for example.
If the overvoltage is too high, the device breaks and must be replaced!Areas of application: Outdoor IP cameras Outdoor WiFi access points LoRa outdoor gateways / Helium miners Any outdoor devices that have a LAN connection Technical data: Element specification Network connection: 1x RJ45 10/100/1000Mbps PoE capability: IEEE802.3af, at, LTPoE++ up to 90W Dissipation capacity: 10kA (8/20µs), 100A (10/1000µs) Ignition voltage: 90VDC ±20% (Pair to Earth)
< (at 100V /µs)
< (at 1kV/µs) Diff. Clamping: < < 30Apk (Pair wire to wire) Diff. Capacity: < Protected conductors: (pins) 1 - 8 (on 8-pin module plug) Test mark: IEEE 802.3, CAT 5, 6 ESD protection: IEC 61000-4-2 class 4 (10kV CD) Housing: IP66 Weatherproof metal housing Environment: Operating temperature: -40° ~ 75 °C
Operating humidity: 10% ~ 95% (non-condensing) Marking: CE, RoHS Dimensions: 200 x 75 x 45 mm (length x width x height) Weight: 329 grams (device only) Package contents: -ALLNET ALL95102O
-User manual
