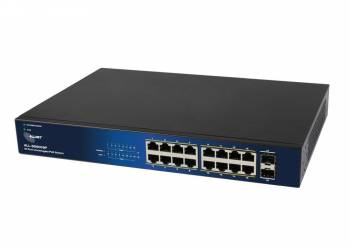

ALLNET Switch unmanaged Layer2 18 Port? PoE budget 240W? 16x PoE at ? 2x SFP? 48,3 cm ( 19 inch ) ? Fanless ? ALL-SG8018P

ALLNET Switch unmanaged Layer2 18 port • PoE Budget 240W • 16x PoE at • 2x SFP • 48,3 cm ( 19 inch ) • Fanless • ALL-SG8018P Highlights: 16 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet port 2x SFP Gigabit ports 240W PoE Budget Supports jumbo frames 10K bytes. PoE Alternative A (Pin 1.2/3.6) Endspan Fanless Discover the ALLNET Switch unmanaged Layer2 18 Port - a powerful network device for small environments that is characterized by its impressive performance and silent operation .
With its 16 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet ports, this switch provides reliable connectivity for your network devices. The 2x SFP Gigabit ports enable seamless integration of fiber optic connections and expand the flexibility of your network
. Budget of 240W allows you to power PoE-enabled devices without additional power cables, making installation and maintenance easier. Supporting jumbo frames up to 10K bytes allows you to efficiently process and transmit large amounts of data.
The switch is designed to be fanless, making it ideal for environments where absolute silence is required. This feature enables quiet operation without compromising performance.
With the optional SFP slots you can expand the switch with two uplink ports and support both fiber and copper connections to optimally meet the needs of your network.

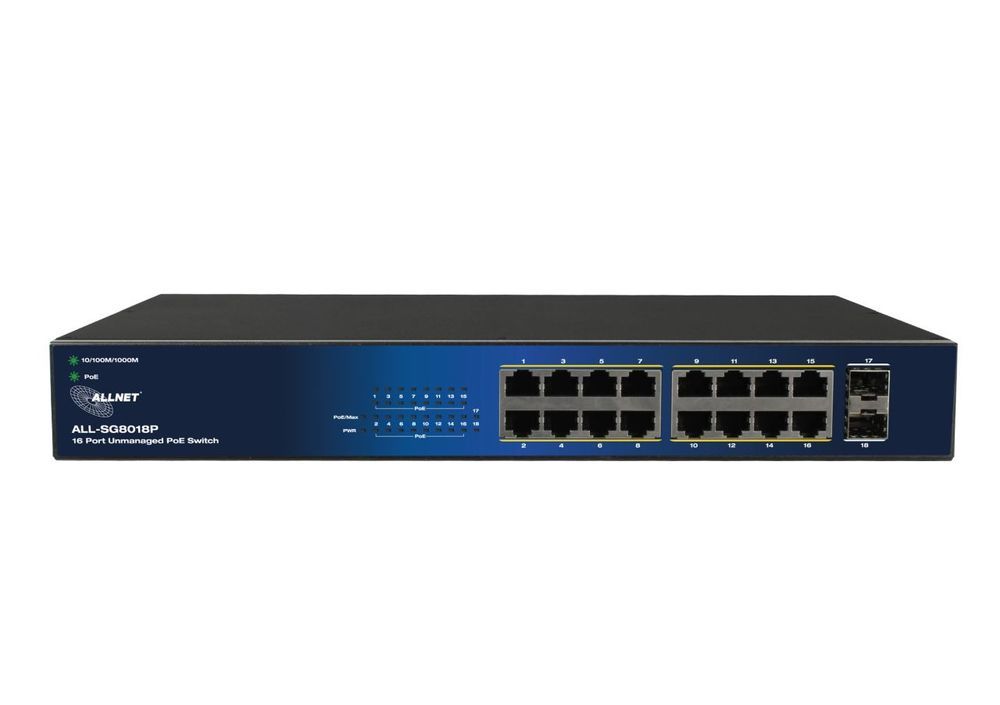

Trust in the ALLNET Switch unmanaged Layer2 18 Port – the perfect solution for a powerful and noise-free network environment.Mechanical Drawings: Front Panel: Technical Details: Items Specifications Model No. ALL-SG8018P Key Components RTL8382L+RTL8218D
IP808ARx2 I/O ports 16x GbE ports, RJ45
2x SFP Giga Ports PoE ports Port# 1~ 16
IEEE802.3at, IEEE802.3af LED Define PWR: Green LEDOff: power off or fail On: power on PoE Max.: Green LEDOff: No over PoE max power Alert On: Over PoE max power Alert 16 RJ45 Port LED: one bi-color LEDs on daughter board
Link/ACT: Green/AmberOff: port disconnected or link fail Green on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE: Green LEDOff: PoE power output off Green on: PoE power output on SFP Port:

• Off: disconnected or fail
• Green: 100/1000Mbps connected
• Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control 3 years @ 40? PoE power pin-out Alternative A (Pin 1.2/3.6) PoE Output power capacity Maximum output :30W per each portCompliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority can be configured and default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable PoE Power Budget 240Watt Dimension 330mmx230mmx44mm FAN Design FANLESS Temperature Operating : 0 ~ 40°C
Storage : -40 ~ 70°C Humidity Operating: 10% ~ 90% RH (non-condensing)Storage: 5% ~ 90% RH (non-condensing) Marks Safety - LVD EN62368-1:2014
EMC - CE EN55032: 2015+AC:2016
EN55035: 2017 Class A
FCC Part 15, Subpart B:ANSI C63.4-2014 Class A
