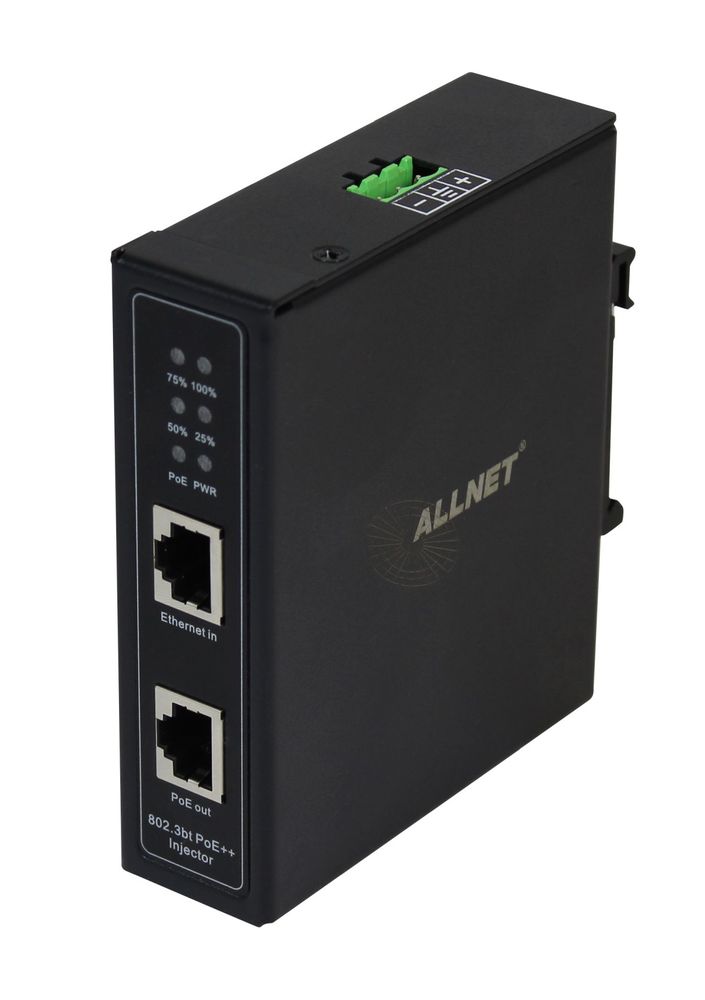

ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / Metal housing / ALL-PI2014-I-BT90 content_copy

ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / ALL-PI2014-I-BT228,6 cm ( 90 inch ) Highlights: 1 RJ45 Ethernet data input + 1 RJ45 Power over Ethernet output (Data + Power) 90W LTPoE++ Power Sourcing Equipment support DIN rail and wall mounting bracket 48~57VDC terminal block for optional external power supplies (ATTENTION: POWER SUPPLY IS STILL REQUIRED) Supports 10/100/1000Base-TX IEEE802.3at PoE+ compatible Extensive LED displays for PoE diagnostics -40°C to +75°C operating temperature Ensure the reliable power supply to your PoE devices with the ALLNET PoE Injector Industrial Gigabit, model "ALL-PI2014-I-BT228,6 cm ( 90 inch ). This high-quality PoE injector offers a variety of features that optimize your network infrastructure. Here are some of the highlights: Data and power over one cable: The injector has an RJ45 Ethernet data input and an RJ45 Power over Ethernet output. This allows you to transmit data and power over a single Ethernet cable, simplifying cabling. Powerful PoE: With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is able to supply sufficient power even to power-intensive PoE devices. Versatile mounting options: The injector can be mounted on both DIN rails and walls, making installation flexible. Optional external power supplies: For additional flexibility, the injector offers a 48~57VDC terminal block for optional external power supplies. However, please note that an external power supply must be purchased separately. Gigabit speed: The injector supports 10/100/1000Base-TX, which means it can be used in both Gigabit and standard Ethernet networks. PoE+ compatible: It is IEEE802.3at PoE+ compatible, which enables the power supply of PoE+ devices. Clear diagnostics: The extensive LED displays offer a quick and easy way to monitor the status of the PoE power supply and perform diagnostics. Robust design: With an operating temperature of -40°C to +75°C, this PoE injector is suitable for use in demanding environments. The ALLNET PoE Injector Industrial Gigabit / PoE BT (model "ALL-PI2014-I-BT90) is the ideal solution to reliably supply your PoE devices with power and to keep your network running smoothly and efficiently.
Technical Details: Model ALL-PI2014-I-BT90 Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3 x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus Fixed Port Ethernet in:1x10/100/1000Base-TX RJ45
PoE out:1x10/100/1000Base-TX PoE++ PSE RJ45 Power in:1x48~57VDC,Max 2A
(3 Pin Terminal Block) Network Medium 10BASE-T: Cat3,4,5 UTP(=100 meters)
100BASE-TX: Cat5 UTP or better(=100 meters)
1000BASE-TX: Cat5e,6 UTP or better(=100 meters) PoE Description PoE Standard:IEEE802.3af/at/bt PSE
PoE Pin Assignment:1/2/4/5+,3/6/7/8-(4-Pair)
PoE Distance:Max 100m(Cat5e/Cat6)

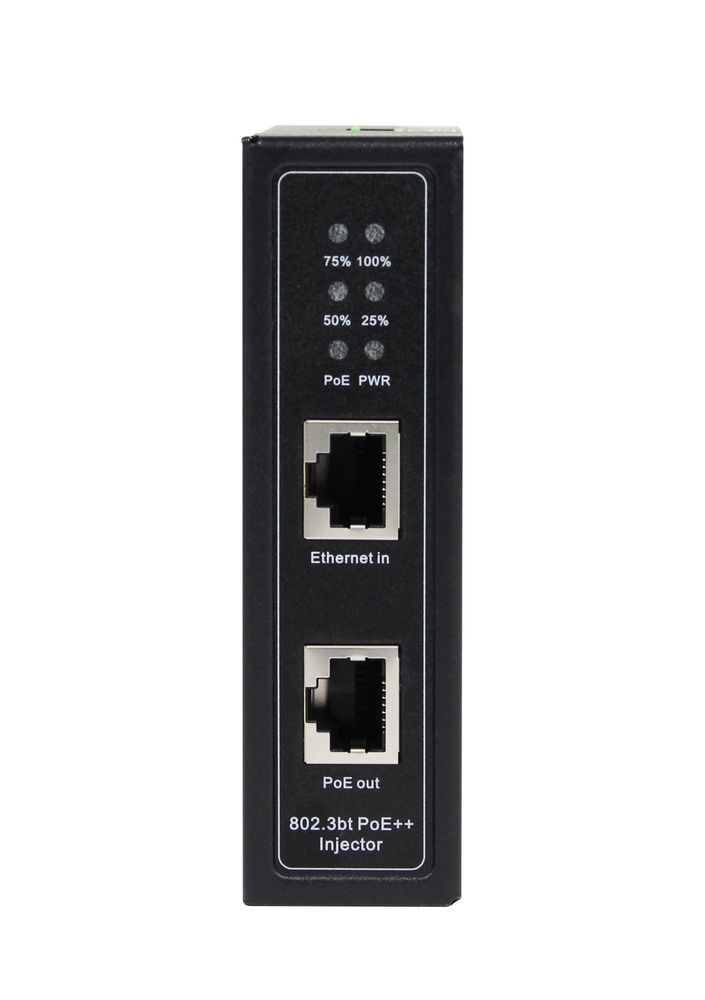

PoE Power Output:Max 90W(DC52-57V,1.73A) LED Indicator PWR:Lights to indicate the injector has power input
PoE:Lights to indicate the injector is providing PoE power
25%,50%,75%,100%(PoE Power Usage Indicator):
25%? to indicate the PoE power usage is less than 25%,blinks to indicate the PoE power usage is around 0-24%,lights to indicate the PoE power usage is more than 25%
50%? to indicate the PoE power usage is around 26-49%,lights to indicate the PoE power usage is more than 50%
75%? to indicate the PoE power usage is around 51-74%,lights to indicate the PoE power usage is more than 75%
100%? to indicate the PoE power usage is around 76-99%,lights to indicate the PoE power usage is at the maximum Mechanical Case: IP30 Slim type metal case
Cooling way: Natural cooling,fanless design
Dimension: 110x98x31mm(LxWxH)
Weight: 0.35Kg

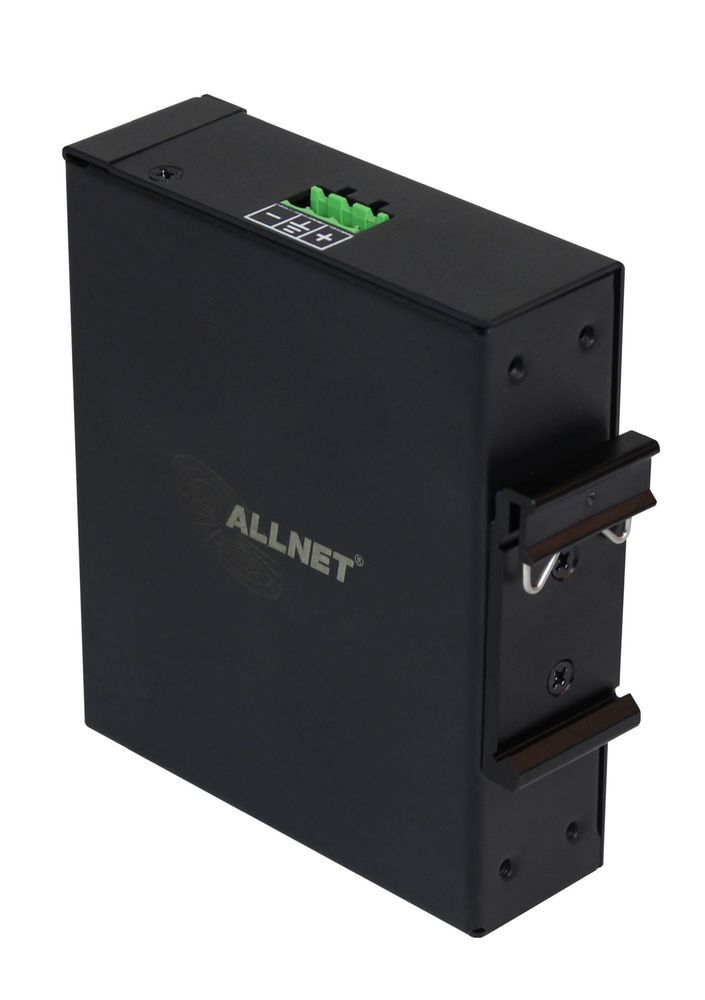

Installation:DIN-Rail / Wall-mount Protection 6KV 8/20u lighting protection
6KV ESD protection
under-voltage,over-voltage,over-current and short circuit protection Environmental Working Temperature: -40°C to +80°C
Storage Temperature:-40°C to +85°C
Working Humidity: 10%~90% (non-condensing)
Storage Humidity: 5% ~ 90%(non-condensing) MTBF 100,000 hours
