ALLNET Power Booster 12-24VDC to 48~54VDC max. 200W HUT/DIN mounting ALL-B101-12-24VDC

Highlights: Robust industrial 200W power booster Voltage increase from 12V DC to 54V DC to supply the PD devices with max. 100W Voltage increase from 24V DC to 54V DC to supply the PD devices with max. 200W Input voltage 12~24V DC Output voltage variably adjustable from 48V DC to 54V DC (rotary knob/screwdriver flat at the front) Extended operating temperature: -40°C to +75°C This PoE voltage booster is a robust and versatile solution for demanding environments. It increases the low input voltage to deliver PoE to end devices and ensure a stable voltage output to your PD in harsh environments. With an input voltage range of 12VDC, it efficiently boosts the voltage to 54VDC and delivers 100W of power. Alternatively, with an input voltage range of 24VDC, it boosts the voltage to 54VDC and delivers a robust output of 200W. An adjustable voltage regulator lets you fine-tune the output voltage between 52VDC and 54VDC to meet the needs of your devices.

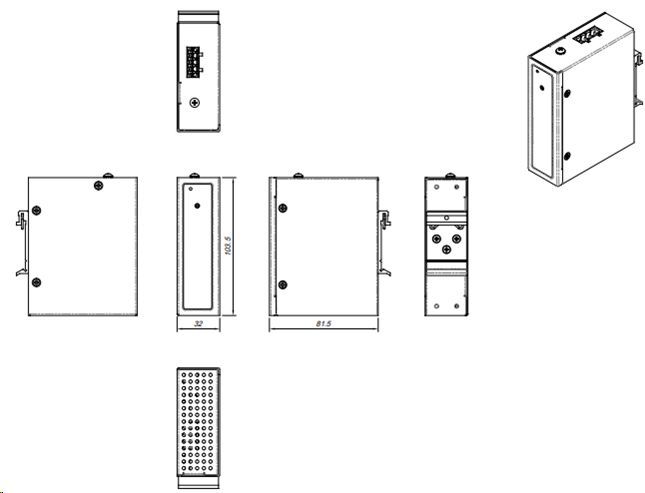

This voltage booster has been rigorously tested for security, transportation and telecom applications to ensure reliable operation under extreme conditions. Experience improved power delivery with the rugged 100W/200W industrial PoE voltage booster. Housing Dimensions (mm) Technical Details LED PWR(Amber)
ON– power ready.
OFF – no power input Overload current protection Present Removable Terminal Block / Power Connector 4 pin terminal block.
2 pin for 12~48VDC Voltage Input
2 pin for 52~54 VDC Voltage output Removable Terminal Block Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm Voltage Adjustable Knob To adjust voltage output from 52VDC to 54VDC to meet your existing application Booster Power Maximum Booster power 100watts at 12~24VDC input
Maximum Booster power 200watts at 24~48VDC input Operating Temperature -40°C to +75°C fully tested. Operating Humidity 5% to 95% (Non-condensing) Storage Temperature -40°C to +85°C Housing Rugged Metal, IP30 Protection Case Dimension (LXWXD) mm 103.5 x 32 x 81.5 mm (LxWxD) Installation mounting DIN-Rail and wall mount brackets included Certifications Safety LVD (EN62368-1) EMC FCC/CE EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6KV Air: 8KV
IEC 61000-4-4 EFT: Power: 2KV Signal: 2KV
IEC 61000-4-5 Surge: Power: 4KV Signal: 2KV Vibration EN 60068-2-6 Shock EN 60068-2-27 Free Fall EN 60068-2-32
