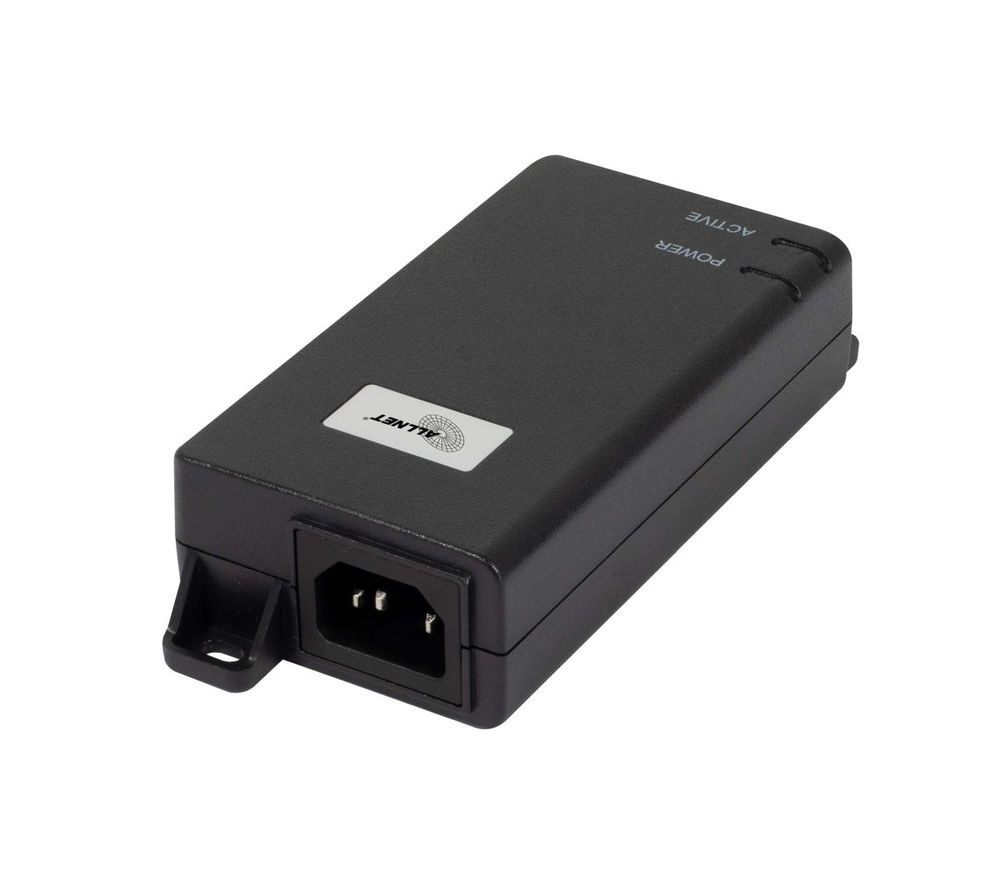

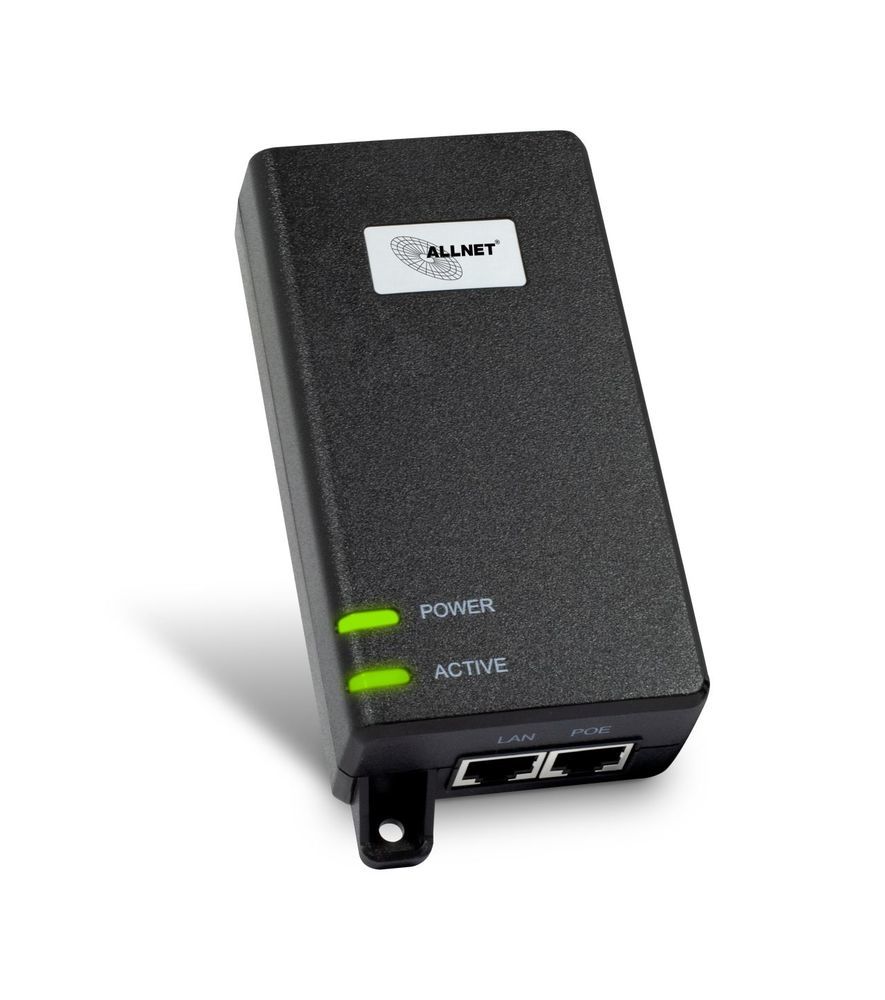

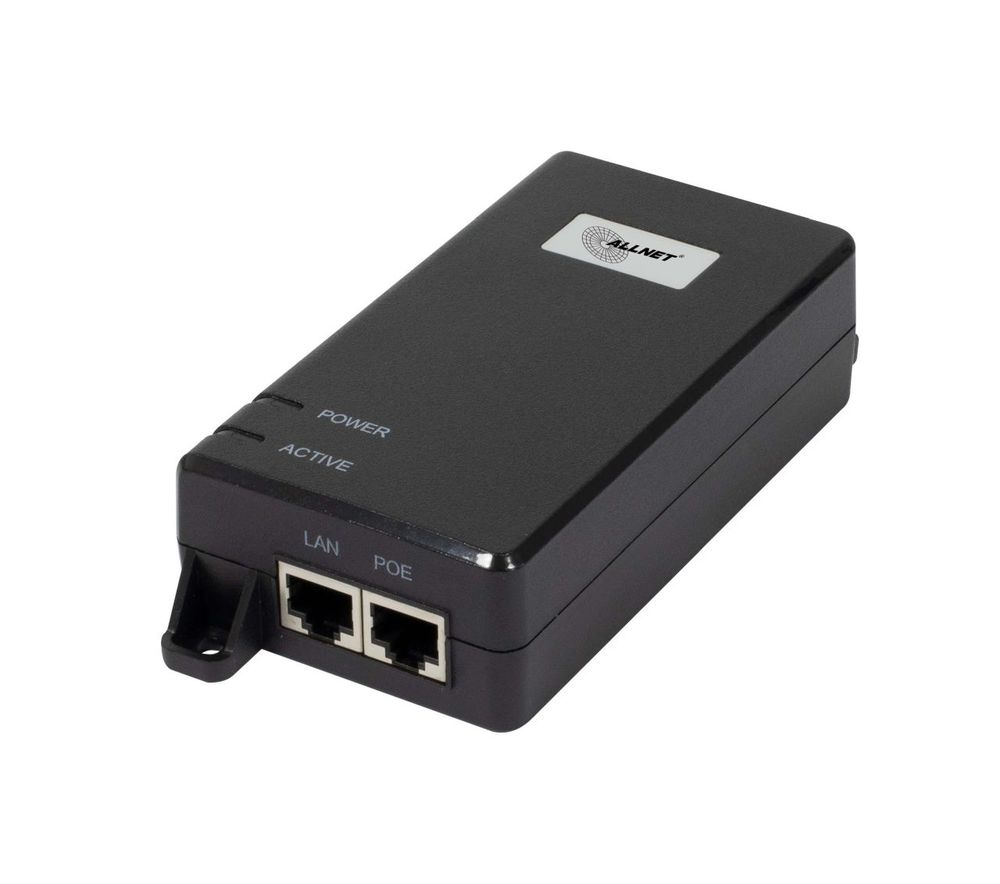

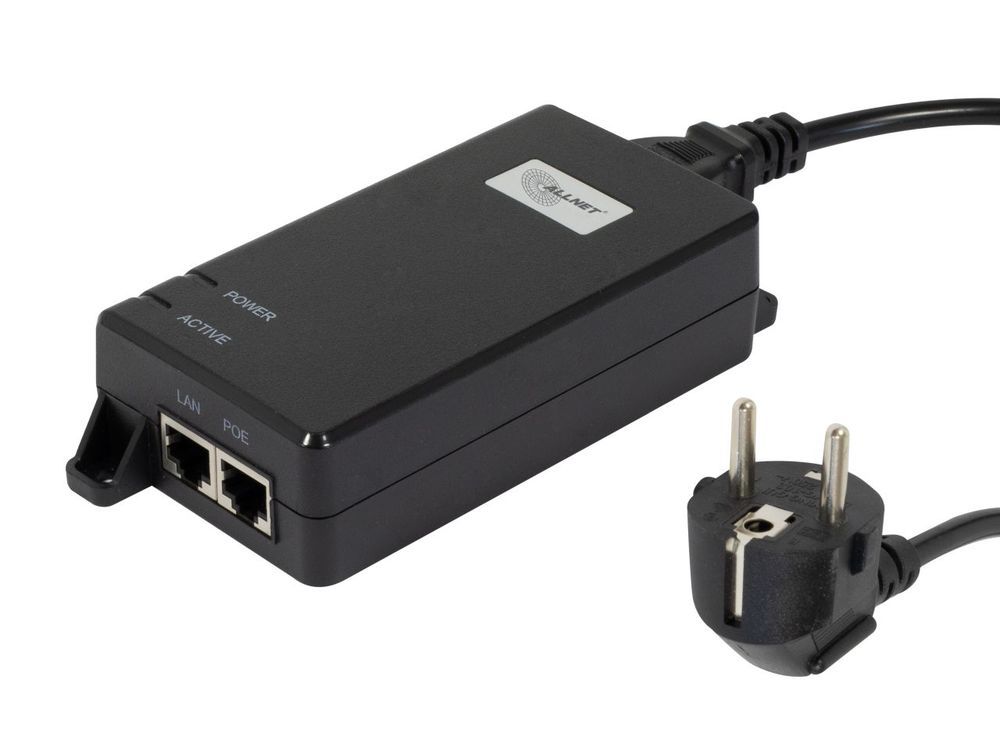

ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G
|
51,60 EUR |
|||||||||||
|
( 61,40 EUR incl. VAT ) ≈ £43.03 | ≈ $57.64 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 25 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2026987 | ||||||||||
| Mfg Part No: | ALL-PI102-BT60-5G | ||||||||||
| UPC/EAN: | 4038816211682 | ||||||||||
| Weight: | 0.255 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ALL-PI102-BT60-5G:
PoE Out: 1x10/100/1000/2500/5000Mbps RJ45 Port Standards - IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- IEEE802.3bz 2.5GbE/5GbE NBASE-T
- Full compliant with IEEE802.3af/at, PoE++
- RoHS Compliance
- WEEE Compliance PoE Standard IEEE802.3af/at/bt PSE Power on RJ-45 4Pairs power lines: 1/2(-),3/6(+)
- PoE Load Indicator : Green @ 30W
- Line-Line 1.2/50us (8/20us): 1KV Immunity - IEC60068-2-6(Vibration)
- IEC60068-2-27(Impact)
- IEC60068-2-32(Free Fall) EMS - IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
- IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
- IEC61000-4-4(EFT) Power Port: ±2kV Data Port:±1kV
- IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
- IEC61000-4-6(CS) 10V(150kHz~80MHz) EMI - FCC CFR47 Part 15, EN55024, EN55032 Marks - cUL/UL
- FCC
- CE
4/5(+),7/8(-) PoE Power Output 55V DC, 1.1A Max. Power supply 60W Input Power Supply AC 100-240V 50/60Hz Operation Temperature 0°C ~ 40°C Storage Temperature -20°C ~ 70°C Operation Humidity 10%~90% RH non-condensing Storage Humidity 5%~90% RH non-condensing Dimensions (L*W*H) 145.51mm x 65.8mm x 33.5mmm Weight 255g Mounting Wall-mounted IP Rated IP40 LED Indicator Power Indicator : Green
Blue @ 30W 60W Network Media(Cable) 10BASE-T: UTP category 3, 5 cable (=100m)
100BASE-TX: UTP category 5.5e cable (=100m)
1000BASE-T: UTP category 5e.6 cable(=100m) Surge Protection - Line-Earth 1.2/50us (8/20us): 2KV
Questions & answers
What is the delivery time of ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G?
The article ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 25 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL-PI102-BT60-5G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G always at the best possible price. We can give you a discount of 2% on ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ALLNET PoE injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / ALL-PI102-BT60-5G we can offer you a price of 51,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
