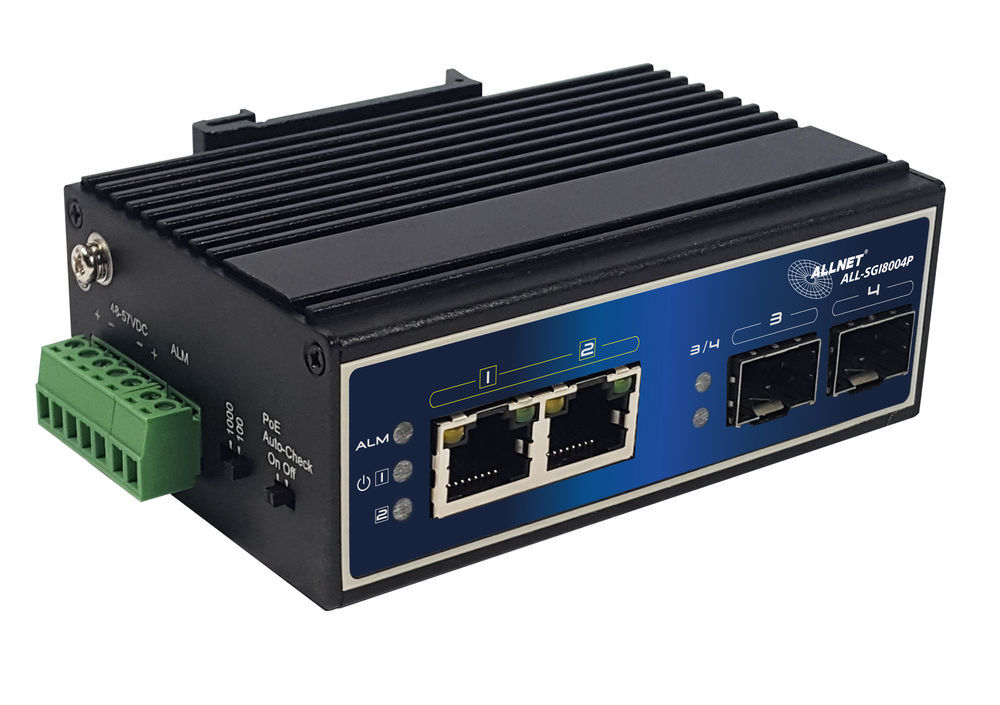

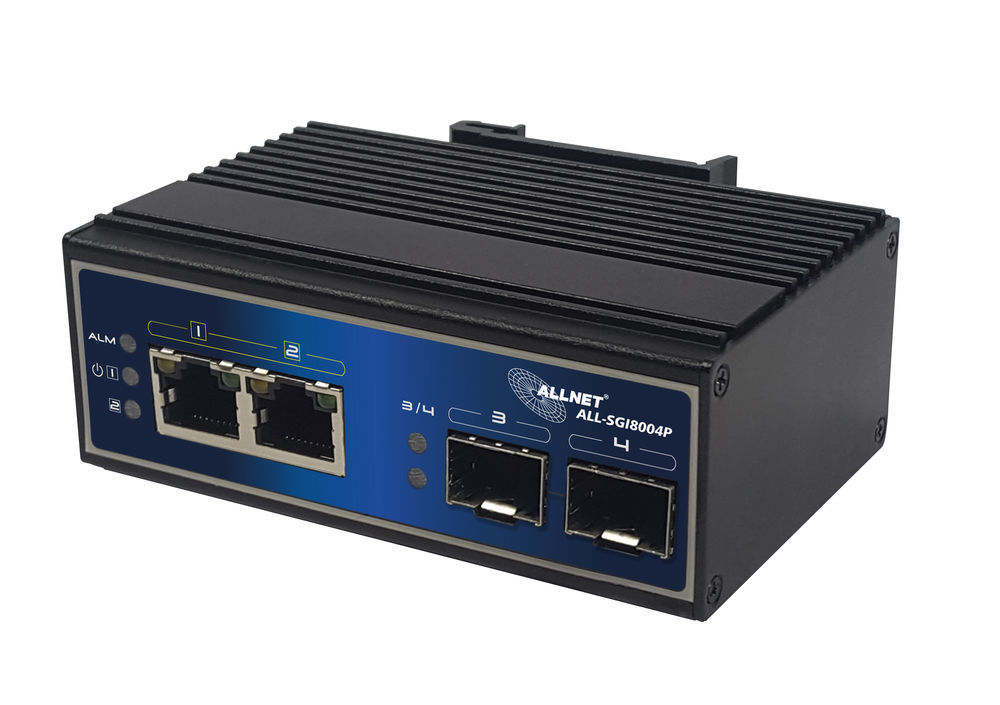

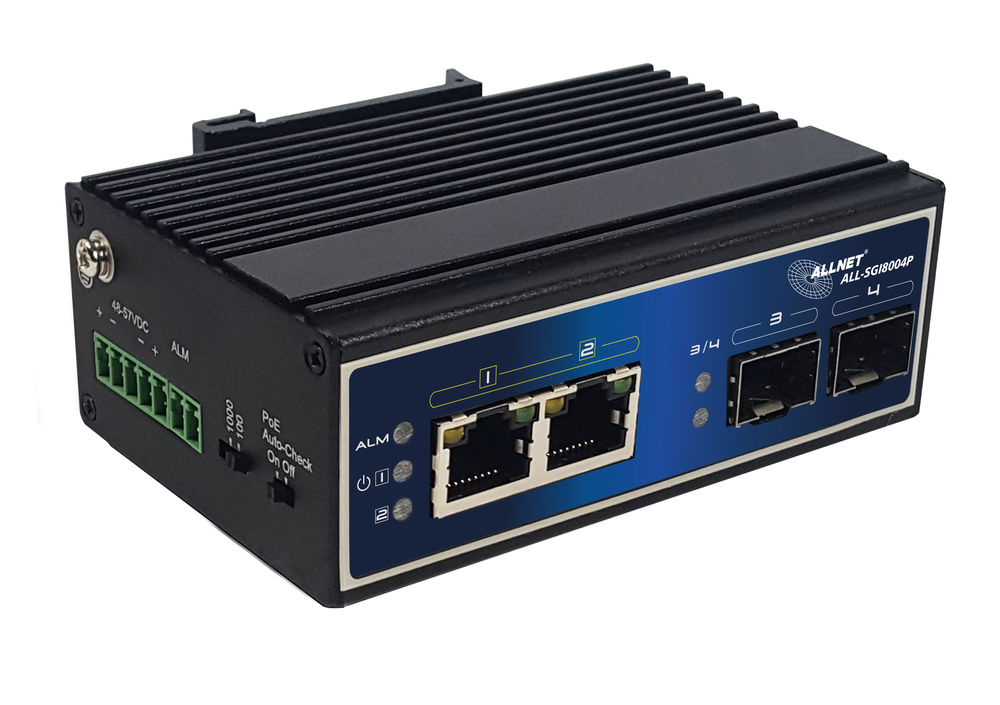

ALLNET Switch unmanaged industrial 4 Port Gigabit 180W / 2x PoE bt / 2x SFP / fanless / DIN / IP40 / ALL-SGI8004P

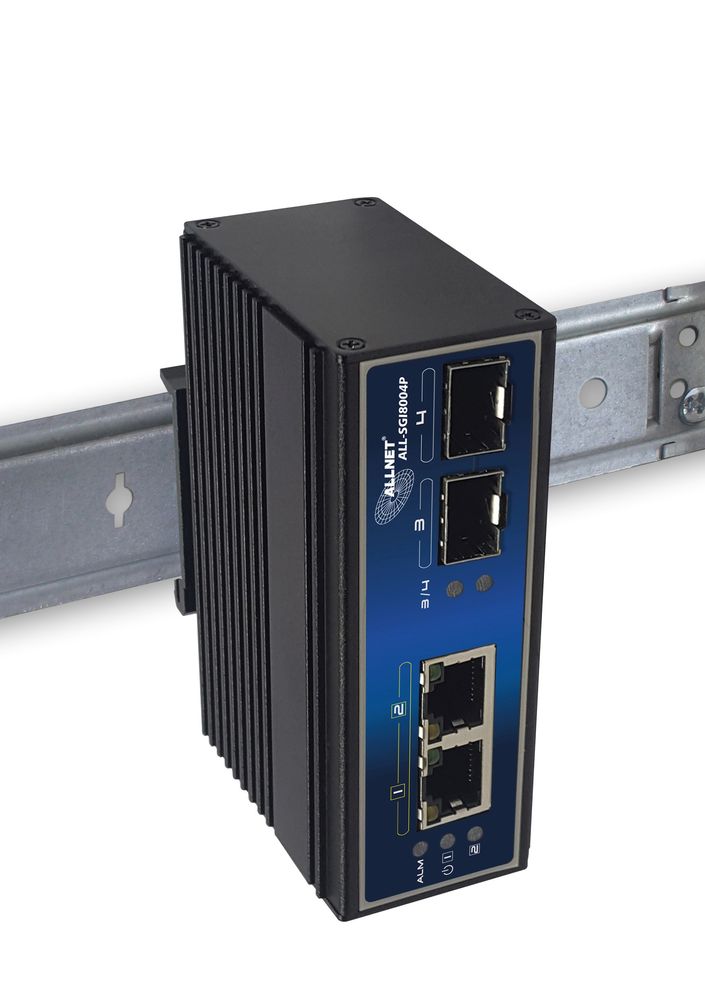

ALLNET Switch unmanaged industrial 4 port Gigabit 180W / 2x PoE bt / 2x SFP / fanless / DIN / IP40 / ALL-SGI8004P Highlights: Compact industrial switch with 2x 10/100/1000M PoE copper ports and 2x 1000M SFP ports for GBICS 2x HighPower PoE ports, up to 90 watts per port The fiber optic ports offer 2 modes that can be selected via the dip switch: 100M mode and 1000M mode to adapt to different requirements Supports relay alarm for power shutdown, network interruption and PoE Off Supports the PoE auto check function, which is specially designed to solve the problems of frozen PoE devices. It can automatically detect the frozen PD devices and restart the output of PSE on the ports and restart the PD device. Supports 6KV surge protection, 6KV contact/8KV air ESD protection extended temperature range of -40°~75°. The ALLNET industrial switch ALL-SGI8004P is a very small switch with an extended temperature range of -40°C - +75°C. Due to its small dimensions, it is very suitable for control cabinets and fuse boxes and is also used in industry with strong requirements for dirt and dust protection.

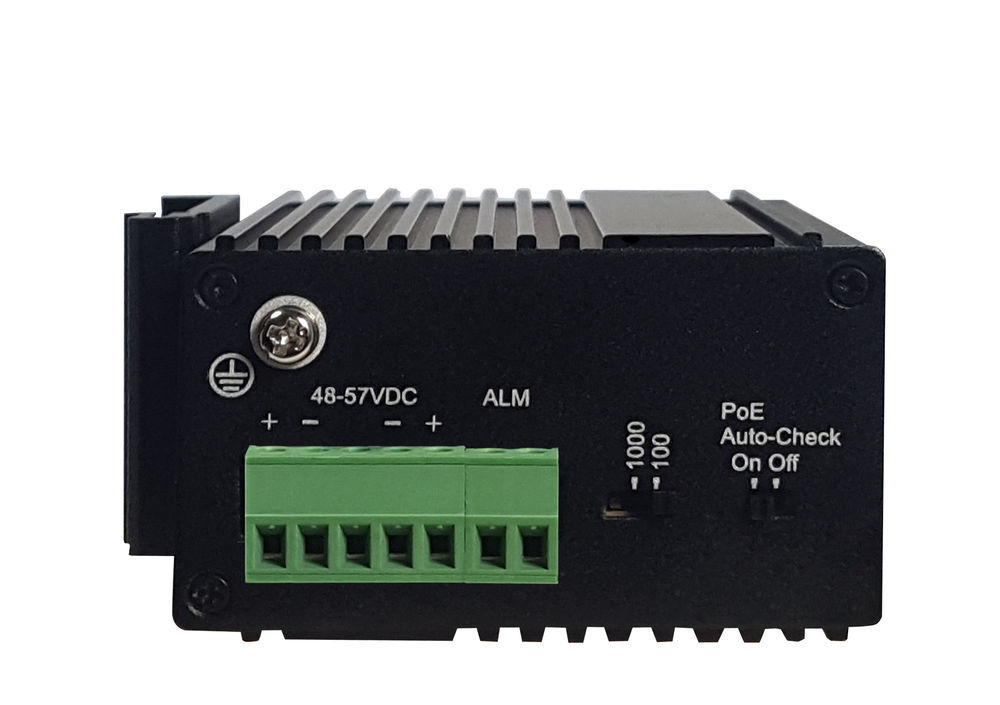

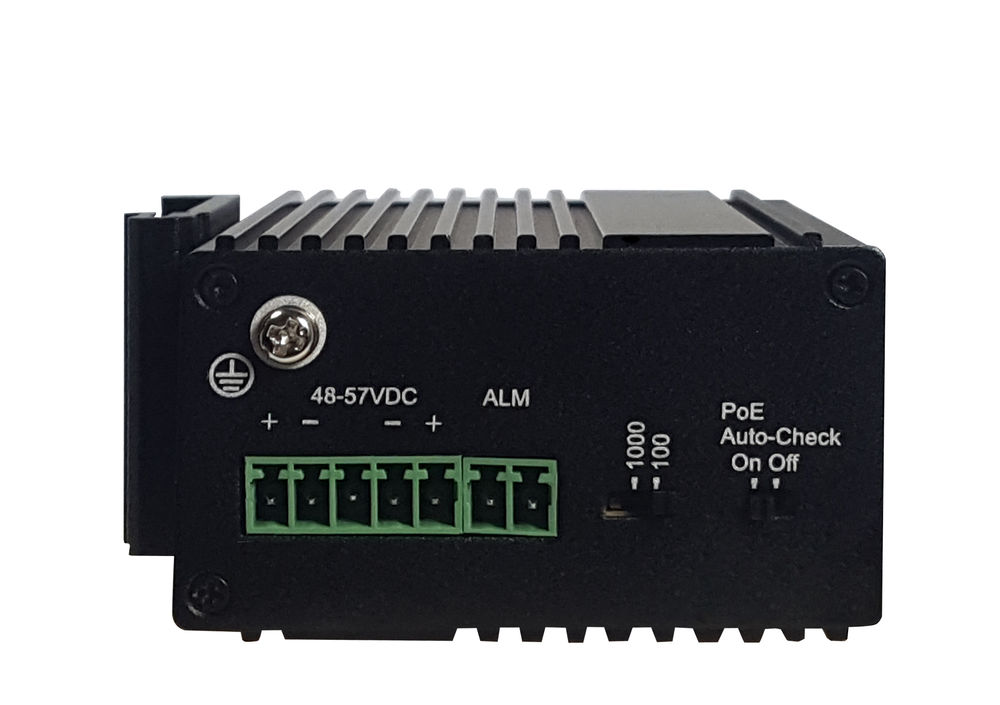

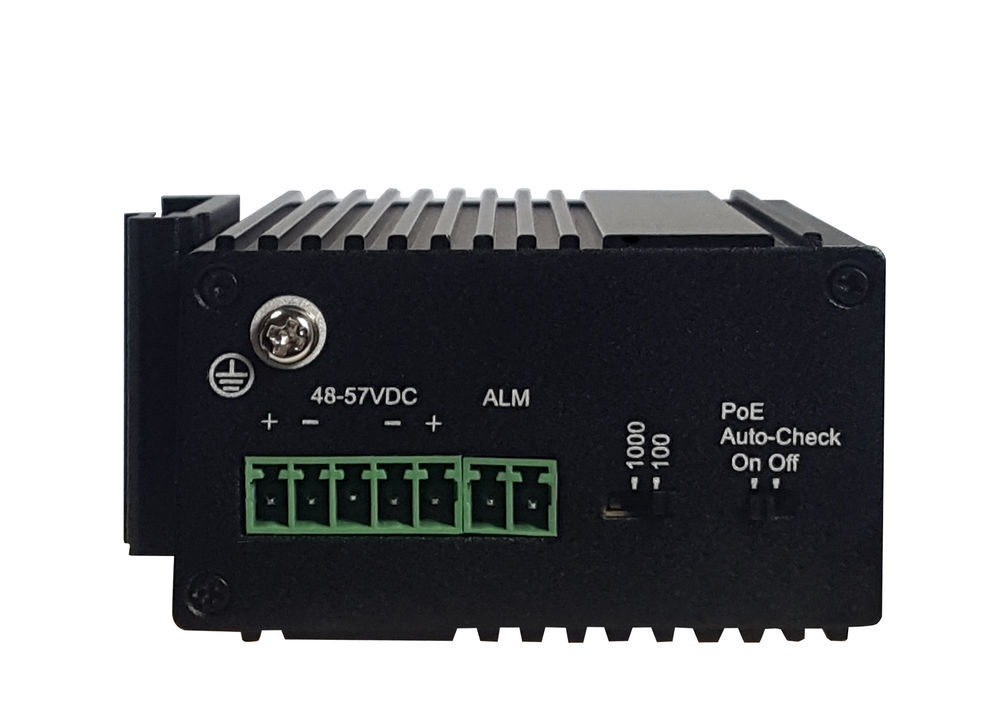

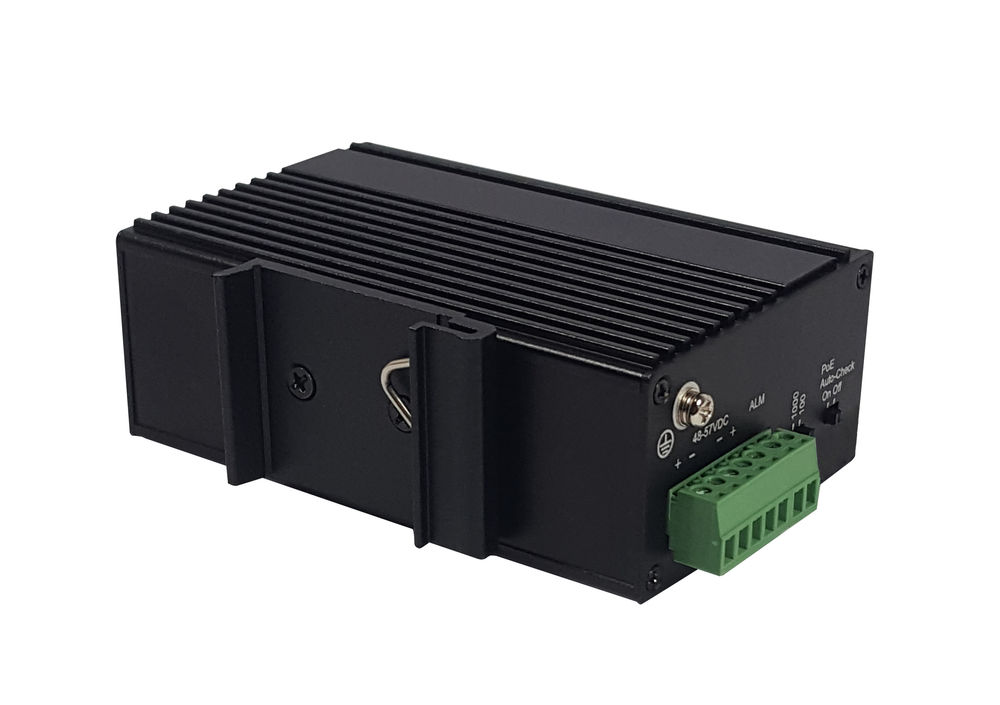

Scope of delivery: Instructions, DIN rail clip, 5-way Phoenix terminal power connection, switch, no power supply included.Technical Details: Parameter Specifications Power supply Powered by power adapter Range of voltage DC 48~57V extra power supply needed, check accessories Consumption Self consumption< Downlink ports Ports 1~2 10/100/1000Base-T 90W PoE RJ45 Uplink ports Ports 3~4 supports 2 modes of 100Base-FX and 1000Base-X PoE Auto-check If detect the frozen PD device, restart it Working mode of Fiber Ports It can be selected 100M or 1000M work mode by dip switch Relay alarm 1 channel relay alarm output for power off, ports PoE off, ports link down Cable and distance Use cat5e/6/6a,100m max Standard IEEE802.3, IEEE802. 3u, IEEE802.3z Switch fabric 8 Gbps Though put 5.95 Mpps Buffer 1M MAC address table 8K Indicator Power: 2 *red Uplink3~4: Green LEDs indicate Link/Act

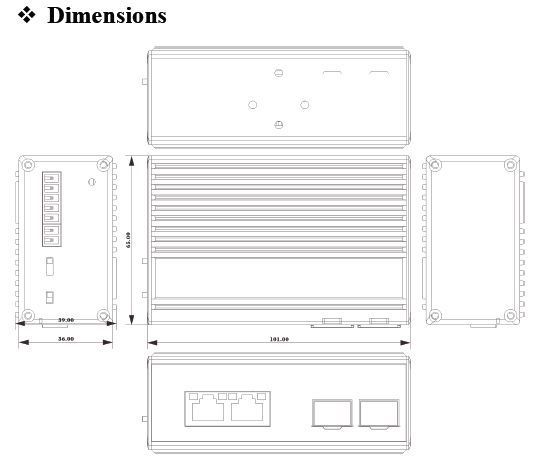

Downlink 1~2: Yellow LED indicate PoE, green LEDs indicate Link/ Act Protection Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2 Working temperature -40°C~75°C Storage temperature -40°C~85°C Humidity 0~95%(Non condensation) Dimension(L×W×H) 101 mm×65 mm×36mm Material Aluminum alloy Color Black Net-weight 300g Marks CE
