ALLNET PoE Extender Repeater Outdoor IP67 IEEE802.3AT IN - AF Out, ALL-PR2012P-E

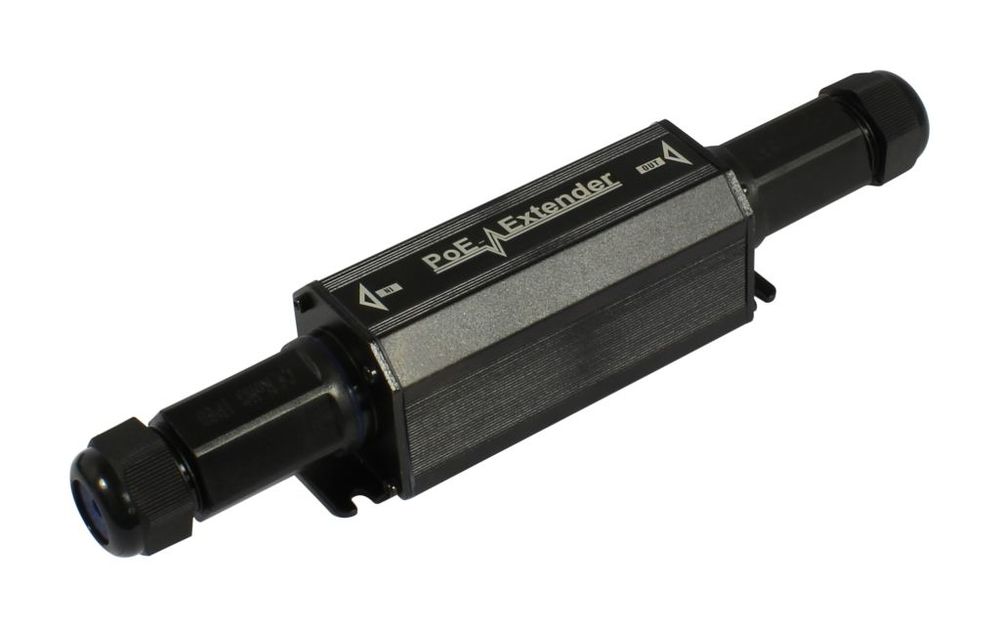

Highlights: Outdoor IP67 Gigabit Extender Repeater 1x 10/100/1000M PoE (IEEE802.3at POE+) INPUT 1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT Max. OUTPUT Power 25W, PoE Pin 1/2(+) 3 /6 (-) Extended operating temperature: -25°C to +55°C The new ALL-PR2012P-E PoE repeater extends the PoE signal by 100 meters each. This length is usually the maximum distance for the PoE supply of power and data. With the help of the repeater, up to 300 meters of PoE can be achieved if a new device is installed every 100 meters. This is only possible because it is an active device and the signal is continually reprocessed. The repeater is fed with IEEE802.3at and outputs IEEE802.3af PoE. Thanks to the highest certification for protection class IP67, the product is suitable for outdoor use as it is dustproof and protected against constant submersion. Installing the outdoor repeater is visibly simple and is shown in the diagram below. In order to give a better idea for the concept of an outdoor repeater, you will find some application scenarios here: Power and data supply for an outdoor IP camera Connection of a switch in a small building to the central facility Possibility of an emergency IP telephone outside the company building Bridging a longer distance between two buildings Technical data: IEEE standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af for POE
IEEE802.3at for POE+ Network Connector: 1x 10/100/1000M PoE ( IEEE802.3at POE+) INPUT
1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT Power over Ethernet input: Pin Assignment and Polarity:
Both 1/2 (-), 3/6 (+) and 7/8 (- ), 4/5 (+) Power over Ethernet output Pin Assignment and Polarity:
1/2 (+), 3/6 (-)
Output power: up to 25W Maximum Distance Expand Range up to max. 100m Connectors Waterproof RJ-45 , EIA 568A and 568B Network cables Outdoor type shielded category 5 (or higher) Dimensions 185mm x 45mm x 45mm Mounting Wall or Shelf Environment Indoor or Outdoor Environmental Conditions Operating Ambient Temperature: -25 to 55°C
Operating Humidity: Maximum 90%, noncondensing
Storage Temperature: -30 to 70°C
Storage Humidity: Maximum 95%, non-condensing
