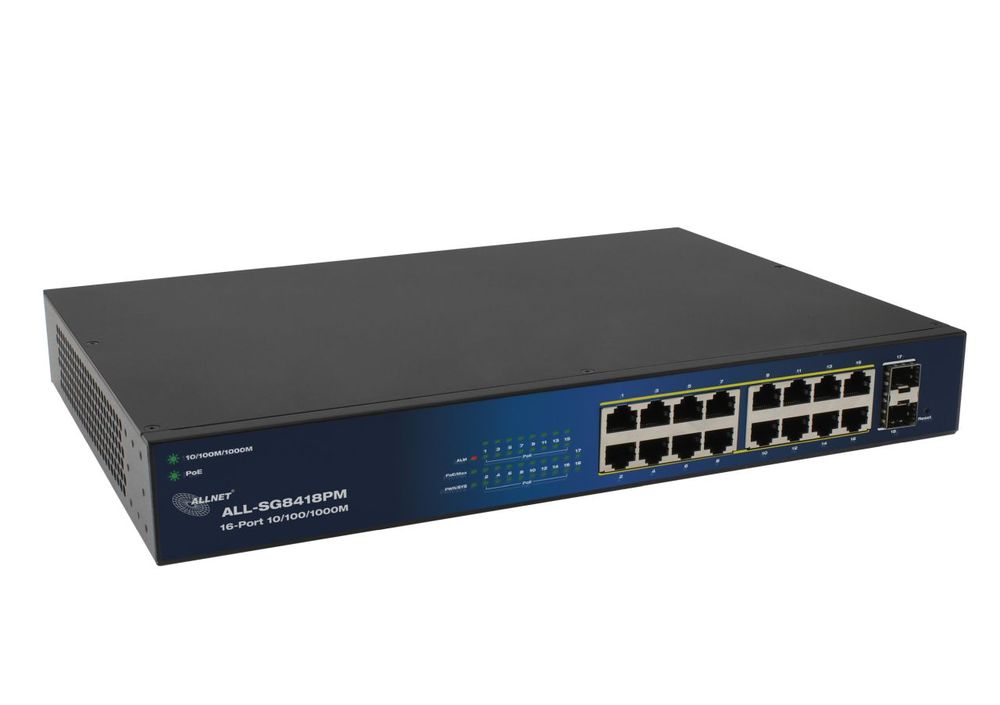

ALLNET Switch smart managed Layer2 18 Port Gigabit? 18x GbE? PoE Budget 240W? 16x PoE at ? 2x SFP? 48,3 cm ( 19 inch ) ? Fanless ? ALL-SG8418PM content_copy

ALLNET 18 Port Managed Gigabit Layer-2 Switch + 2x SFP MiniGbic slots without fan for desktop and 48,3 cm ( 19 inch ) rack installation Highlights: 18 port Gigabit non-blocking switch architecture 16x PoE ports according to IEEE802.3af/at standard 2x 1GbE SFP ports for optional GBIC modules VLAN port-based / tagged based link aggregation (IEEE802.3ad LACP QoS multi-label, queue config, QoS mapping ) Completely fanless, no more annoying noises... max. 240W Budget 48,3 cm ( 19 inch ) inch angle including PoE Budget 240W Supports end span POE PoE occupancy = end span (1/2 and 3/6) Discover the new ALLNET ALL-SG8418PM switch - the ideal solution for small and medium-sized workgroups that require a fast and reliable network connection. With 16 downwards compatible Gigabit PoE ports, this switch offers powerful connectivity for your PoE-enabled devices.
Thanks to its fanless design, the ALL-SG8418PM is perfect for office environments as it does not generate any annoying noise. It is smartly manageable and supports a variety of standards such as QoS, VLAN, Storm Control and IGMP Snooping, which ensures maximum performance and security in your network.

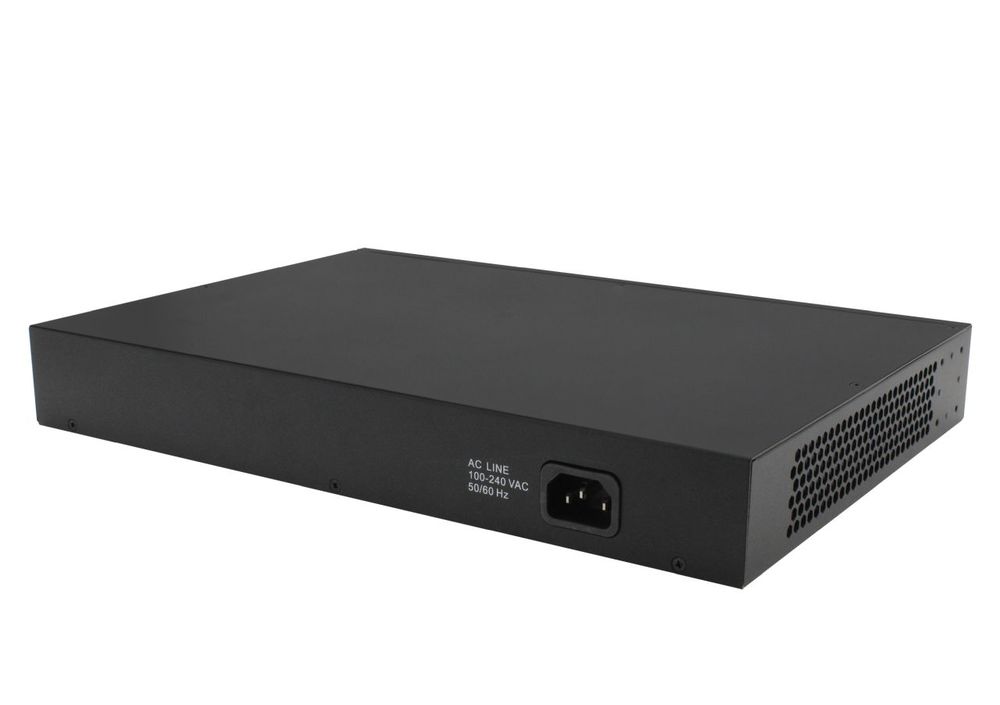

The robust metal housing of the switch is suitable for installation in a 19-inch cabinet as well as for wall mounting. In addition, the ALL-SG8418PM has 2x SFP miniGBIC slots to connect remote servers or uplink end devices via fiber optic cables.

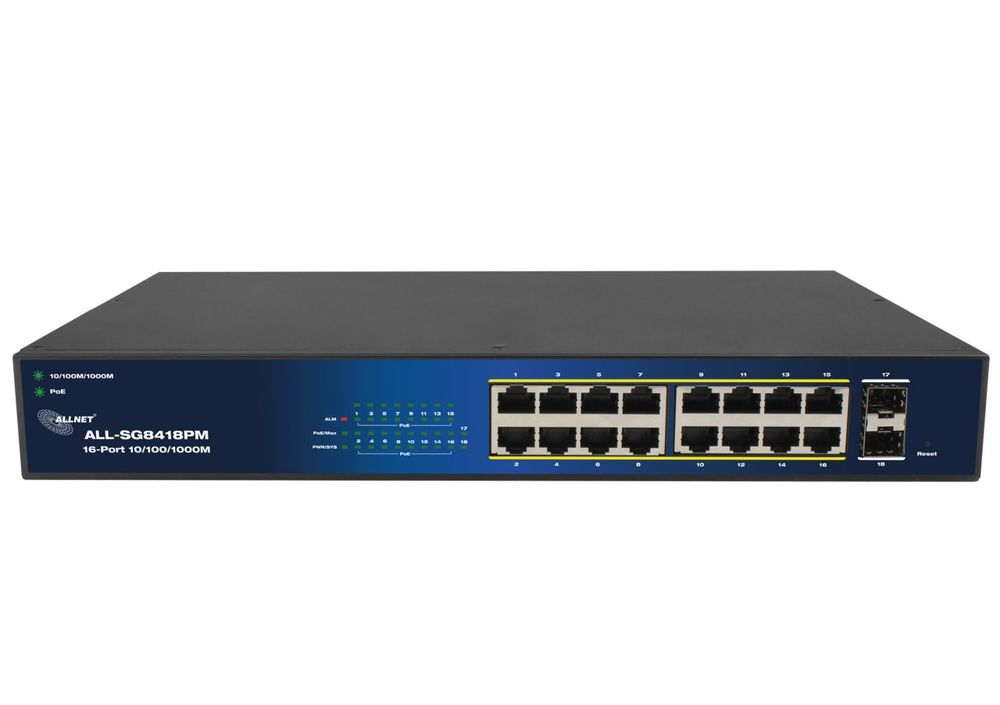

Choose the ALLNET ALL-SG8418PM switch and experience a seamless network connection without compromising on performance and reliability.Mechanical drawing: Front panel: Technical details: Items Specifications Model No. ALL-SG8418PM Key
Components RTL8382M+RTL8218D
IP808ARx2 PSE controller
DDR:1Gb
Flash IC:16MB I/O ports 16x GbE ports, RJ45
2x SFP Giga Ports
Reset Button: reset to default setting, re-start system PoE ports Port# 1~ 16
IEEE802.3at, IEEE802.3af LED Define PWR/SYS: Green LEDOff: power off or fail On: power on ALM: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. PoE Max.: Green LED Off: No over PoE max power Alert On: Over PoE max power Alert Port LED
Link/ACT: GreenOff: port disconnected or link fail Green on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE: Green LEDOff: PoE power output off Green on: PoE power output on SFP Port: Off: disconnected or fail Green: 100/1000Mbps connected Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control 3 years @ 40? PoE power pin-out Alternative A (Pin 1,2/3,6) PoE Output power capacity Maximum output :30W per each portCompliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority can be configured and default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable PoE Power Budget 240Watt Reset button Support reset to default configuration Dimension 441mm(W)x190mm(D)x44mm(H) FAN Design N/A Temperature Operating: 0 ~ 40?
Storage: -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Feature Status System
Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 8K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast
Flood / DHCP Rate Limit / Port Security / Self Loop
/ Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 9K Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address
Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode /
Path Cost / BPDU
Handling Operation Mode : STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management
Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting MAC-Based Local Account WEB-Based Local Account Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP
Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alarm
