ALLNET Switch unmanaged outdoor 3 port Gigabit 100W / 3x PoE+ / 1x SFP / fanless / IP67 / ALL-SGO8103P

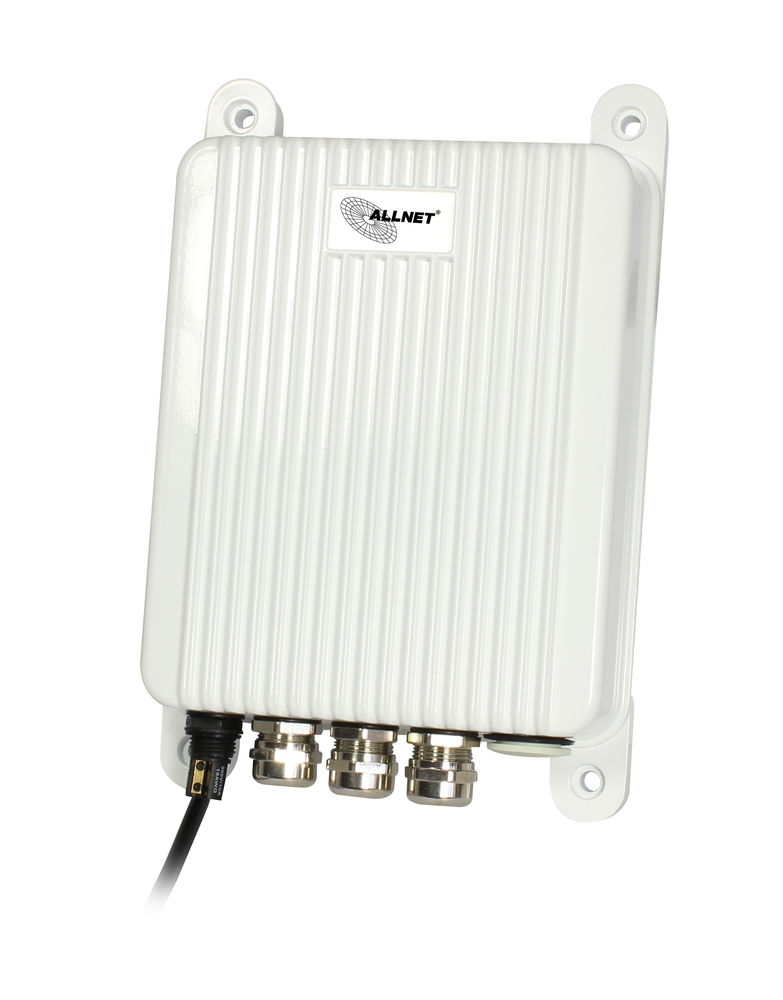

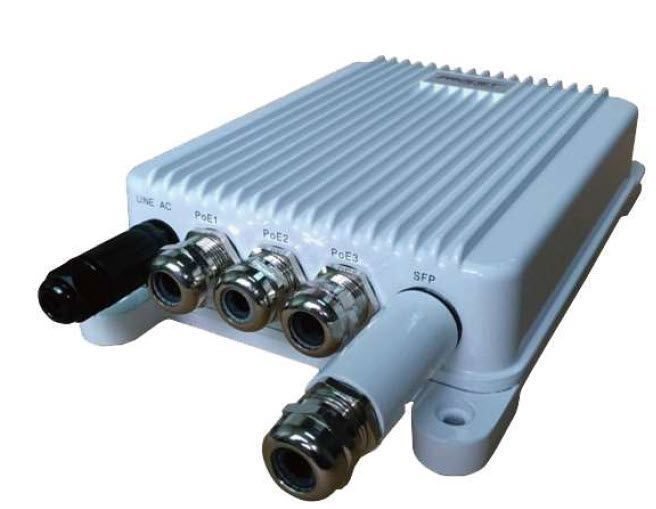

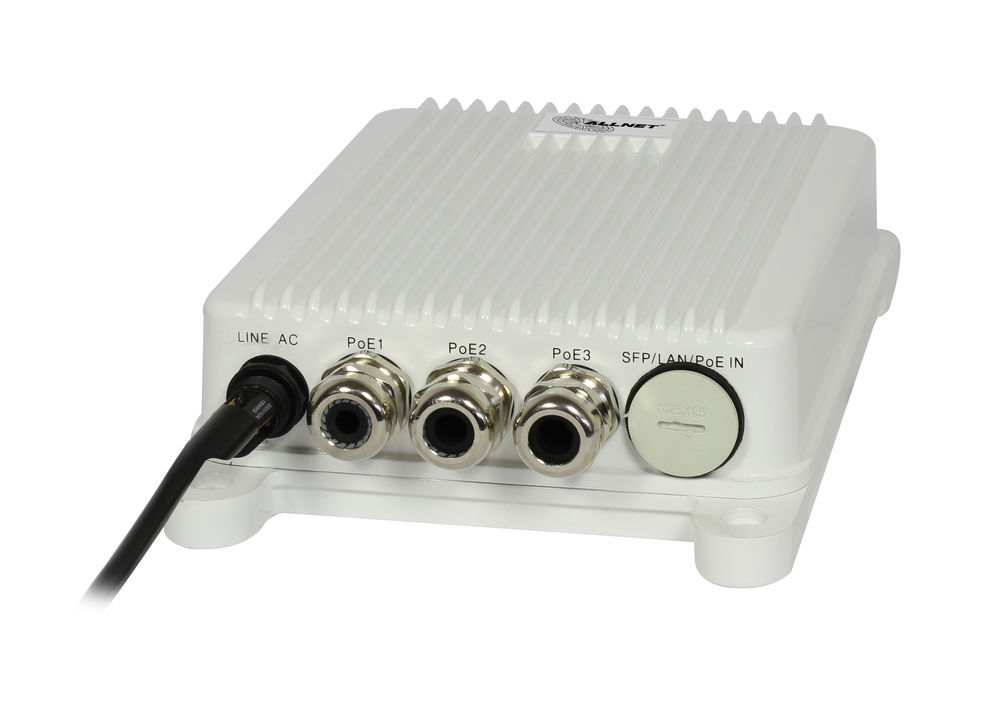

ALLNET Switch unmanaged outdoor 3 port Gigabit 100W / 3x PoE+ / 1x SFP / fanless / IP67 / ALL-SGO8103P Highlights: 3-Gigabit ports with PoE AF/AT support up to 30 watts per port, 1x SFP ports for fiber optic Gbics e.g ALL4750-INDU see accessories PoE ports 1-3 max. PoE IEEE802.3at 30W Max. PoE budget = 100 watts Fanless metal housing with optimized heat dissipation Extended temperature range from -40° ~ +75° IP67 protection class Fanless design The ALL-SGO8103P is a 4 -Port PoE switch housed in a waterproof IP67 metal housing. This switch offers 3 Gigabit PoE ports according to IEEE802.3af/at and delivers a maximum of 30W per port. The Gigabit SFP slot is recommended for the uplink port, which can be connected via both fiber and copper with optional mini-GBICs.

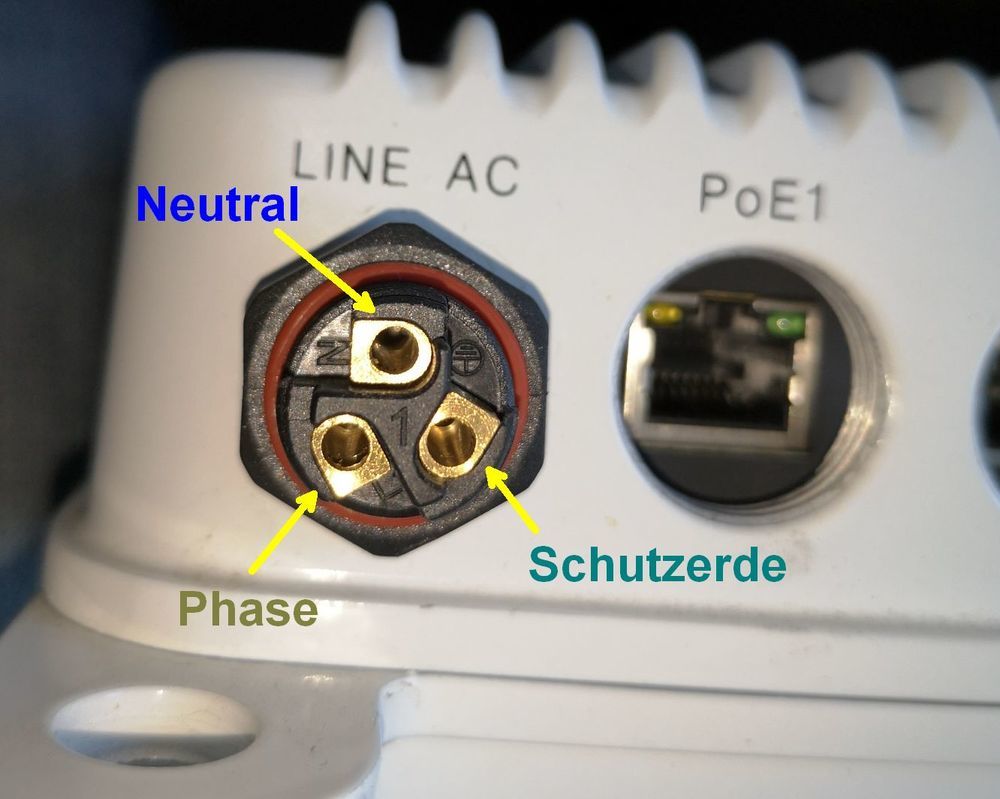

It complies with the IEEE802.3at standard and is also compatible for use with all devices compliant with the IEEE802.3af standard, such as wireless APs, network cameras, VoIP phones, base stations and other high-performance Ethernet devices. The ALL-SGO8103P was designed for outdoor use. It works with an input voltage of 100-240Vac and works reliably in a temperature range of -40°C to +65°C. This outdoor switch is equipped with various features including 6kV surge protection and other features to ensure reliable operation in outdoor environments. Optionally, the switch can be easily mounted on a pole using the ALL-SGO83 pole kit. Usecases: Here are some use cases for the ALL-SGO8103P aimed at our sales sources targeting resellers in the IT sector, lighting sector, telecommunications sector, electricians, video surveillance sector, security system providers, Industry 4.0 integrators, cybersecurity and IoT experts as well Smarthome installers sell: IT field: In IT networks, the ALL-SGO8103P can be used as an outdoor PoE switch to expand networks in remote locations or outdoor areas. For example, it could be used to power wireless APs in remote areas. Lighting sector: In the outdoor lighting sector, the switch can be used to control and power PoE-enabled lighting systems to ensure energy efficiency and flexibility. Telecommunications industry: For telecommunications, the switch can be used in providing network connections for outdoor telecommunications towers and equipment. Electricians: Electricians can use the ALL-SGO8103P to install and power PoE-enabled devices such as outdoor IP cameras, access control systems or VoIP phones. Video surveillance sector: In the video surveillance sector, the switch can be used to operate and manage PoE-enabled cameras and surveillance devices in strategic outdoor locations. Security system providers: Security providers can use the switch to install wireless security systems and devices in areas without a direct power connection. Industry 4.0 Integrators: In Industry 4.0 applications, the switch can help connect and power networked devices and sensors in outdoor areas. Cybersecurity and IoT: When integrating cybersecurity solutions and IoT devices, the switch can be used to securely network and power critical devices in outdoor scenarios. Smarthome installers: Smarthome installers can use the switch to power PoE-enabled devices outside a home, such as: E.g. surveillance cameras or intelligent lighting systems.These use cases demonstrate the versatility of the ALL-SGO8103P switch and how it can be used in various industries and scenarios to provide robust and reliable outdoor network connections.

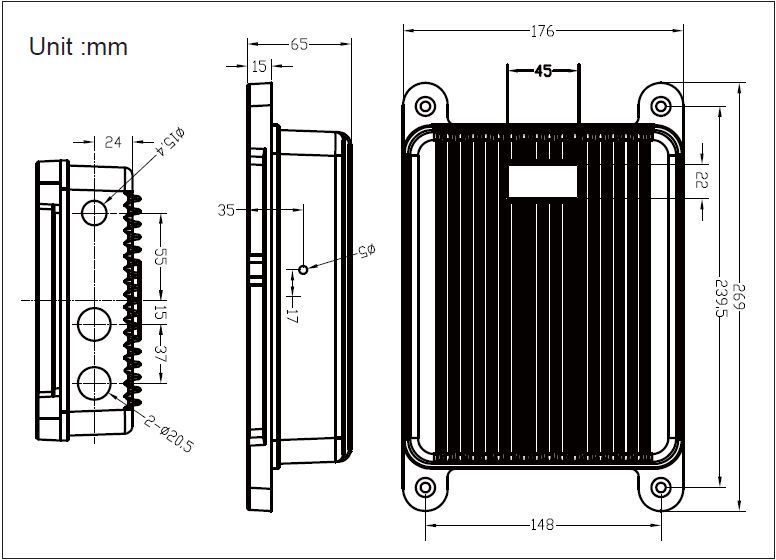

Technical Drawings: Technical Details: Element Specification Standards IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE8.2.3ab 1000Base-T Gigabit Ethernet Support PD with IEEE802.3af/IEEE802.3at standard PoE Power Output Power Output Pins : 3/6(+), 1/2(-) Ethernet Pins: 4/5(+),7/8(-) Data rate: 10/100/1000Mbps Output voltage: 55V Output current: 550mA Input AC voltage: 100-240VAC Input AC current: 2A@ 100-240VAC AC Hz: 50-60Hz Dimension Dimension: 176mm 3048meters Operating Humidiy: Maximum 90%, Non-condensing AC Input Surge Protection 6KV PoE power output surge protection Protected pins: 1, 2, 3, 4, 5, 6, 7, 8 Line - Earth(10/700us): 6KV PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV EMI FCC CFR47 Part 15, EN55024 , EN55032 EMS IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ± 2kV Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) Immunity IEC60068-2-6(Vibration) IEC60068 -2-27(Impact) IEC60068-2-32(Free Fall) Marks CE IP67 WEEE Compliance Protection Level: IP67 IEC60529, NEMA 250
