Rittal 9677715 device adapter 1600 A, 3-pole, screw connection

Your rating:
Average rating
product review for Rittal 9677715 device adapter 1600 A, 3-pole, screw connection
( 4 / 5 ) 4 ratings
Rittal 9677715
This image may differ from the desired article.
Rittal 9677715Rittal 9677715Rittal 9677715
634,43 EUR
incl. 137,63 EUR copper surcharge
( 754,97 EUR incl. VAT )
≈ £530.38  |  ≈ $701.05
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9677715 device adapter 1600 A, 3-pole, screw connection
Datasheet:file_download Download
Lieske Part No.:1871963
Mfg Part No: 9677715
UPC/EAN: 4028177707061
Weight:21.4 kg
Type:SV 9677715

Product information for Rittal 9677715:

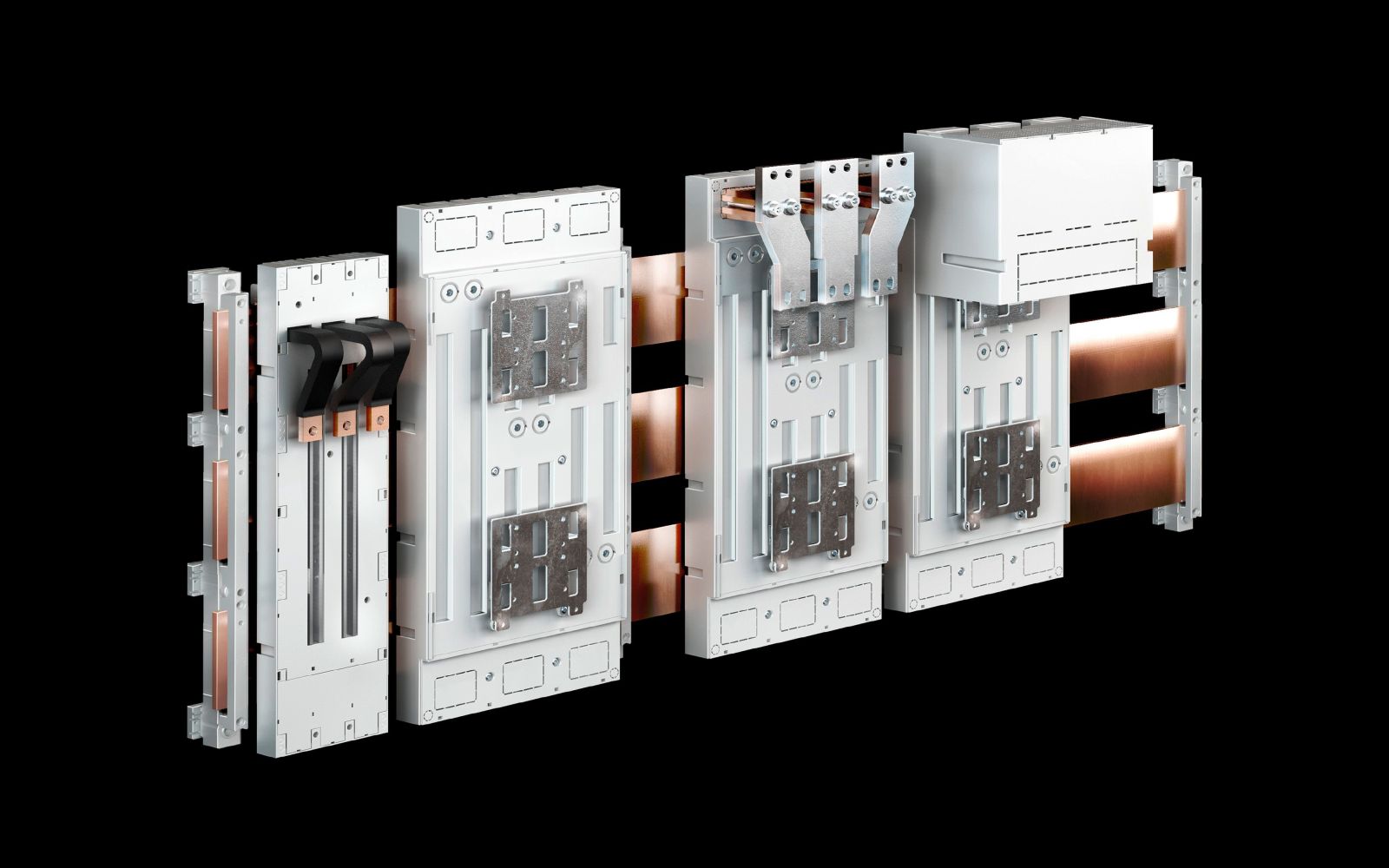

The Rittal SV 9677715 is a device adapter for mounting power switches in enclosures. It serves as an adapter component between the switching device and the busbar system, ensuring secure and standardized fastening. The adapter is designed for busbar systems with a center-to-center spacing of 185 mm and enables integration of switches from various manufacturers into existing switchgear. It is specifically designed for use with switching devices featuring front-side screw connections and is mounted using screw fastening onto punched busbars.

Applications

The device adapter is intended for use in industrial electrical installations, particularly in enclosures where power switches from manufacturers ABB, Eaton, Schneider Electric, and Siemens are installed. It is suitable for installations with a rated current up to 1,600 A and a rated operating voltage of 690 V, 3~. The construction allows use in installations subject to high electrical loads and is designed for switchgear with high safety requirements. Mounting is performed on busbars with a height of 10 mm, which must be punched to enable screw fastening.

Functions and Equipment in Detail

The adapter is made of polyamide and meets flammability requirements according to UL 94-V0, ensuring high flame resistance and self-extinguishing properties. The color is RAL 7035, a standard gray tone commonly used in industrial environments. The cable exit is at the bottom, meaning the outgoing cable from the switching device runs downward, optimizing cable routing and space requirements in the enclosure. The number of poles is 3-pole, which is standard for three-phase AC installations. The design ensures that no cover profile may be mounted in the area of the device, to guarantee safe and unobstructed mounting and maintenance.

Technology Explained Simply

The device adapter acts as a mechanical interface between the switching device and the busbar system. It transfers the loads from the switch to the busbar via screw fastening. The use of polyamide ensures high mechanical stability and heat resistance, while the UL 94-V0 approval enhances safety at elevated temperatures or in case of fire. The dimensions of 300 mm width and 652 mm height are aligned with standard dimensions of power switches to enable compact and secure mounting. The combination of screw fastening and precise adaptation to 185 mm spacing ensures stable and vibration-resistant mounting.

Compatibility and Accessories

The adapter is compatible with power switches from manufacturers ABB (Tmax T7 - 1250 A/1600 A), Eaton (NZM4 - 1250 A/1600 A), Schneider Electric (NS - 1250 A/1600 A), and Siemens (3VA27 - 1250 A/1600 A). It is specifically designed for switches with front-side screw connections. As accessories, shock protection covers for device adapters (e.g., SV 9677794 for Eaton) and connection sets for device adapters (e.g., for LS) are available, providing additional safety and better integration into existing installations.

Mounting and Installation

Mounting is performed by screw fastening onto punched busbars with a height of 10 mm. Installation requires precise alignment of the adapter to the busbar, ensuring center-to-center spacing of 185 mm. Cable exits are at the bottom, so cable routing proceeds downward. It is important to ensure that no cover profile is mounted in the area of the device, to avoid hindering mounting and maintenance.

Operational Advantages

The device adapter enables standardized and secure mounting of power switches from various manufacturers within a single enclosure. The use of polyamide and UL 94-V0 approval increases safety and service life of the device. Clear dimensions and screw fastening ensure stable mounting, even under high mechanical loads. Compatibility with multiple manufacturers reduces the number of required adapter types and simplifies planning and maintenance of switchgear. The copper content of 14.749 kg per unit indicates material quality and electrical conductivity of the integrated conductors.

General
MaterialPolyamide, flammability rating according to UL 94-V0
ColourRAL 7035
For rail systems with centre spacing185 mm
Cable exitBelow
Mounting methodScrew mounting
Number of poles3-pole
Rated current max.1.600 A
Rated operating voltage690 V, 3~
NoteWiring exit: switch output or as outgoing line from switching device, suitable for use with switching devices having front-side screw connection, for mounting on perforated busbars. Note: no cover profile is mounted in the device area.
Width300 mm
Height652 mm
Suitable for busbarsHeight: 10 mm
Suitable for manufacturer (type)ABB (Tmax T7 - 1250 A/1600 A), Eaton (NZM4 - 1250 A/1600 A), Schneider Electric (NS - 1250 A/1600 A), Siemens (3VA27 - 1250 A/1600 A)
Copper content (kg/piece)14,749


Please note...
This article contains a copper surcharge of 137,63 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677715, EAN: 4028177707061

Questions & answers

What is the delivery time of Rittal 9677715 device adapter 1600 A, 3-pole, screw connection?

The article Rittal 9677715 device adapter 1600 A, 3-pole, screw connection is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677715 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677715 device adapter 1600 A, 3-pole, screw connection always at the best possible price. We can give you a discount of 2% on Rittal 9677715 device adapter 1600 A, 3-pole, screw connection if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
