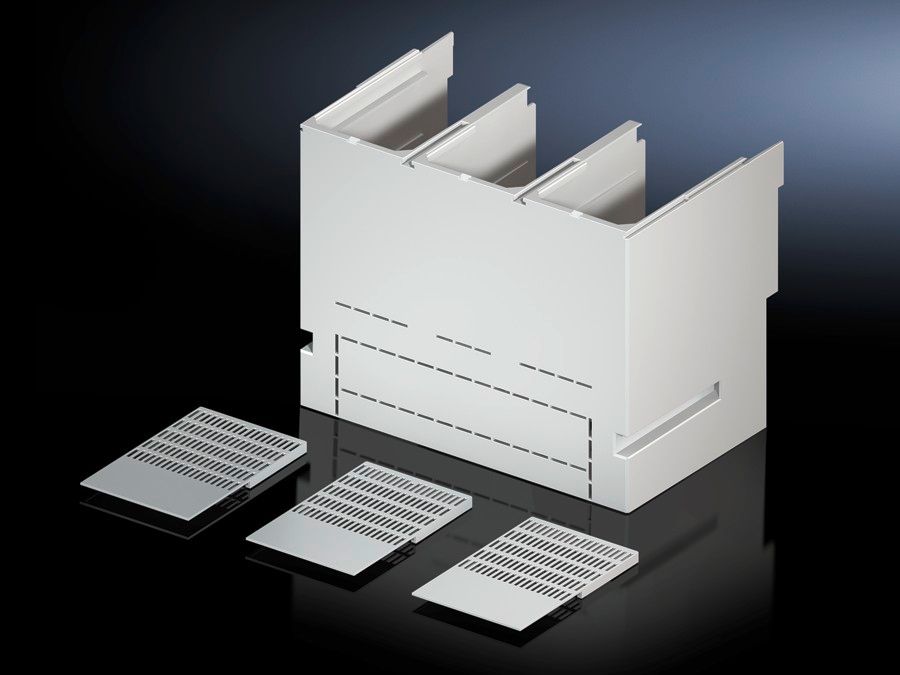

Rittal 9677790 Shock protection cover for device adapter 185 mm

Your rating:
Average rating
product review for Rittal 9677790 Shock protection cover for device adapter 185 mm
( 4.4 / 5 ) 9 ratings
Rittal 9677790
This image may differ from the desired article.
Rittal 9677790Rittal 9677790
59,34 EUR
( 70,61 EUR incl. VAT )
≈ £49.61  |  ≈ $65.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9677790 Shock protection cover for device adapter 185 mm
Datasheet:file_download Download
Lieske Part No.:1131513
Mfg Part No: 9677790
UPC/EAN: 4028177707016
Weight:1.24 kg
Type:SV 9677790

Product information for Rittal 9677790:

The Rittal SV 9677790 is a shock protection cover for device adapters of types SV 967770X and SV 967771X. It is designed for front-side coverage of the connection set in enclosures and power distribution systems, protecting electrical contacts from unintended contact. The cover is made of polyamide, a robust plastic suitable for industrial applications. The material meets the requirements for flammability performance according to UL 94-V0, indicating high flame resistance and self-extinguishing properties under low heat stress. This characteristic is particularly important in environments with increased fire risk or in systems operated under strict safety standards.

Applications

The cover is primarily used in industrial electrical engineering, especially in enclosures where device adapters are used for mounting switching devices. It protects electrical connections and cable terminations from mechanical damage, dust, moisture, and unauthorized access. The cover is designed to also serve as protection for the cable connection of the switching device, increasing its flexibility in use. As a result, it can be used in various configurations of distribution and enclosure systems without requiring additional components.

Functions and Equipment in Detail

The SV 9677790 is equipped with cover inserts, included in the delivery scope. These inserts are used to close open cable access points in the shock protection cover. This creates a closed, clean front surface that is both aesthetically pleasing and safe. The cover inserts allow the cover to be used with different cable arrangements without leaving open openings that could pose a hazard.

Technology Explained Simply

The cover is made of polyamide, a thermoplastic material known for its high mechanical strength, heat resistance, and chemical resistance. The designation UL 94-V0 means that the material self-extinguishes within 30 seconds during a flame test and does not drip burning particles. This is an important safety feature, especially in enclosed enclosures where heat and smoke can spread quickly. The cover is therefore suitable for use in environments with heightened safety requirements.

Compatibility and Accessories

The shock protection cover is specifically designed for device adapters SV 967770X and SV 967771X. These adapters are commonly used in enclosures to mount switching devices such as circuit breakers, fuses, or indicator lights. The cover matches the dimensions of these adapters and ensures a secure and neat front closure. The included cover inserts allow for individual adaptation to the specific cable routing, making the cover universally applicable.

Installation and Mounting

Mounting is performed directly on the front side of the device adapter. The cover is attached via designated mounting elements or by precise fit to the adapter. The cover inserts are installed at open cable access points to ensure complete sealing. Installation requires no additional tools or mounting aids, as the cover is mechanically designed for a precise fit. Use occurs directly after installing the device adapter into the enclosure.

Operational Advantages

The SV 9677790 provides reliable shock protection and contributes to compliance with safety regulations. The integrated cover inserts increase flexibility in cable routing and enable a clean, orderly front design. The polyamide material ensures long service life and resistance to mechanical stress and environmental influences. The cover is thus a reliable component in industrial electrical systems, where safety and functionality are paramount.

General
MaterialPolyamide, flammability rating according to UL 94-V0
Scope of deliveryIncluding cover plates


Product data sheet
Datasheet for Rittal 9677790, EAN: 4028177707016

Questions & answers

What is the delivery time of Rittal 9677790 Shock protection cover for device adapter 185 mm?

The article Rittal 9677790 Shock protection cover for device adapter 185 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677790 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677790 Shock protection cover for device adapter 185 mm always at the best possible price. We can give you a discount of 2% on Rittal 9677790 Shock protection cover for device adapter 185 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
