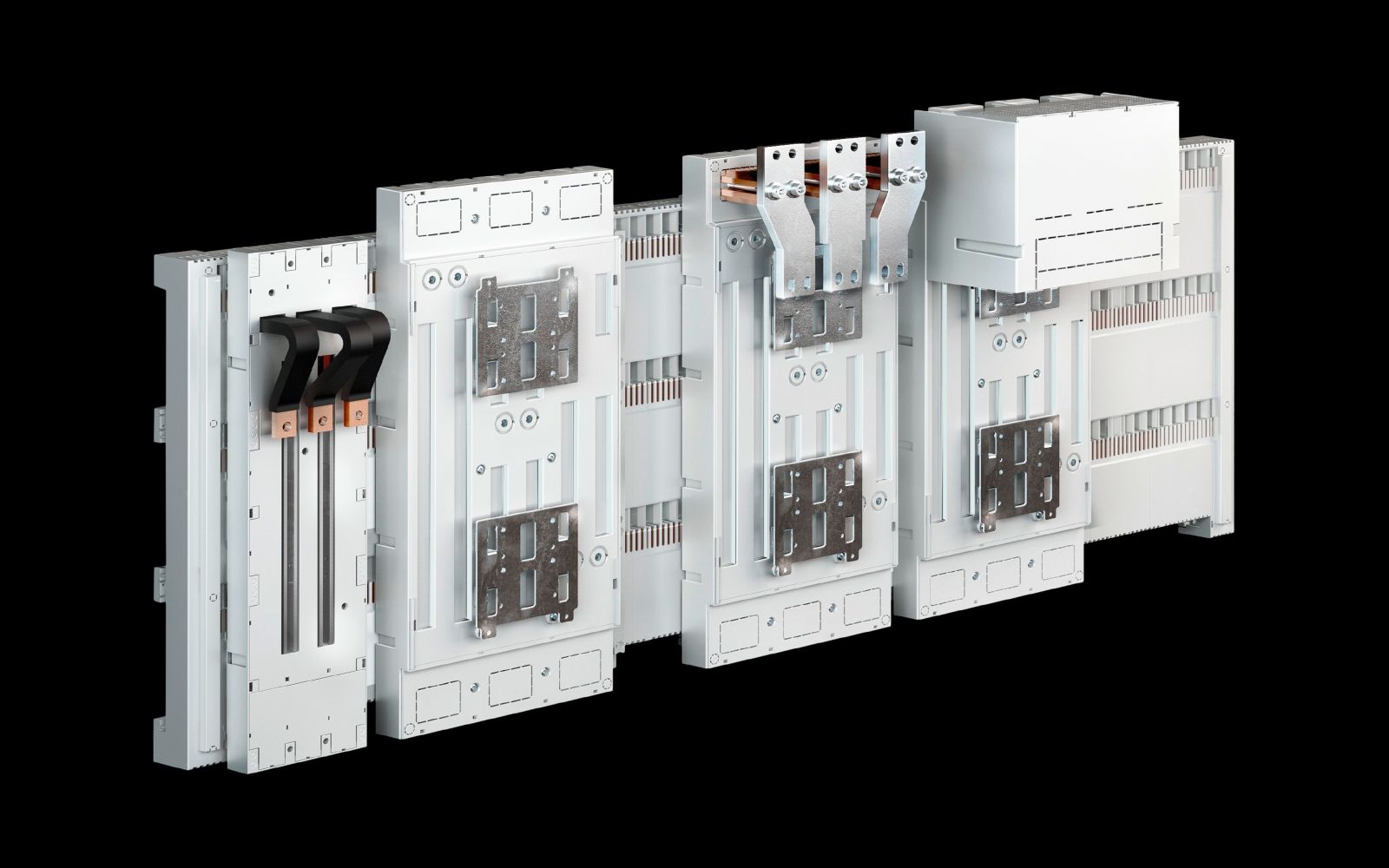

Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185

Your rating:
Average rating
product review for Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185
( 4.6 / 5 ) 14 ratings
Rittal 9677710
This image may differ from the desired article.
Rittal 9677710Rittal 9677710Rittal 9677710
694,74 EUR
incl. 136,99 EUR copper surcharge
( 826,74 EUR incl. VAT )
≈ £580.80  |  ≈ $767.69
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185
Datasheet:file_download Download
Lieske Part No.:1128405
Mfg Part No: 9677710
UPC/EAN: 4028177707078
Weight:22.2 kg
Type:SV 9677710

Product information for Rittal 9677710:

The SV 9677710 is a device adapter from Rittal, specifically designed for mounting power switches from various manufacturers onto busbar systems. It serves as a connecting element between the switching device and the busbar system, with the electrical connection made via terminals. The adapter is designed for busbar systems with a center-to-center spacing of 185 mm and enables the integration of switches with front-side screw connections. The rated operating voltage is 690 V, 3~, and the rated current is specified up to a maximum of 1,600 A. The number of poles is 3-pole, making it suitable for three-phase applications in industrial environments.

Applications include mounting power switches from manufacturers ABB (XT7 – 1250 A/1600 A), Eaton (NZM4 - 1250 A/1600 A), Schneider Electric (NS - 1250 A/1600 A), and Siemens (3VA27 - 1250 A/1600 A). The adapter is designed for busbars with a height of 10 mm and can be mounted on the busbar system both with and without a cover profile. The mounting method is via clamp fastening, ensuring a secure and stable connection. The cable exit is located at the bottom, enabling the connection of outgoing cables from the switching device.

Functions and equipment in detail include a housing made of polyamide, which is flame-retardant according to UL 94-V0. The adapter’s color is RAL 7035, representing a gray, industrially standard surface. Dimensions are a width of 300 mm and a height of 652 mm, enabling a compact design suitable for use in enclosures. The adapter is designed for use in industrial power distribution systems where high mechanical and thermal loads occur.

Technology explained simply shows that the adapter functions as an interface between the switching device and the busbar system. The clamp fastening ensures a mechanically stable connection, while the material selection (polyamide, UL 94-V0) provides high heat resistance and flame retardancy. The rated operating voltage of 690 V and the maximum rated current of 1,600 A make the adapter suitable for medium to high loads in industrial operation. The 3-pole configuration is typical for use in three-phase AC systems.

Compatibility and accessories include use with switches from the mentioned manufacturers. Suitable accessories include shock protection covers for device adapters LS Eaton and connection kits for device adapters 9677.710/715 (for LS). These components enhance safety and improve integration into existing switchgear installations.

Mounting and installation are performed via clamp fastening onto the busbar system. The installation is simple and requires no additional tools, as the clamps are placed directly onto the busbar and locked in place. The bottom-positioned cable exit allows for clear and organized cabling. Mounting can be done with or without a cover profile, offering flexibility in switchgear planning.

Operational advantages include universal compatibility with various switch types and manufacturers, simplifying planning and maintenance of switchgear. The robust construction from polyamide ensures long service life under industrial conditions. The clear dimensions and standardized center-to-center spacing of 185 mm facilitate integration into existing enclosure constructions. The high copper content of 14.68 kg per unit highlights the electrical conductivity and heat dissipation properties of the adapter.

General
MaterialPolyamide, flammability rating according to UL 94-V0
ColourRAL 7035
For rail systems with centre spacing185 mm
Cable exitBelow
Mounting methodClamp mounting
Number of poles3-pole
Rated current max.1.600 A
Rated operating voltage690 V, 3~
NoteWiring exit: switch output or as outgoing wire from switching device; suitable for use with switching devices featuring front-side screw terminals; installation on busbar system with and without cover profile possible
Width300 mm
Height652 mm
Suitable for busbarsHeight: 10 mm
Suitable for manufacturer (type)ABB (XT7 – 1250 A/1600 A), Eaton (NZM4 - 1250 A/1600 A), Schneider Electric (NS - 1250 A/1600 A), Siemens (3VA27 - 1250 A/1600 A)
Copper content (kg/piece)14,68


Please note...
This article contains a copper surcharge of 136,99 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677710, EAN: 4028177707078

Questions & answers

What is the delivery time of Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185?

The article Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677710 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185 always at the best possible price. We can give you a discount of 2% on Rittal 9677710 device adapter 1600 A, 3-pole, clamp mounting (185 if you choose payment in advance on ordering.
