Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS)

Your rating:
Average rating
product review for Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS)
( 5 / 5 ) 2 ratings
Rittal 9677760
This image may differ from the desired article.
Rittal 9677760Rittal 9677760
303,02 EUR
incl. 63,59 EUR copper surcharge
( 360,59 EUR incl. VAT )
≈ £253.32  |  ≈ $334.84
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS)
Datasheet:file_download Download
Lieske Part No.:1021122
Mfg Part No: 9677760
UPC/EAN: 4028177707023
Weight:9.59 kg
Type:SV 9677760

Product information for Rittal 9677760:

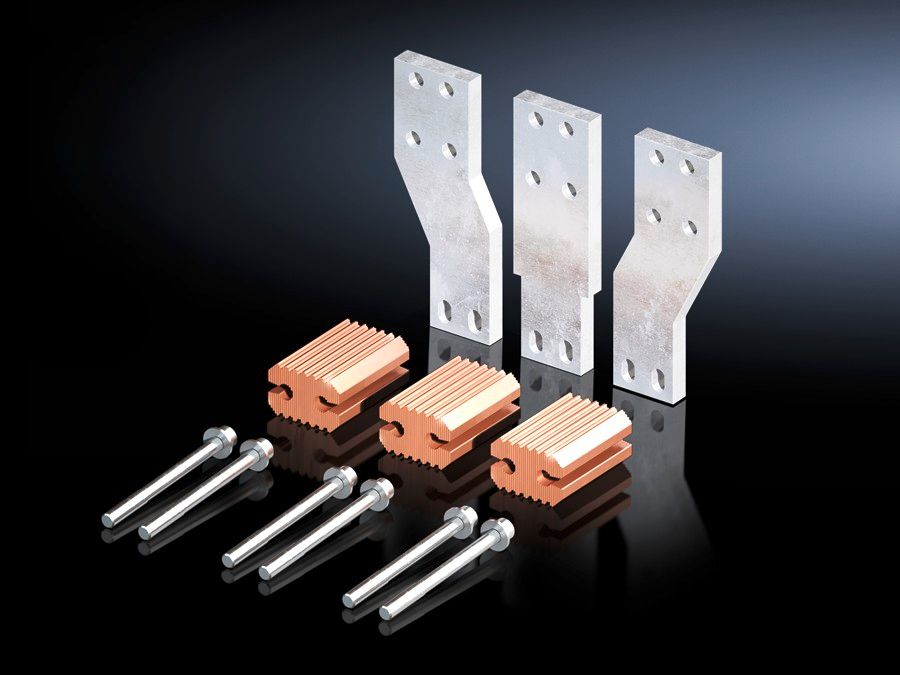

The SV 9677760 from Rittal is a pre-fabricated connection set for the electrical connection of circuit breakers to device adapters. It serves as a connecting element between standard circuit breakers (MCCB) and the device adapters SV 9677.710 and SV 9677.715. The set is specifically designed for integration into power distribution and enclosure systems, where a secure and reliable electrical connection is required. The connection is made in 3-pole configuration, enabling application in three-phase AC systems.

Connection set for device adapters
The SV 9677760 is a pre-fabricated set that simplifies the mounting and wiring of circuit breakers in enclosures. It is compatible with device adapters of types SV 9677.710 and SV 9677.715, which are intended for integrating circuit breakers from various manufacturers. The connection is made directly between the breaker and the adapter, ensuring a stable electrical connection.

Compatibility with circuit breakers
The connection set is designed for circuit breakers from Eaton and Siemens. For Eaton, these are the NZM4 models with rated currents of 1250 A and 1600 A. For Siemens, the compatible models are VL1250/3VL7 (1250 A) and VL1600/VL8 (1600 A). These breakers are widely used in industrial and commercial installations, making the connection set a universal solution for integration into existing enclosure configurations.

Material and construction
The connection set is made of E-Cu, a copper alloy known for its high electrical conductivity and mechanical strength. The use of E-Cu ensures reliable current transmission and long service life under industrial operating conditions. The copper content is 6.814 kg per unit, indicating the material strength and suitability for high-load applications. The total weight of the product is 9.46 kg (net weight), highlighting its robust construction.

Scope of delivery
The connection set is delivered incl. mounting hardware. This includes the necessary mounting components to securely attach the set to the device adapter.

Technical requirements and approvals
The SV 9677760 meets the requirements of UL and C-UL approval, confirming the safety and reliability of the product in electrical installations. These approvals are relevant for use in electrical switchgear, particularly in regions where UL and C-UL certifications are required. Product data is documented on the official manufacturer’s website and complies with current technical standards.

Application in practice
The connection set is used in electrical installation and enclosure construction to mount Eaton and Siemens circuit breakers onto device adapters of the Rittal SV 9677.710/715 series. It enables quick and secure integration, reducing mounting time in enclosure manufacturing. The 3-pole configuration makes it suitable for three-phase systems, common in industrial and commercial applications.

Advantages in operation
Due to the pre-fabricated design of the connection set, mounting is simplified and the risk of wiring errors is reduced. The use of E-Cu ensures high electrical conductivity and resistance to thermal and mechanical stress. Compatibility with common circuit breaker models from Eaton and Siemens increases flexibility in component selection for enclosure systems.

Accessories and integration
The connection set is specifically designed for use with device adapters SV 9677.710 and SV 9677.715. These adapters serve as an interface between the circuit breaker and the enclosure, enabling standardized mounting. The combination of connection set and adapter ensures uniform and secure installation in various enclosure configurations.

General
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Suitable for part no.9677.710, 9677.715
Suitable for manufacturer (type)Eaton (NZM4 - 1250 A/1600 A), Siemens (VL1250/3VL7 - 1250 A, VL1600/VL8 - 1600 A)
Copper content (kg/piece)6,814


Please note...
This article contains a copper surcharge of 63,59 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677760, EAN: 4028177707023

Questions & answers

What is the delivery time of Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS)?

The article Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677760 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS) always at the best possible price. We can give you a discount of 2% on Rittal 9677760 Connection set for device adapter 9677.710/715 (for LS) if you choose payment in advance on ordering.
