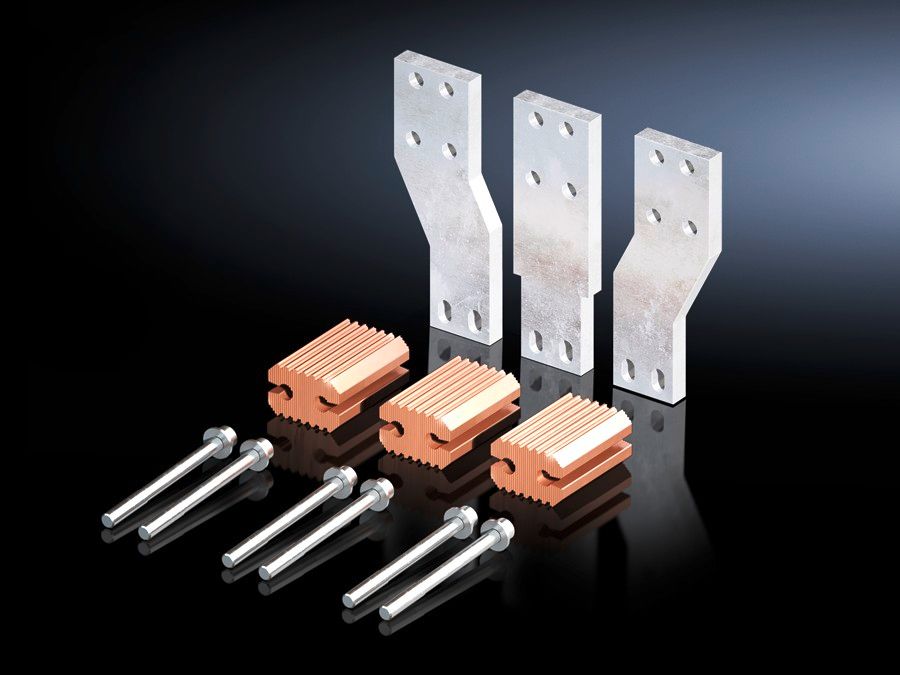

Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS)

Your rating:
Average rating
product review for Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS)
( 4.4 / 5 ) 21 ratings
Rittal 9677750
This image may differ from the desired article.
Rittal 9677750Rittal 9677750
326,10 EUR
incl. 77,01 EUR copper surcharge
( 388,06 EUR incl. VAT )
≈ £272.62  |  ≈ $360.34
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS)
Datasheet:file_download Download
Lieske Part No.:1131564
Mfg Part No: 9677750
UPC/EAN: 4028177707030
Weight:10.36 kg
Type:SV 9677750

Product information for Rittal 9677750:

The Rittal SV 9677750 is a pre-fabricated connection set, specifically developed for the electrical connection between market-standard circuit breakers (MCCB) and device adapters in industrial applications. The connection set serves as a 3-pole connection component and is used in enclosures to ensure safe and reliable power distribution. It is made of E-Cu (electrolytic copper), a material known for its high electrical conductivity and mechanical strength, which enhances the reliability of current transmission. The delivery scope includes the connection set element as well as the required mounting material to enable secure installation.

Applications

The connection set is designed for use in industrial power distribution systems, particularly in enclosures where circuit breakers from various manufacturers are installed. It is used to establish the electrical connection between a circuit breaker and a device adapter, with the connection sets SV 9677710 and SV 9677715 serving as compatible adapter components. The application is in plants that handle high electrical loads, such as production facilities, power distribution systems, or industrial machinery.

Functions and Equipment in Detail

The SV 9677750 enables a direct and secure electrical connection between the circuit breaker and the device adapter. The 3-pole configuration ensures the connection of all three phases in a three-phase AC system. The E-Cu material ensures low electrical resistance and thus minimizes losses during current transmission. The pre-fabricated design reduces installation time and minimizes error sources during installation, as all necessary connection and mounting elements are already integrated.

Technology Explained Simply

The connection set consists of copper components optimized for current conduction. E-Cu is high-purity copper, valued in electrical engineering for its conductivity and corrosion resistance. The connection is made via mechanical fastening, secured by the included mounting material. The design is engineered to withstand electrical and mechanical stresses during operation without causing contact loss or overheating.

Compatibility and Accessories

The connection set is specifically designed for use with device adapters of article numbers 9677.710 and 9677.715. It is compatible with circuit breakers from various manufacturers, including ABB (model XT7, rated currents 1250 A and 1600 A), Schneider Electric (model NS, rated currents 1250 A and 1600 A), and Siemens (model 3VA27, rated currents 1250 A and 1600 A). Compatibility with these breaker types enables flexible use in existing or newly installed enclosure systems.

Mounting and Installation

Installation is carried out by securing the connection set to the corresponding device adapters (9677.710/715) and then connecting it to the circuit breaker. The included mounting material facilitates installation and ensures a stable mechanical connection. The pre-fabricated design reduces the number of required mounting steps and minimizes the risk of incorrect connections.

Operational Advantages

Using the SV 9677750 results in reduced installation time and increased reliability of the electrical connection. The use of E-Cu ensures efficient current transmission with minimal losses. Compatibility with multiple breaker manufacturers enables flexible integration into existing systems. The pre-fabricated design minimizes installation error susceptibility and increases operational safety.

The connection set is supplied with a declaration of conformity according to applicable standards and carries the UL and C-UL (listed) approvals, confirming compliance with international safety standards. The copper content is 8.253 kg per unit, indicating material quality and electrical performance.

General
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Suitable for part no.9677.710, 9677.715
Suitable for manufacturer (type)ABB (XT7 – 1250 A/1600 A), Schneider Electric (NS - 1250 A/1600 A), Siemens (3VA27 - 1250 A/1600 A)
Copper content (kg/piece)8,253


Please note...
This article contains a copper surcharge of 77,01 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677750, EAN: 4028177707030

Questions & answers

What is the delivery time of Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS)?

The article Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677750 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS) always at the best possible price. We can give you a discount of 2% on Rittal 9677750 Connection set for device adapter 9677.710/715 (for LS) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
