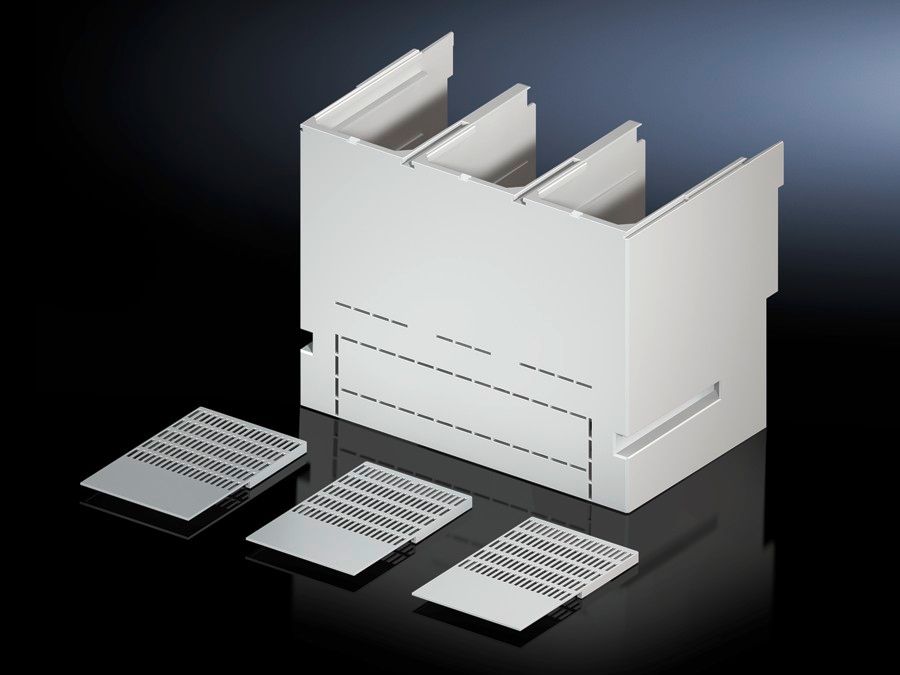

Rittal 9677798 Shock protection cover for device adapter 185 mm

Your rating:
Average rating
product review for Rittal 9677798 Shock protection cover for device adapter 185 mm
( 4.6 / 5 ) 7 ratings
Rittal 9677798
This image may differ from the desired article.
Rittal 9677798Rittal 9677798
-12% 113,16 EUR 128,84 EUR
( 134,66 EUR incl. VAT )
≈ £94.60  |  ≈ $125.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9677798 Shock protection cover for device adapter 185 mm
Datasheet:file_download Download
Lieske Part No.:897966
Mfg Part No: 9677798
UPC/EAN: 4028177805378
Weight:1.3 kg
Type:SV 9677798

Product information for Rittal 9677798:

The Rittal SV 9677798 is a shock protection cover for device adapters, specifically designed for use with device adapters of types SV 967770X and SV 967771X, intended for switching devices from Schneider Electric (type NS). The cover provides front-side shielding of the connection set, thereby preventing unintended access to conductive parts and increasing operational safety. Optionally, it can also be used to cover the cable connection at the switching device, offering a flexible solution for various mounting configurations.

Applications

The shock protection cover is used in industrial enclosures where switching devices are connected via adapters. It is particularly suitable for installations where compliance with safety regulations is a priority, such as in manufacturing, energy supply, or automation technology. The cover protects against direct contact with conductive components and reduces the risk of electrical accidents.

Functions and Equipment in Detail

The cover is made of polyamide, a robust plastic offering high mechanical strength and resistance to chemical influences. The material meets the requirements for flammability behaviour according to UL 94-V0, meaning it produces only limited flame when directly ignited and self-extinguishes after removal of the flame. This is an important factor for fire protection requirements in electrical switchgear. The delivery includes cover inserts, which allow open cable access points in the shock protection cover to be sealed. This ensures the cover is not only safe but also neat and orderly.

Technology Explained Simply

The design of the cover allows for easy attachment to the designated device adapters. The cover inserts are modular and precisely fitted, sealing open openings in the housing without impairing device functionality. The use of polyamide ensures long service life under industrial conditions, including high temperatures and mechanical stress. The UL 94-V0 certification is an internationally recognised standard for flame retardancy of plastics, required in many industrial applications.

Compatibility and Accessories

The shock protection cover is specifically designed for device adapters of types SV 967770X and SV 967771X, which in turn are designed for switching devices from Schneider Electric (type NS). The cover is therefore a direct replacement or supplementary part for existing installations using these adapters. The cover inserts included in the delivery are intended for sealing cable access points and are compatible with common connection geometries.

Mounting and Installation

Mounting is performed directly on the front side of the device adapter, where the cover is fixed via appropriate fastening elements or by precise fit. The cover inserts are installed at open cable access points to ensure a closed and secure front side. Installation requires no additional tools or components, as the cover and inserts are pre-fitted for precise alignment.

Operational Advantages

Using the shock protection cover increases operational safety by preventing unintended access to conductive parts. The integrated cover inserts ensure neat and orderly cabling, simplifying maintenance and inspection of the installation. The polyamide material offers high mechanical stability and resistance to commonly encountered industrial chemicals. The UL 94-V0 certification supports compliance with fire protection regulations and contributes to the approval of the installation by authorities and testing organisations.

General
MaterialPolyamide, flammability rating according to UL 94-V0
Scope of deliveryIncluding cover plates
Suitable for manufacturer (type)Schneider Electric (NS)


Product data sheet
Datasheet for Rittal 9677798, EAN: 4028177805378

Questions & answers

What is the delivery time of Rittal 9677798 Shock protection cover for device adapter 185 mm?

The article Rittal 9677798 Shock protection cover for device adapter 185 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677798 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677798 Shock protection cover for device adapter 185 mm always at the best possible price. We can give you a discount of 2% on Rittal 9677798 Shock protection cover for device adapter 185 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
