Rittal 9677705 device adapter 1000 A, 3-pole, screw connection

Your rating:
Average rating
product review for Rittal 9677705 device adapter 1000 A, 3-pole, screw connection
( 4.5 / 5 ) 10 ratings
Rittal 9677705
This image may differ from the desired article.
Rittal 9677705Rittal 9677705Rittal 9677705
510,84 EUR
incl. 72,92 EUR copper surcharge
( 607,90 EUR incl. VAT )
≈ £427.06  |  ≈ $564.48
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9677705 device adapter 1000 A, 3-pole, screw connection
Datasheet:file_download Download
Lieske Part No.:1333220
Mfg Part No: 9677705
UPC/EAN: 4028177707085
Weight:14.35 kg
Type:SV 9677705

Product information for Rittal 9677705:

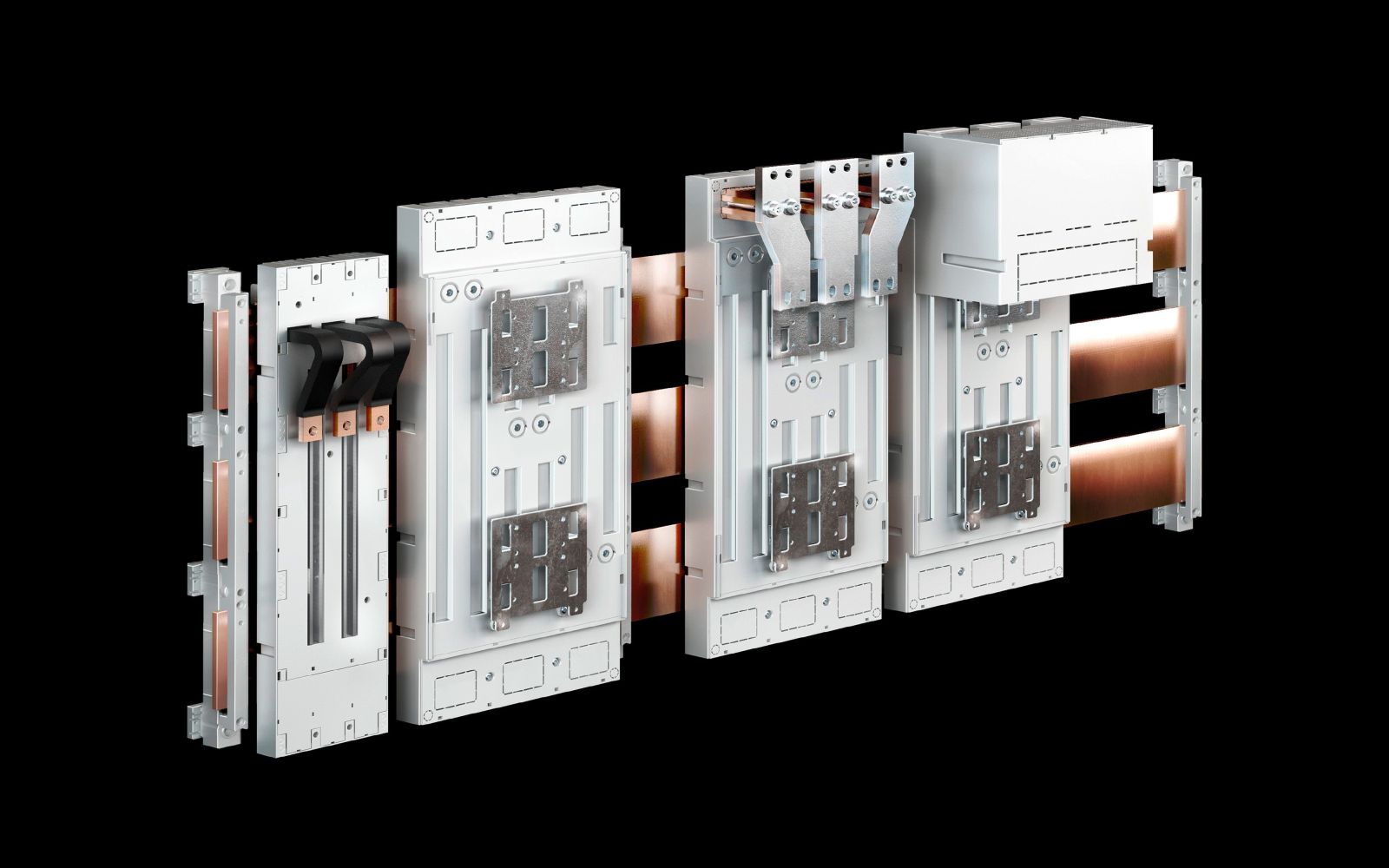

The Rittal SV 9677705 is a device adapter for mounting power switches in enclosures. It is specifically designed for rail systems with a center-to-center spacing of 185 mm and enables the fixation of switching devices with front-side screw connections. The adapter is 3-pole and supports a rated current of up to 1,000 A at a rated operational voltage of 690 V, 3~. The construction from polyamide with flame resistance according to UL 94-V0 ensures high thermal and mechanical load capacity as well as safe use in industrial applications. The color is RAL 7035, a standardized gray that harmonizes well in many enclosure environments.

Applications

The device adapter is designed for use in industrial electrical installations, particularly in enclosures where power switches from manufacturers ABB (XT6, XT7 – 800 A/1000 A), Eaton (NZM4 – 800 A/1000 A), Schneider Electric (NS – 800 A/1000 A), and Siemens (3VA27 – 800 A/1000 A) are mounted. It serves as an intermediate element between the switching device and the busbar, enabling secure and standardized mounting. Installation is done via screw fastening onto perforated busbars with a height of 10 mm. The wiring exit is bottom, allowing connection of outgoing conductors from the switching device.

Functions and Equipment in Detail

The adapter is designed for use with switching devices featuring front-side screw connections. Fixation is achieved using screws on perforated busbars, ensuring that no cover profile is installed in the device area to guarantee secure mounting and maintenance. Dimensions are 300 mm width and 652 mm height, enabling compact integration into standard enclosure configurations. The choice of polyamide material ensures high mechanical stability and resistance to thermal stress.

Technology Explained Simply

The device adapter functions as a mechanical and electrical interface between the power switch and the busbar. It transfers current from the busbar to the switching device and vice versa. The 3-pole configuration enables connection in three-phase AC systems. The rated operational voltage of 690 V covers typical industrial voltage levels, while the maximum rated current of 1,000 A is designed for high loads. The polyamide material with UL 94-V0 certification ensures safe flame resistance, which is critical in electrical installations.

Compatibility and Accessories

The adapter is compatible with switching devices from the mentioned manufacturers and model series. As accessories, suitable shock protection covers for device adapters are available, for example for Eaton models, as well as connection kits for mounting device adapters of types 9677.700/705. These accessories contribute to safety and proper operation of the switching installation.

Mounting and Installation

Installation is performed by screw fastening onto perforated busbars with a height of 10 mm. Positioning must ensure that no cover profile is installed in the device area to allow unobstructed mounting and maintenance. Wiring exits are at the bottom, enabling cabling of switch outputs or outgoing conductors from the switching device. Dimensions of 300 mm width and 652 mm height are designed for standard enclosure configurations.

Operational Advantages

Using the device adapter enables standardized and secure mounting of power switches from various manufacturers within an enclosure. The screw fastening ensures a stable connection, while material quality and flame resistance properties enhance operational safety. Compatibility with multiple manufacturers reduces complexity during planning and maintenance of enclosures. The copper content of 7.814 kg per unit is part of the material composition and is considered in recycling processes.

General
MaterialPolyamide, flammability rating according to UL 94-V0
ColourRAL 7035
For rail systems with centre spacing185 mm
Cable exitBelow
Mounting methodScrew mounting
Number of poles3-pole
Rated current max.1.000 A
Rated operating voltage690 V, 3~
NoteWiring exit: switch output or as outgoing line from switching device, suitable for use with switching devices having front-side screw connection, for mounting on perforated busbars. Note: no cover profile is mounted in the device area.
Width300 mm
Height652 mm
Suitable for busbarsHeight: 10 mm
Suitable for manufacturer (type)ABB (XT6, XT7 – 800 A/1000 A), Eaton (NZM4 - 800 A/1000 A), Schneider Electric (NS - 800 A/1000 A), Siemens (3VA27 - 800 A/1000 A)
Copper content (kg/piece)7,814


Please note...
This article contains a copper surcharge of 72,92 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677705, EAN: 4028177707085
