Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS)

Your rating:
Average rating
product review for Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS)
( 4.7 / 5 ) 14 ratings
Rittal 9677740
This image may differ from the desired article.
Rittal 9677740Rittal 9677740
241,81 EUR
incl. 59,76 EUR copper surcharge
( 287,75 EUR incl. VAT )
≈ £202.15  |  ≈ $267.20
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS)
Datasheet:file_download Download
Lieske Part No.:1131566
Mfg Part No: 9677740
UPC/EAN: 4028177707047
Weight:8.42 kg
Type:SV 9677740

Product information for Rittal 9677740:

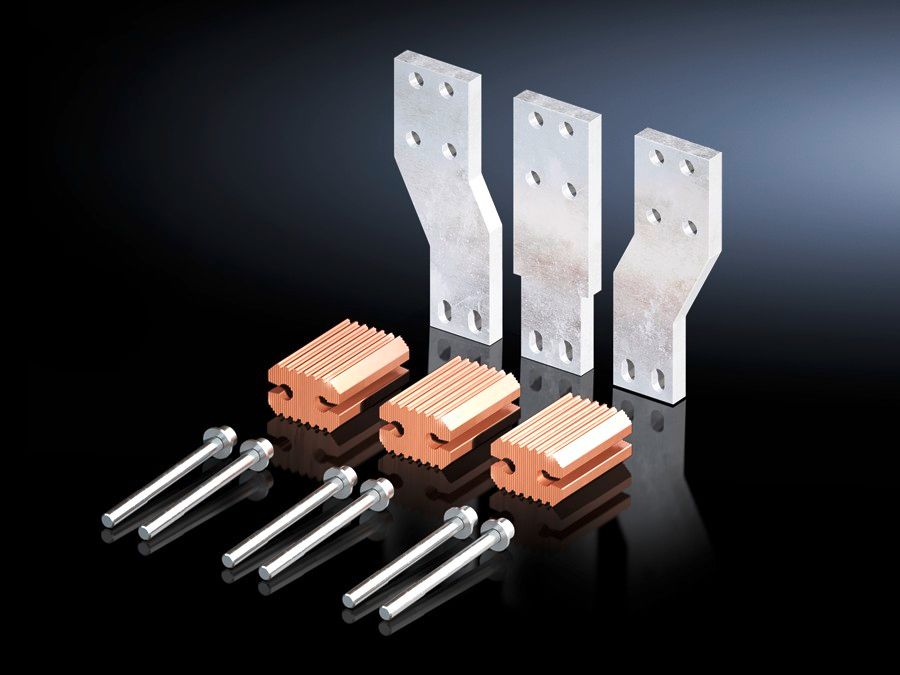

Rittal SV 9677740 is a pre-assembled connection set for device adapters, specifically designed for the electrical connection between market-standard power circuit breakers (MCCB) and device adapters. The product serves as a 3-pole connection component and is used in industrial electrical engineering to connect circuit breakers from Eaton (type NZM4, rated currents 800 A and 1000 A) and Siemens (type VL1250/3VL7, rated current 1000 A) with device adapters SV 9677.700 and SV 9677.705. The connection sets are made of E-Cu material, a copper alloy suitable for electrical installations due to its high electrical conductivity and mechanical strength.

Applications
The connection set is used in industrial electrical installations, particularly in enclosures and power distribution systems, where a secure and reliable electrical connection between power circuit breakers and device adapters is required. It is designed for applications where circuit breakers are integrated into enclosures via device adapters, enabling modular and standardized mounting. The product is used in systems with high electrical loads and safety requirements, such as in manufacturing, energy supply, or installations with high current ratings.

Functions and Equipment in Detail
The SV 9677740 is delivered as a pre-assembled set, meaning all necessary connection elements are pre-assembled and tested. This reduces installation time and increases installation accuracy. The delivery includes the connection set component as well as fastening material required for secure mounting to the device adapters. The connection is made via a 3-pole configuration, enabling the electrical connection of the three phase conductors. The connection sets are specifically designed for the mentioned circuit breaker models to ensure optimal fit and electrical conductivity.

Technology Explained Simply
The material E-Cu (electrolytic copper) offers high electrical conductivity, ensuring minimal current heat generation and reliable current transmission. The connection sets are dimensioned to safely transmit required current ratings (up to 1000 A) without causing thermal or mechanical stress. The pre-assembled design means the connection elements are already adjusted to the specific dimensions of device adapters SV 9677.700 and SV 9677.705, enabling direct installation without additional modifications. Fastening is done using the included fastening material, ensuring a secure and durable connection.

Compatibility and Accessories
The connection set is specifically developed for Rittal device adapters SV 9677.700 and SV 9677.705. It is compatible with power circuit breakers from Eaton (model NZM4, rated currents 800 A and 1000 A) and Siemens (model VL1250/3VL7, rated current 1000 A). Thus, the connection sets are part of a modular system enabling the integration of various circuit breaker types into standardized enclosure solutions.

Mounting and Installation
Mounting is done by attaching the connection set to device adapters SV 9677.700 or SV 9677.705, using the included fastening material. The connection to the power circuit breaker (Eaton NZM4 or Siemens VL) is then made directly at the connection points of the connection set. The pre-assembled design reduces mounting time and minimizes error sources. Installation is carried out in the usual manner within enclosures, with electrical connections to be made in accordance with applicable standards and regulations.

Advantages in Operation
The use of SV 9677740 enables faster and error-free installation, as the connection elements are pre-assembled. The use of E-Cu ensures high electrical conductivity and mechanical stability, increasing the reliability of the system. Compatibility with common power circuit breakers from Eaton and Siemens expands application possibilities and reduces the need for individual adaptations. The pre-assembled design and included fastening material ensure a standardized and secure installation.

General
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Suitable for part no.9677.700, 9677.705
Suitable for manufacturer (type)Eaton (NZM4 - 800 A/1000 A), Siemens (VL1250/3VL7 - 1000 A)
Copper content (kg/piece)6,404


Please note...
This article contains a copper surcharge of 59,76 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677740, EAN: 4028177707047

Questions & answers

What is the delivery time of Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS)?

The article Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677740 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS) always at the best possible price. We can give you a discount of 2% on Rittal 9677740 Connection set for device adapter 9677.700/705 (for LS) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




This product is recommended as accessory for

Rittal 9677700 device adapter 1000 A, 3-pole, clamp mounting (185 Rittal LogoRittal 9677700 device adapter 1000 A, 3-pole, clamp mounting (185 Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For mounting on busbar systems with or without cover section
Suitable for the use of switchgear with front ...

Lieske Part No.: 410043
Mfg Part No: 9677700
Type: SV 9677700
561,71 EUR
Rittal 9677700 plus VAT
≈ £469.59  |  ≈ $620.69
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 9677705 device adapter 1000 A, 3-pole, screw connection Rittal LogoRittal 9677705 device adapter 1000 A, 3-pole, screw connection The Rittal SV 9677705 is a device adapter for mounting power switches in enclosures. It is specifically designed for rail systems with a center-to-center spacing of 185 mm and enables the fixation of ...

Lieske Part No.: 1333220
Mfg Part No: 9677705
Type: SV 9677705
510,84 EUR
Rittal 9677705 plus VAT
≈ £427.06  |  ≈ $564.48
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
