Rittal 9677730 Connection set for device adapter 9677.700/705 (for LS)

Your rating:
Average rating
product review for Rittal 9677730 Connection set for device adapter 9677.700/705 (for LS)
( 4.6 / 5 ) 18 ratings
Rittal 9677730
This image may differ from the desired article.
Rittal 9677730Rittal 9677730
270,43 EUR
incl. 81,25 EUR copper surcharge
( 321,81 EUR incl. VAT )
≈ £226.08  |  ≈ $298.83
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces

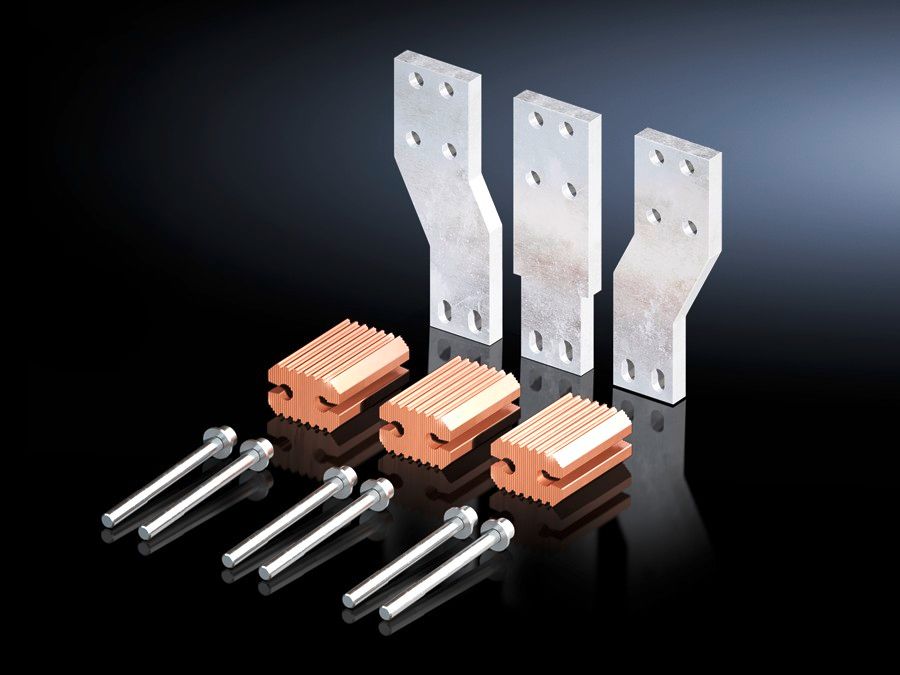

1x Rittal 9677730 Connection set for device adapter 9677.700/705 (for LS)
Datasheet:file_download Download
Lieske Part No.:1131565
Mfg Part No: 9677730
UPC/EAN: 4028177707054
Weight:8.707 kg
Type:SV 9677730

Product information for Rittal 9677730:

The SV 9677730 from Rittal is a pre-fabricated connection set for device adapters, specifically developed for the electrical connection between market-standard circuit breakers (MCCB) and device adapters. The item serves as a 3-pole connection component and is intended for integration into enclosures and power distribution configurations, particularly in systems with ABB (XT6, XT7 – 800 A/1000 A) and Schneider Electric (NS – 800 A/1000 A) circuit breakers. The connection is made via a fixed copper terminal, designed for reliable current transmission.

Applications
This connection set is used in industrial electrical installations where a secure and durable electrical connection between the circuit breaker and the device adapter is required. It is particularly suitable for enclosures where ABB Tmax or Schneider NS circuit breakers are combined with device adapters SV 9677.700 or SV 9677.705. The application is typically in power distribution systems, where high electrical loads and stable connections are necessary.

Functions and Equipment in Detail
The SV 9677730 is made of E-Cu, a copper material known for its high electrical conductivity and mechanical strength. The connection component is pre-fabricated, simplifying installation and ensuring compliance with required dimensions and contact points. The delivery includes the connection element and the necessary mounting hardware, designed for secure installation on device adapters SV 9677.700 and SV 9677.705.

Technology Explained Simply
The connection set enables a direct and stable electrical connection between the circuit breaker and the device adapter. The use of E-Cu ensures low electrical resistance and minimizes losses during current transmission. The 3-pole configuration meets standard requirements for three-phase AC systems. The pre-fabricated design reduces installation time and minimizes errors during assembly.

Compatibility and Accessories
The connection set is specifically designed for device adapters SV 9677.700 and SV 9677.705 and is compatible with circuit breakers from ABB (models XT6, XT7 with rated currents of 800 A and 1000 A) and Schneider Electric (model NS with rated currents of 800 A and 1000 A). Compatibility is limited to these specific types; the connection sets are not intended for other breaker models or adapter types.

Installation and Mounting
Mounting is done by securing the connection set to the designated connection points on the device adapters SV 9677.700 or SV 9677.705. The included mounting hardware is used for this purpose. Installation requires no additional tools or components, as the connection set is fully pre-fabricated. The connection must be secure and tight to ensure reliable current transmission.

Operational Advantages
The use of SV 9677730 reduces installation time and increases the reliability of the electrical connection. The use of E-Cu ensures high electrical conductivity and minimizes heat losses. The pre-fabricated design prevents installation errors and guarantees consistent quality. Compatibility with the specified breaker types allows for direct integration into existing system configurations.

The item features a copper mass of 8.707 kg per piece, highlighting the high material quality and performance capability of the connection set. The UL and C-UL (listed) certifications confirm compliance with international safety standards, enabling use in various markets. The declaration of conformity according to UK regulations is also available, confirming compliance with applicable standards in the United Kingdom.

General
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Suitable for part no.9677.700, 9677.705
Suitable for manufacturer (type)ABB (XT6, XT7 – 800 A/1000 A), Schneider Electric (NS - 800 A/1000 A)
Copper content (kg/piece)8,707


Please note...
This article contains a copper surcharge of 81,25 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677730, EAN: 4028177707054
