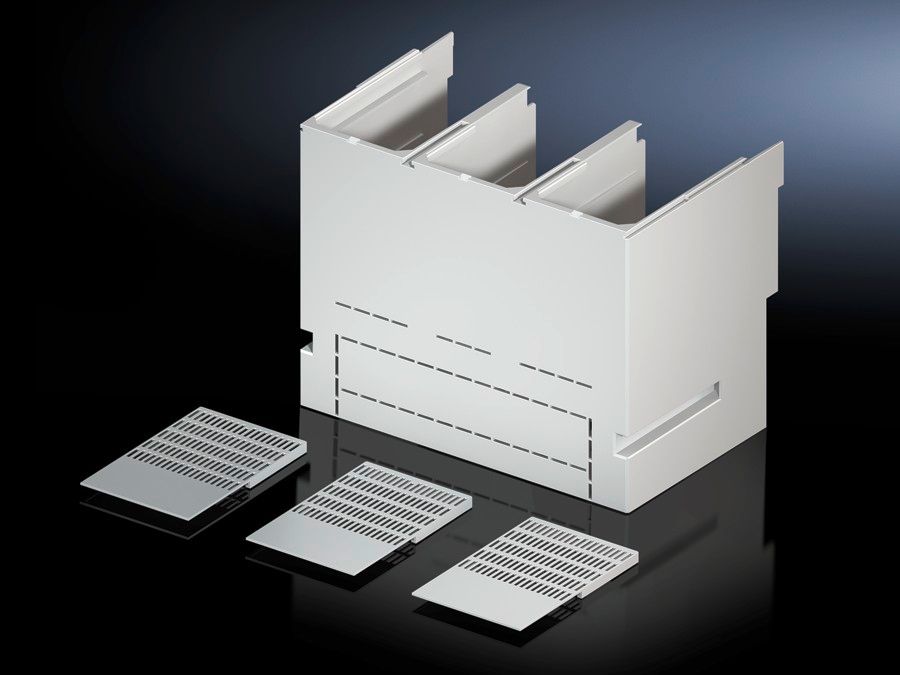

Rittal 9677792 Shock protection cover for device adapter 185 mm

Your rating:
Average rating
product review for Rittal 9677792 Shock protection cover for device adapter 185 mm
( 4.3 / 5 ) 7 ratings
Rittal 9677792
This image may differ from the desired article.
Rittal 9677792Rittal 9677792
101,32 EUR
( 120,57 EUR incl. VAT )
≈ £84.70  |  ≈ $111.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9677792 Shock protection cover for device adapter 185 mm
Datasheet:file_download Download
Lieske Part No.:1587070
Mfg Part No: 9677792
UPC/EAN: 4028177805347
Weight:1.26 kg
Type:SV 9677792

Product information for Rittal 9677792:

The SV 9677792 is a shock protection cover from Rittal, specifically designed for device adapters of types SV 967770X and SV 967771X. This cover serves to protect the front side of the connection set in enclosures and is particularly used when integrating power switches from manufacturers ABB (models XT6, XT7) and Siemens (type 3VA27). The cover ensures safe operation by preventing unauthorized access to conductive parts and thus meeting the shock protection class according to applicable standards.

Applications

The shock protection cover is used in industrial electrical installations where switching devices are mounted in enclosures. It is particularly suitable for systems where the safety of operation and maintenance is a priority. The cover can be used both for covering the connection set and optionally for the cable connection of the switching device, enabling flexible adaptation to different mounting configurations. The cover inserts included in the delivery serve to close open cable entries in the cover, ensuring a sealed and secure front side.

Functions and Equipment in Detail

The cover is made of polyamide, a robust plastic known for its high mechanical strength and heat resistance. The material meets the requirements for flammability behavior according to UL 94-V0, meaning it is self-extinguishing and does not release flammable gases when heated. This is particularly important in industrial environments where the risk of short circuits or overloads exists. The cover inserts supplied allow cable openings to be closed after installation, enabling the cover to be adapted to the specific cable routing afterwards.

Technology Explained Simply

The SV 9677792 is a passive protection mechanism that does not perform any electrical function, but mechanically prevents access to conductive parts. The cover is mounted on the front side of the device adapter and conforms to the shape of the connection set. The integrated cover inserts are movable and can be positioned according to the cable routing to ensure optimal sealing. The use of polyamide ensures high resistance to mechanical stress and chemical influences that may occur in industrial installations.

Compatibility and Accessories

The cover is specifically developed for device adapters SV 967770X and SV 967771X, which are intended for integrating power switches from manufacturers ABB (XT6, XT7) and Siemens (3VA27) into enclosures. Compatibility with these specific adapters ensures safe and form-fitting installation. The cover inserts included in the delivery are designed for sealing cable entries and fit common cable entry plates.

Installation and Mounting

Mounting is performed on the front side of the device adapter, where the cover is attached using the corresponding fastening elements on the adapter. The cover inserts are installed as needed at open cable entries to ensure a sealed front. Installation requires no additional tools or components, as the cover is mounted directly onto the adapter. The cover is designed to fit the device adapters without additional modifications.

Operational Advantages

Using the SV 9677792 increases safety in enclosure operation by reducing the risk of contact accidents. The cover is robust and resistant to mechanical stress, enabling long service life and low maintenance frequency. The integrated cover inserts offer flexibility in cable routing and allow for clean and orderly installation. The polyamide material with UL 94-V0 certification provides additional safety at elevated temperatures or in the event of a short circuit.

General
MaterialPolyamide, flammability rating according to UL 94-V0
Scope of deliveryIncluding cover plates
Suitable for manufacturer (type)ABB (XT6, XT7), Siemens (3VA27)


Product data sheet
Datasheet for Rittal 9677792, EAN: 4028177805347
