Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50

Your rating:
Average rating
product review for Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50
( 4.7 / 5 ) 3 ratings

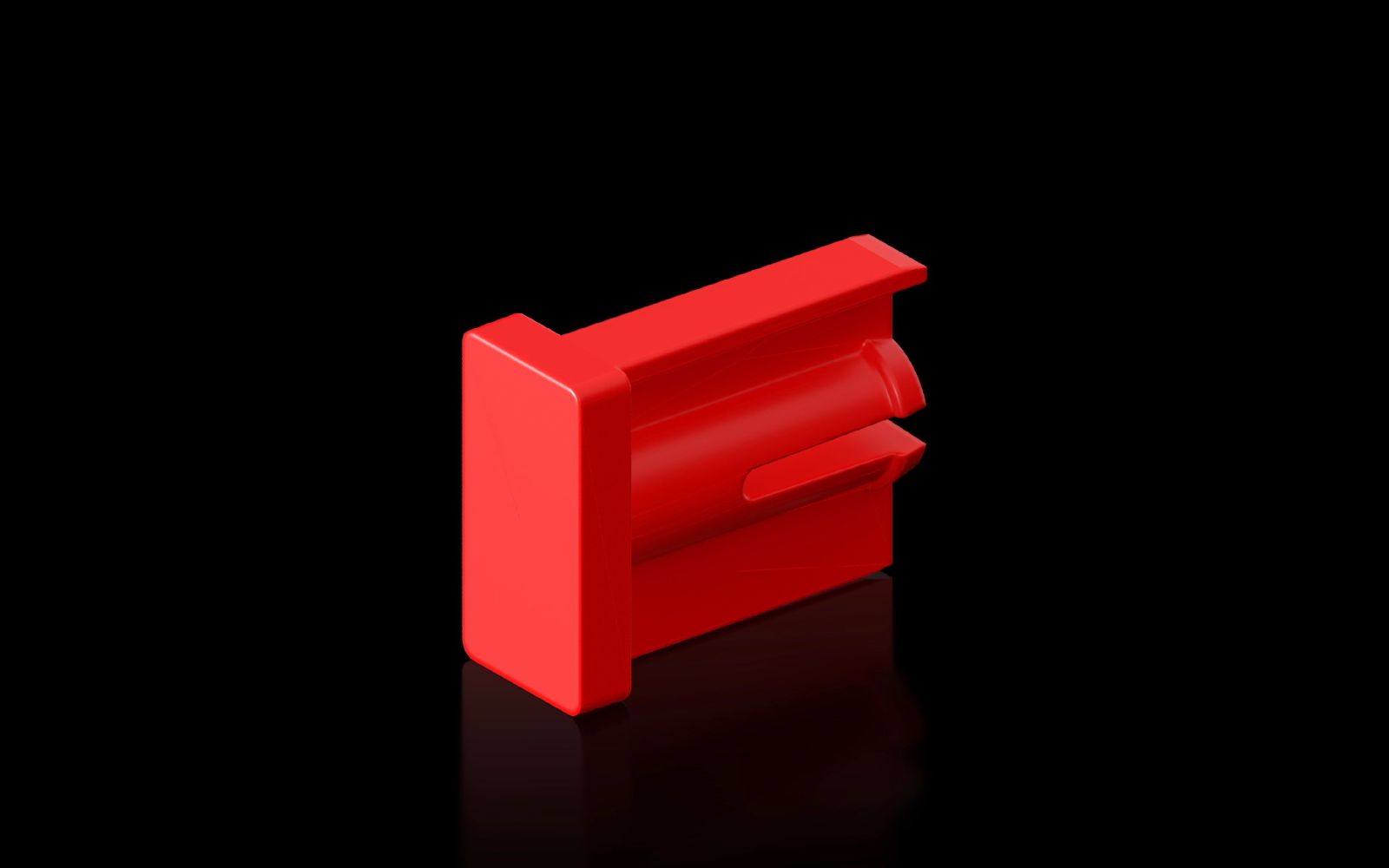

Rittal 9365700
This image may differ from the desired article.
Rittal 9365700Rittal 9365700
-6% 4,92 EUR 5,26 EUR
( 5,85 EUR incl. VAT )
≈ £4.11  |  ≈ $5.44
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50
Datasheet:file_download Download
Lieske Part No.:157197
Mfg Part No: 9365700
UPC/EAN: 4069196007244
Weight:0.019 kg
Type:RX 9365700

Product information for Rittal 9365700:

The Rittal RX 9365700 is a connecting pin for device adapters and device carriers in the RiLineX system. It is used for secure mechanical connection of CB device adapters with a rated current of 160 A, which are installed in 60 mm busbar systems. The component is made of polyamide (PA 6), a thermoplastic material known for its high strength, heat resistance, and chemical resistance. The flammability characteristics comply with the UL 94 standard, ensuring limited flammability and low flame spread under heat stress. The colour of the connecting pin is RAL 35745, a dark grey tone that integrates well visually in industrial electrical installations.

Applications
The connecting pin is used in industrial electrical installations, particularly in enclosures and distributions, where CB device adapters (e.g. for circuit breakers or fuses) are mounted on 60 mm wide busbars. It ensures a stable mechanical connection between adapter and device carrier, thereby guaranteeing secure mounting and reliable operation of electrical components. The pin is used in systems that must withstand high mechanical loads and electrical stresses, such as production plants, power distribution systems, or automation technology.

Functions and Equipment in Detail
The connecting pin is specifically designed for connecting CB device adapters available in the 160 A version. It enables a precise and secure connection that prevents any shifting or loosening during installation and operation. The fit is matched to part numbers 9360705, 9360707, and the series from 9360710 to 9360798, ensuring compatibility with existing RiLineX systems. The packaging unit contains 50 pieces, suitable for use in larger installations or series mounting.

Technology Explained Simply
The material polyamide (PA 6) offers a good combination of mechanical strength and thermal resistance. It is resistant to moisture, oils, and many chemical substances, making it suitable for use in industrial environments. The UL 94 approval for flammability means the material does not ignite easily under heat and does not propagate flame, increasing safety in electrical installations. The colour RAL 35745 is a standardised grey tone commonly used in the electrical industry to harmonise components visually.

Compatibility and Accessories
The connecting pin is specifically designed for use with device adapters of part numbers 9360705, 9360707, and the series 9360710 to 9360798. These adapters are part of Rittal’s RiLineX system and are mounted in 60 mm busbar systems. The connection is achieved through mechanical fit, where the pin is inserted into corresponding holes or guide elements of the adapters and device carriers.

Mounting and Installation
Mounting is done by simply inserting the connecting pin into the designated holes of the device adapters and device carriers. The fit ensures a secure connection without requiring additional fastening elements. Installation does not require special tools, as the pin can be inserted by hand. The pin is used in conjunction with already mounted device adapters that are fixed to the busbar.

Advantages in Operation
The connecting pin ensures a stable and reliable mechanical connection that does not loosen under operational vibrations or mechanical loads. The choice of polyamide (PA 6) material ensures long service life and resistance to environmental influences. The UL 94 approval increases safety in electrical installations, as the material does not ignite easily under heat. The standardisation of the colour RAL 35745 supports visual consistency in complex enclosures.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 35745
Suitable for part no.9360705, 9360707, 9360710 - 9360798
PCF/VE (Cradle-to-Gate)0,38


Product data sheet
Datasheet for Rittal 9365700, EAN: 4069196007244

Questions & answers

What is the delivery time of Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50?

The article Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365700 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50 always at the best possible price. We can give you a discount of 2% on Rittal 9365700 RX connecting pin for device adapter/device carrier, pack of 50 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
