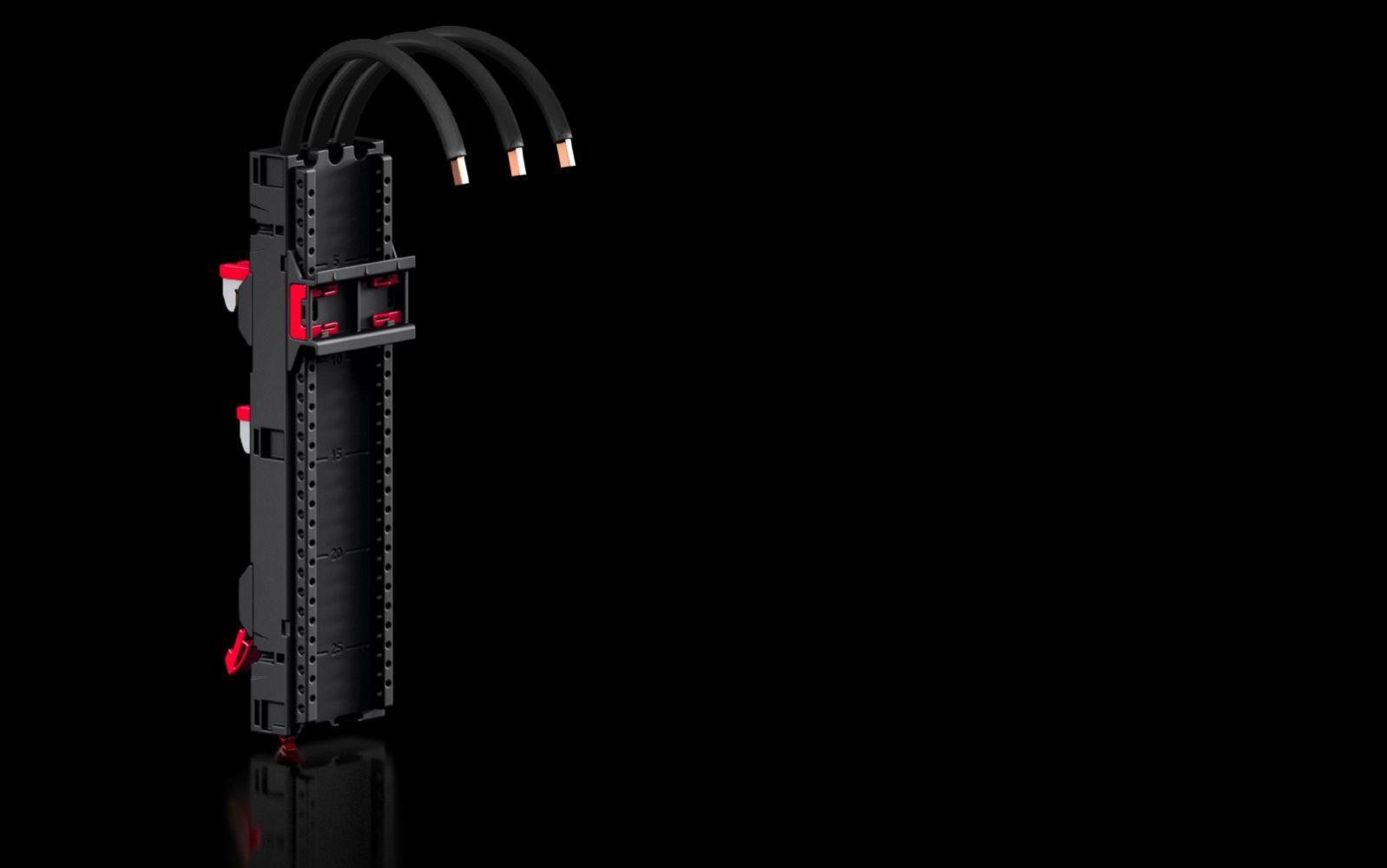

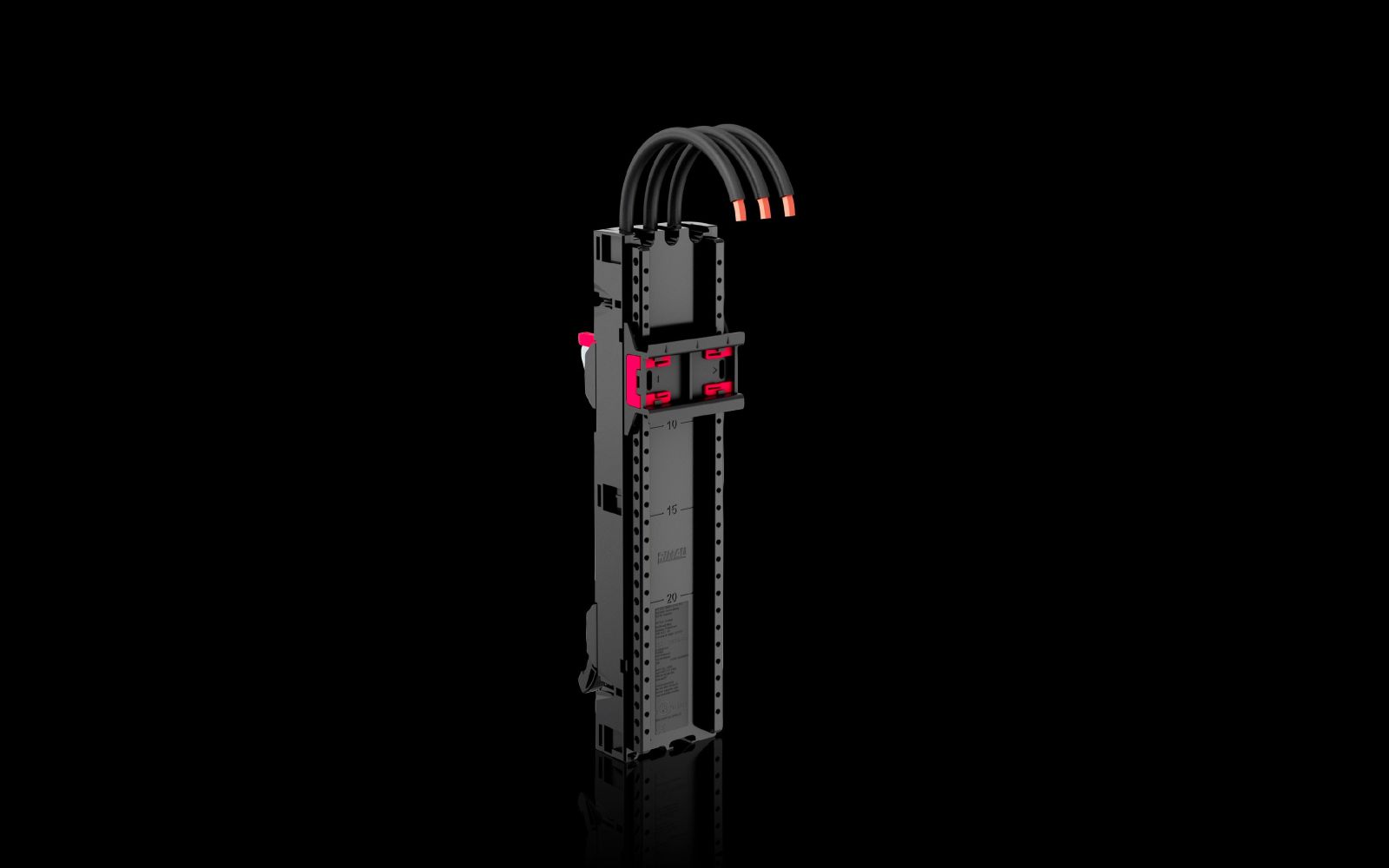

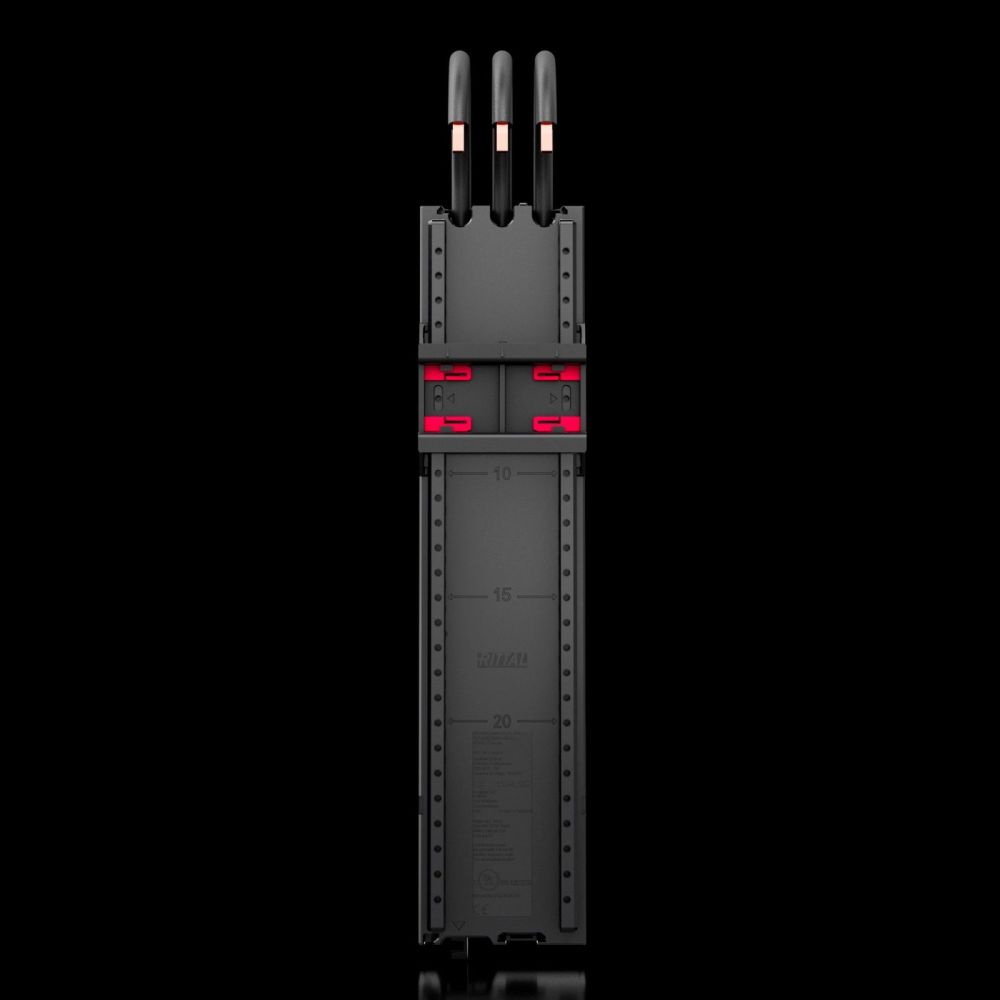

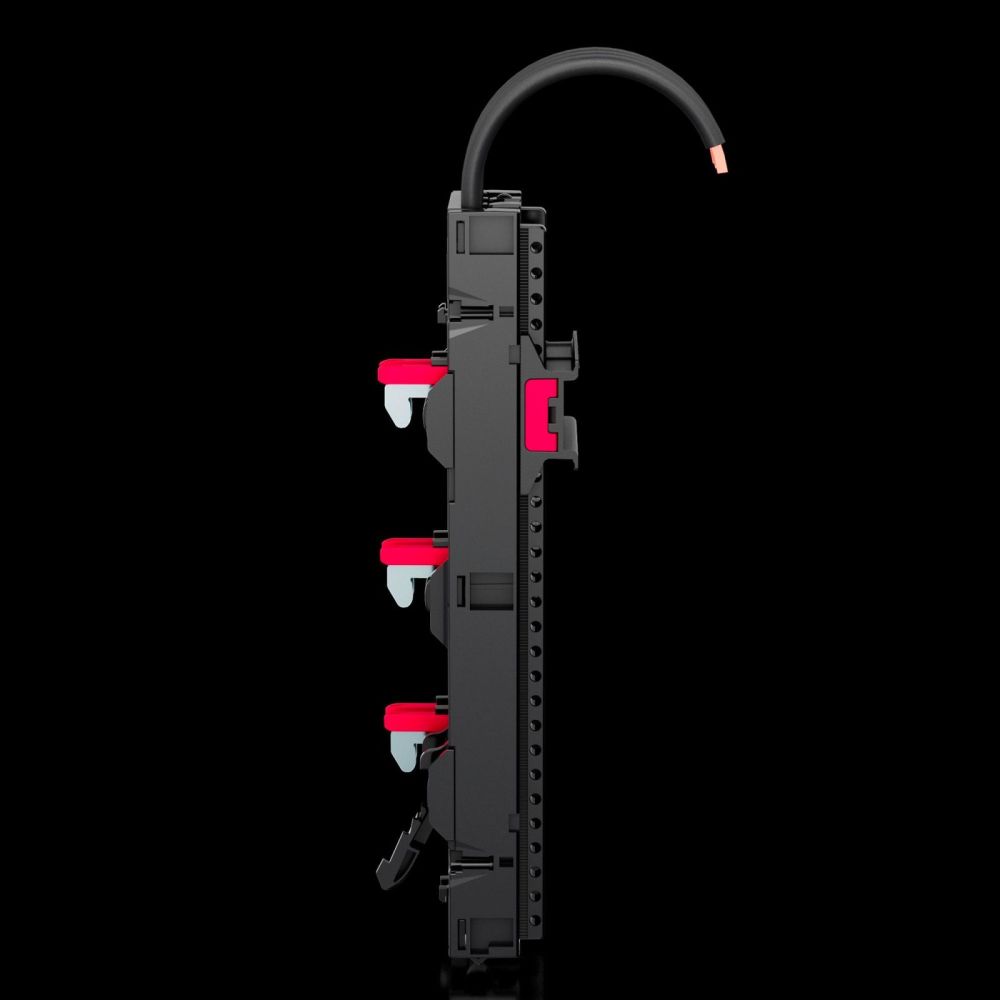

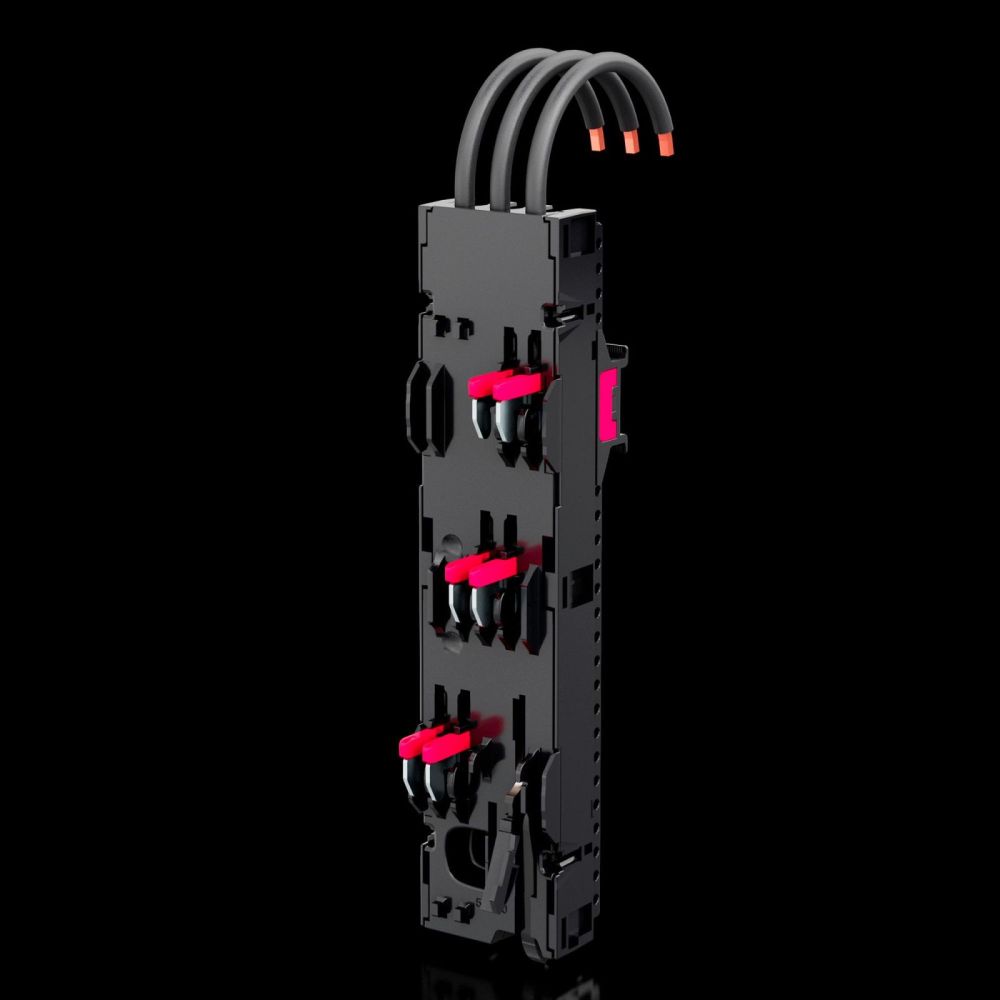

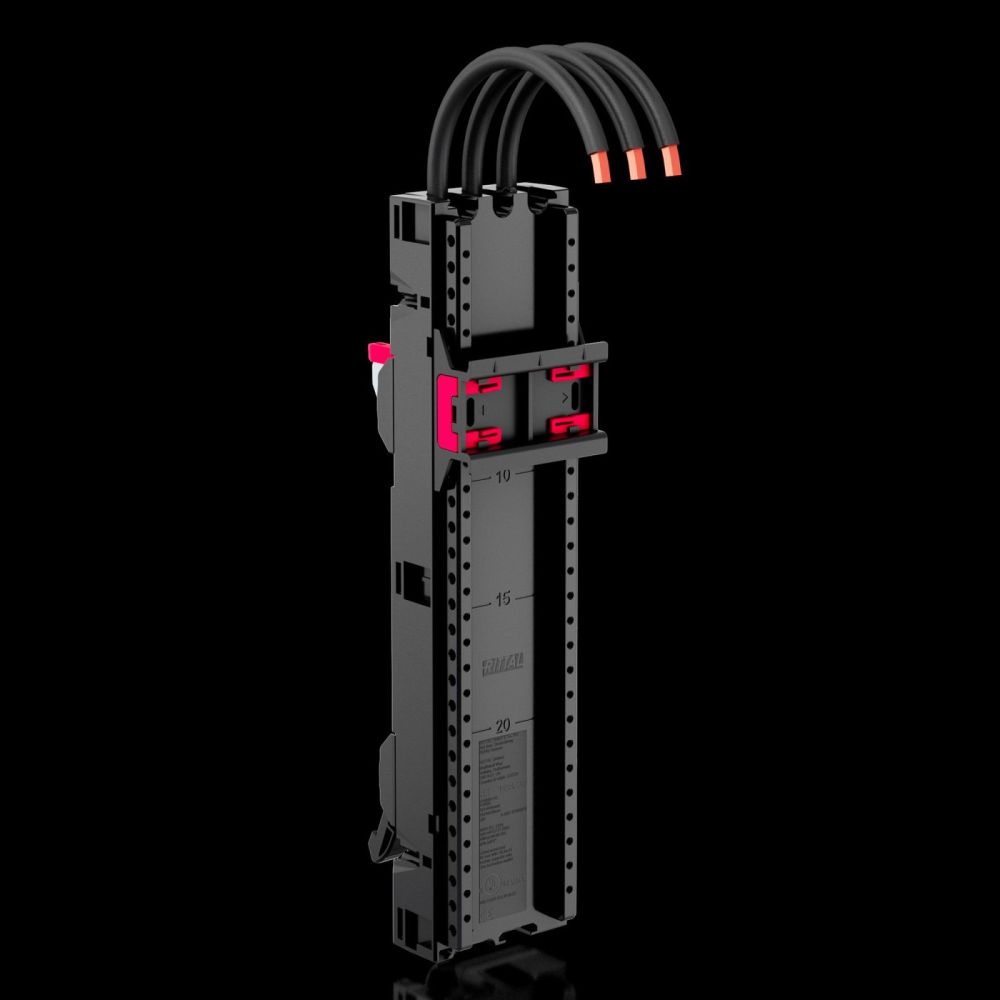

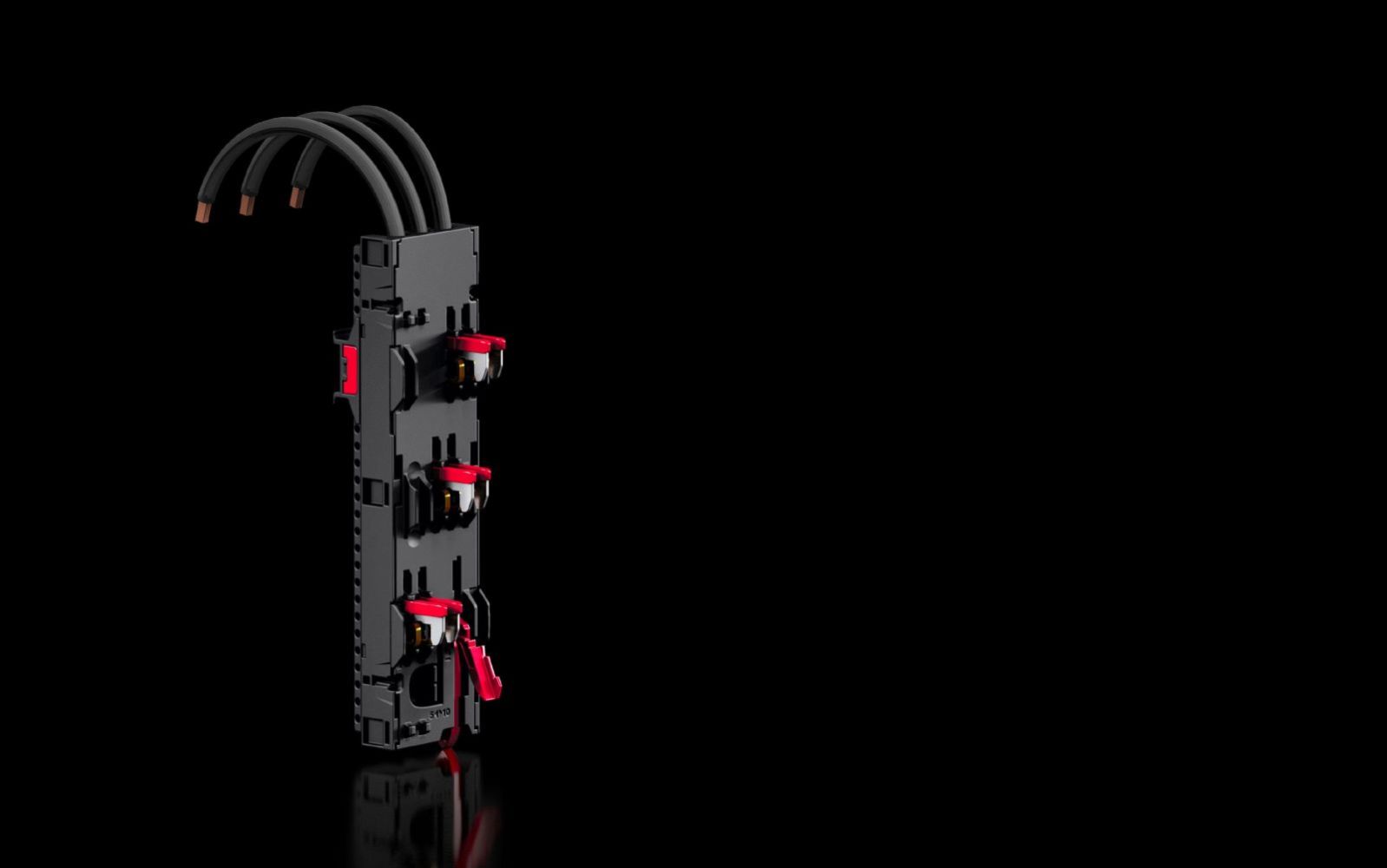

Rittal 9360760 RX device adapter 65 A AWG 6 3-pole W:54 mm, pack of 4

Your rating:
Average rating
product review for Rittal 9360760 RX device adapter 65 A AWG 6 3-pole W:54 mm, pack of 4
( 4.8 / 5 ) 4 ratings
Rittal 9360760
This image may differ from the desired article.
Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760Rittal 9360760
85,10 EUR 88,50 EUR
( 101,27 EUR incl. VAT )
≈ £71.14  |  ≈ $94.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360760 RX device adapter 65 A AWG 6 3-pole W:54 mm, pack of 4
Datasheet:file_download Download
Lieske Part No.:157183
Mfg Part No: 9360760
UPC/EAN: 4028177996991
Weight:1.883 kg
Type:RX 9360760

Product information for Rittal 9360760:

The Rittal RX 9360760 is a device adapter for mounting control devices such as motor starters or switching devices on busbar systems with a center-to-center spacing of 60 mm, particularly for the RiLineX and RiLine60 systems. It features a 3-pole configuration with a rated current of 65 A and is equipped with pre-fabricated connection leads that enable quick and secure wiring. The connection leads have a cross-section rating of AWG 6, equivalent to a cable cross-section of 16 mm², and are fitted with a cable exit at the bottom. The length of the connection leads is 130 mm, providing sufficient connection length for typical installations.

Applications
The adapter is designed for use in industrial electrical installations where secure and rapid mounting of switching and protection devices on busbars is required. It is particularly suitable for installations with a rated voltage up to 690 V AC and 600 V DC (UL), with electrical values certified according to UL 508 and IEC 61 439-1/-2. The rated insulation voltage Ui is 1,000 V, and the rated impulse voltage Uimp is 8 kV, ensuring high electrical strength. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust – therefore, application is limited to enclosed enclosures.

Functions and Equipment in DetailA central feature of the device adapter is the mounted, tool-free adjustable support rail, which enables snap-in mounting of devices. The support rail is designed for a height of 10 mm and can be adjusted to busbars with thicknesses of 5 mm or 10 mm and widths of 15 mm, 20 mm, or 30 mm. The simple plug-in locking mechanism of the support rail allows for quick and secure installation without tools. Optionally, a device anti-shift device can be used to fix the device during operation. The dimensions of the adapter are 54 mm (width), 239.4 mm (height), and 36.2 mm (depth), making it suitable for standard switchboards.

Technology Explained SimplyThe adapter is made of polyamide (PA 6), a robust plastic with good mechanical strength and heat resistance. The material meets the requirements for flammability behavior according to UL 94, ensuring safe use in electrical installations. The rated voltage of 690 V AC and 600 V DC (UL) covers most industrial applications. The pollution degree 3 according to IEC 60 664-1 indicates that the adapter is suitable for environments with increased pollution, such as production halls. The operating temperature range is between -5 °C and 55 °C, with storage up to 75 °C being possible. The maximum operating air humidity is 90 %, with no condensation allowed.

Compatibility and AccessoriesThe adapter is specifically developed for the RiLineX and RiLine60 busbar systems, which feature a center-to-center spacing of 60 mm. It is compatible with various accessory parts, including connecting pins, enclosure protection profiles, mounting clips, locking wedges, support rails with height adjustment, and anti-shift devices. These components enable flexible and secure mounting of various devices and reduce product variety through coordinated accessories. The support rail can also be secured with locking screws or locking pins to prevent unintended movement.

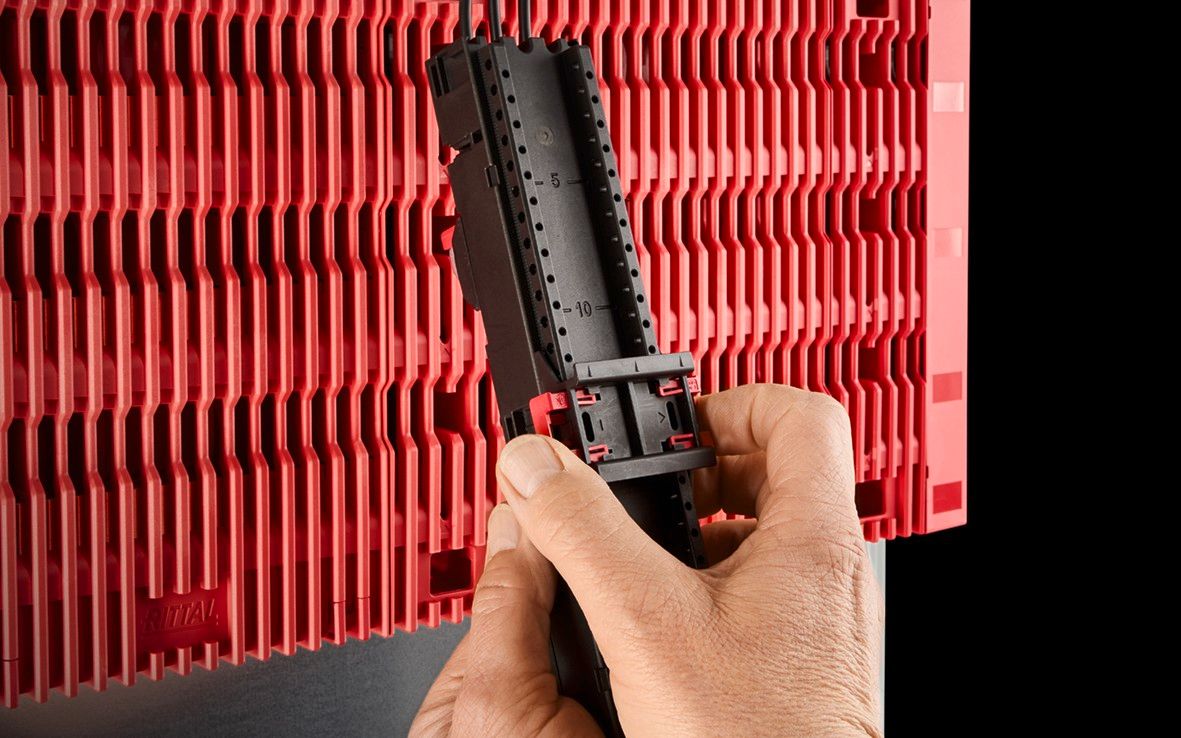

Mounting and InstallationInstallation is performed by simply snapping the support rail onto the busbar, with the tool-free adjustment allowing adaptation to different bar thicknesses (5/10 mm). The pre-fabricated connection leads simplify wiring, as no additional cables need to be laid. The snap-in mounting of devices onto the support rail is quick and secure, reducing installation time. Adhering to the specified mounting instructions ensures a safe and durable connection.

Advantages in OperationThe Rittal RX 9360760 offers reduced product variety through standardized accessories, simplifying planning and ordering. The tool-free mounting and fast wiring via pre-fabricated leads reduce installation time. The high electrical strength and certification according to IEC 61 439-1/-2 and UL 508 ensure safety in industrial installations. The adjustability of the support rail allows flexible adaptation to different busbar profiles, expanding application possibilities. The robust construction from PA 6 and good heat resistance ensure long service life under industrial conditions.

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 6
Rated current (max.)65 A
Rated current for round conductor65 A
Rated current for round conductor (UL)65 A
Electrical values UL (SCCR)600 V / 7.5 kA SCCR unprotected AC UL, 100 kA - 600 V, Fuse Class RK5 max. 60 A, JDDZ/7, 22 kA - 600 V, Combination Motor Controller max. 40 A, NKJH/7, 20 kA - 600 V, Circuit Breaker max. 60 A, DIVQ/7, 65 kA - 480 V, Combination Motor Controller max. 52 A, NKJH/7
Cable exitBelow
For rail systems with centre spacing60 mm
Connection cable length130 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width54 mm
Height239,4 mm
Depth36,2 mm
DIN rail quantity/height1 / 10 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load3,763 MJ/m²
Copper content (kg/piece)0,145
PCF/VE (Cradle-to-Gate)13,53


Product data sheet
Datasheet for Rittal 9360760, EAN: 4028177996991
