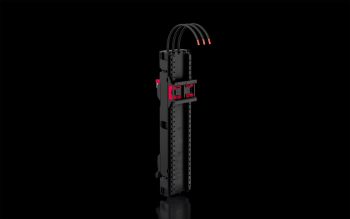

Rittal 9360720 RX device adapter 25 A AWG 12 3-pole W:45 mm pack of 4

Your rating:
Average rating
product review for Rittal 9360720 RX device adapter 25 A AWG 12 3-pole W:45 mm pack of 4
( 4.5 / 5 ) 2 ratings
Rittal 9360720
This image may differ from the desired article.
Rittal 9360720Rittal 9360720Rittal 9360720Rittal 9360720Rittal 9360720Rittal 9360720Rittal 9360720
64,40 EUR 66,98 EUR
( 76,64 EUR incl. VAT )
≈ £53.84  |  ≈ $71.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9360720 RX device adapter 25 A AWG 12 3-pole W:45 mm pack of 4
Datasheet:file_download Download
Lieske Part No.:1571813
Mfg Part No: 9360720
UPC/EAN: 4028177997028
Weight:1.39 kg
Type:RX 9360720

Product information for Rittal 9360720:

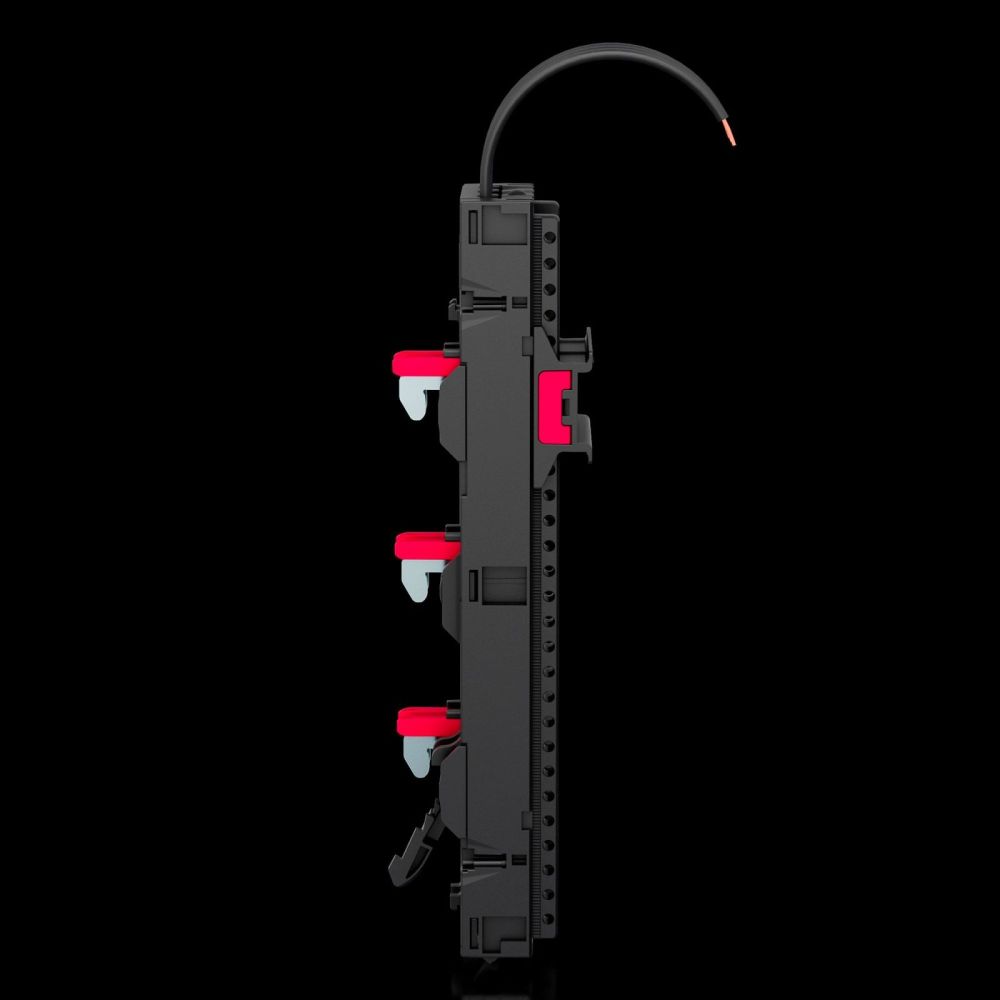

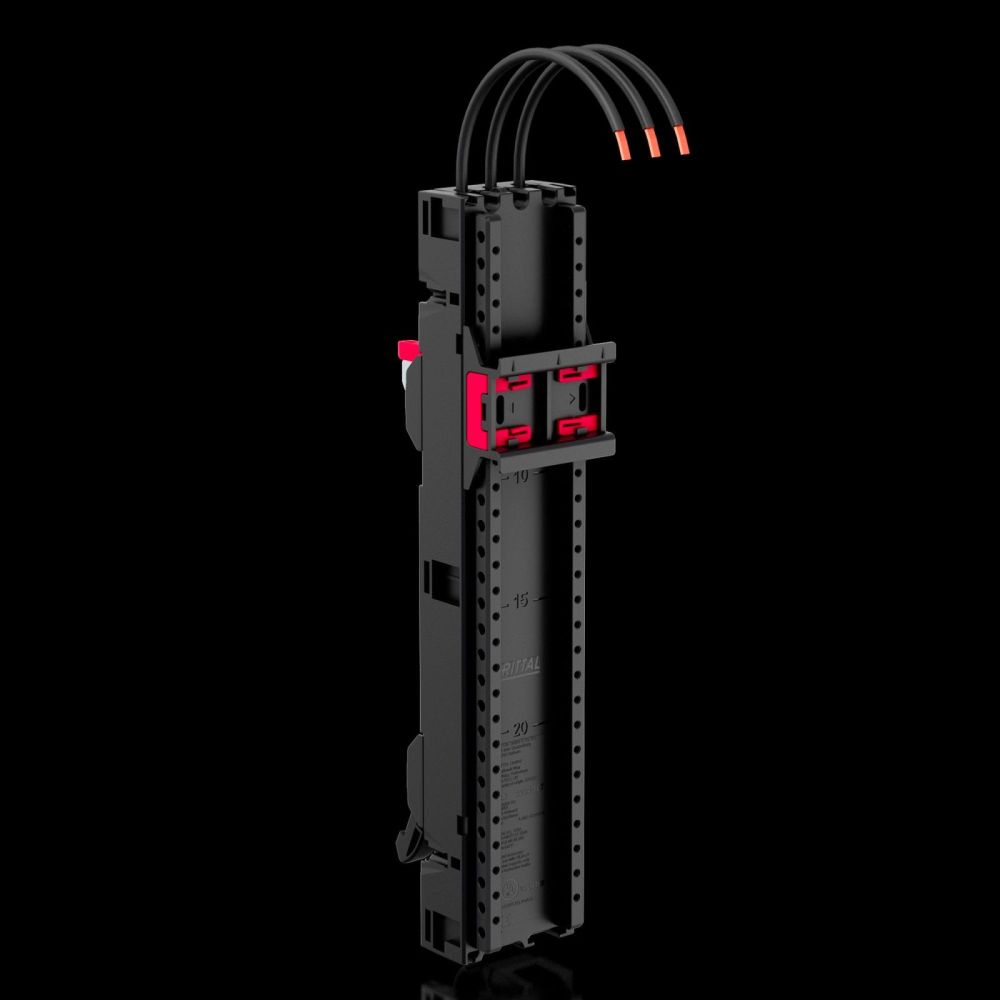

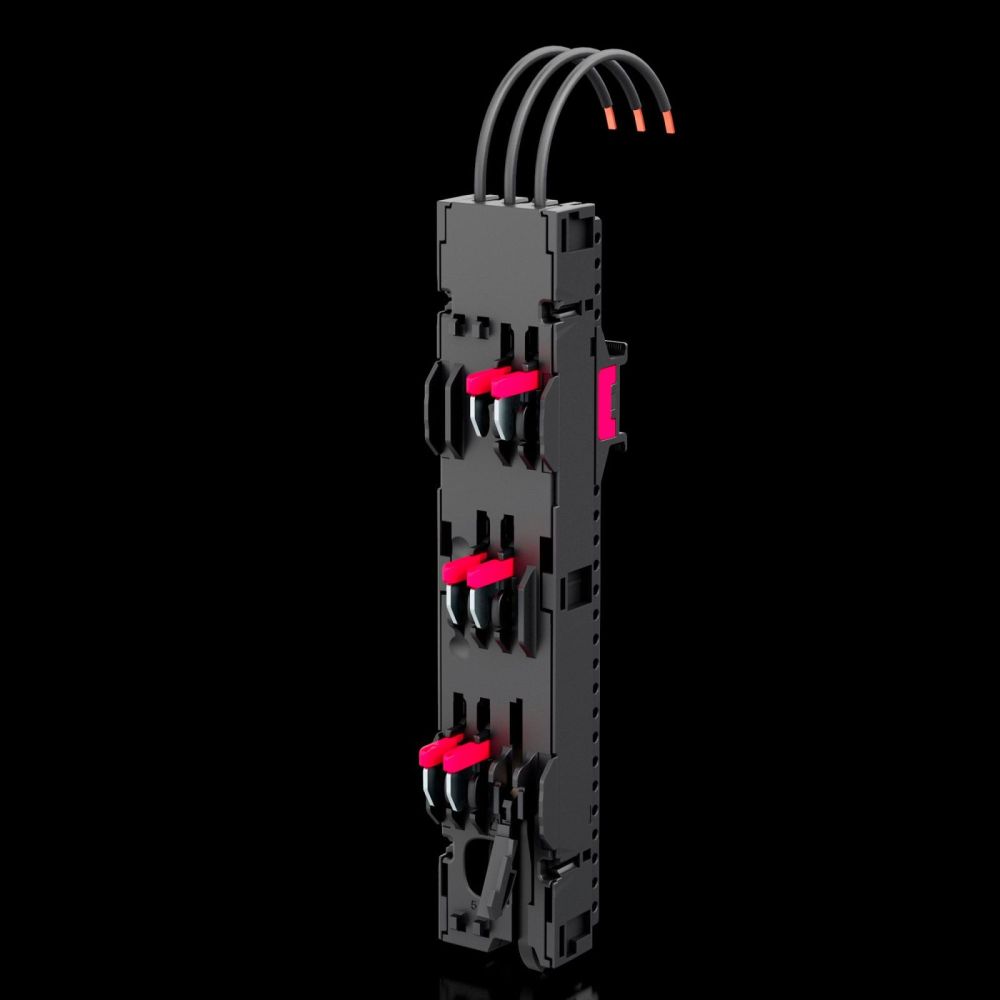

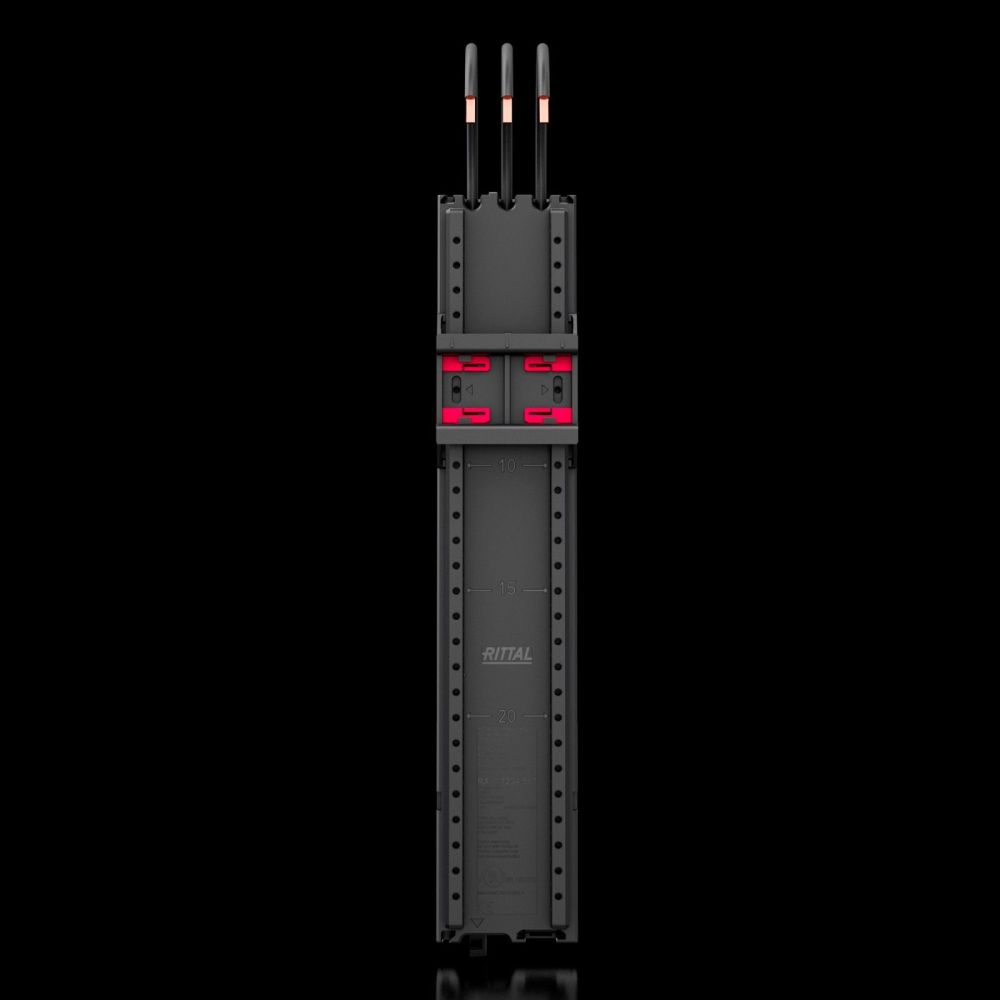

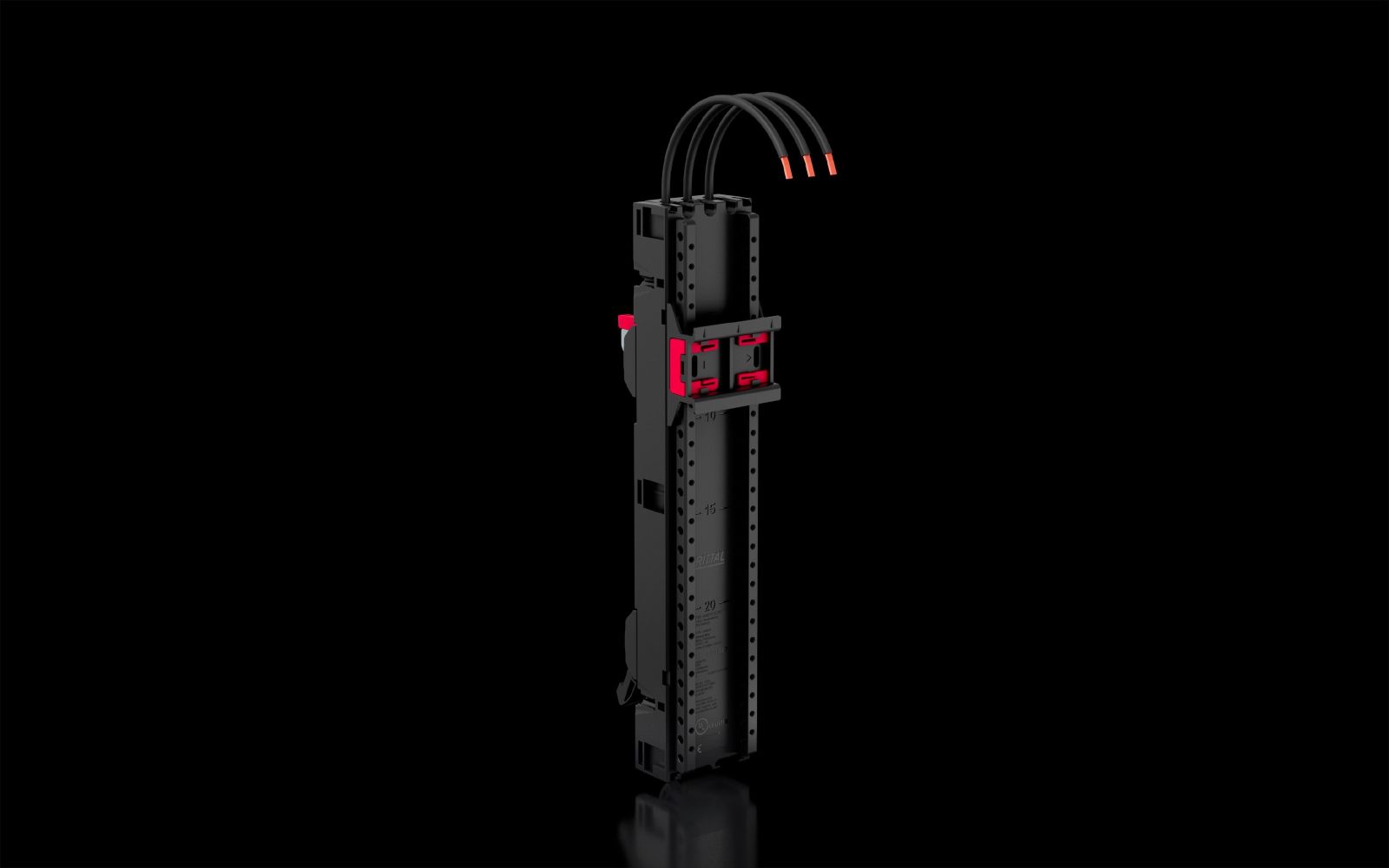

The Rittal device adapter type RX 9360720 is a 3-pole adapter for mounting control devices on 60 mm busbar systems, particularly for RiLineX and RiLine60. It enables secure and rapid installation of switching and protection devices such as motor starters, with device mounting achieved via a pre-assembled, tool-free adjustable support rail. The version with pre-fabricated connection leads allows direct connection to the power supply network, thereby reducing installation time.

Applications

The adapter is designed for industrial applications requiring reliable power distribution and protection. It is suitable for enclosures and distributors where control devices are mounted on DIN rails. Compatibility with busbar thicknesses of 5 mm and 10 mm, as well as widths of 15 mm, 20 mm, and 30 mm, ensures flexible adaptation to various systems. The rated voltage is 690 V AC, supplemented by UL approvals for 600 V AC and 600 V DC, enabling use in international installations.

Functions and Equipment in Detail

The adapter features an integrated support rail with a height of 10 mm, which can be adjusted tool-free to match the respective busbar thickness. The connection leads are made of AWG 12 (approximately 4 mm²) and have a length of 160 mm, with the lead exit at the bottom. The maximum rated current load is 25 A, with rated current values for round conductors also at 25 A. Electrical values according to UL (SCCR) include various protection configurations, such as fuses (Fuse Class RK5 max. 30 A), circuit breakers (max. 22 A), and combination motor controls (max. 16 A to 40 A depending on configuration).

Technology Explained Simply

The construction from polyamide (PA 6) with flame resistance according to UL 94 ensures high mechanical stability and fire resistance. The protection class IP 2XB protects against finger contact and solid foreign objects, but not against water or dust. The rated insulation voltage is 1,000 V, and the rated impulse voltage is 8 kV, ensuring electrical safety in industrial environments. Pollution degree 3 indicates suitability for environments with increased contamination, such as those found in production facilities. The operating temperature range is between -5 °C and 55 °C, and the storage temperature range is between -25 °C and 75 °C.

Compatibility and Accessories

The adapter is specifically designed for busbar systems with a center-to-center spacing of 60 mm and fits RiLineX and RiLine60. Available accessories include connecting pins, anti-shift devices, encircling protection profiles, mounting clips, support rails with height adjustment, and expansion blocks. These allow individual adaptation and expansion of the mounting configuration.

Mounting and Installation

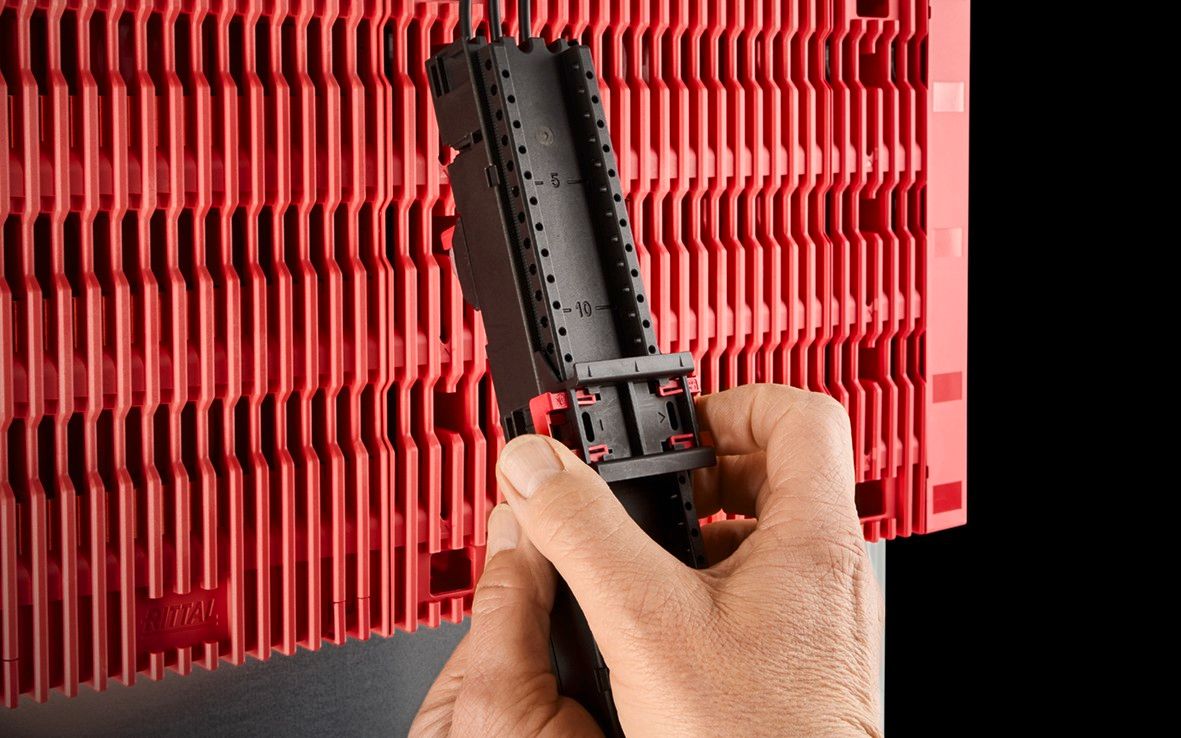

Installation is performed by snapping the support rail onto the busbar, with the tool-free adjustment facilitating adaptation to different rail thicknesses. The pre-fabricated connection leads reduce installation time and minimize error sources. The simple plug-locking mechanism of the support rail ensures secure fixation of the device.

Advantages in Operation

The adapter reduces product variety through coordinated accessories and enables standardized mounting. The tool-free adjustment and pre-fabricated leads accelerate installation. High electrical safety due to compliance with IEC 61 439-1/-2 and UL 508, along with the robust polyamide construction, ensures reliable performance in industrial applications. The combination of mechanical stability, electrical safety, and easy installation makes the adapter a practical solution for power distribution in enclosures.

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 12
Rated current (max.)25 A
Rated current for round conductor25 A
Rated current for round conductor (UL)25 A
Electrical values UL (SCCR)5 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class RK5 max. 30 A, JDDZ/7, 50 kA - 480 V, Circuit Breaker max. 22 A, DIVQ/7, 65 kA - 480 V, Combination Motor Controller max. 16 A, NKJH/7, 30 kA - 600 V, Combination Motor Controller max. 12.5 A, NKJH/7, 65 kA - 480 V, Combination Motor Controller max. 40 A, NKJH/7
Cable exitBelow
For rail systems with centre spacing60 mm
Connection cable length160 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width45 mm
Height239,4 mm
Depth36,2 mm
DIN rail quantity/height1 / 10 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load3,419 MJ/m²
Copper content (kg/piece)0,096
PCF/VE (Cradle-to-Gate)8,78


Product data sheet
Datasheet for Rittal 9360720, EAN: 4028177997028
