Rittal 9365750 RX expansion block for device adapter W: 45 mm, pack of 8

Your rating:
Average rating
product review for Rittal 9365750 RX expansion block for device adapter W: 45 mm, pack of 8
( 4.5 / 5 ) 2 ratings
Rittal 9365750
This image may differ from the desired article.
Rittal 9365750Rittal 9365750Rittal 9365750Rittal 9365750Rittal 9365750Rittal 9365750
-7% 16,20 EUR 17,33 EUR
( 19,28 EUR incl. VAT )
≈ £13.54  |  ≈ $17.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 9365750 RX expansion block for device adapter W: 45 mm, pack of 8
Datasheet:file_download Download
Lieske Part No.:1572003
Mfg Part No: 9365750
UPC/EAN: 4069196002096
Weight:0.247 kg
Type:RX 9365750

Product information for Rittal 9365750:

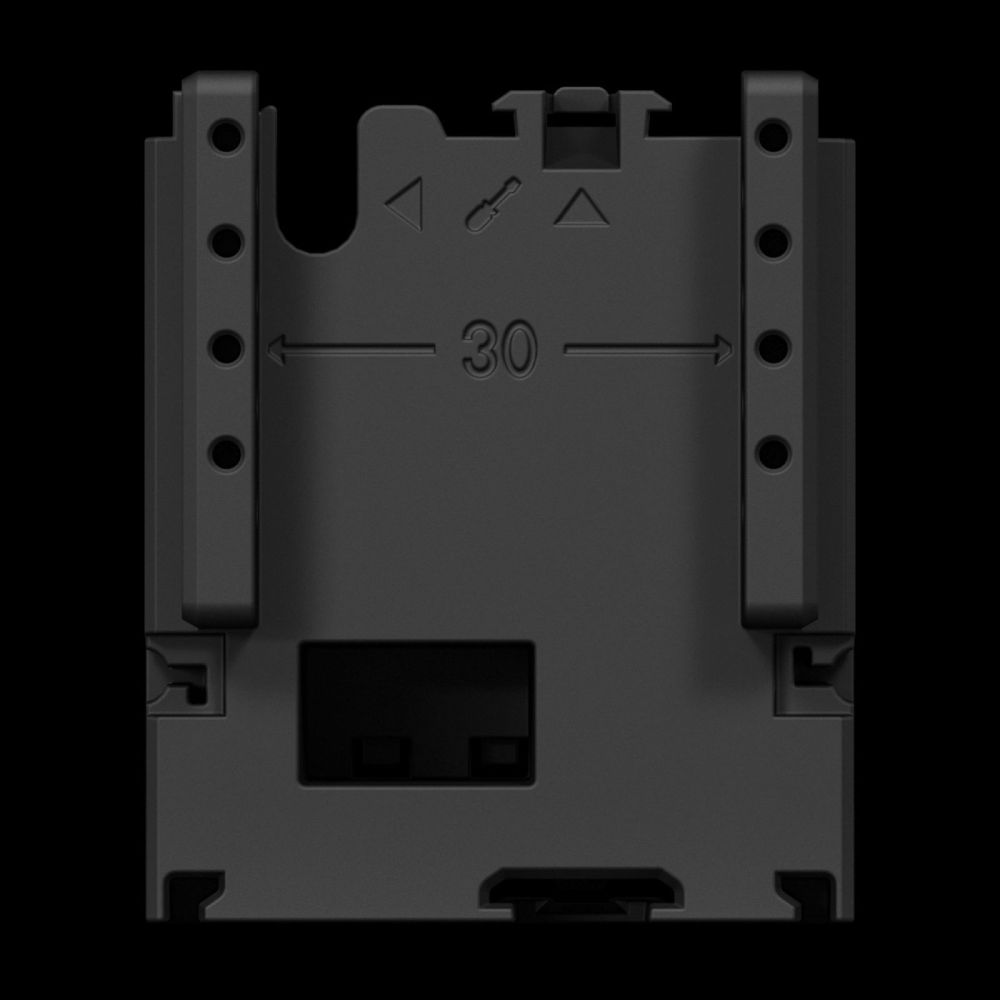

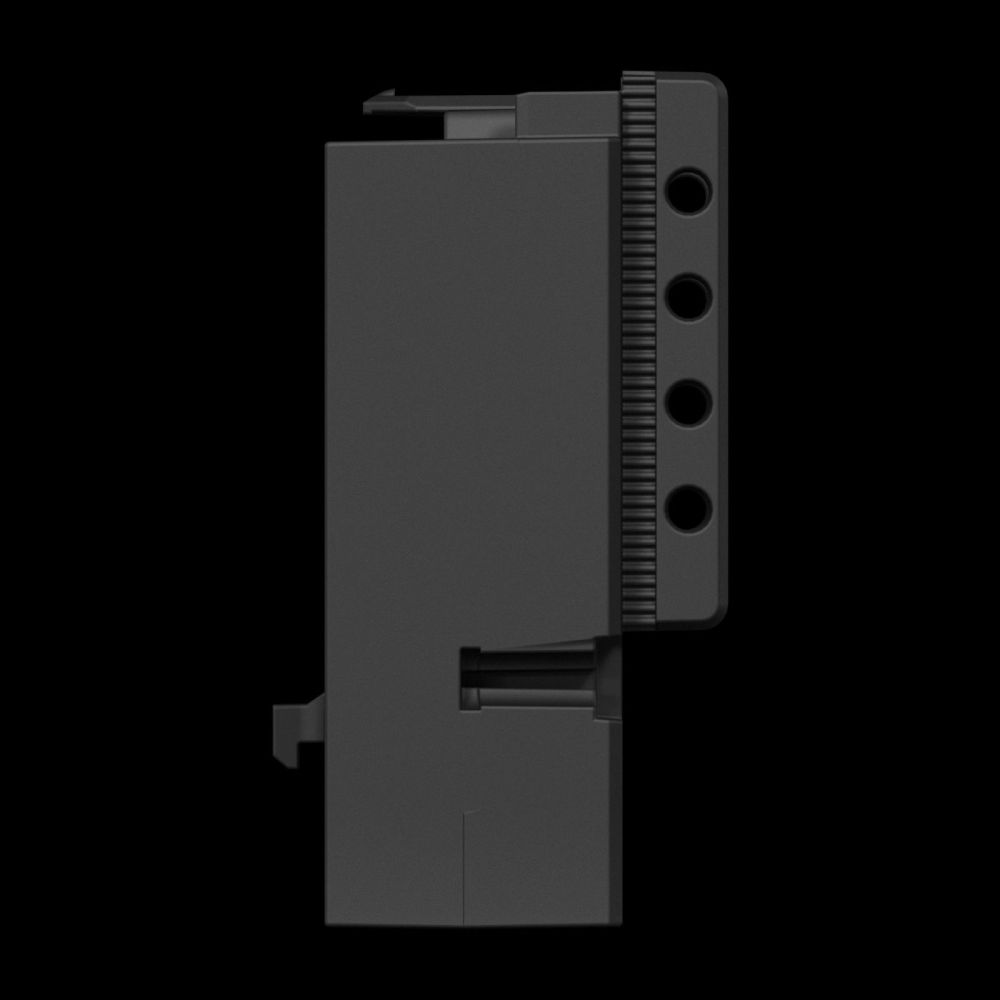

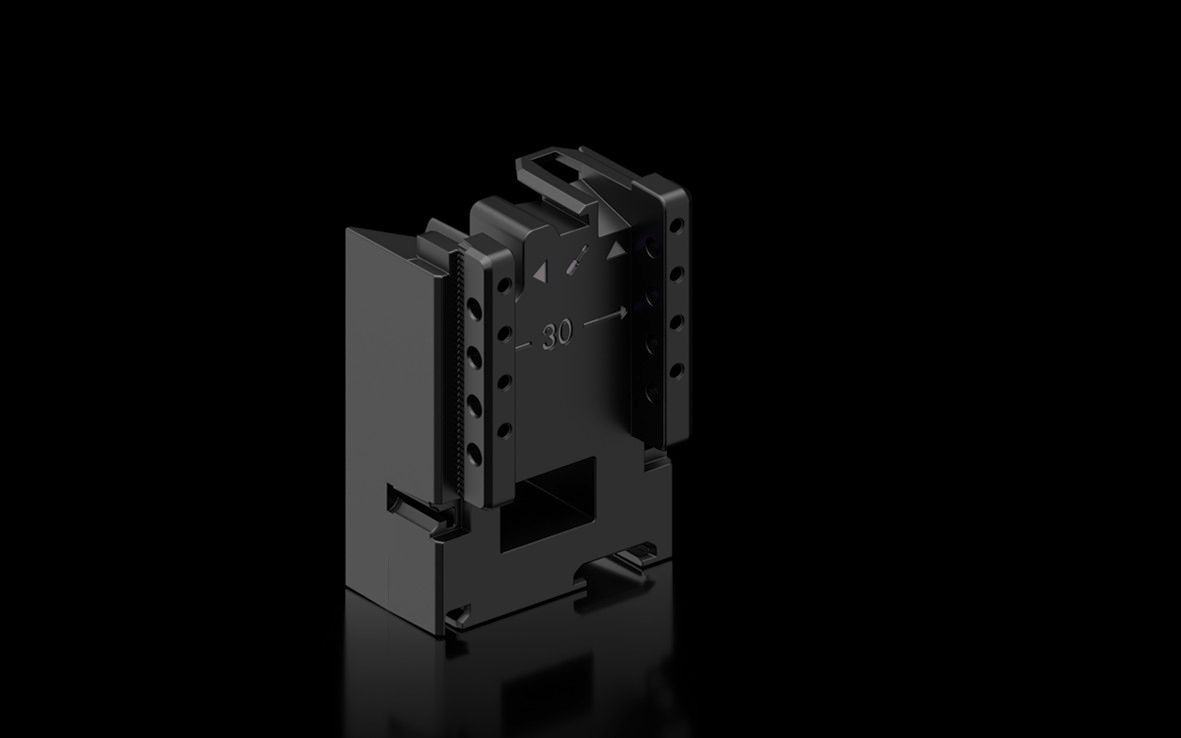

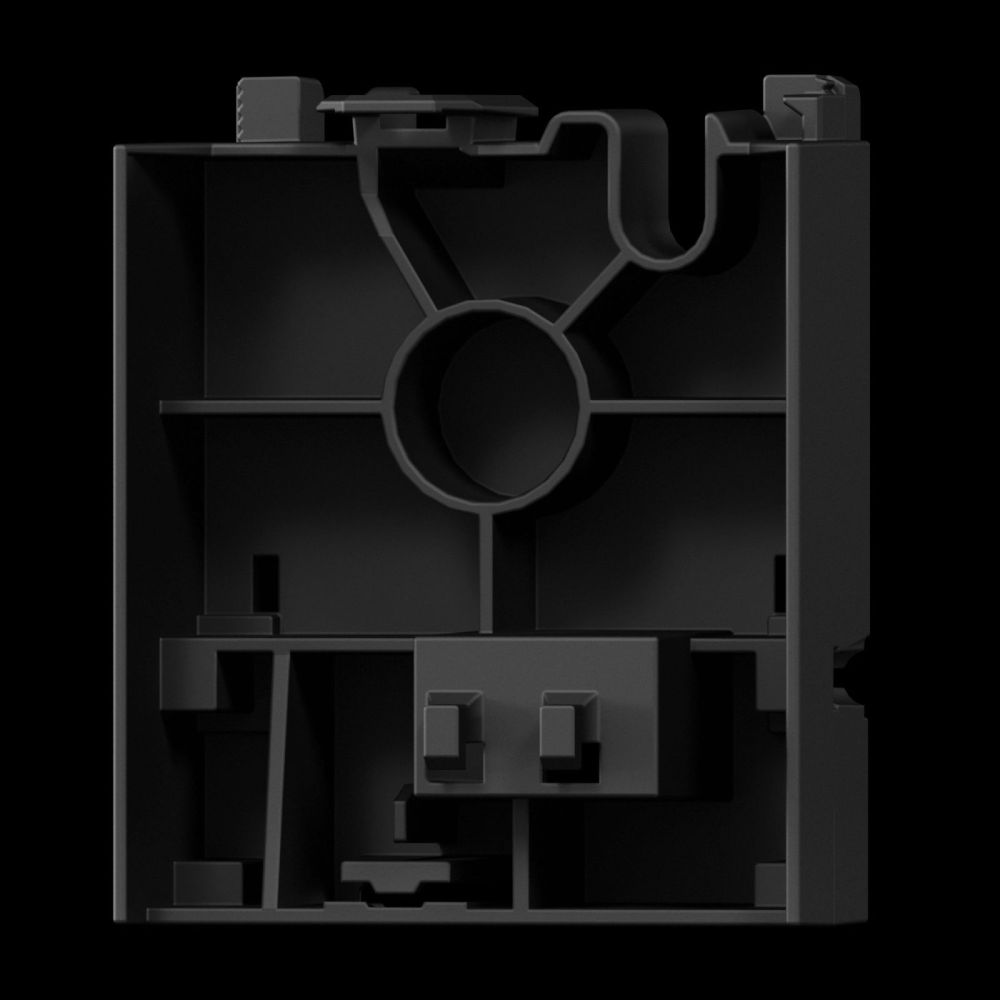

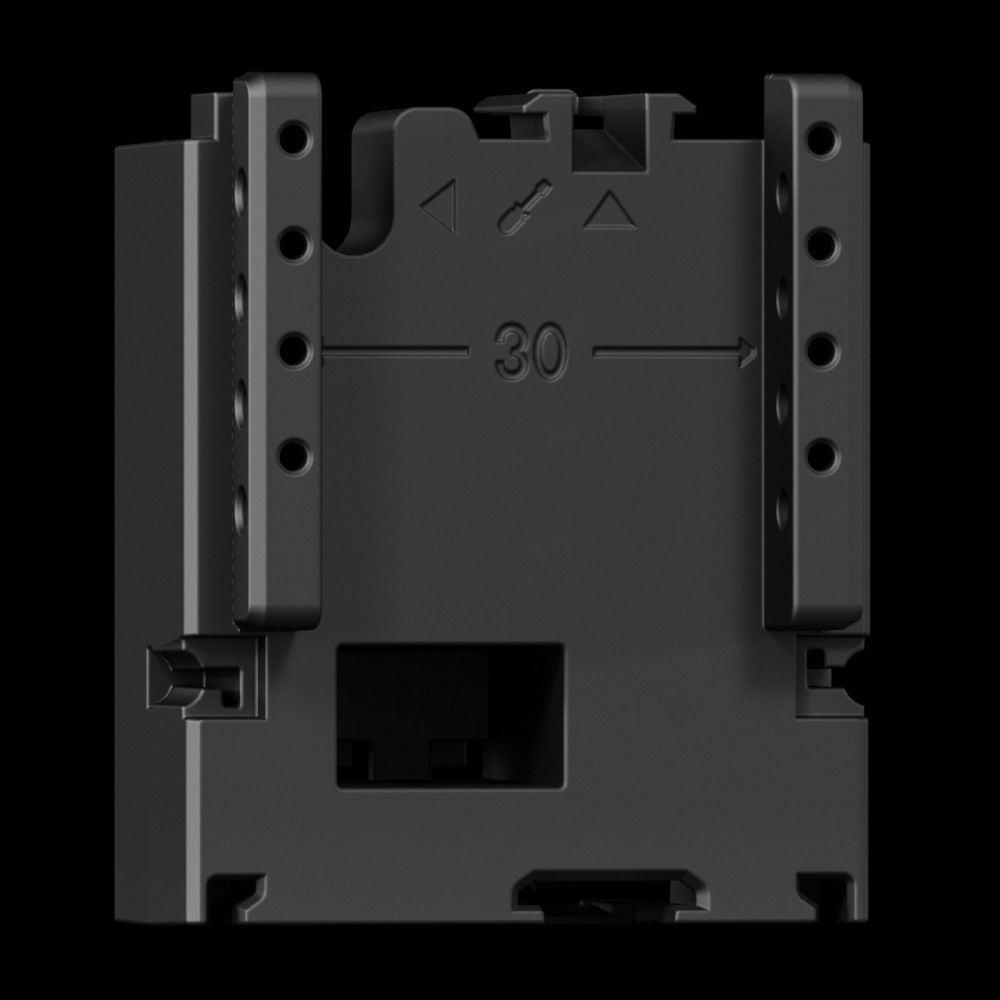

The Rittal RX 9365750 is an extension block for device adapters in the RiLineX system, specifically designed to extend the mounting height. It is used to increase the height of a device adapter from 240 mm to 300 mm, which may be required when mounting components such as motor protection relays. The component is made of polyamide (PA 6), a thermoplastic material known for its high strength, heat resistance, and chemical resistance. The flammability rating complies with UL 94, ensuring a specific flame-retardant property. The color of the extension block is RAL 9005, a dark gray to black shade commonly used in industrial applications to ensure a uniform appearance in enclosures.

Applications

The extension block is specifically intended for busbar systems used in industrial electrical engineering for the safe and structured mounting of components in enclosures. It enables adjustment of the mounting height to accommodate specific devices exceeding the standard height of 240 mm. This is particularly useful when integrating components with greater height, such as motor protection relays, into existing device adapters without requiring additional mounting structures. The block is typically used in combination with device adapters with part numbers 9360710, 9360720, 9360730, and 9360705.

Functions and Equipment in Detail

The block has a width of 45 mm and a height of 60 mm, allowing it to fit precisely into the designated mounting positions of RiLineX adapters. The exact dimensions ensure a secure and smooth installation without additional adjustments. The use of polyamide (PA 6) provides high mechanical stability and resistance to mechanical stress during operation. The RAL 9005 color supports visual harmonization within enclosures, which is beneficial for maintenance and inspection.

Technology Explained Simply

The extension block serves as a mechanical mounting add-on that increases the mounting height of a device adapter by 60 mm. It is inserted into the corresponding mounting openings of the device adapter and connects securely to create a stable platform for taller components. The choice of polyamide (PA 6) provides sufficient strength to support the weight of mounted devices without deformation. The UL 94 flammability rating ensures the material does not easily ignite under heat, which is an important safety feature in electrical switchgear.

Compatibility and Accessories

The extension block is specifically designed for device adapters with part numbers 9360710, 9360720, 9360730, and 9360705. These adapters are part of the RiLineX system and enable modular mounting of components in enclosures. Combining them with these adapters ensures uniform mounting geometry and a secure mechanical connection.

Mounting and Installation

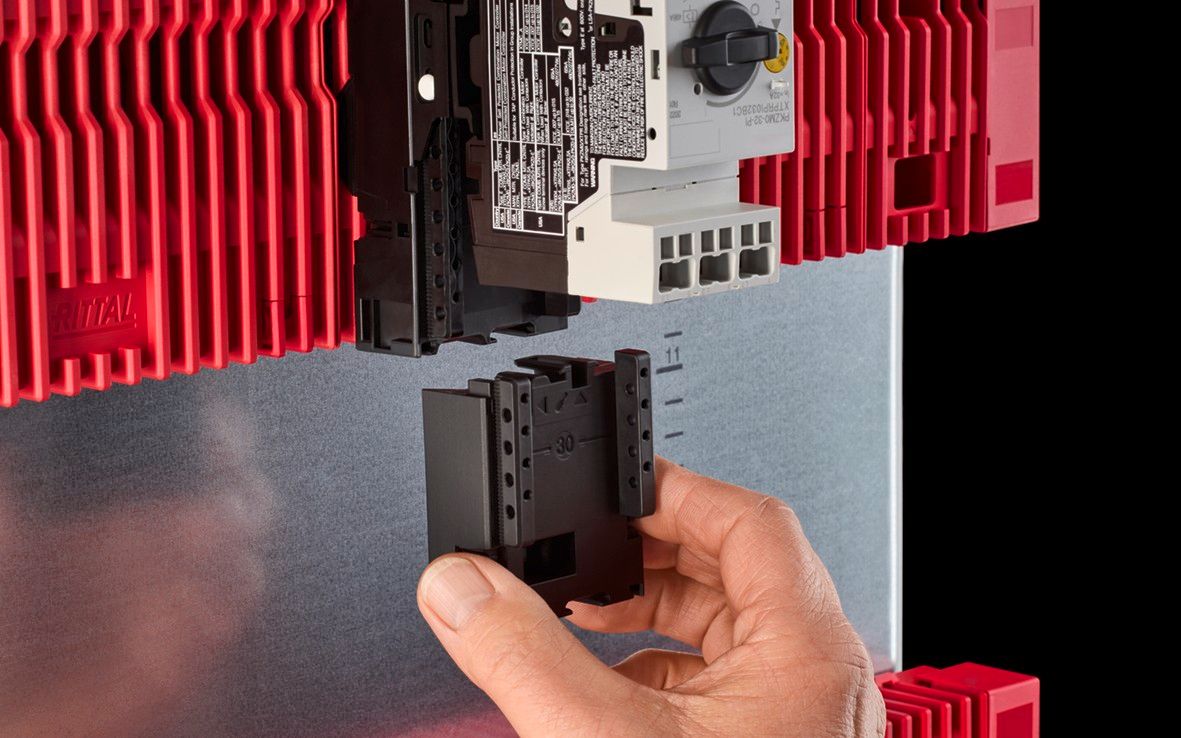

Installation is performed by simply inserting the extension block into the designated mounting openings of the device adapter. The precise fit of the dimensions (45 mm width, 60 mm height) ensures a secure and smooth locking. No additional tools or mounting aids are required. The installation is carried out within the context of existing RiLineX system mounting, with the block positioned directly beneath the component to be mounted to achieve the required height.

Advantages in Operation

Using the extension block allows flexible adjustment of mounting height without modifying the existing enclosure or mounting system. This reduces installation time and minimizes effort for additional constructions. The use of polyamide (PA 6) ensures long service life and resistance to mechanical and thermal stresses. The RAL 9005 color supports visual structuring within the enclosure, which is helpful for maintenance and inspection. The packaging unit contains 8 pieces, enabling cost-effective procurement for larger mounting projects.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9360710, 9360720, 9360730, 9360705
Width45 mm
Height60 mm
PCF/VE (Cradle-to-Gate)1,59


Product data sheet
Datasheet for Rittal 9365750, EAN: 4069196002096
