Rittal 9360705 RX device carrier W:45 mm, pack of 4

Your rating:
Average rating
product review for Rittal 9360705 RX device carrier W:45 mm, pack of 4
( 4.3 / 5 ) 4 ratings

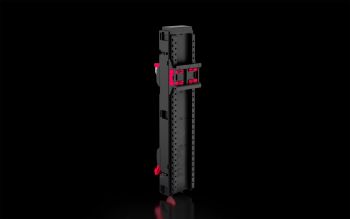

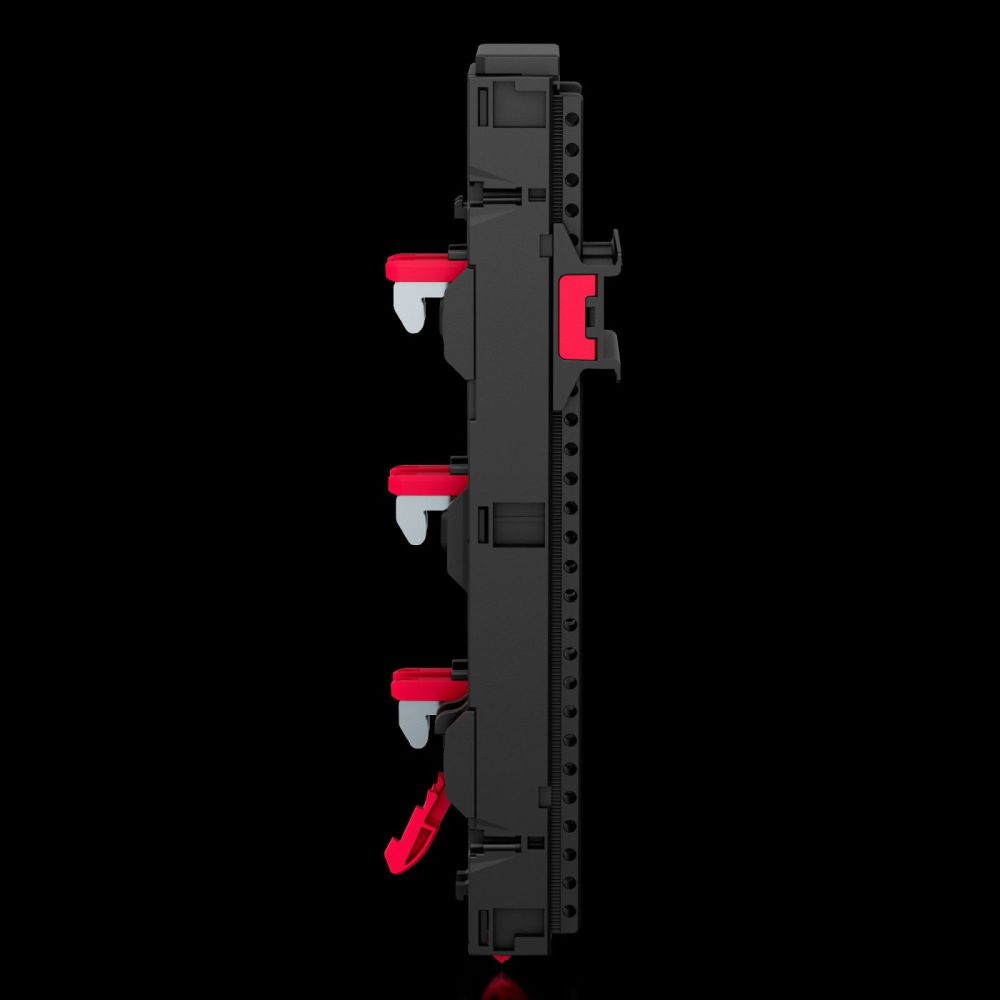

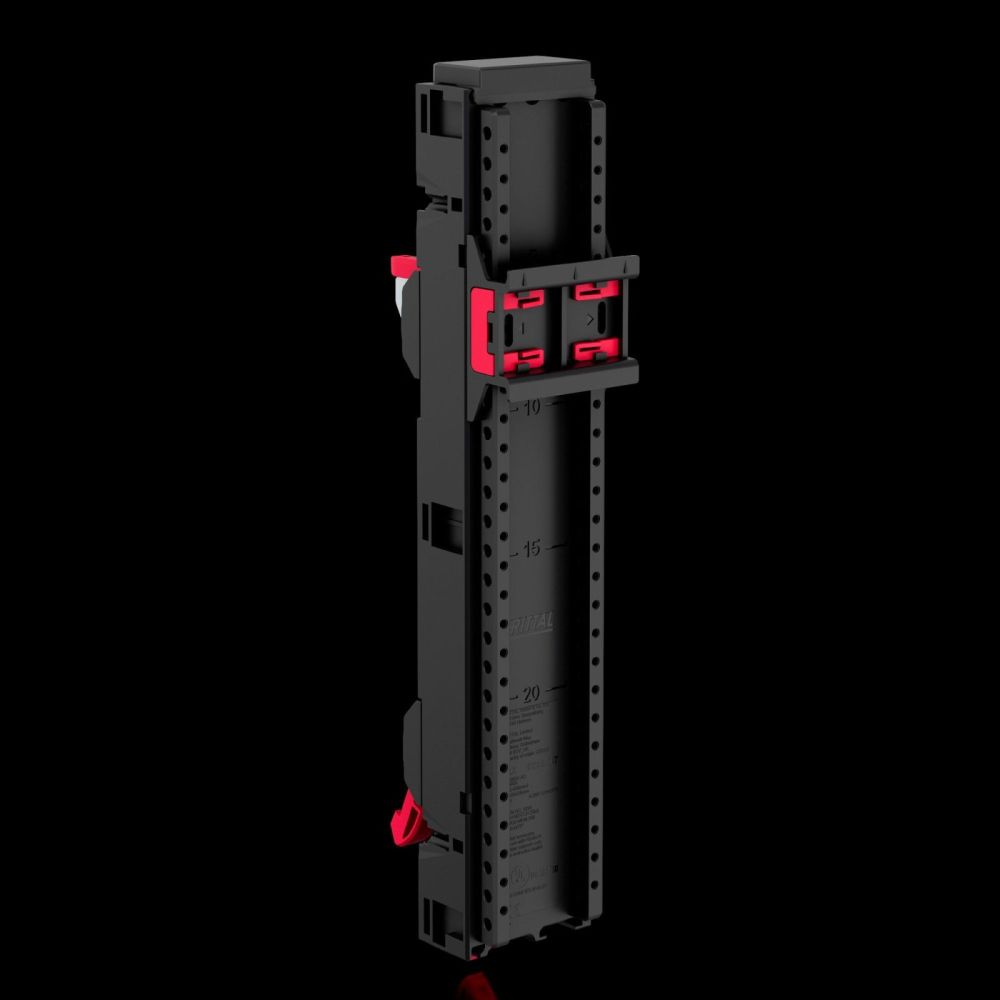

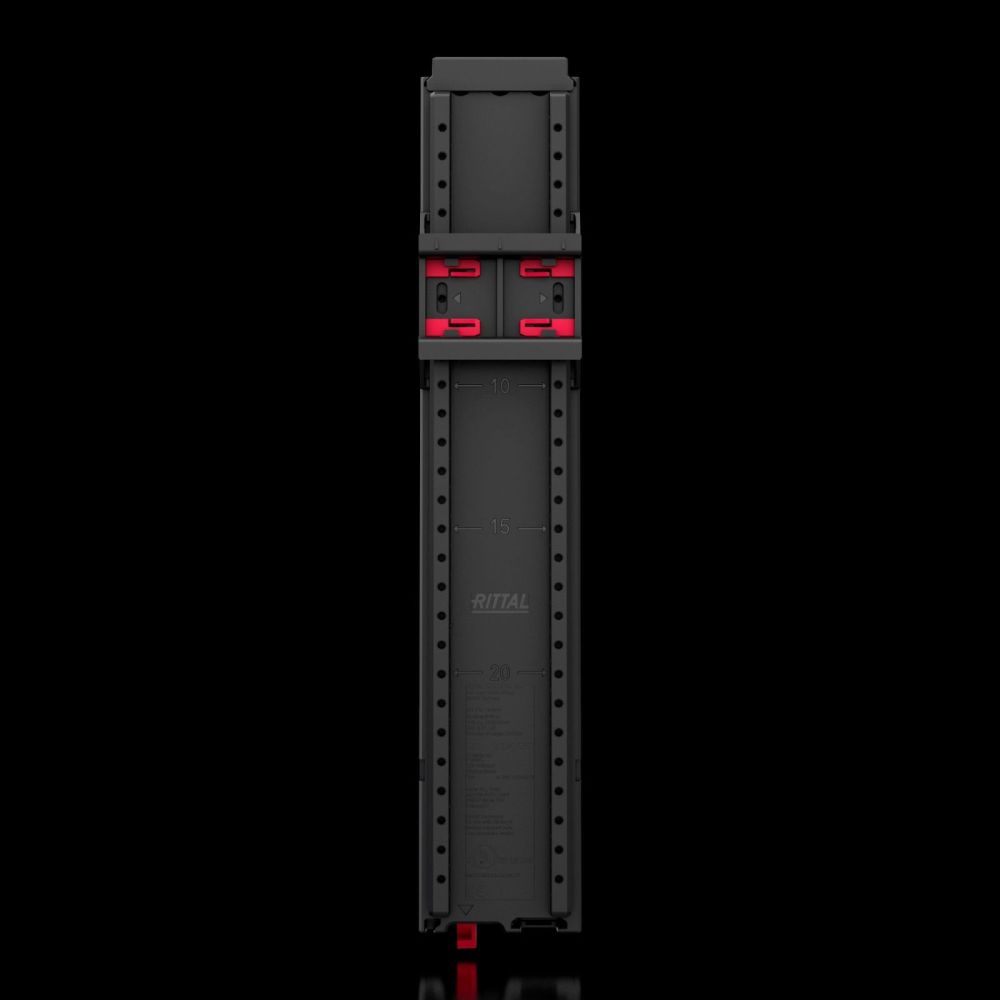

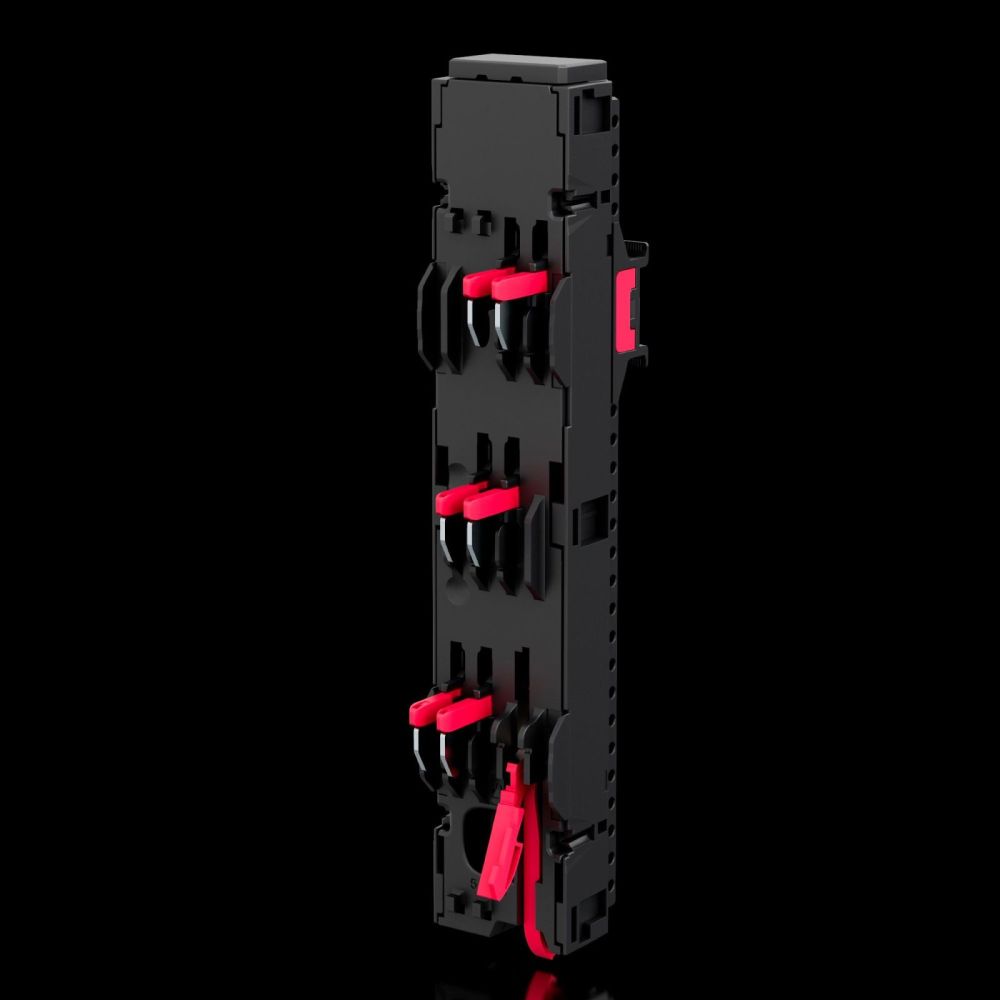

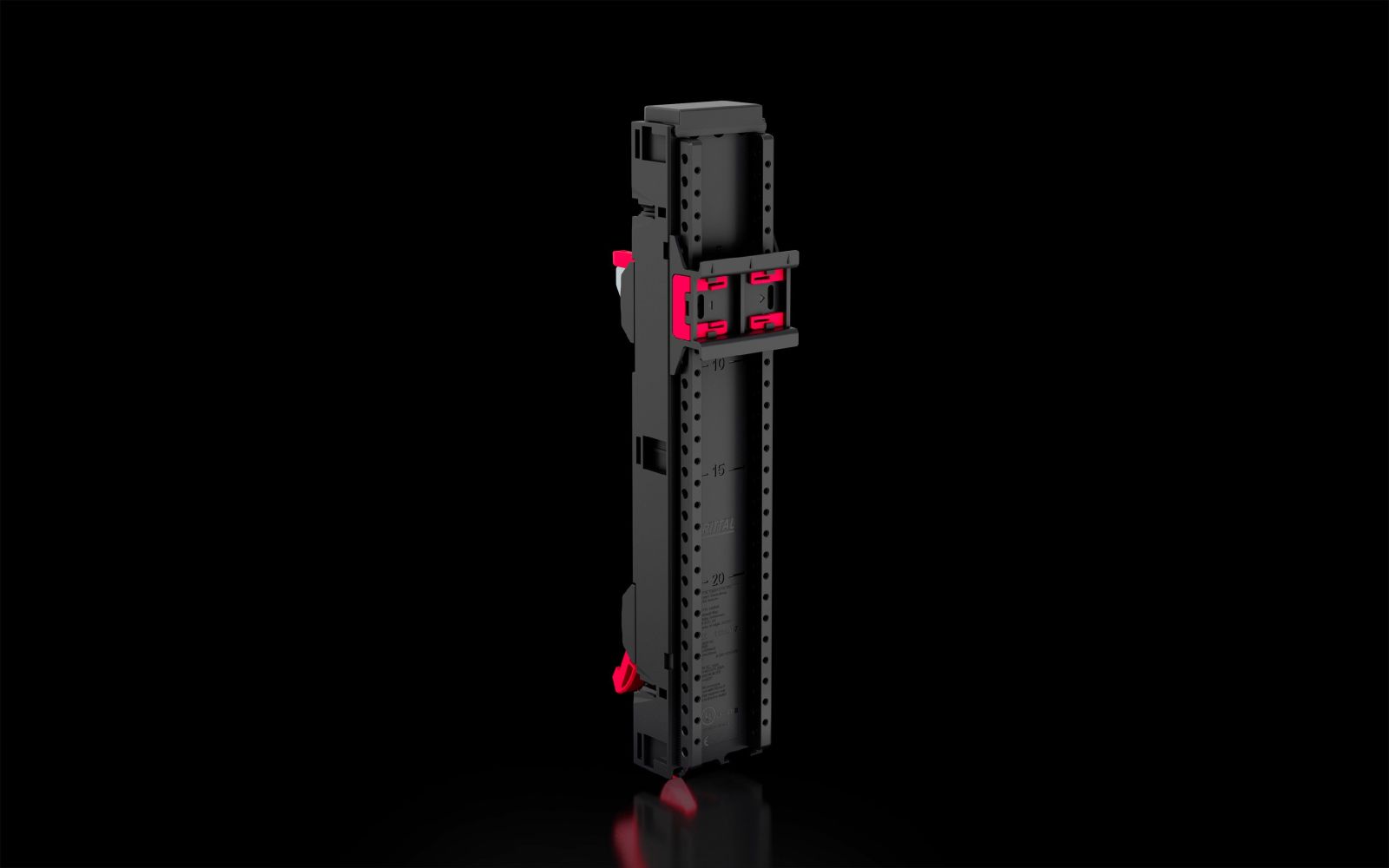

Rittal 9360705
This image may differ from the desired article.
Rittal 9360705Rittal 9360705Rittal 9360705Rittal 9360705Rittal 9360705Rittal 9360705
50,60 EUR 52,62 EUR
( 60,21 EUR incl. VAT )
≈ £42.30  |  ≈ $55.91
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360705 RX device carrier W:45 mm, pack of 4
Datasheet:file_download Download
Lieske Part No.:1571807
Mfg Part No: 9360705
UPC/EAN: 4028177997059
Weight:1.2 kg
Type:RX 9360705

Product information for Rittal 9360705:

The Rittal RX 9360705 is a device carrier for busbar systems with 60 mm centre spacing, specifically designed for mounting control equipment such as motor starters or switching devices on RiLineX and RiLine60 platforms. It features a width of 45 mm and is supplied without a contact system, making it suitable for applications where no electrical connection is made via the carrier. The construction from polyamide (PA 6) with flammability rating according to UL 94 ensures high mechanical stability and heat resistance, enabling use even in demanding industrial environments. The RAL 9005 colour ensures a uniform visual appearance in the enclosure.

Applications

The device carrier is primarily used in industrial electrical engineering, where devices are mounted on busbars. It is particularly suitable for securing wider devices on a busbar, as it provides stable fixation. It is used in enclosures, distribution boxes or other electrical installations where modular and flexible mounting is required. Compatibility with various busbar widths (15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm) allows flexible adaptation to different systems.

Functions and Equipment in Detail

The carrier features a simple snap-lock mechanism, enabling quick and secure mounting on the busbar. The push-fit mounting allows easy adjustment to the respective busbar thickness (5 mm or 10 mm), ensuring universal use. The 3-pole configuration conforms to common standards for electrical switching devices. The support rail is supplied in a quantity of 1, enabling mounting of a single device. The rated voltage is 690 V AC as well as 600 V AC (UL) and 600 V DC (UL), allowing use in high-voltage installations up to these values.

Technology Explained Simply

The polyamide (PA 6) material offers high strength and resistance to mechanical stress and thermal influences. The UL 94 flammability rating ensures the material does not easily ignite when exposed to heat, contributing to fire prevention. Dimensions of 45 mm (width), 239.4 mm (height) and 36.2 mm (depth) are aligned with standard enclosure component dimensions. The fire load of 3,506 MJ/m² measures the energy released during combustion and is relevant for fire protection planning.

Compatibility and Accessories

The device carrier is specifically developed for RiLineX and RiLine60 busbar systems. It is compatible with busbars in widths of 15, 20 and 30 mm and thicknesses of 5 and 10 mm. Various accessories are available to extend functionality: connecting pin for device adapters/carriers, anti-shift device for support rail, encircling protection profile, mounting clip, support rails with locking clip or height adjustment, locking screw, and locking pin. These components enable secure mounting, locking and adaptation of devices to different requirements.

Mounting and Installation

Mounting is achieved by simply snapping onto the busbar, with the snap-lock mechanism ensuring secure fixation. The push-fit mounting allows adjustment to the respective busbar thickness, eliminating the need for additional tools or settings. It is used in enclosures, where devices are mounted on the support rail. The packaging unit is 4 pieces, enabling efficient fitting of larger installations.

Operational Advantages

The device carrier reduces component variety through coordinated accessories, simplifying planning and fitting of enclosures. Simple mounting and locking save time during installation. The use of polyamide ensures long service life and high reliability. Compatibility with various busbar thicknesses increases flexibility in planning enclosure systems. IEC and UL certifications ensure compliance with international safety standards.

General
Modelwithout contact system
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
For rail systems with centre spacing60 mm
Width45 mm
Height239,4 mm
Depth36,2 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
DIN rail quantity1
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Fire load3,506 MJ/m²
PCF/VE (Cradle-to-Gate)7,39


Product data sheet
Datasheet for Rittal 9360705, EAN: 4028177997059

Questions & answers

What is the delivery time of Rittal 9360705 RX device carrier W:45 mm, pack of 4?

The article Rittal 9360705 RX device carrier W:45 mm, pack of 4 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360705 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360705 RX device carrier W:45 mm, pack of 4 always at the best possible price. We can give you a discount of 2% on Rittal 9360705 RX device carrier W:45 mm, pack of 4 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
