Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8

Your rating:
Average rating
product review for Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8
( 5 / 5 ) 2 ratings

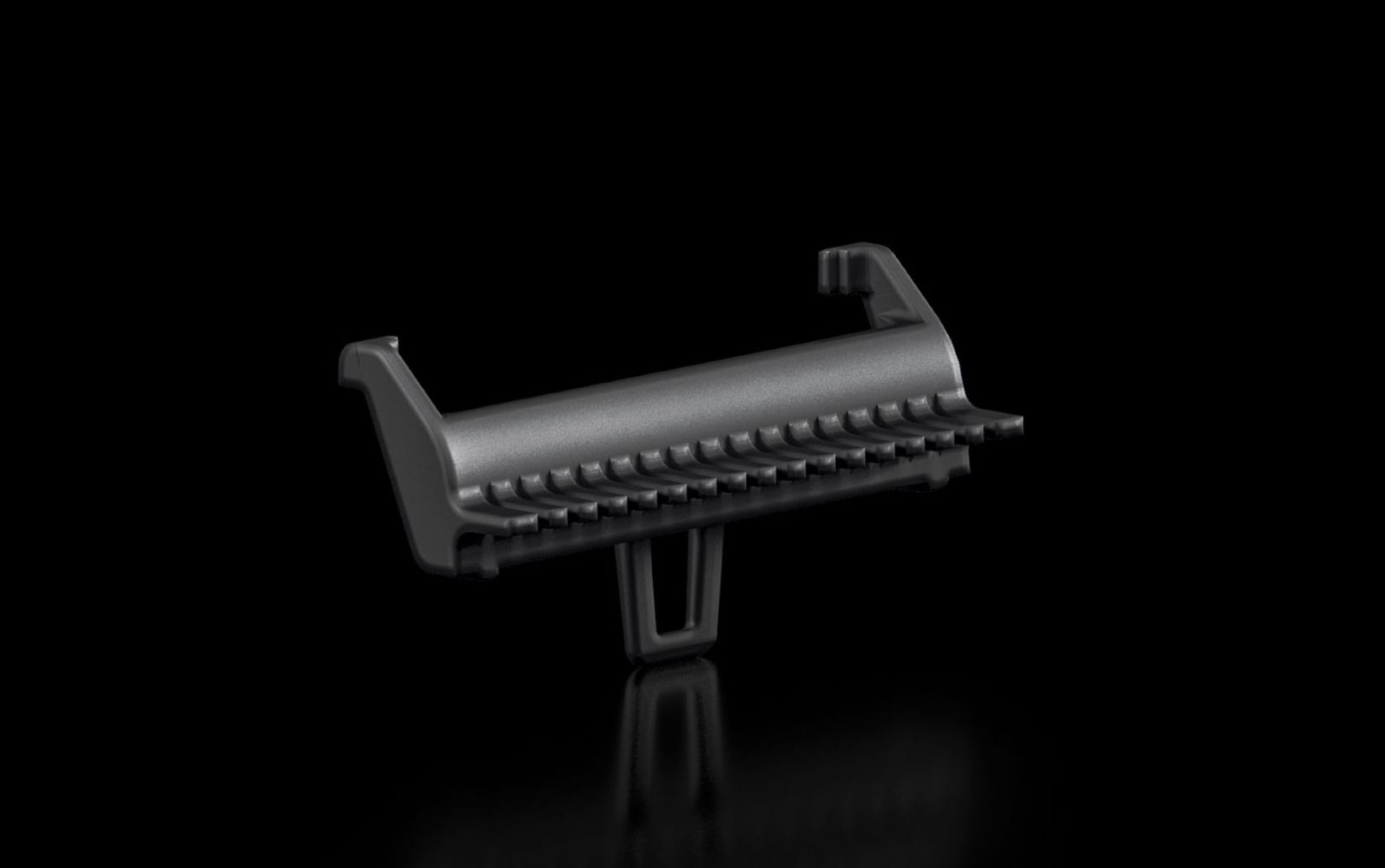

Rittal 9365734
This image may differ from the desired article.
Rittal 9365734Rittal 9365734
-6% 5,41 EUR 5,78 EUR
( 6,44 EUR incl. VAT )
≈ £4.52  |  ≈ $5.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8
Datasheet:file_download Download
Lieske Part No.:157198
Mfg Part No: 9365734
UPC/EAN: 4069196002003
Weight:0.042 kg
Type:RX 9365734

Product information for Rittal 9365734:

The Rittal RX 9365734 is an anti-shift device for device adapter support rails in the RiLineX system, specifically designed for use in power distribution components. The component serves to securely fix device adapters on the support rail and prevent unintended shifting or falling out, particularly in vertically assembled systems. It is made of polyamide (PA 6), a robust plastic with good mechanical strength and heat resistance, and complies with flammability standards according to UL 94, ensuring safe use in electrical switchgear. The colour is RAL 9005, a dark grey that integrates well visually in industrial enclosures.

Applications

The anti-shift device is specifically designed for 60 mm busbar systems and is recommended when the base system or a complete board is mounted vertically. In such configurations, there is a risk that device adapters may be accidentally shifted due to vibrations, mechanical stress, or during installation. The RX 9365734 prevents this through a precise fit on the support rail, ensuring secure fixation of the adapters. It is therefore an important component for stability and safety in industrial electrical installations.

Functions and Equipment in Detail

The component has a width of 45 mm and fits exactly onto the support rails with part numbers 9360710, 9360720, 9360730, and 9365724. The precise fit ensures that the anti-shift device does not slip and securely holds the device adapters. The use of polyamide (PA 6) provides high mechanical load capacity and chemical resistance, extending its service life in industrial applications. The RAL 9005 colour supports a uniform visual design of enclosures.

Technology Explained Simply

The anti-shift device functions as a mechanical safety feature: it is placed onto the support rail and prevents device adapters from sliding along the rail. This is particularly important in vertical mounting, where gravity and vibrations can pull devices downward. The material choice of polyamide (PA 6) provides sufficient stiffness to fix the adapters without damaging the support rail. The UL 94 flammability standard is a common requirement in electrical engineering and ensures that the material does not easily ignite when heated, increasing safety within the enclosure.

Compatibility and Accessories

The anti-shift device is compatible with support rails with part numbers 9360710, 9360720, 9360730, and 9365724. These are part of the RiLineX system and are used in 60 mm busbar systems. The use of the anti-shift device is recommended when the system is mounted vertically to ensure stability of the installed device adapters.

Installation and Mounting

Mounting is done by simply placing the anti-shift device onto the support rail. No additional fastening or tools are required. The precise fit ensures the component sits securely and prevents device adapters from shifting. Installation should be performed before mounting the adapters to ensure secure fixation.

Operational Advantages

The anti-shift device increases operational safety in enclosures by preventing device adapters from shifting. This reduces the risk of incorrect connections, short circuits, or failures. The use of polyamide (PA 6) ensures long service life and resistance to mechanical and chemical stresses. The RAL 9005 colour supports a uniform visual design, which is helpful during maintenance and inspection. The recommendation for vertically assembled systems indicates that the component was specifically developed for demanding operating conditions.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9360710, 9360720, 9360730, 9365724
Width45 mm
PCF/VE (Cradle-to-Gate)0,27


Product data sheet
Datasheet for Rittal 9365734, EAN: 4069196002003

Questions & answers

What is the delivery time of Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8?

The article Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365734 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8 always at the best possible price. We can give you a discount of 2% on Rittal 9365734 RX anti-shift device for support rail W: 45 mm, pack of 8 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
