Rittal 9360730 RX device adapter 32 A AWG 10 3-pole W:45 mm pack of 4

Your rating:
Average rating
product review for Rittal 9360730 RX device adapter 32 A AWG 10 3-pole W:45 mm pack of 4
( 4 / 5 ) 2 ratings
Rittal 9360730
This image may differ from the desired article.
Rittal 9360730Rittal 9360730Rittal 9360730Rittal 9360730Rittal 9360730Rittal 9360730Rittal 9360730
77,43 EUR
incl. 3,28 EUR copper surcharge
( 92,14 EUR incl. VAT )
≈ £64.73  |  ≈ $85.56
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360730 RX device adapter 32 A AWG 10 3-pole W:45 mm pack of 4
Datasheet:file_download Download
Lieske Part No.:157182
Mfg Part No: 9360730
UPC/EAN: 4028177997011
Weight:1.45 kg
Type:RX 9360730

Product information for Rittal 9360730:

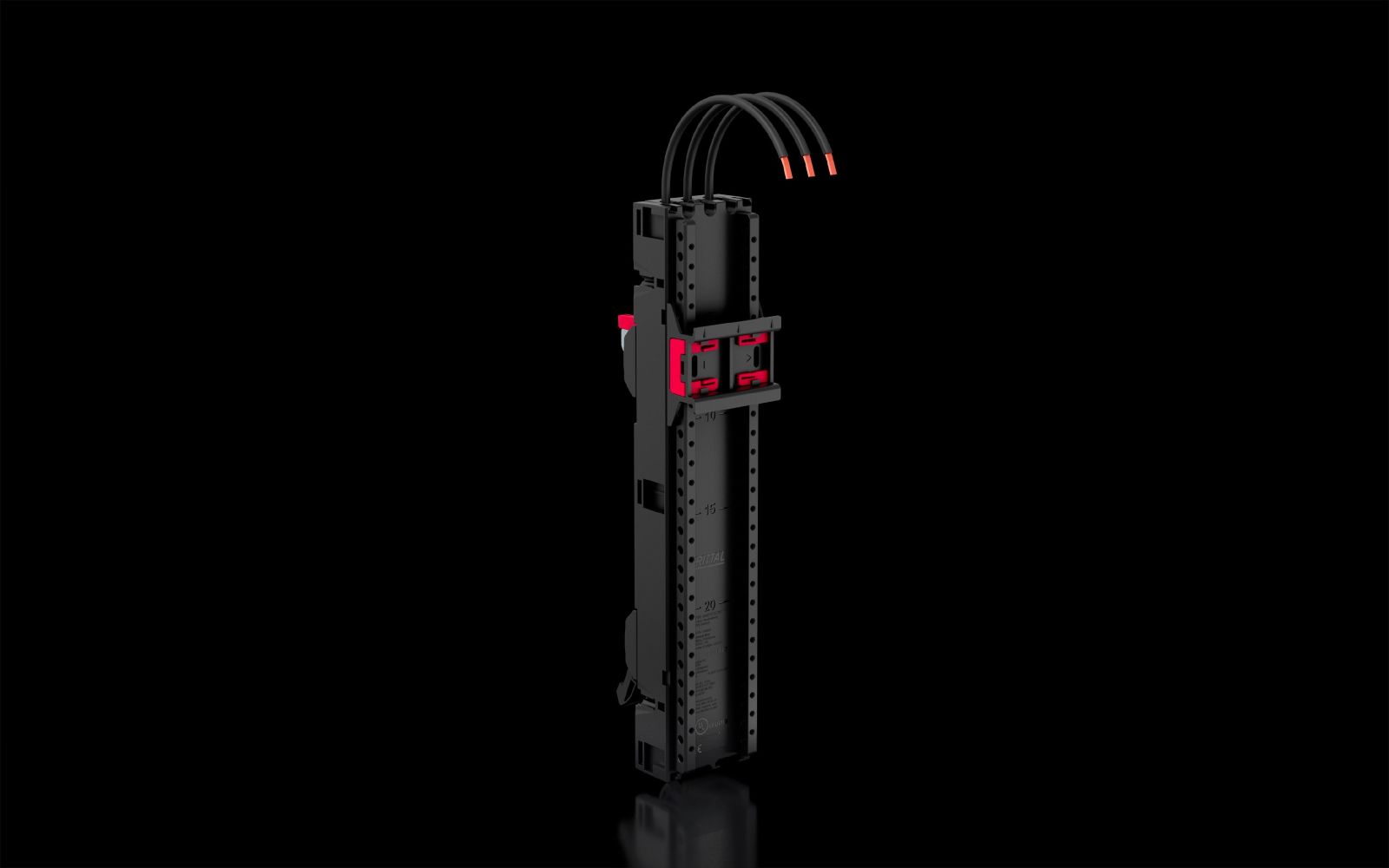

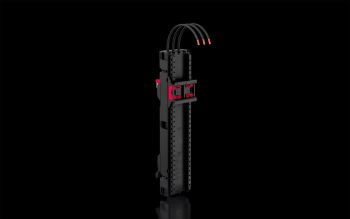

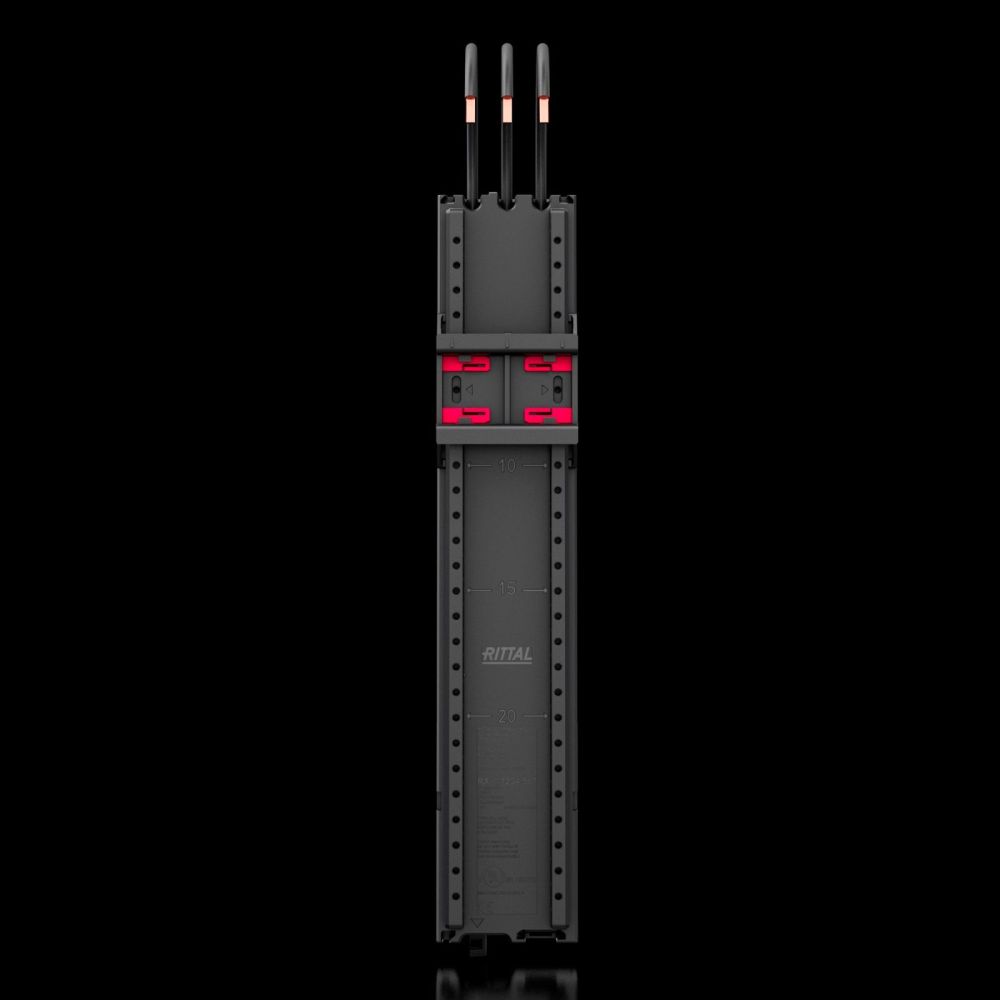

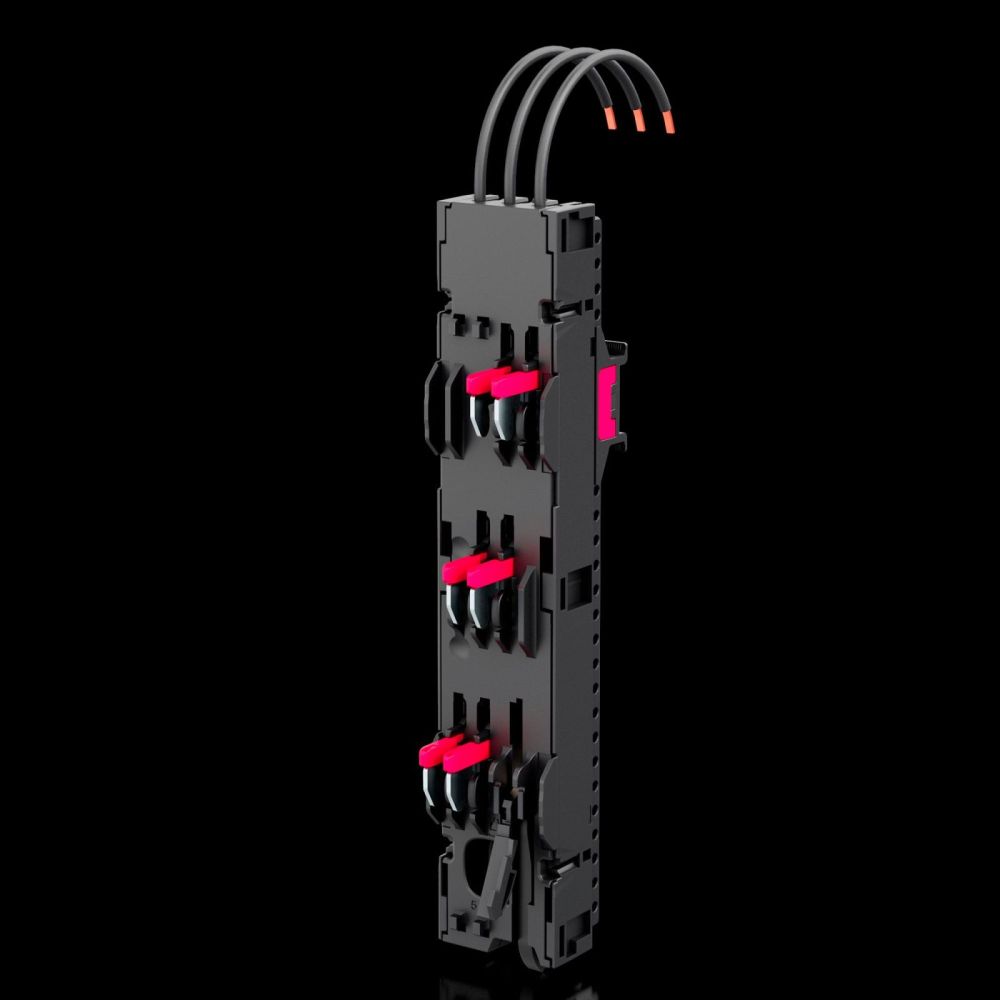

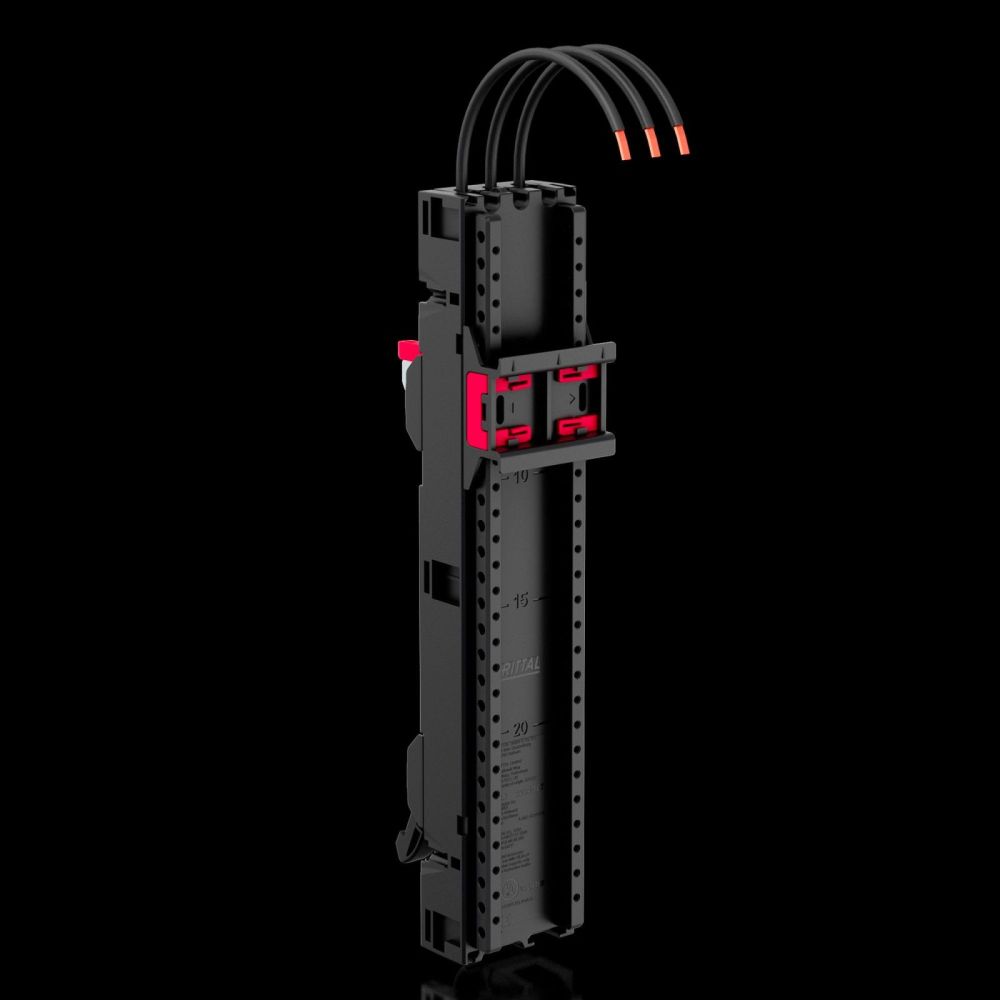

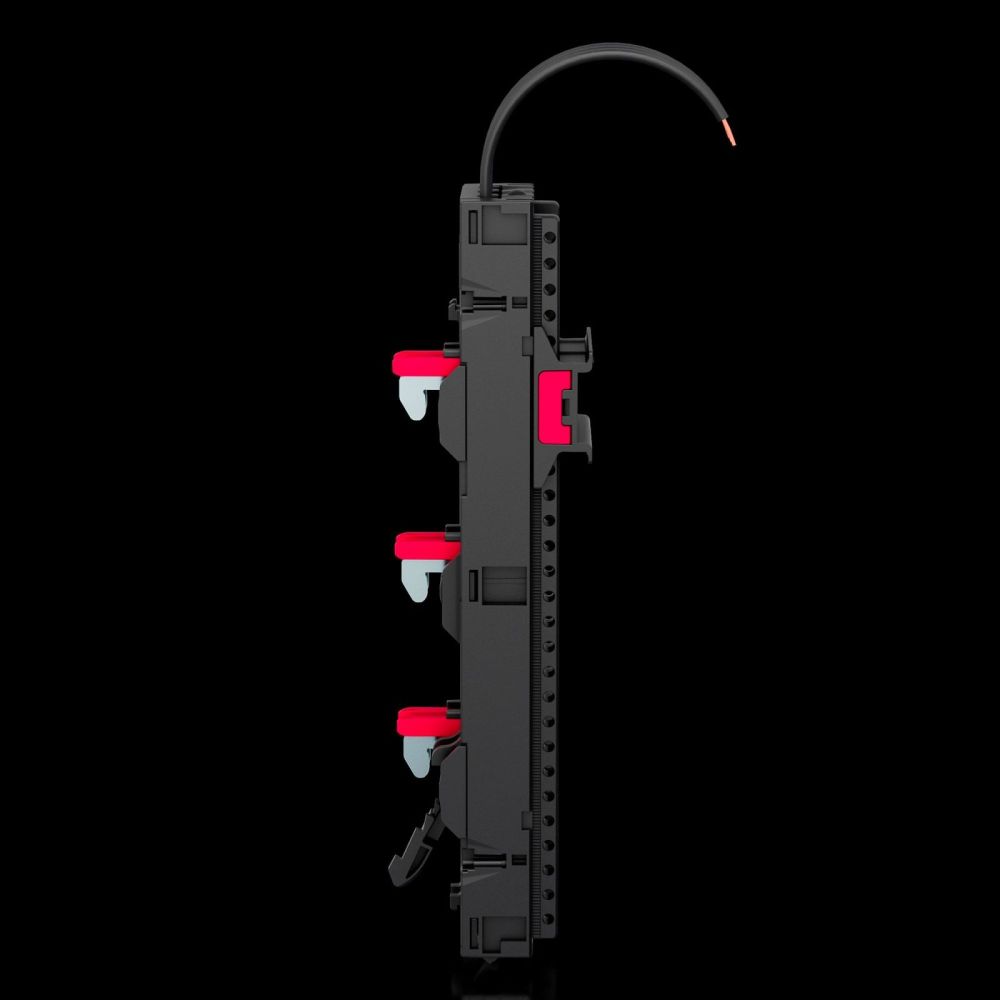

Rittal device adapter type RX 9360730 is a 3-pole mounting component for enclosures, specifically designed for the installation of operating devices such as motor starters on 60 mm busbar systems such as RiLineX or RiLine60. The device features a pre-fabricated connection cable with a length of 160 mm, exiting at the bottom, enabling direct and secure connection to the busbars. The support rail is tool-free adjustable and allows for push-on mounting of devices, thereby reducing mounting time and increasing mounting accuracy. The adapter has a width of 45 mm, a height of 239.4 mm, and a depth of 36.2 mm, allowing it to integrate well into standardized enclosure configurations.

Applications

The device adapter is primarily used in industrial electrical engineering, where secure and rapid mounting of switching and protection devices on busbars is required. It is suitable for applications in manufacturing automation, power distribution, and process control, where high reliability and ease of maintenance are required. Use in enclosures with 60 mm center spacing is standardized, ensuring compatibility with existing systems.

Functions and Equipment in Detail

The adapter is equipped with a support rail that can be adjusted without tools to compensate for different busbar thicknesses (5 mm or 10 mm) and widths (15 mm, 20 mm, 30 mm). The connection cables have an AWG 10 cross-section rating, equivalent to a cable cross-section of 6 mm², and are rated for a rated current of 40 A. The rated voltage is 690 V AC, supplemented by UL approvals for 600 V AC and 600 V DC, enabling use in international installations. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against splashing water or dust, making it suitable for indoor installations only.

Technology Explained Simply

The rated insulation voltage Ui of 1,000 V and the rated impulse voltage Uimp of 8 kV ensure sufficient electrical insulation to prevent overvoltages and short circuits. The pollution degree 3 indicates that the adapter is suitable for environments with increased contamination, such as industrial production halls, where dirt and moisture could affect insulation. The material polyamide (PA 6) offers high mechanical stability and is flame-retardant according to UL 94, increasing fire safety. The operating temperature range of -5 °C to 55 °C and the storage temperature range of -25 °C to 75 °C allow flexible use under various climatic conditions.

Compatibility and Accessories

The adapter is specifically designed for RiLineX and RiLine60 busbar systems. It can be combined with various accessories, such as the anti-shift device for support rail W: 45 mm, the enclosure profile, or mounting clips, to secure the mounting and protect devices against unintended shifting. Additionally, support rails with locking clip or height adjustment are available to optimize mounting on different busbar profiles. Expansion blocks for device adapters allow flexible expansion of mounting capacity.

Mounting and Installation

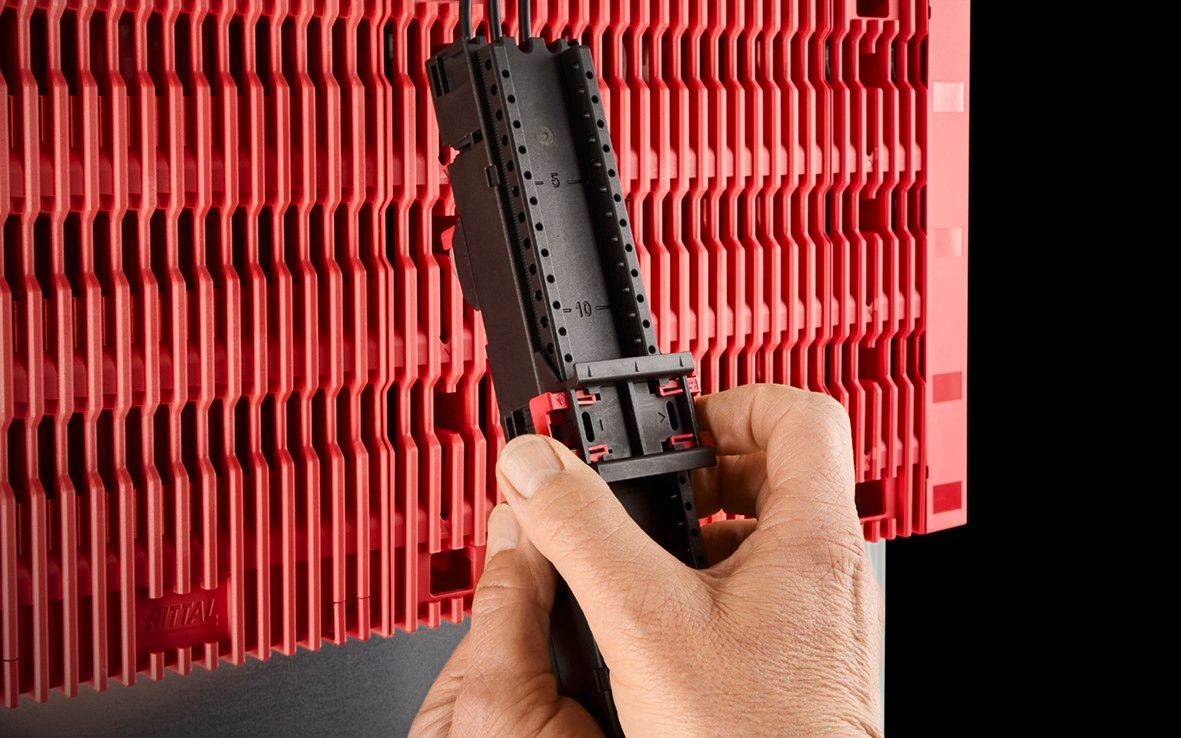

Mounting is done by simply pushing the support rail onto the busbar, with the tool-free adjustment enabling adaptation to different rail thicknesses. The pre-fabricated connection cables reduce mounting time and minimize error sources. The locking mechanism of the support rail ensures secure fixation of the device. Installation requires no additional tools, accelerating the mounting process in industrial environments.

Advantages in Operation

The device adapter reduces part variety through coordinated accessories and enables standardized mounting. The tool-free adjustment and pre-fabricated cables increase mounting efficiency. The high mechanical stability of the polyamide material and its flame-retardant properties according to UL 94 enhance operational safety. Approvals according to IEC 61 439-1/-2 and UL 508 guarantee compliance with international safety standards, enabling use in various markets. The operating humidity up to 90 % (non-condensing) allows use in humid environments, provided no condensation occurs.

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 10
Rated current (max.)40 A
Rated current for round conductor40 A
Rated current for round conductor (UL)40 A
Cable exitBelow
For rail systems with centre spacing60 mm
Connection cable length160 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width45 mm
Height239,4 mm
Depth36,2 mm
DIN rail quantity/height1 / 10 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load3,419 MJ/m²
Copper content (kg/piece)0,088
PCF/VE (Cradle-to-Gate)9,34


Please note...
This article contains a copper surcharge of 3,28 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360730, EAN: 4028177997011
