Rittal 9365724 RX support rail with locking clip W:45 mm L:8

Your rating:
Average rating
product review for Rittal 9365724 RX support rail with locking clip W:45 mm L:8
( 4.5 / 5 ) 2 ratings
Rittal 9365724
This image may differ from the desired article.
Rittal 9365724Rittal 9365724Rittal 9365724Rittal 9365724Rittal 9365724Rittal 9365724Rittal 9365724Rittal 9365724
-7% 7,33 EUR 7,84 EUR
( 8,72 EUR incl. VAT )
≈ £6.13  |  ≈ $8.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365724 RX support rail with locking clip W:45 mm L:8
Datasheet:file_download Download
Lieske Part No.:1571972
Mfg Part No: 9365724
UPC/EAN: 4069196007220
Weight:0.095 kg
Type:RX 9365724

Product information for Rittal 9365724:

The Rittal RiLineX support rail, type RX 9365724, is a component for mounting add-on devices in industrial enclosures. It serves as a fastening element for device adapters and device carriers in the 60 mm busbar system. The support rail is specifically designed for use with devices mounted via snap-fastening, enabling secure and quick installation without additional fastening tools.

Applications

The support rail is used in industrial electrical engineering, particularly in enclosures where modular and flexible mounting of components is required. It is suitable for applications using device adapters (part numbers 9360710, 9360720, 9360730) to mount electronic modules, controls, or other components onto a busbar. Use in the 60 mm busbar system is standardized and enables uniform mounting in various enclosure configurations.

Functions and Features in Detail

The support rail features an integrated locking clip that ensures secure fixation of mounted devices. This clip prevents accidental disengagement of the component, especially under vibration or mechanical stress. The design with locking clip is optimized for mounting add-on devices with snap-fastening, enabling quick and tool-free installation. The support rail has a width of 45 mm, matching the standard width for device adapters in the 60 mm system.

Technology Explained Simply

The support rail is made of polyamide (PA 6), a thermoplastic known for its high strength, heat resistance, and chemical resistance. The material meets flammability requirements according to UL 94, meaning it is not easily flammable and does not propagate flame when heated. The color options are RAL 9005 (black) and RAL 35745 (gray), enabling visual harmonization with other components in the enclosure. Dimensions are 45 mm in width and 10 mm in height, ensuring precise fit for the intended device adapters.

Compatibility and Accessories

The support rail is specifically designed for use with device adapters with part numbers 9360710, 9360720, and 9360730. These adapters act as intermediate elements between the busbar and mounted devices. The combination of support rail and adapter enables modular expansion of the enclosure, allowing devices to be mounted and removed quickly and without tools. Use in the 60 mm busbar system is standardized and ensures uniform mounting in various enclosure configurations.

Mounting and Installation

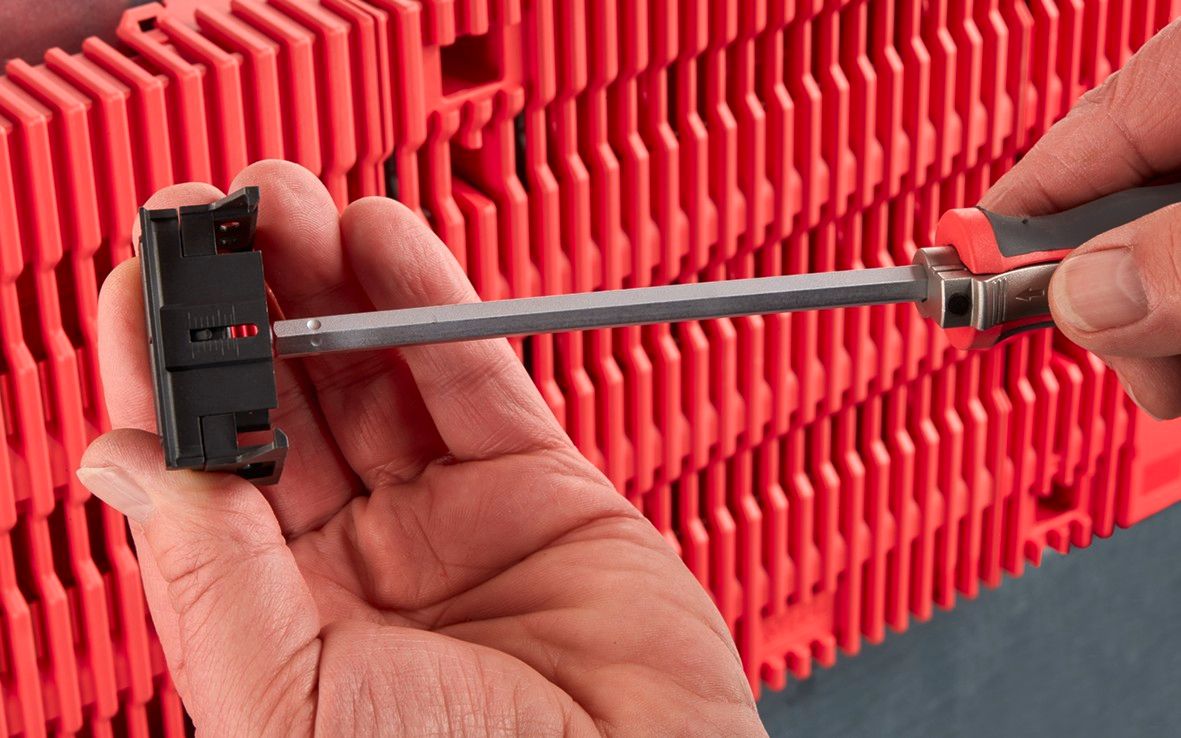

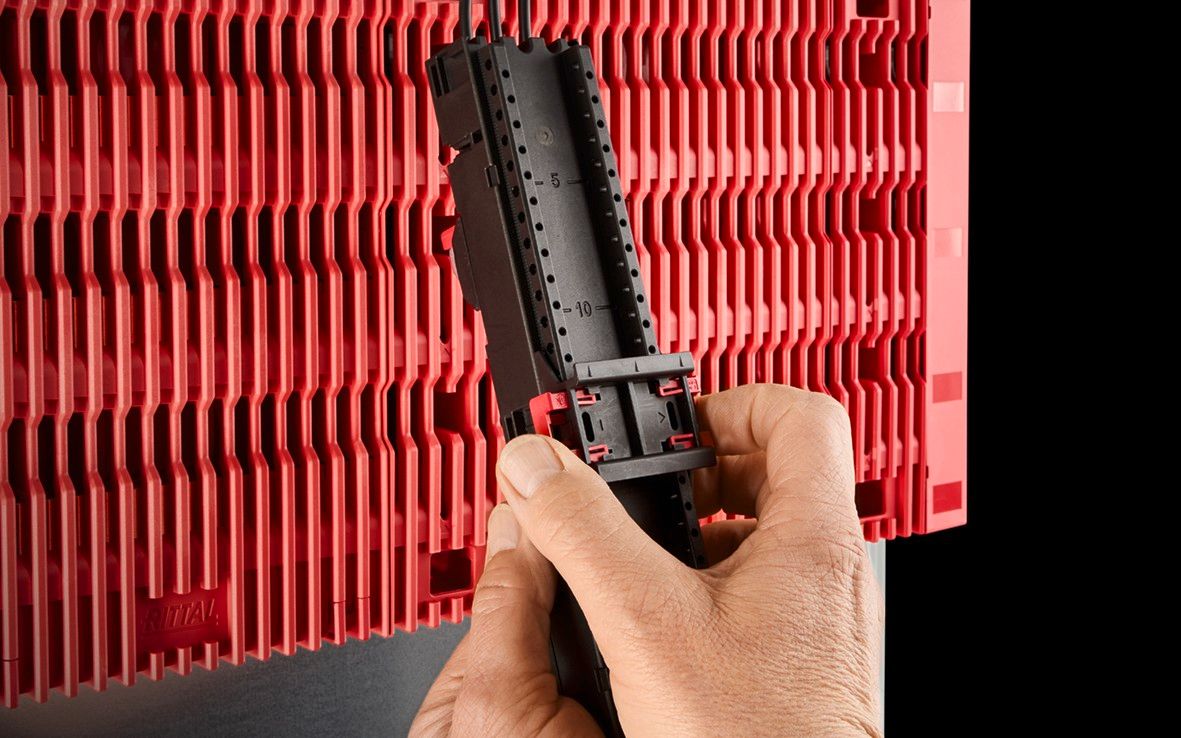

Installation is done by simply inserting the support rail into the designated openings of the device adapters. The integrated locking clip ensures the support rail is securely fixed. The device adapters themselves are placed onto the 60 mm busbar, with the support rail providing the fastening for the mounted add-on devices. Devices are snap-fastened directly to the support rail, enabling tool-free installation. The packaging unit contains 8 pieces, sufficient for mounting multiple devices.

Advantages in Operation

Using the RiLineX support rail enables quick and secure mounting of add-on devices in the enclosure. The tool-free fastening reduces installation time and minimizes the risk of installation errors. The integrated locking clip ensures a stable connection that remains secure even under mechanical stress or vibration. The polyamide (PA 6) material selection ensures high durability and resistance to environmental conditions in industrial applications. The color options in RAL 9005 and RAL 35745 support a uniform visual design of the enclosure.

General
ModelWith locking clip
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Suitable for part no.9360710, 9360720, 9360730
Width45 mm
Height10 mm
PCF/VE (Cradle-to-Gate)0,43


Product data sheet
Datasheet for Rittal 9365724, EAN: 4069196007220

Questions & answers

What is the delivery time of Rittal 9365724 RX support rail with locking clip W:45 mm L:8?

The article Rittal 9365724 RX support rail with locking clip W:45 mm L:8 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365724 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365724 RX support rail with locking clip W:45 mm L:8 always at the best possible price. We can give you a discount of 2% on Rittal 9365724 RX support rail with locking clip W:45 mm L:8 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
