Rittal 9360710 RX device adapter 16 A AWG 14 3-pole W: 45 mm, pack of 4

Your rating:
Average rating
product review for Rittal 9360710 RX device adapter 16 A AWG 14 3-pole W: 45 mm, pack of 4
( 4.5 / 5 ) 2 ratings

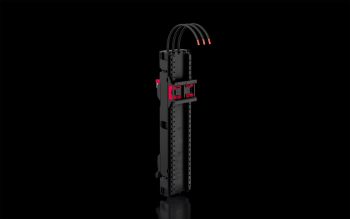

Rittal 9360710
This image may differ from the desired article.
Rittal 9360710Rittal 9360710Rittal 9360710Rittal 9360710Rittal 9360710Rittal 9360710Rittal 9360710
62,14 EUR 62,15 EUR
( 73,95 EUR incl. VAT )
≈ £51.95  |  ≈ $68.66
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9360710 RX device adapter 16 A AWG 14 3-pole W: 45 mm, pack of 4
Datasheet:file_download Download
Lieske Part No.:1571811
Mfg Part No: 9360710
UPC/EAN: 4028177997035
Weight:1.35 kg
Type:RX 9360710

Product information for Rittal 9360710:

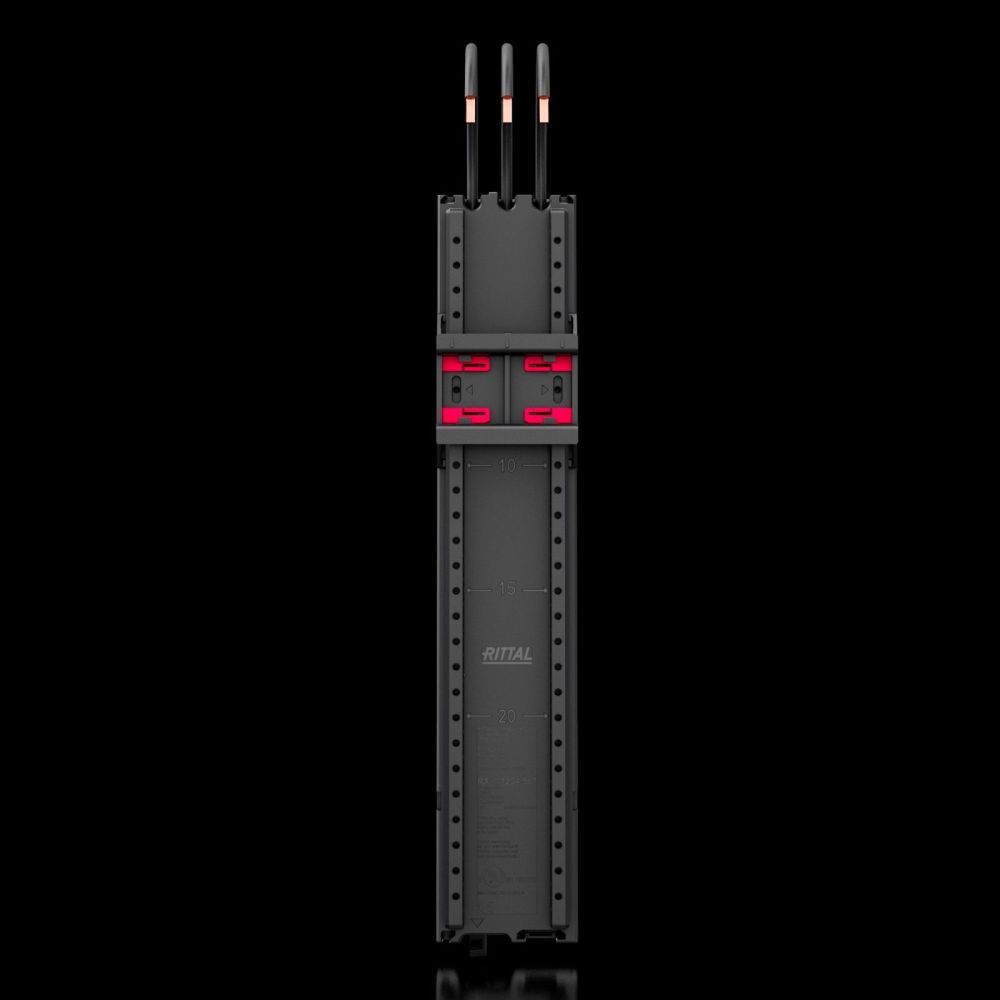

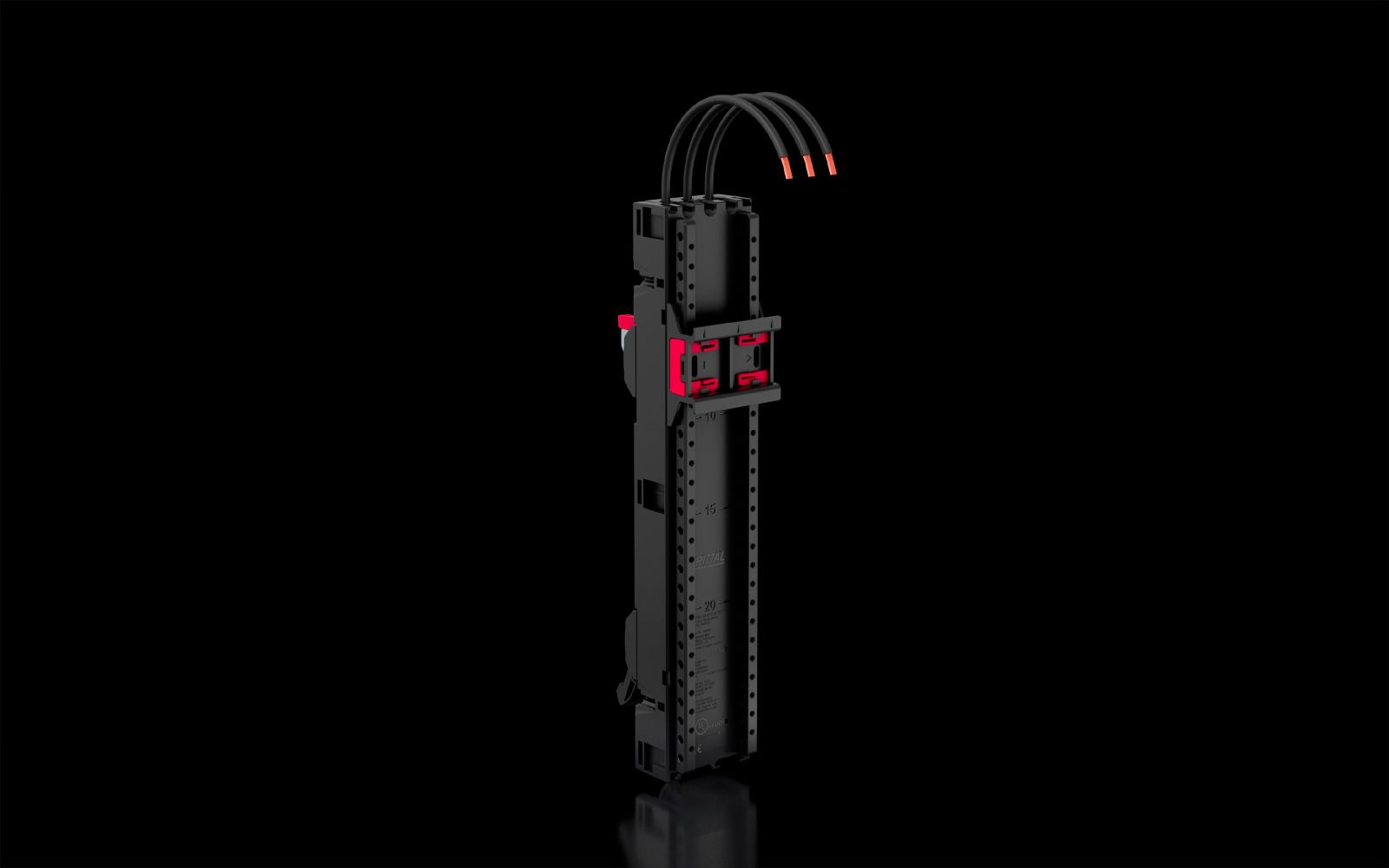

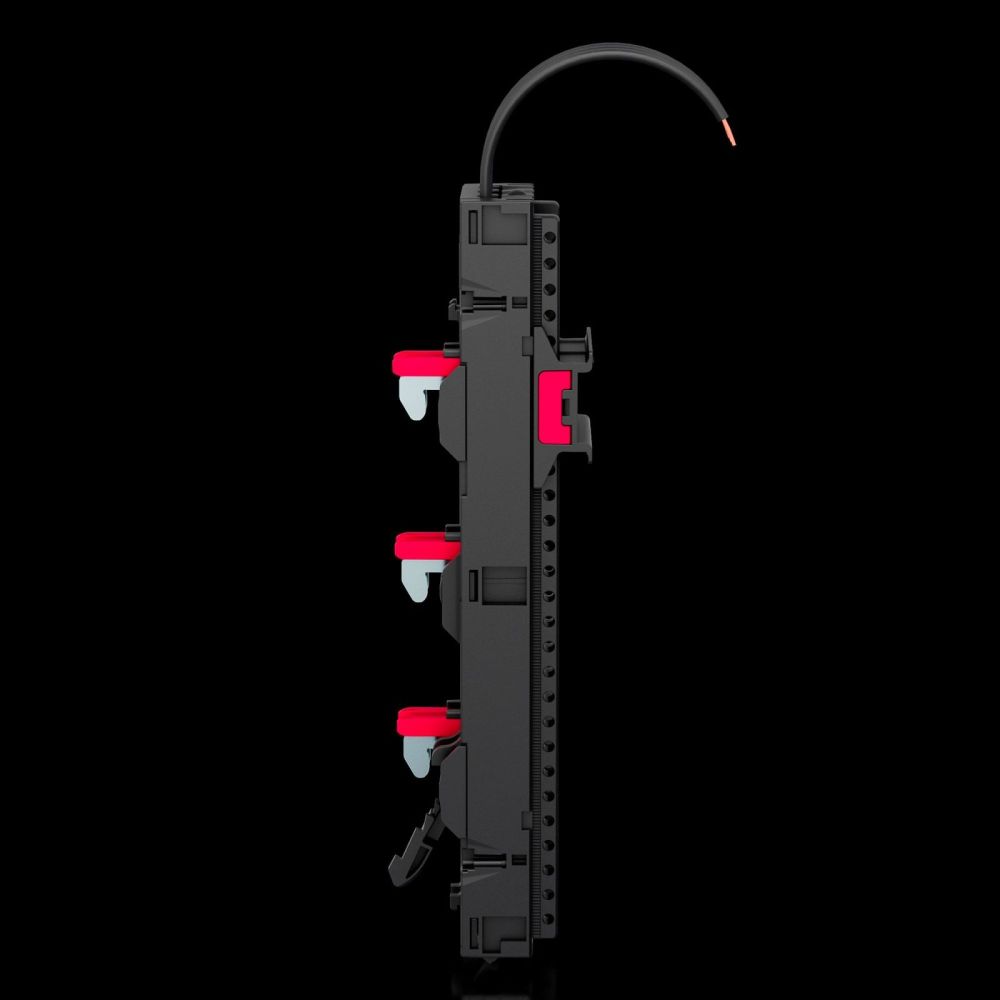

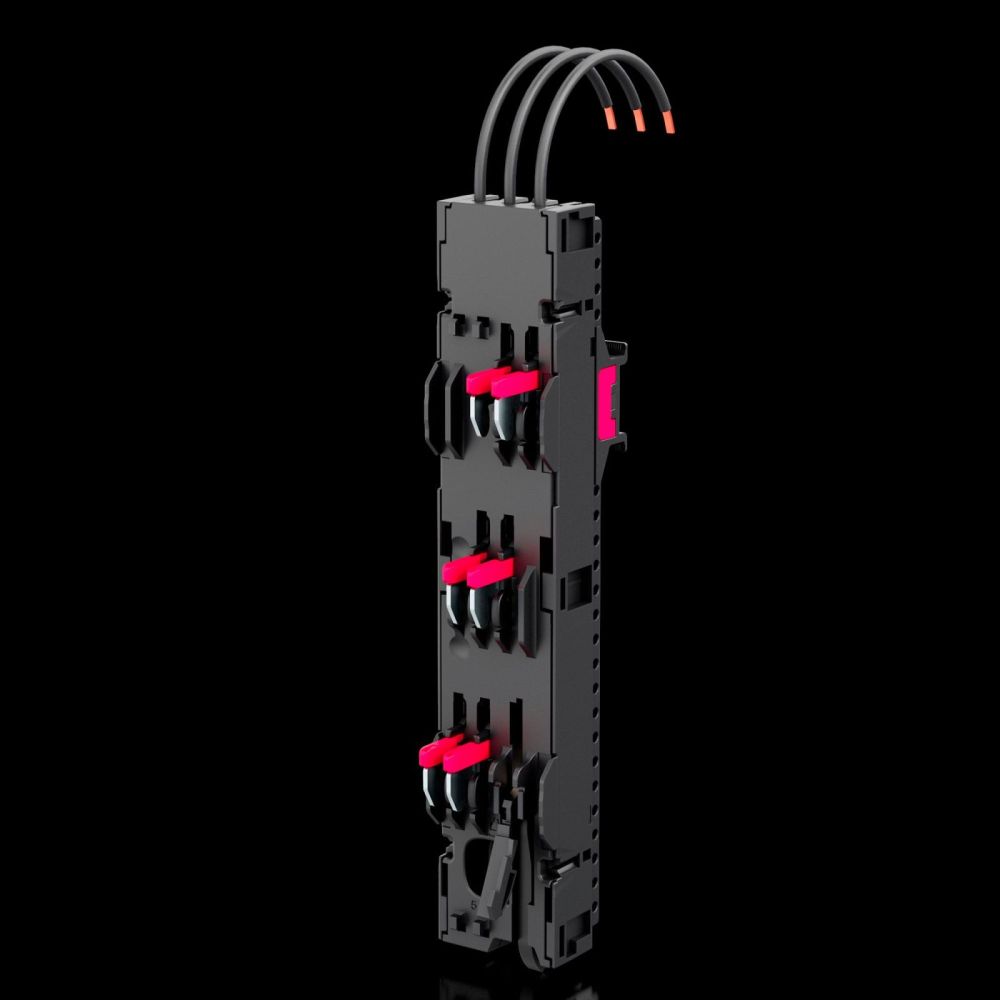

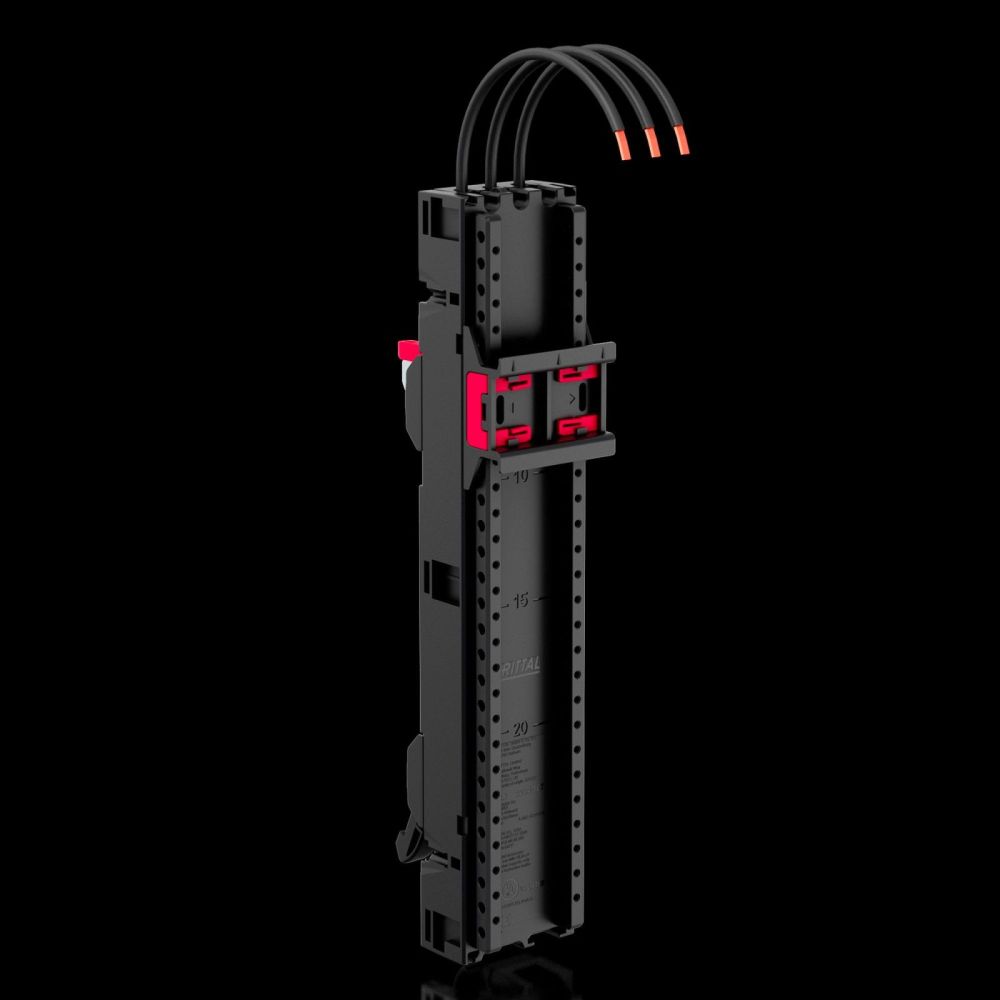

The Rittal RX 9360710 is a device adapter for 60 mm busbar systems, specifically designed for mounting control devices such as motor starters or switching devices on DIN rails. The device features a 3-pole configuration with a rated current of 16 A and is equipped with pre-fabricated connection leads that enable direct connection to the power supply network. The connection leads have a length of 150 mm and comply with the AWG 14 standard, equivalent to a cross-section of 2.5 mm². The cable exit is at the bottom, allowing for flexible integration into existing control panels.

Applications include mounting switching and protective devices in industrial enclosures, particularly in systems with a center-to-center spacing of 60 mm, such as RiLineX or RiLine60. The adapter is suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm, ensuring high flexibility during installation. The tool-free adjustment of the mounted support rail enables easy snap-in mounting of devices and adaptation to different rail thicknesses.

Functions and equipment in detail include an integrated support rail with a height of 10 mm, directly mounted on the adapter. This support rail is tool-free adjustable, enabling quick and secure device mounting. The locking mechanism uses a simple plug-in lock, ensuring secure fastening. The adapter has a width of 45 mm, a height of 239.4 mm, and a depth of 36.2 mm. The color options are RAL 9005 (black) and RAL 35745 (gray), allowing visual integration into existing enclosure concepts.

Technology explained simply shows that the adapter is made of polyamide (PA 6), which meets UL 94 flammability requirements. The rated voltage is 690 V AC, supplemented by UL approvals for 600 V AC and 600 V DC. The rated insulation voltage Ui is 1,000 V, and the rated impulse voltage Uimp is 8 kV. The protection class IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. Pollution degree 3 is intended for environments with heavy contamination, such as industrial facilities. The operating temperature range is from -5 °C to 55 °C, and the storage temperature range is from -25 °C to 75 °C. The maximum operating humidity is 90 %, with no condensation allowed.

Compatibility and accessories include use with busbar systems RiLineX and RiLine60. Available accessories include connecting pins, anti-shift devices, encircling protection profiles, mounting clips, support rails with height adjustment, and expansion blocks. These enable adaptable mounting and reduce component variety through coordinated parts. The device adapters are available in packaging units of 4 pieces.

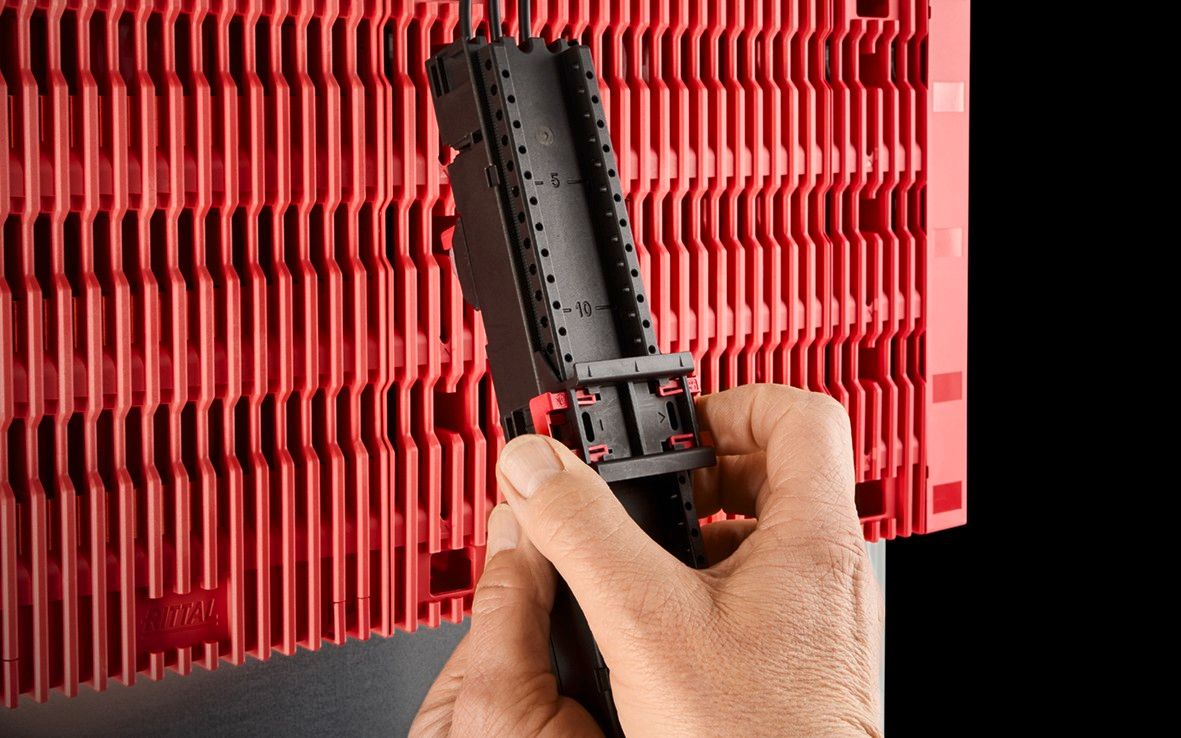

Mounting and installation are performed by snapping devices onto the mounted support rail, which can be adjusted without tools. The simple plug-in lock ensures secure fastening. The pre-fabricated connection leads reduce installation time and increase connection reliability. Installation is quick and requires no additional tools for adjusting the support rail.

Operational advantages include fast and secure mounting, reduced installation time due to pre-fabricated leads, and flexibility in adapting to different rail thicknesses. The use of coordinated accessories enables modular expansion of the enclosure system. Approvals according to IEC 61 439-1/-2 and UL 508 ensure compliance with international safety standards. The electrical values UL (SCCR) cover various scenarios, including switching devices, combination motor controls, and fuses, with maximum values varying by device type. The fire load is 3,419 MJ/m², and the copper content per unit is 0.108 kg. The environmental impact (PCF/VE) is 8.51 (Cradle-to-Gate).

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 14
Rated current (max.)16 A
Rated current for round conductor16 A
Rated current for round conductor (UL)16 A
Electrical values UL (SCCR)5 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class RK5 max. 30 A, JDDZ/7, 65 kA - 480 V, Combination Motor Controller max. 16 A, NKJH/7, 30 kA - 600 V, Combination Motor Controller max. 12.5 A, NKJH/7, 65 kA - 480 V, Combination Motor Controller max. 40 A, NKJH/7, 50 kA - 480 V, Circuit Breaker max. 22 A, DIVQ/7
Cable exitBelow
For rail systems with centre spacing60 mm
Connection cable length150 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width45 mm
Height239,4 mm
Depth36,2 mm
DIN rail quantity/height1 / 10 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load3,419 MJ/m²
Copper content (kg/piece)0,108
PCF/VE (Cradle-to-Gate)8,51


Product data sheet
Datasheet for Rittal 9360710, EAN: 4028177997035
