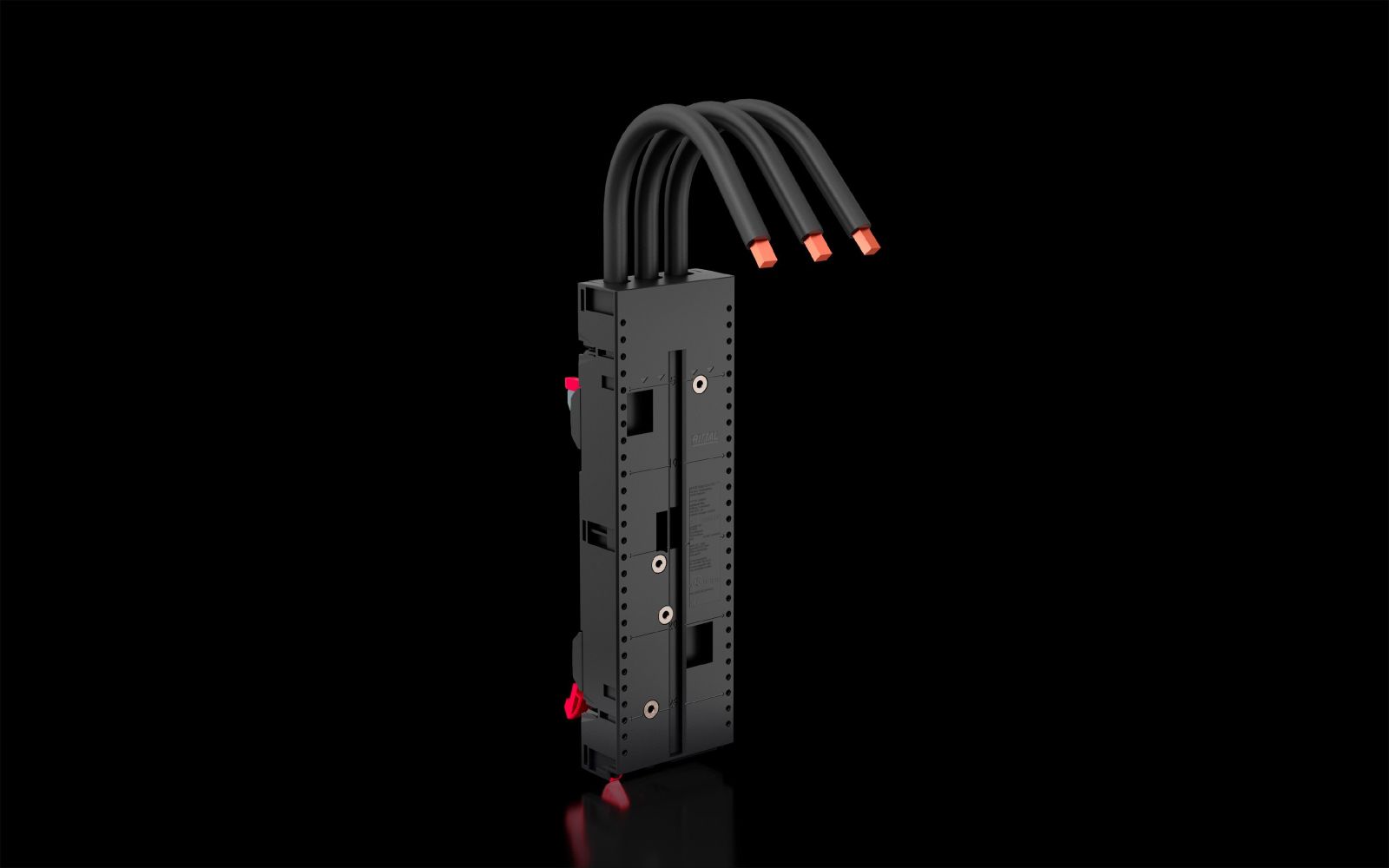

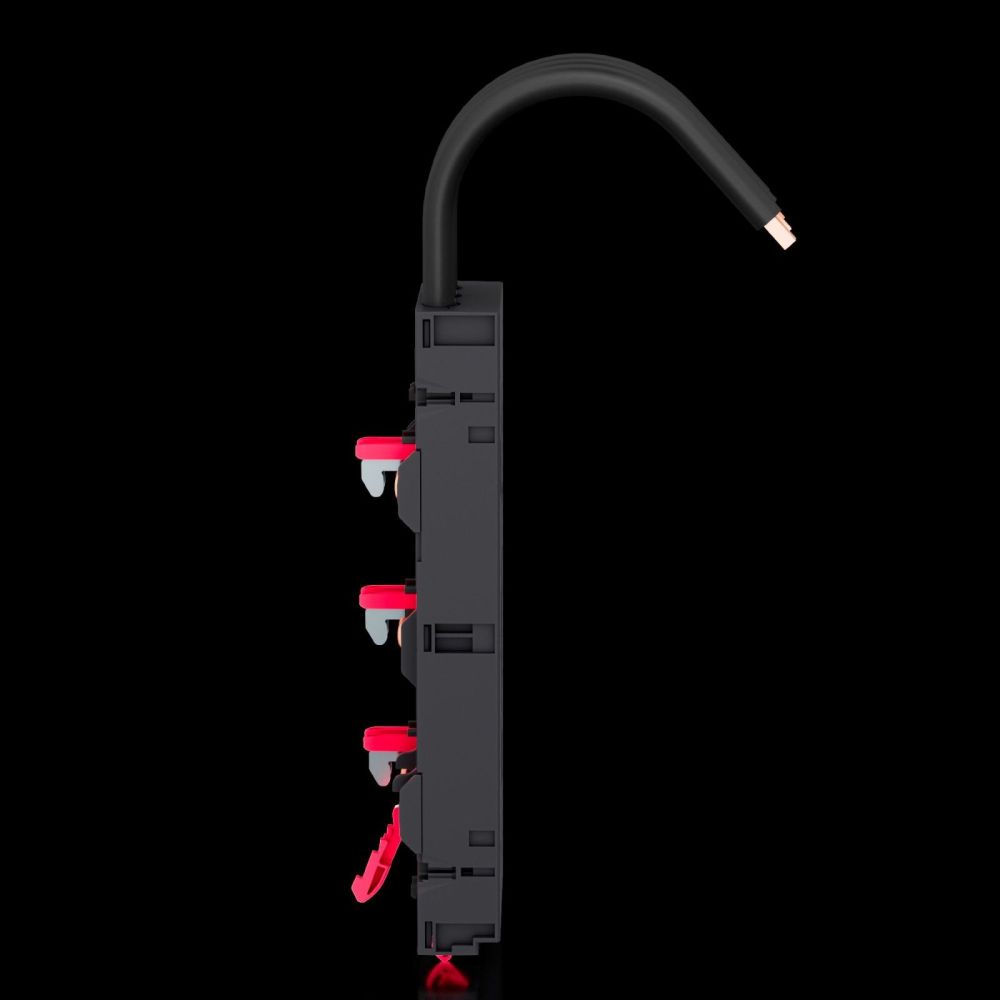

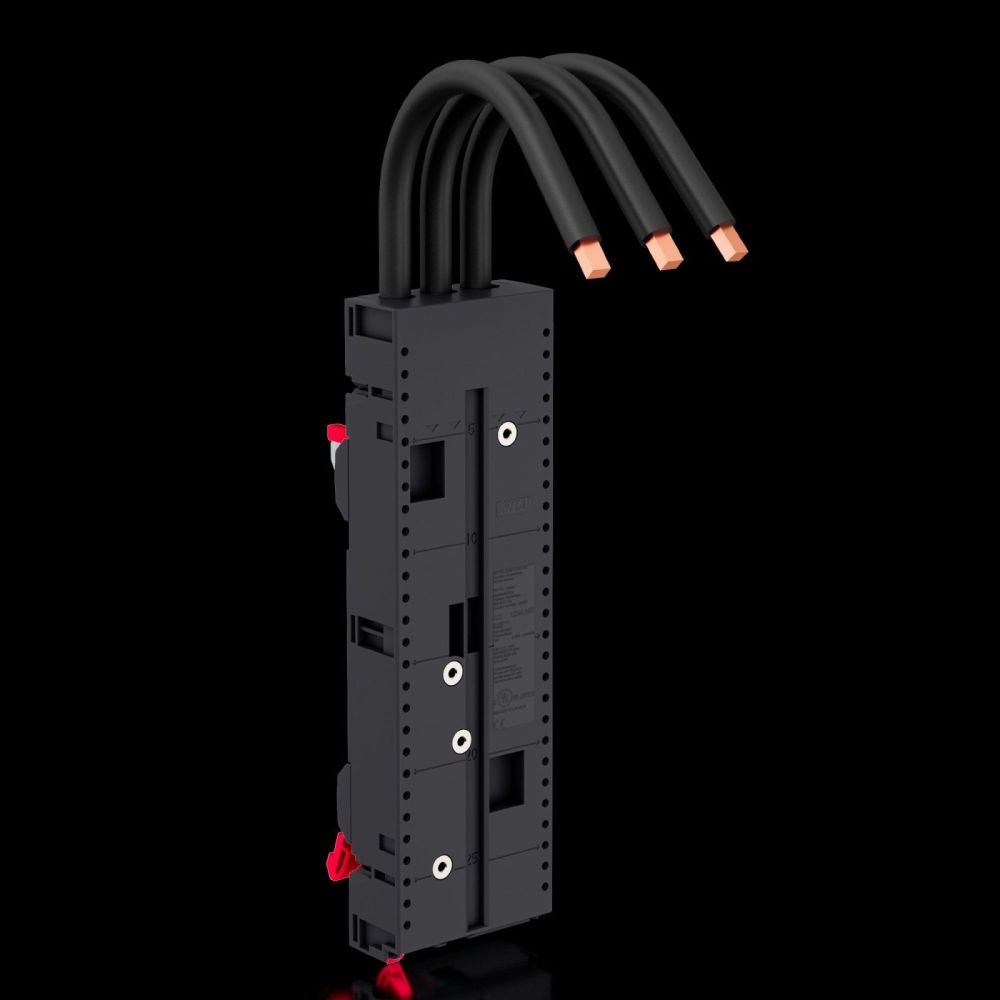

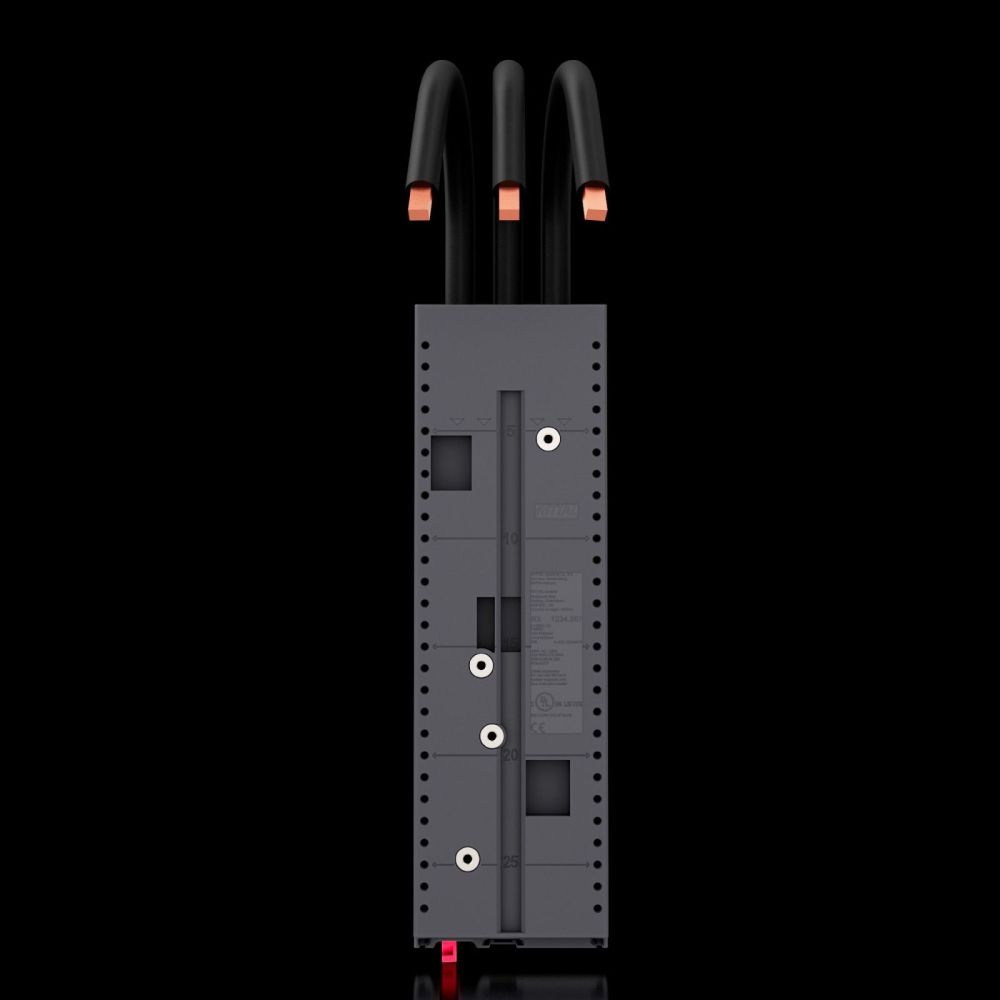

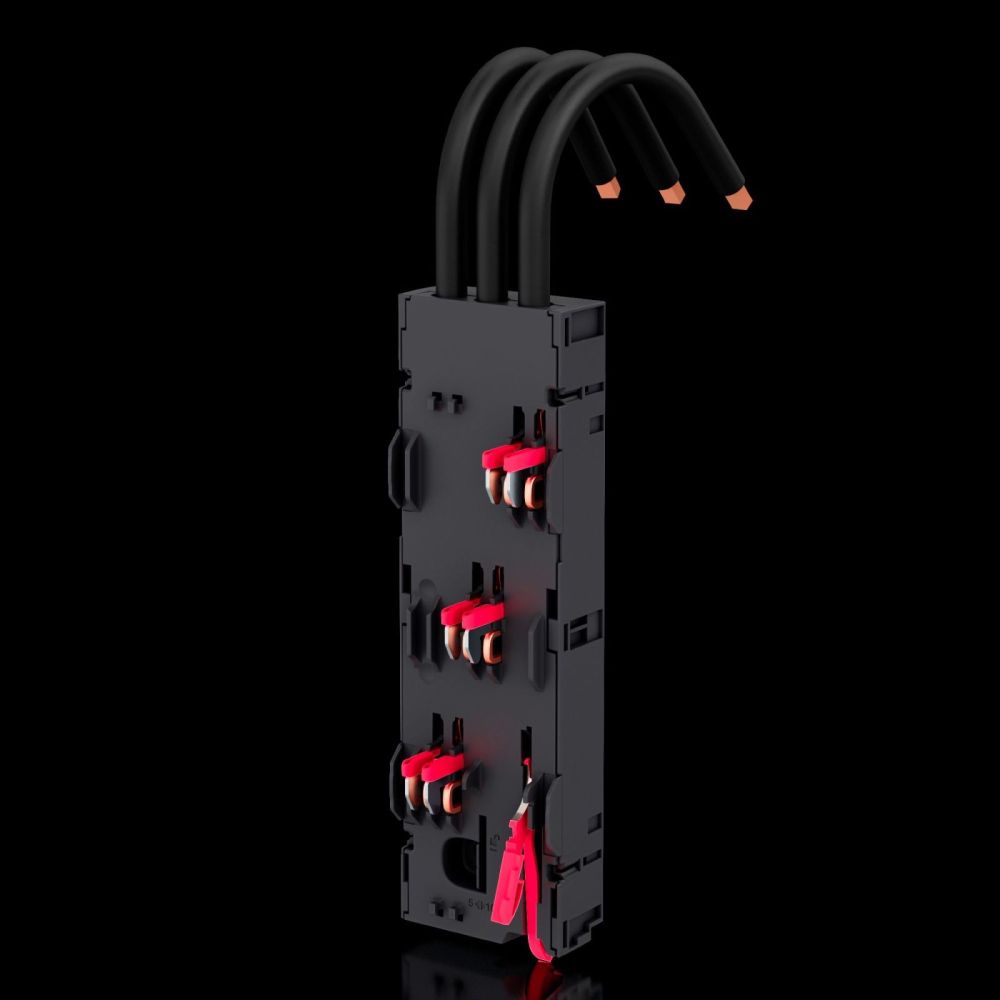

Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm

Your rating:
Average rating
product review for Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm
( 4.3 / 5 ) 3 ratings
Rittal 9360790
This image may differ from the desired article.
Rittal 9360790Rittal 9360790Rittal 9360790Rittal 9360790Rittal 9360790Rittal 9360790Rittal 9360790
33,35 EUR 34,68 EUR
( 39,69 EUR incl. VAT )
≈ £27.88  |  ≈ $36.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm
Datasheet:file_download Download
Lieske Part No.:1571837
Mfg Part No: 9360790
UPC/EAN: 4028177996946
Weight:0.785 kg
Type:RX 9360790

Product information for Rittal 9360790:

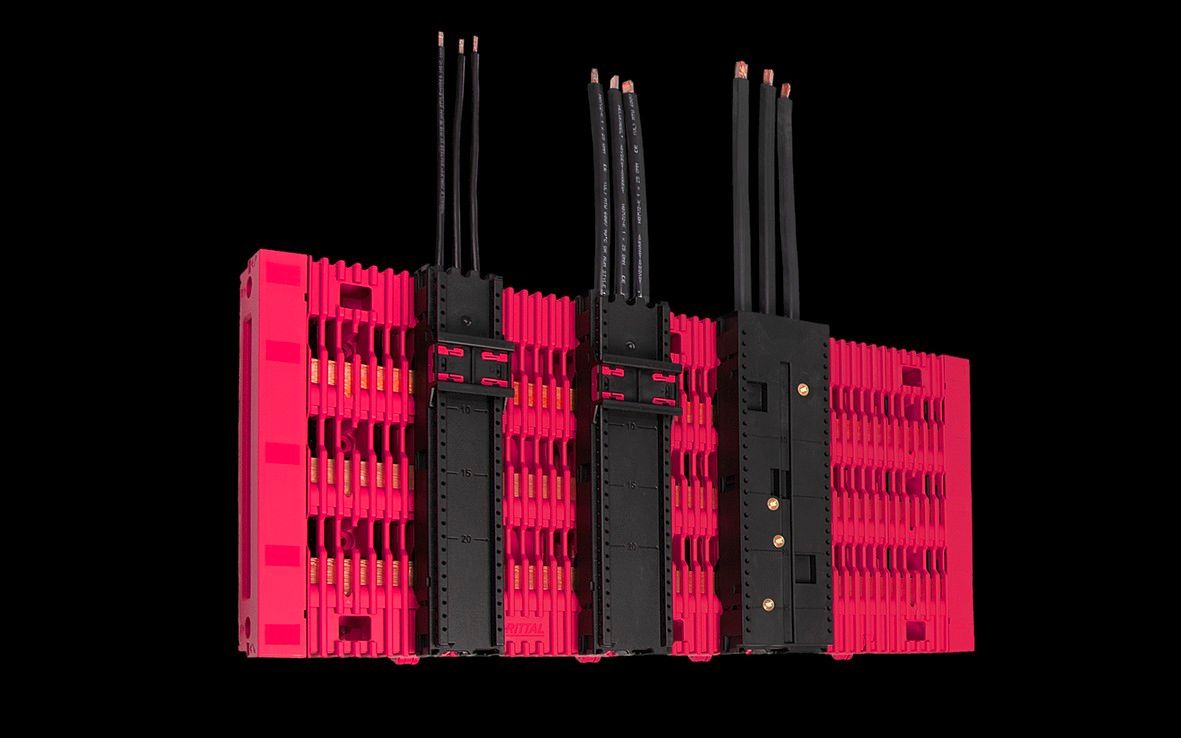

The Rittal RX 9360790 is a device adapter for 60 mm busbar systems, specifically designed for mounting control devices such as motor starters or switching devices on DIN rails. It features a 3-pole configuration with a rated current of 100 A and is equipped with pre-fabricated connection cables that enable quick and secure installation. The cables are made in AWG 2, corresponding to a cross-section of 35 mm², and exit the device from the bottom. The adapter is designed for use with the busbar systems RiLineX and RiLine60 and adapts to various rail thicknesses, including 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. Mounting is achieved via integrated crimp nuts, allowing secure attachment of devices such as ABB MS495/496/497, Schneider Electric GV3, or Siemens Sirius S3. For other devices, mounting can be done using the support rails 9320120.

Applications include industrial electrical engineering, particularly in enclosures and distributions, where reliable and fast mounting of switching and protective devices is required. The adapter is suitable for applications with a rated voltage of 690 V AC, as well as for UL-certified systems with 600 V AC and 600 V DC. The protection rating IP 2XB according to IEC 60 529 ensures protection against finger contact and solid foreign objects, but not against water or dust. The operating temperature ranges from -5 °C to 55 °C, with humidity up to 90 % (non-condensing). Storage is possible in the range of -25 °C to 75 °C.

Functions and equipment in detail include a simple plug-and-lock mechanism for device support rails, enabling quick and secure mounting. The adjustable mounting allows easy adjustment to different rail thicknesses (5/10 mm). An optional device anti-shift device can be used to prevent unintended movement of mounted devices. The integrated crimp nuts simplify the mounting of standard devices and reduce the need for additional fastening elements. The pre-fabricated connection cables reduce installation time and minimize wiring errors.

Technology explained simply shows that the adapter is made of polyamide (PA 6), which according to UL 94 exhibits specific flammability characteristics. The rated insulation voltage Ui is 1,000 V, ensuring high electrical insulation. The rated impulse voltage Uimp of 8 kV ensures reliability during transient voltage surges. The pollution degree 3 according to IEC 61 439-1/-2 means the adapter is designed for environments with heavy contamination, such as industrial facilities. The electrical values UL (SCCR) include various protection categories, such as 100 kA at 600 V for Class J fuses up to 200 A, switching devices up to 70 A, and combination motor controls up to 100 A. The standards IEC 61 439-1/-2 and UL 508 guarantee compliance with international and North American safety standards.

Compatibility and accessories include use with the busbar systems RiLineX and RiLine60. As accessories, compatible connecting pins (RX 9365700), grip protection profiles (RX 9365025), and mounting clips (RX 9365027) are available, supporting mounting and device protection. A socket strip for device adapters and device carriers can also be combined to simplify installation.

Mounting and installation is done by simply inserting onto the busbar and locking the support rails. The integrated crimp nuts allow direct mounting of devices without additional fastening elements. The pre-fabricated connection cables reduce installation time and increase safety through pre-made connections. The adjustable mounting allows adaptation to various rail thicknesses, increasing flexibility in use.

Operational advantages lie in fast and secure mounting, reduction of part variety through coordinated accessories, and high reliability due to compliance with international standards. The integrated crimp nuts and pre-fabricated cables minimize installation time and error susceptibility. Compatibility with various switching devices and busbar systems increases application flexibility in industrial environments.

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 2
Rated current (max.)100 A
Rated current for round conductor100 A
Rated current for round conductor (UL)100 A
Electrical values UL (SCCR)600 V / 7.5 kA SCCR unprotected AC UL, 100 kA - 600 V, Fuse Class J max. 200 A, JDDZ/7, 65 kA - 480 V, Circuit Breaker max. 70 A, DIVQ/7, 50 kA - 480 V, Combination Motor Controller max. 100 A, NKJH/7, 30 kA - 600 V, Combination Motor Controller max. 75 A, NKJH/7
Cable exitBelow
For rail systems with centre spacing60 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width72 mm
Height239,4 mm
Depth36,6 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load4,748 MJ/m²
Copper content (kg/piece)0,332
PCF/VE (Cradle-to-Gate)4,34


Product data sheet
Datasheet for Rittal 9360790, EAN: 4028177996946

Questions & answers

What is the delivery time of Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm?

The article Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360790 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm always at the best possible price. We can give you a discount of 2% on Rittal 9360790 RX device adapter 100 A AWG 2 3-pole W:72 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
