Rittal 9360740 RiLineX device adapter 3-pole

Your rating:
Average rating
product review for Rittal 9360740 RiLineX device adapter 3-pole
( 4 / 5 ) 2 ratings

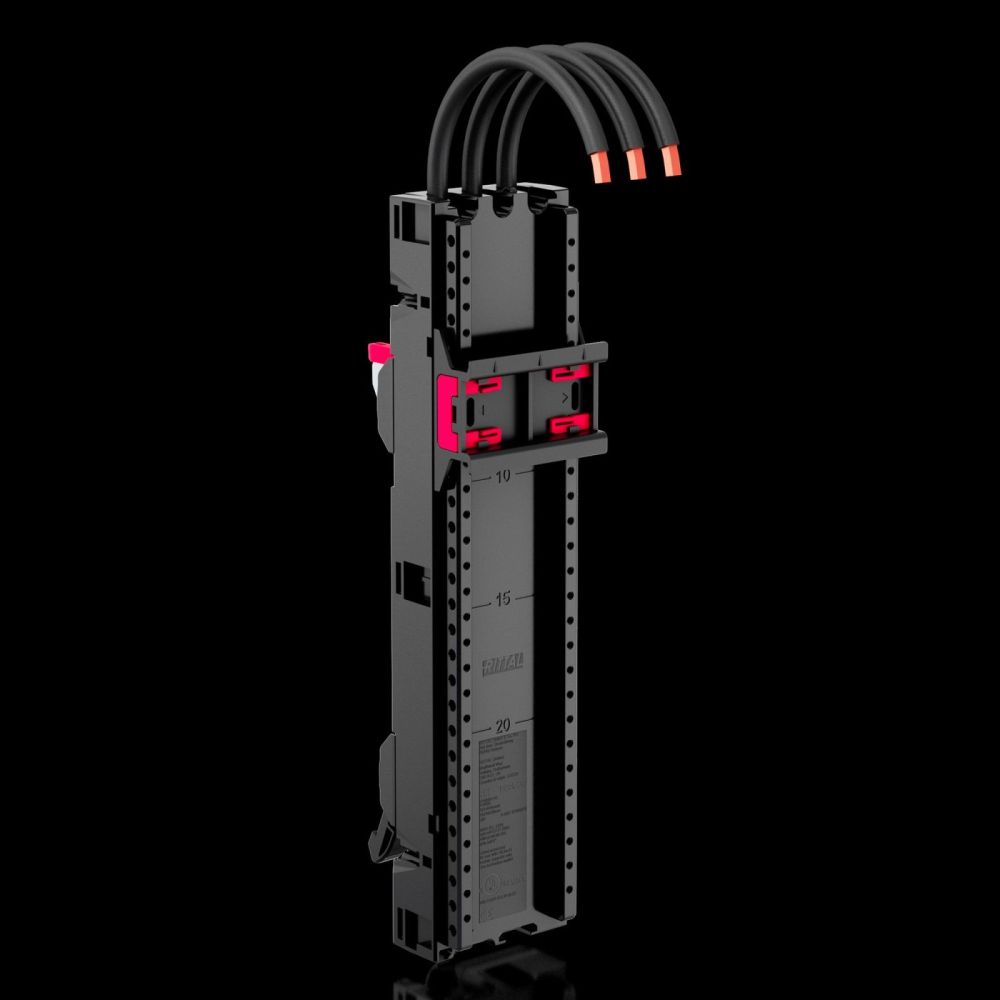

Rittal 9360740
This image may differ from the desired article.
Rittal 9360740Rittal 9360740Rittal 9360740Rittal 9360740Rittal 9360740Rittal 9360740Rittal 9360740
89,29 EUR 89,37 EUR
( 106,26 EUR incl. VAT )
≈ £74.65  |  ≈ $98.67
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 9360740 RiLineX device adapter 3-pole
Datasheet:file_download Download
Lieske Part No.:1571824
Mfg Part No: 9360740
UPC/EAN: 4028177997004
Weight:1.708 kg
Type:RX 9360740

Product information for Rittal 9360740:

The Rittal RX 9360740 is a device adapter for 60 mm busbar systems, specifically designed for mounting control devices such as motor starters or switching devices on DIN rails. The device features a 3-pole configuration with pre-fabricated connection leads and is rated for a maximum nominal current load of 50 A. The connection leads have a cross-section size of AWG 8 (approximately 10 mm²) and exit the device at the bottom. The width is 54 mm, the height 239.4 mm, and the depth 36.2 mm. The support rail is tool-free adjustable and enables snap-in mounting of devices, thereby reducing mounting time. The rail is suitable for busbars with a thickness of 5 mm or 10 mm and a width of 15 mm, 20 mm, or 30 mm. The fit is designed for busbar systems with a center-to-center spacing of 60 mm, particularly for the systems RiLineX and RiLine60.

Applications

The adapter is used in industrial electrical installations where switching and protective devices are mounted on busbars. It is particularly suitable for installations with high electrical loads, as it supports a rated voltage of 690 V AC and 600 V DC (UL). The protection class IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against splashing water or dust. The operating temperature ranges from -5 °C to 55 °C, and the storage temperature ranges from -25 °C to 75 °C. The maximum operating air humidity is 90 %, with no condensation allowed.

Functions and Equipment in Detail

The device is made of polyamide (PA 6), which exhibits specific flammability characteristics according to UL 94. The color is RAL 9005 (black) and RAL 35745 (gray). The pre-mounted support rail enables easy snap-in locking and is designed for a height of 10 mm. The connection leads have a length of 130 mm. The electrical values according to UL include various SCCR values (Short-Circuit Current Rating) depending on the switching device type, such as 100 kA at 600 V for fuses of class RK5 up to 60 A. The rated insulation voltage is 1,000 V, and the rated impulse voltage is 8 kV. The pollution degree is classified as 3, indicating high susceptibility to contamination in industrial environments.

Technology Explained Simply

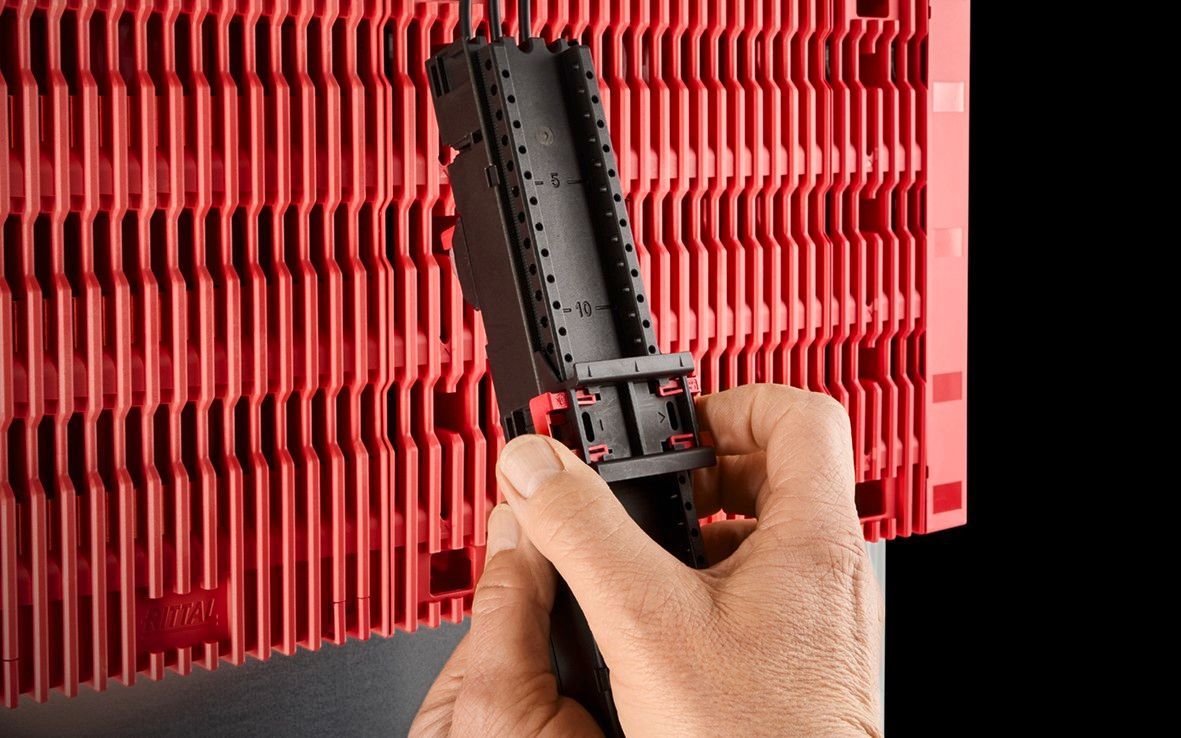

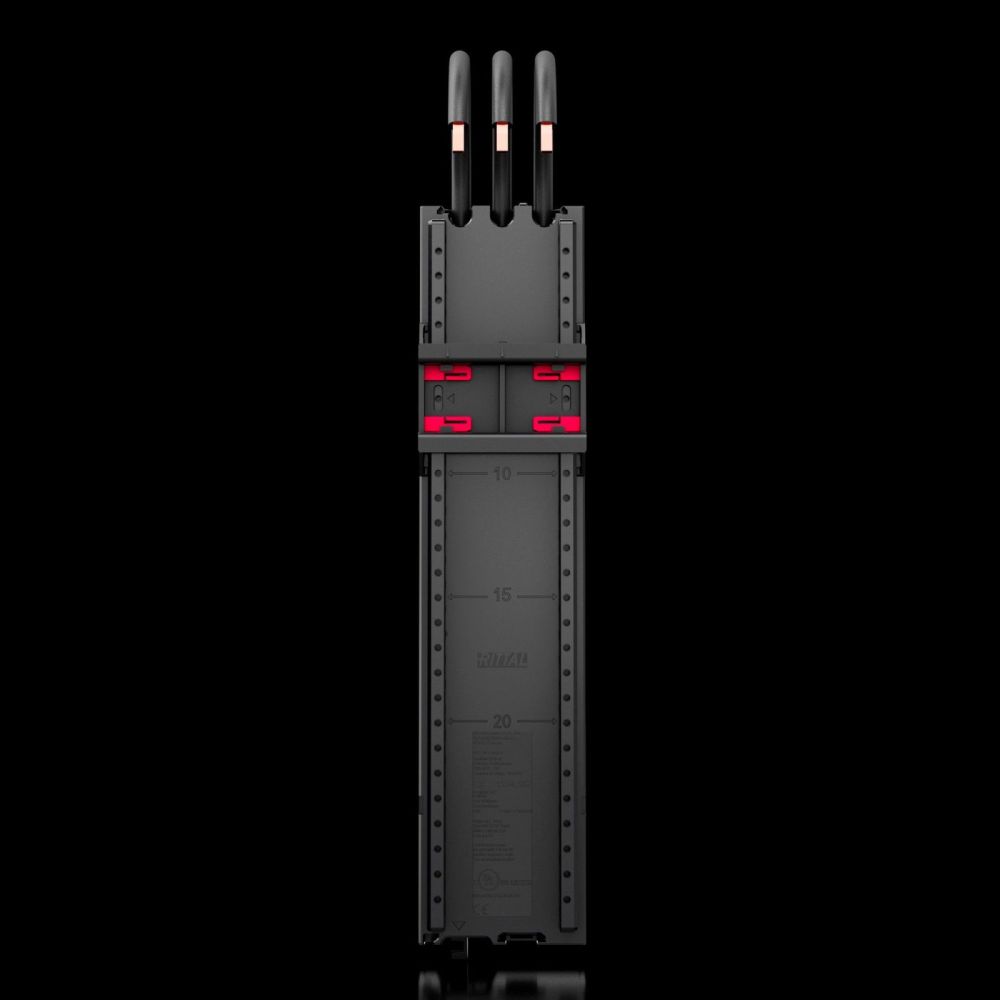

The snap-in mounting allows devices to be mounted onto the support rail without tools, accelerating installation. The tool-free adjustment of the support rail adapts to various rail thicknesses, increasing flexibility. The pre-fabricated connection leads reduce mounting time, as no additional cables need to be laid. The choice of polyamide material ensures high mechanical stability and heat resistance. The standards IEC 61 439-1/-2 and UL 508 guarantee compliance with international safety and quality standards.

Compatibility and Accessories

The adapter is compatible with the busbar systems RiLineX and RiLine60. Various accessories are available, such as connecting pins, encircling protection profiles, mounting clips, locking wedges, support rails with height adjustment, anti-shift devices, and expansion blocks. These enable adaptable mounting and protection against accidental displacement of devices. The accessories are specifically designed for a width of 54 mm and thus fit directly to the adapter.

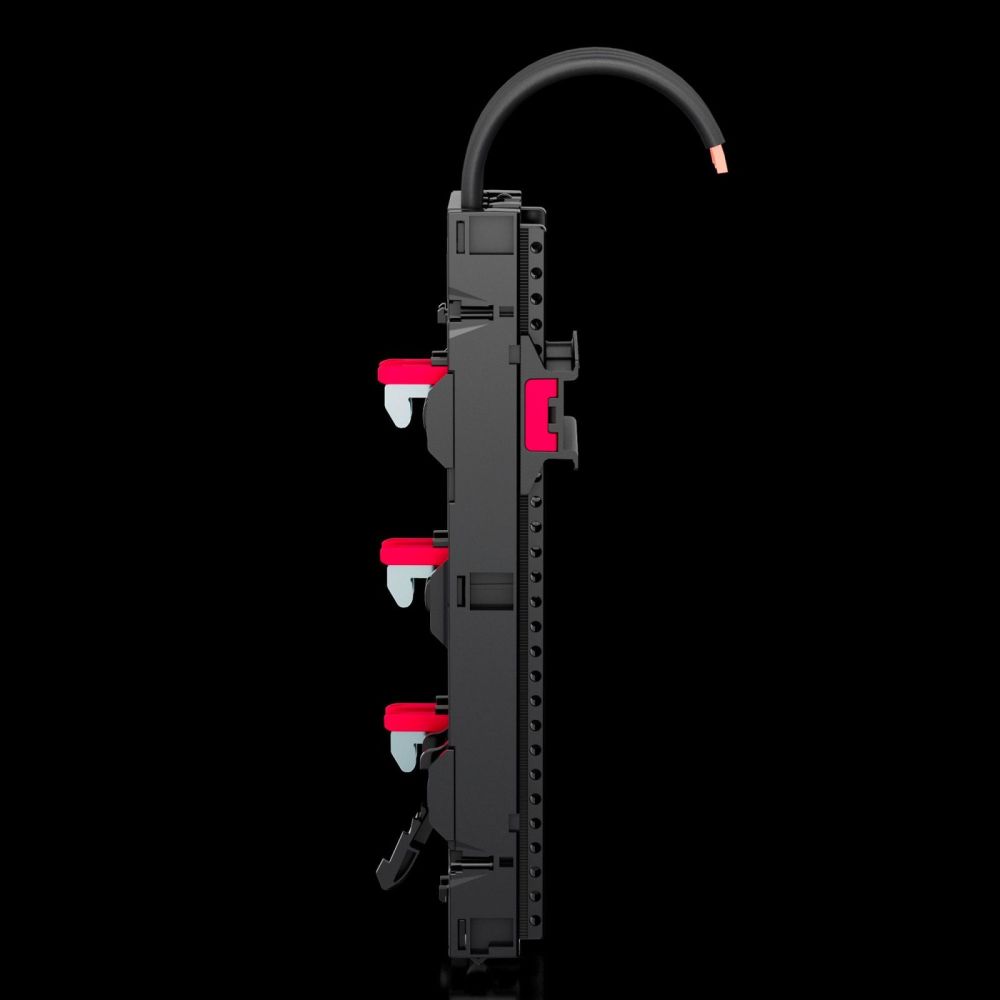

Mounting and Installation

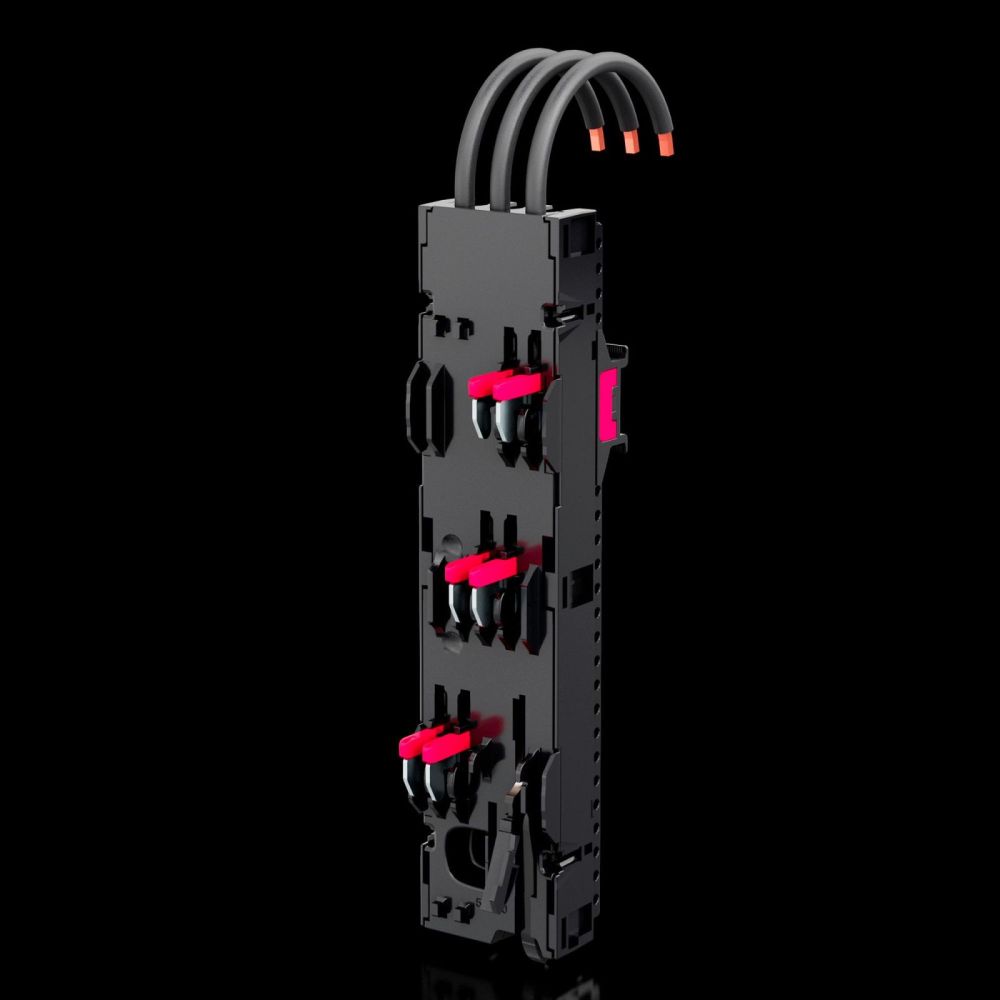

Mounting is done by snapping the support rail into the busbar. Devices are then placed onto the support rail and locked in place. The connection leads are connected to the corresponding terminals. The tool-free adjustment of the support rail is done by simple sliding, without requiring screwdrivers or other tools. Installation is therefore quick and possible without special tools.

Operational Advantages

The adapter reduces part variety through coordinated accessories and enables standardized mounting. The pre-fabricated connection leads and snap-in mounting shorten installation time. The high electrical load capacity and compliance with international standards ensure safe and reliable operation in industrial installations. The materials and construction are designed for use in industrial environments, with operating temperature and humidity within the specified limits.

General
Modelwith connection cable
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Connection wires (AWG)AWG 8
Rated current (max.)50 A
Rated current for round conductor50 A
Rated current for round conductor (UL)50 A
Electrical values UL (SCCR)600 V / 7.5 kA SCCR unprotected AC UL, 100 kA - 600 V, Fuse Class RK5 max. 60 A, JDDZ/7, 22 kA - 600 V, Combination Motor Controller max. 40 A, NKJH/7, 20 kA - 600 V, Circuit Breaker max. 60 A, DIVQ/7, 65 kA - 480 V, Combination Motor Controller max. 52 A, NKJH/7
Cable exitBelow
For rail systems with centre spacing60 mm
Connection cable length130 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width54 mm
Height239,4 mm
Depth36,2 mm
DIN rail quantity/height1 / 10 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage690 V AC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC 61 439-1/-2, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load3,763 MJ/m²
Copper content (kg/piece)0,101
PCF/VE (Cradle-to-Gate)12,18


Product data sheet
Datasheet for Rittal 9360740, EAN: 4028177997004

Questions & answers

What is the delivery time of Rittal 9360740 RiLineX device adapter 3-pole?

The article Rittal 9360740 RiLineX device adapter 3-pole is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360740 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360740 RiLineX device adapter 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9360740 RiLineX device adapter 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
