Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005

Your rating:
Average rating
product review for Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005
( 4.4 / 5 ) 5 ratings
Rittal 5302122
This image may differ from the desired article.
Rittal 5302122Rittal 5302122Rittal 5302122Rittal 5302122Rittal 5302122Rittal 5302122
-10% 106,38 EUR 118,67 EUR
( 126,59 EUR incl. VAT )
≈ £89.04  |  ≈ $116.91
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1910617
Mfg Part No: 5302122
UPC/EAN: 4028177952720
Weight:5.02 kg
Type:VX 5302122

Product information for Rittal 5302122:

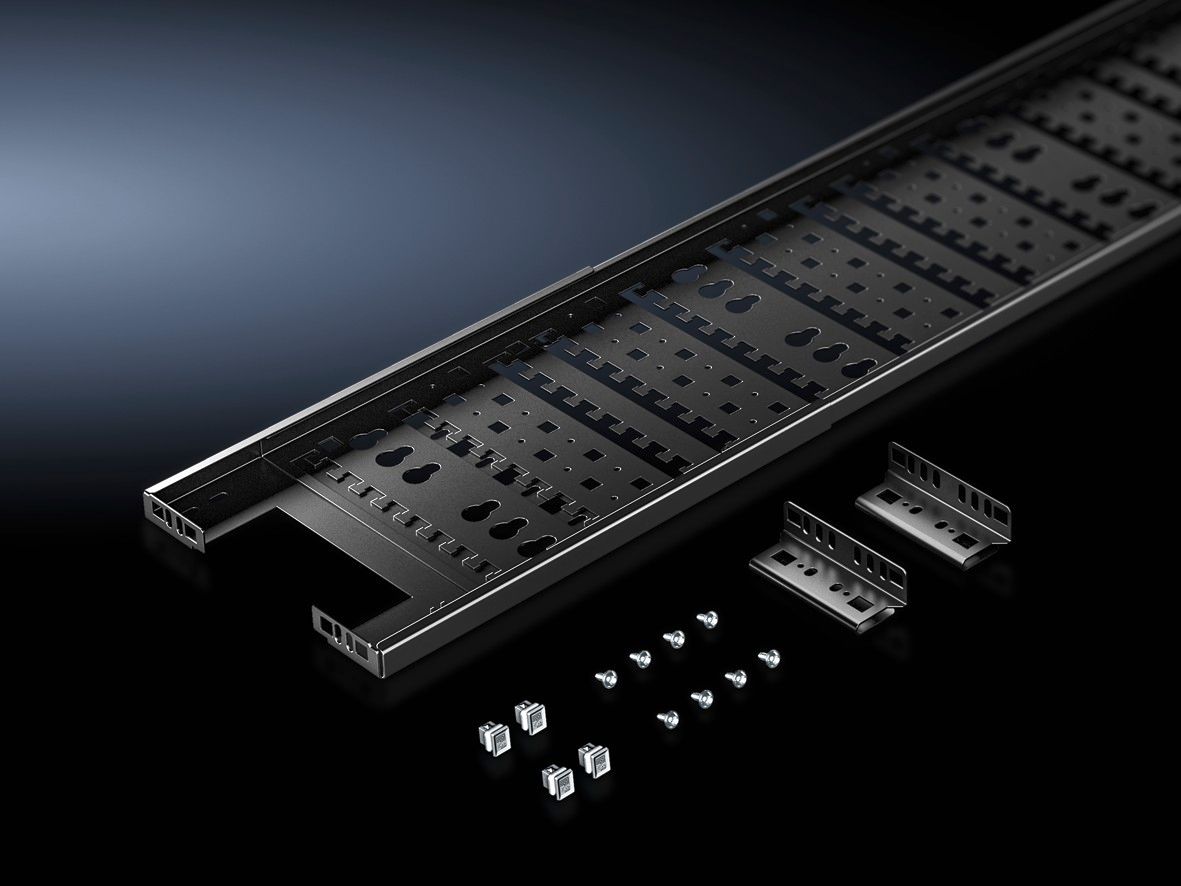

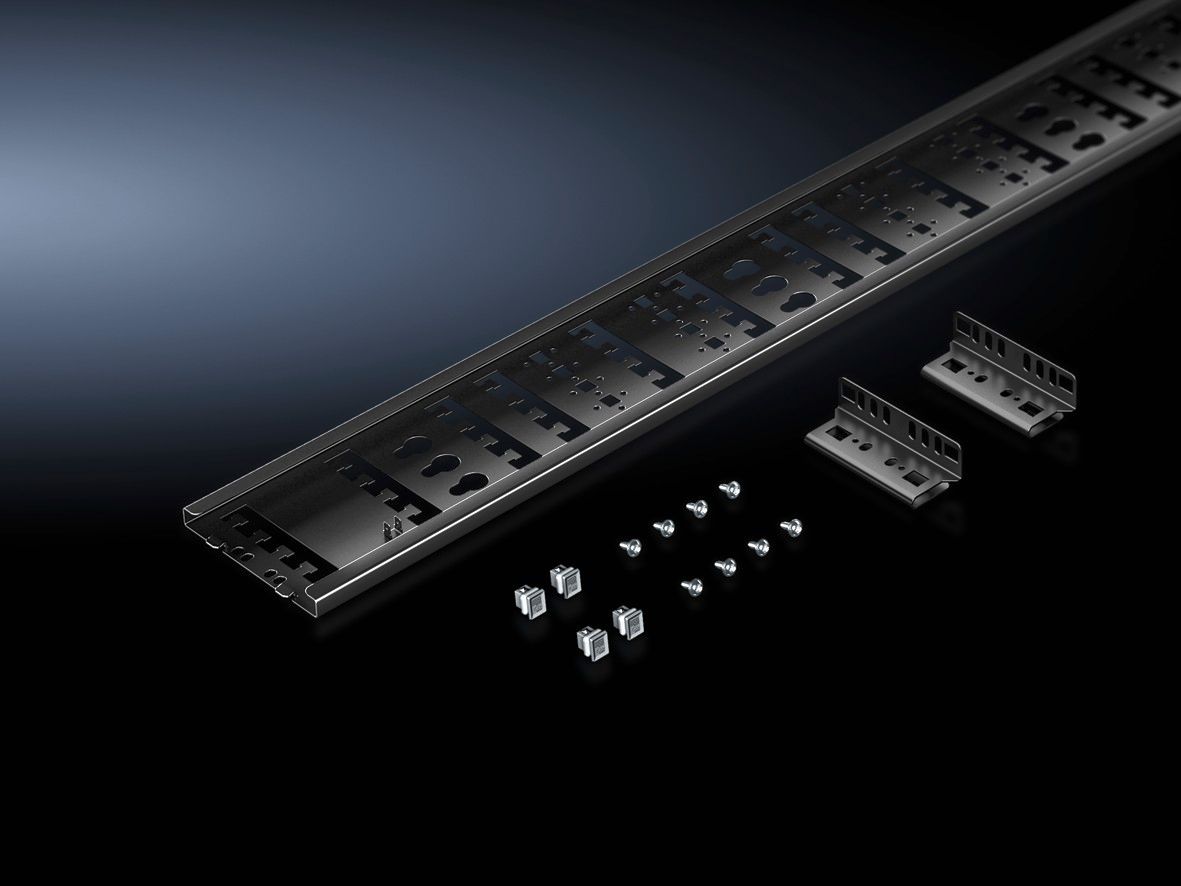

The cable tray VX 5302122 from Rittal is a system accessory for enclosures of type VX and VX IT, specifically designed for vertical cable routing and strain relief in network and server applications. The product is made of sheet steel and is painted in RAL 9005, ensuring a robust and uniform surface for use in industrial environments. The width is 145 mm, and the tray is designed for enclosures with a height of at least 2,200 mm. Installation is tool-free via a quick-fastening system on the frame structure of the enclosure, covering the entire enclosure depth. For 800 mm wide VX IT racks, additional screwing to the depth rails of the 48,3 cm ( 19 inch ) extension is possible to ensure stable fixation.

Applications

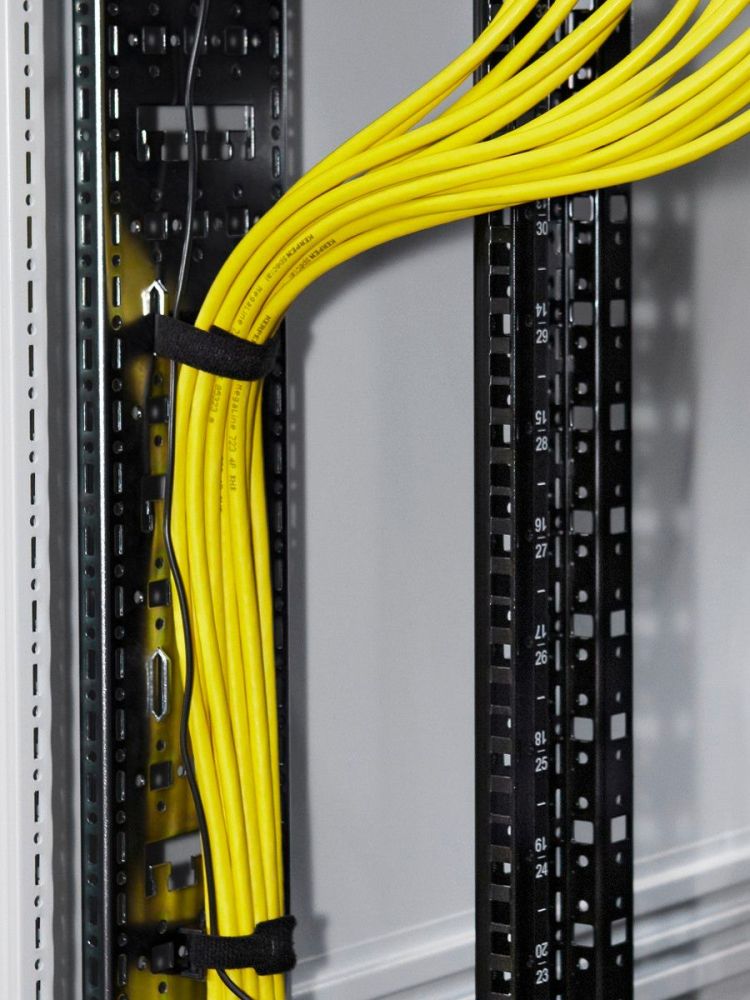

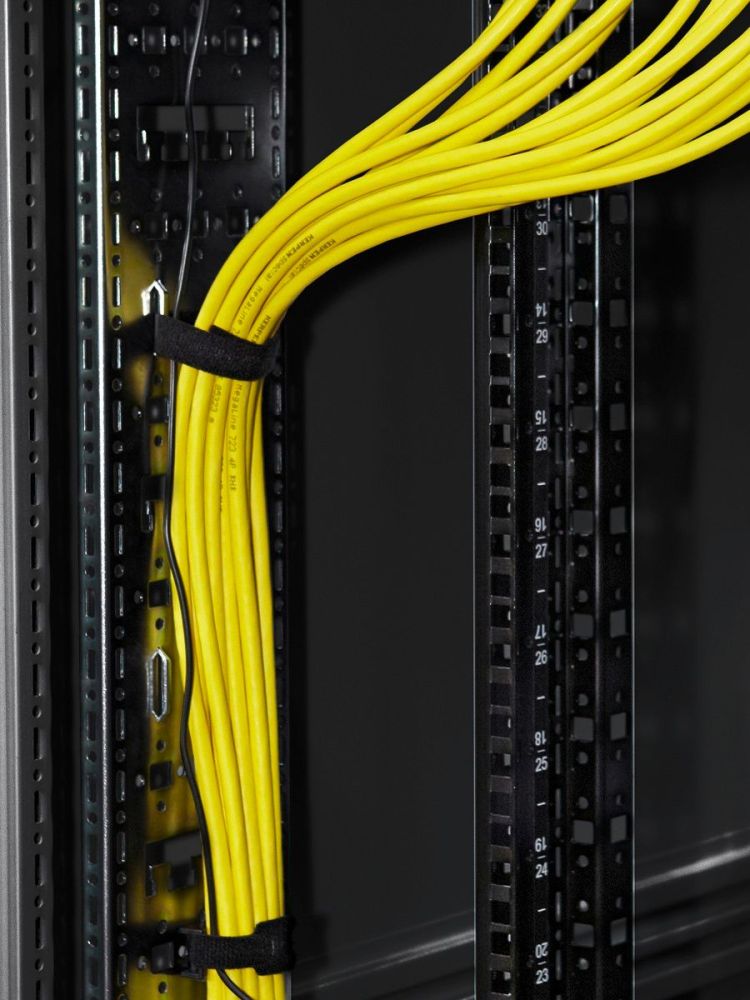

The cable tray primarily serves structured cable routing and strain relief in IT infrastructures. It is particularly suitable for applications where clear separation between data and power cables is required to minimize interference and improve maintainability. The integrated multifunctional perforation allows the attachment of various cable management elements, increasing flexibility during installation. The tray is intended for enclosures of type VX and VX IT, with installation between the top and bottom frames.

Functions and Equipment in Detail

A central feature of the cable tray is the integrated multifunctional perforation, enabling the attachment of additional elements such as cable ladders or hook-and-loop tape holders. This function supports modular and adaptable cable management. Additionally, the tray features a mounting perforation in 7 HE grid spacing, specifically designed for securing PDUs (Power Distribution Units). The perforation uses a keyhole slot for secure and positive locking installation.

Technology Explained Simply

The cable tray is made of sheet steel, offering high mechanical stability while being easy to install. The RAL 9005 paint finish ensures a uniform surface that is corrosion-resistant and visually integrates well in industrial environments. The tool-free quick-fastening system reduces installation time and enables easy installation, especially during maintenance work. The width of 145 mm provides sufficient space for routing multiple cables without the tray becoming excessively wide. Installation across the full enclosure depth ensures even load distribution and prevents cable sagging.

Compatibility and Accessories

The cable tray is specifically developed for enclosure types VX and VX IT, with a minimum mounting height of 2,200 mm. Compatible accessories include hook-and-loop tape holders (article number DK 5502155) in RAL 9005, as well as cable ladders in sizes 4 HE (4 pieces) and 1 HE (10 pieces). These elements can be attached to the multifunctional perforation to further optimize cable routing. Combining these accessories enables structured and clear cabling, especially in complex IT systems.

Installation and Mounting

Installation is performed on the frame structure of the enclosure between the top and bottom frames, covering the entire enclosure depth. The tool-free quick-fastening system simplifies installation and reduces mounting effort. For 800 mm wide VX IT racks, additional screwing to the depth rails of the 48,3 cm ( 19 inch ) extension is possible to ensure additional stability.

Operational Advantages

The cable tray provides clear and structured cable routing, simplifying maintenance and inspection of IT systems. The integrated multifunctional perforation allows flexible adaptation to different requirements, while the mounting perforation for PDUs ensures secure installation of these components. The tool-free mounting reduces installation time and minimizes labor effort. The use of sheet steel and a robust paint finish ensures long service life and high reliability in industrial applications.

General
ApplicationsFor vertical cable routing and strain relief in network and server applications
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX IT frame structure between top and bottom frame, continuous; in 800 mm wide VX IT racks, alternatively screwing between upper and lower depth brace is possible
Mounting noteMounting is carried out across the entire cabinet depth on the frame structure using quick fastening. When mounting in 800 mm wide cabinets, additional fastening to the depth rails of the 19" extension is possible.
Width145 mm
Suitable forEnclosure type: VX, VX IT, height: = 2,200 mm
PCF/VE (Cradle-to-Gate)19.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302122, EAN: 4028177952720

Questions & answers

What is the delivery time of Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005?

The article Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302122 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 5302122 Cable tray for VX IT, 145 x 2200 mm, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
