Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32

Your rating:
Average rating
product review for Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32
( 5 / 5 ) 1 ratings

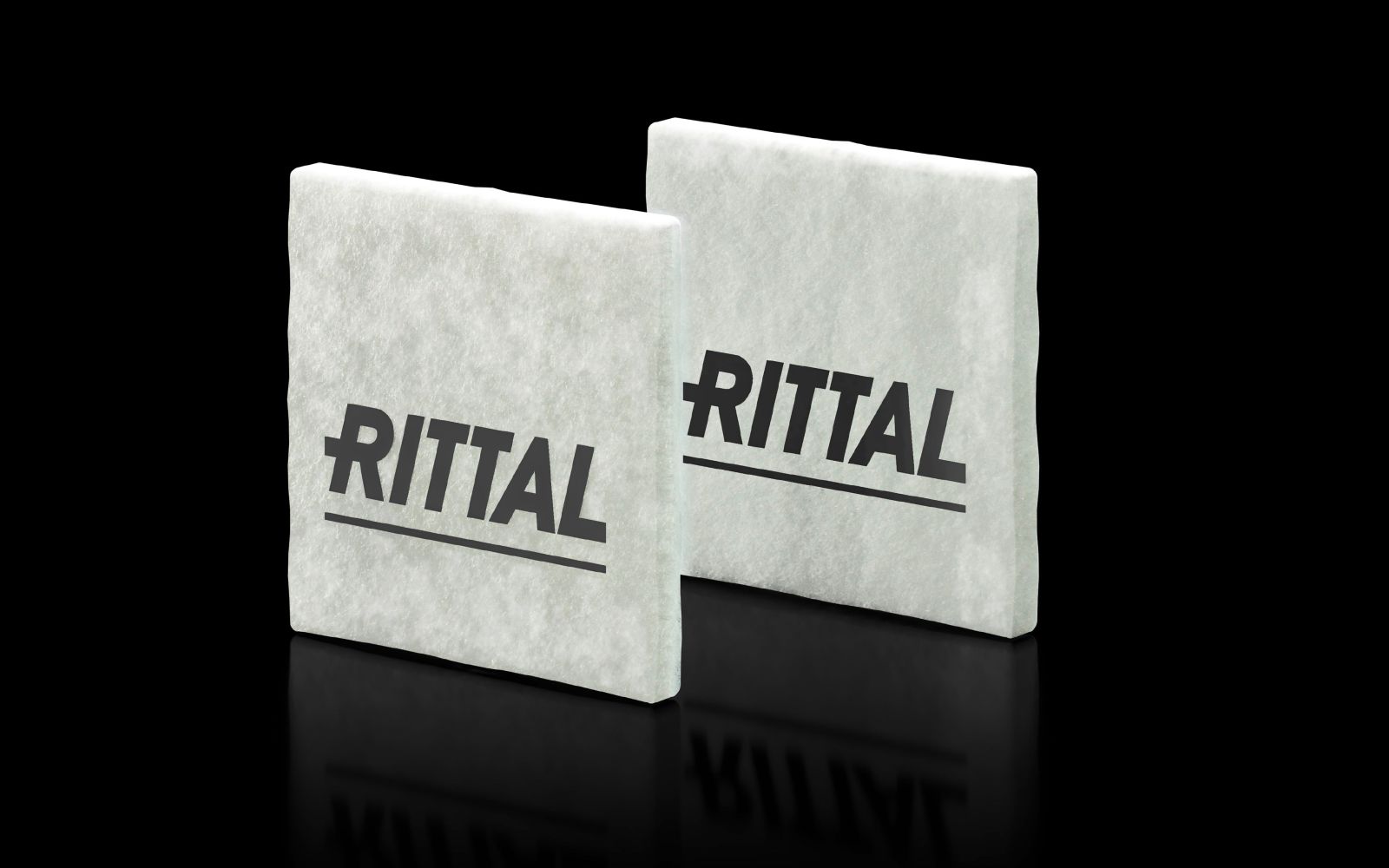

Rittal 3237054
This image may differ from the desired article.
Rittal 3237054Rittal 3237054
11,97 EUR
( 14,24 EUR incl. VAT )
≈ £10.02  |  ≈ $13.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32
Datasheet:file_download Download
Lieske Part No.:684180
Mfg Part No: 3237054
UPC/EAN: 4028177651531
Weight:0.012 kg
Type:SK 3237054

Product information for Rittal 3237054:

The Rittal SK 3237054 is a nonwoven filter mat for filter fans, specifically designed for enclosure climate control. It serves as a replacement filter for fan models SK 3237.3xx and SK 3237.7xx and ensures continuous cleaning of the supply air, protecting the internal components of the enclosure from dust, dirt, and moisture. The filter mat is made of chemical fiber and is white in color. Its dimensions are 89 mm width, 89 mm height, and 10 mm depth, ensuring a precise fit for the specified fan models.

Applications
The nonwoven filter mat is used in industrial environments where enclosures are continuously exposed to dust and particles. It is suitable for filter fans installed in roof or wall mounting within enclosures to maintain air quality inside. The filter mat is not intended for EMC filter fans, as these require special electrical shielding properties that are incompatible with this filter type.

Functions and Equipment in Detail
The filter mat is made of spunlace nonwoven fabric with a progressive structure. The dirty air side features an open structure, allowing high air permeability, while the clean air side has a closed structure to optimize filtration performance. The filter class corresponds to G2 according to DIN EN 779 and ISO Coarse 50 % according to DIN EN ISO 16890, ensuring reliable filtration of particles with a grain size of 10 µm and above. The filter mat is heat resistant up to 100 °C and self-extinguishing in class F1 according to DIN 53 438, making it suitable for use in industrial installations.

Technology Explained Simply
The progressive structure of the spunlace nonwoven fabric ensures that larger particles are captured on the surface of the filter mat, while smaller particles are filtered deeper within the material. This extends the filter's service life and maintains uniform air permeability. The open structure on the dirty air side minimizes air resistance, while the closed structure on the clean air side enhances filtration efficiency. The material composition of chemical fiber ensures high mechanical stability and resistance to industrial loads.

Compatibility and Accessories
The nonwoven filter mat is specifically developed for filter fan models SK 3237.3xx and SK 3237.7xx. It is used as a replacement filter to maintain the air cleaning function of the fans. Additional replacement filter mats for the same fan series are available in the range, supplied in packaging units of five pieces. The filter mats are not suitable for EMC filter fans, as these require special electrical shielding properties that are incompatible with this filter type.

Installation and Mounting
Installation is performed by simply inserting the filter mat into the designated filter frame of the fan. The exact fit of the dimensions (89 x 89 x 10 mm) ensures a secure and tight installation. The filter mat is typically replaced during fan maintenance to ensure air cleaning performance. The packaging unit contains five pieces, enabling economical stock keeping.

Operational Advantages
The use of the Rittal SK 3237054 nonwoven filter mat contributes to extending the service life of enclosure components by reducing contamination from dust and particles. The high heat resistance up to 100 °C and self-extinguishing property in class F1 according to DIN 53 438 increase operational safety. The filter class G2 and ISO Coarse 50 % ensure reliable air cleaning, which is crucial for the functionality and reliability of electronic devices in the enclosure. The filter mat is easy to install and replace, simplifying maintenance work and increasing plant uptime.

General
ModelFor filter fans
MaterialChemical fibre
ColourWhite
NoteNot suitable for use in EMC filter fans.
Suitable for part no.3237.3xx/3237.7xx
Width89 mm
Height89 mm
Depth10 mm
Filter classAccording to DIN EN 779: G2, according to DIN EN ISO 16890: ISO Coarse 50 %


Product data sheet
Datasheet for Rittal 3237054, EAN: 4028177651531

Questions & answers

What is the delivery time of Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32?

The article Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237054 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32 always at the best possible price. We can give you a discount of 2% on Rittal 3237054 SK filter mat, for filter fan SK 3237.7xx/32 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
