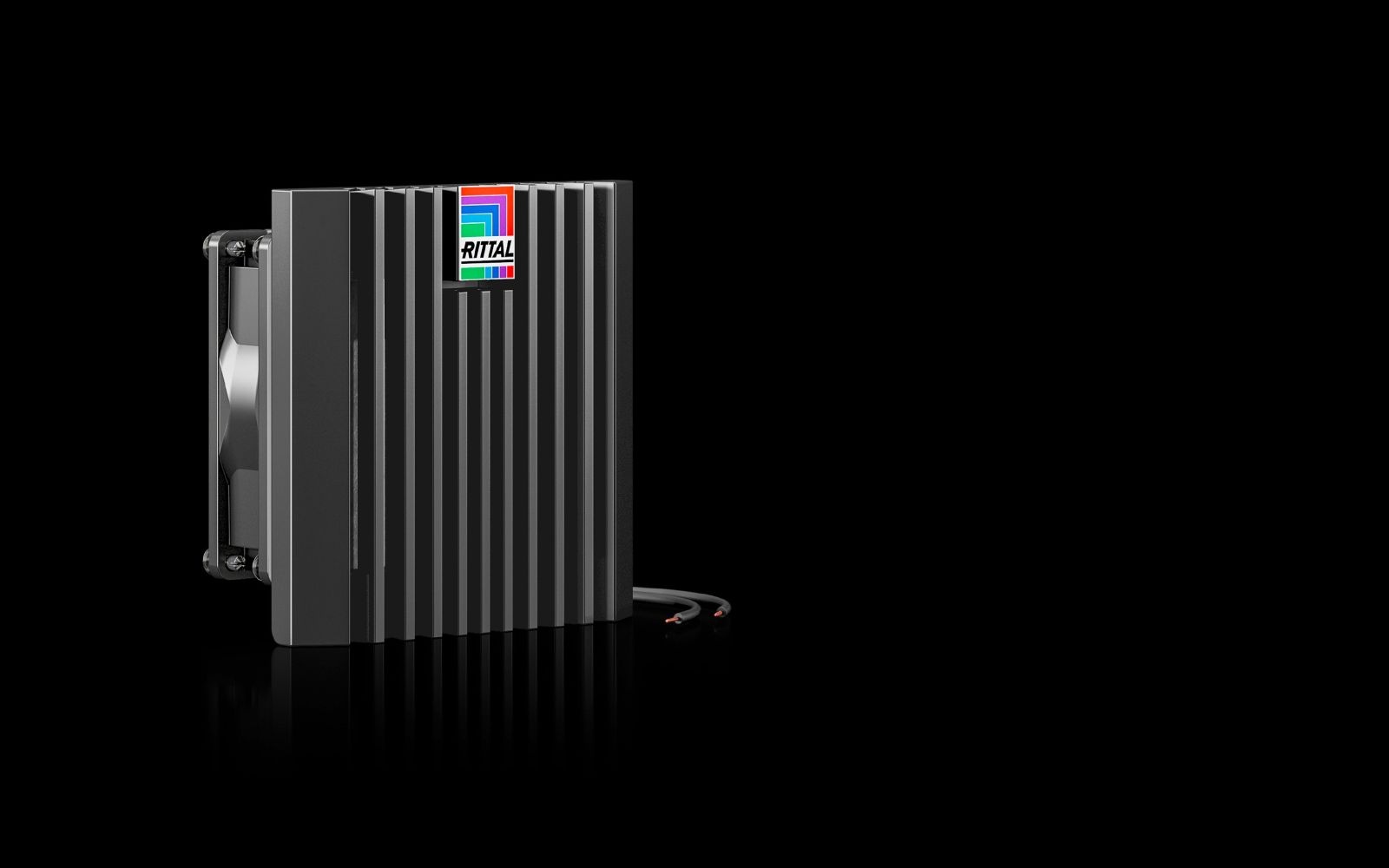

Rittal 3237718 Blue e+ filter fan 20/25 m³/h, 115 V, RAL 9005
|
62,33 EUR 62,79 EUR |
|
|
( 74,17 EUR incl. VAT ) ≈ £52.17 | ≈ $68.50 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683782 |
| Mfg Part No: | 3237718 |
| UPC/EAN: | 4028177998285 |
| Weight: | 0.41 kg |
| Type: | SK 3237.718 |
Product information for Rittal 3237718:
Applications
This filter fan is suitable for industrial applications requiring continuous, filtered air supply into enclosures. It is commonly used in machine building, automation technology, and plant engineering, where stable cooling of electrical components is necessary. The diagonal fan technology ensures more uniform and consistent airflow within the enclosure, resulting in improved heat dissipation. The tool-free mounting via optimized snap hooks allows for quick and easy installation on the enclosure wall.
Functions and Equipment in Detail
The fan features an axial fan with a split-pole motor, ensuring efficient air delivery. The air performance is 20 m³/h at 50 Hz and 25 m³/h at 60 Hz when free blowing, while values drop to 15 m³/h (50 Hz) and 18 m³/h (60 Hz) when an additional outlet filter is used. The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, making it suitable for standard mains voltages in many countries. The rated power is 12 W at 50 Hz and 10 W at 60 Hz, with a rated current of max. 0.14 A (50 Hz) or 0.13 A (60 Hz). The fuse is rated at 2 A to protect the operation.
Technology Explained Simply
The diagonal discharge direction of the fan ensures more even air distribution within the enclosure, leading to consistent cooling performance. The protection rating IP 54 is achieved standardly with the nonwoven filter, providing dust and splash water protection. When used with a spray water hood, the protection rating increases to IP 56, offering protection against heavy splashing water. According to NEMA standards, the device corresponds to Type 12 with nonwoven filter and Type 3, 3R with nonwoven filter and spray water hood. The sound pressure level is 42 dB(A) at 50 Hz and 47 dB(A) at 60 Hz, ensuring quiet operation. The operating temperature ranges from -15 °C to 55 °C, and the storage temperature from -30 °C to 70 °C.
Compatibility and Accessories
Various accessories are available for this filter fan to extend its functionality. These include an outlet filter in RAL 9005, which reduces airflow but enhances filtration. A spray water hood for stainless steel increases the protection rating. A thermostat or hygrostat enables temperature- or humidity-dependent control. A speed controller allows variable airflow, and a digital temperature display provides visual monitoring. A blanking plate can cover the mounting cutout if the fan is not required.
Mounting and Installation
Mounting is tool-free on the enclosure wall. The mounting cutout measures 92 mm (width) x 92 mm (height), and the device’s installation depth is 46 mm. The fan’s dimensions are 116.5 mm (width) x 116.5 mm (height) x 64.5 mm (depth). Electrical connection is made via two individual conductors (approx. 300 mm length) on the device, which must be considered during installation.
Operational Advantages
The fan provides reliable and low-maintenance cooling for enclosures. The integrated nonwoven filter mat ensures clean incoming air. The easily accessible filter replacement via the new opening mechanism on the louver grille reduces maintenance time. Tool-free mounting and compact design simplify installation in confined spaces. The high pressure stability of the diagonal fan technology ensures even air distribution, which can extend the lifespan of electronic components within the enclosure.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 9005 |
| Scope of delivery | Complete ready-to-install unit, including felt filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 20 m³/h, At 60 Hz: 25 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 15 m³/h, at 60 Hz: 18 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 12 W, At 60 Hz: 10 W |
| Rated current max. | At 50 Hz: 0.14 A, At 60 Hz: 0.13 A |
| Width | 116,5 mm |
| Height | 116,5 mm |
| Depth | 64,5 mm |
| Built-in depth | 46 mm |
| Mounting cutout | Cutout width: 92 mm, cutout height: 92 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R with felt filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 42 dB(A), At 60 Hz: 47 dB(A) |
