Rittal 3237308 Blue e+ outlet filter, RAL 9005

Your rating:
Average rating
product review for Rittal 3237308 Blue e+ outlet filter, RAL 9005
( 5 / 5 ) 1 ratings
Rittal 3237308
This image may differ from the desired article.
Rittal 3237308Rittal 3237308Rittal 3237308Rittal 3237308Rittal 3237308Rittal 3237308Rittal 3237308Rittal 3237308
22,89 EUR
( 27,24 EUR incl. VAT )
≈ £19.16  |  ≈ $25.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3237308 Blue e+ outlet filter, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683771
Mfg Part No: 3237308
UPC/EAN: 4028177998421
Weight:0.148 kg
Type:SK 3237.308

Product information for Rittal 3237308:

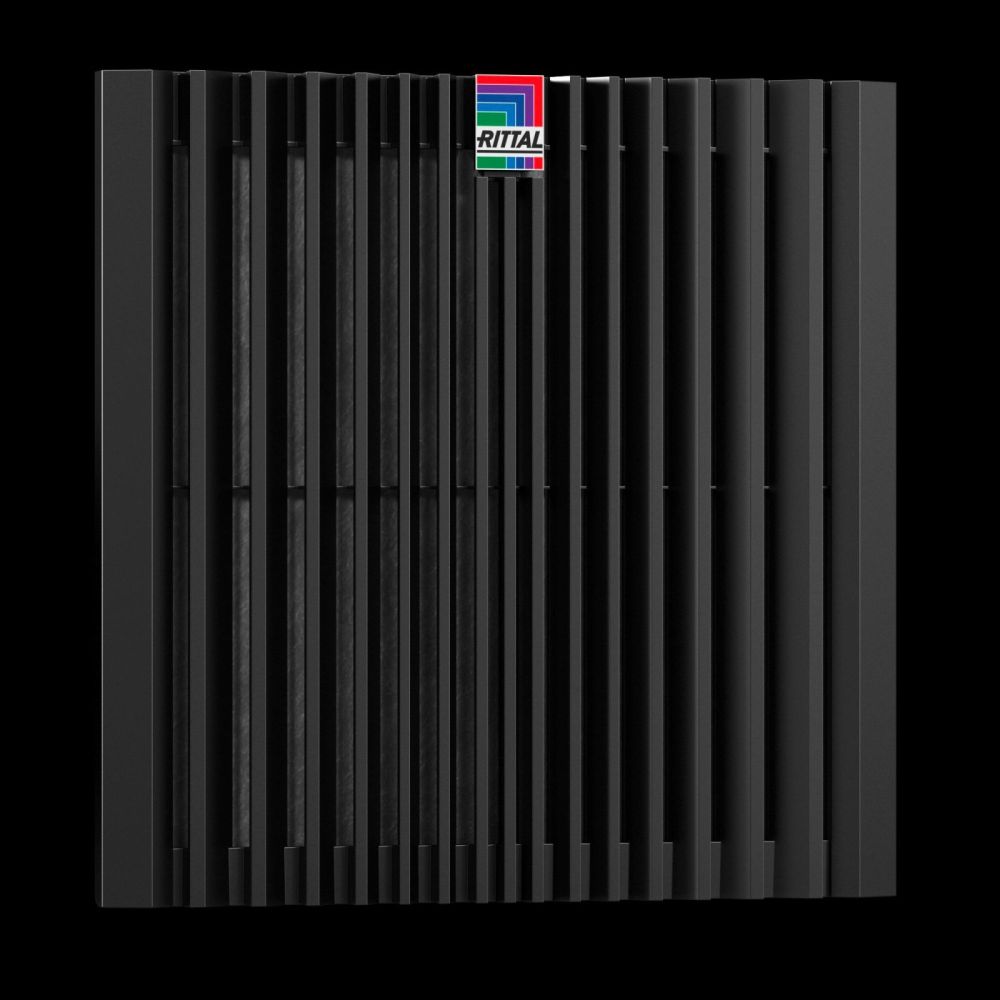

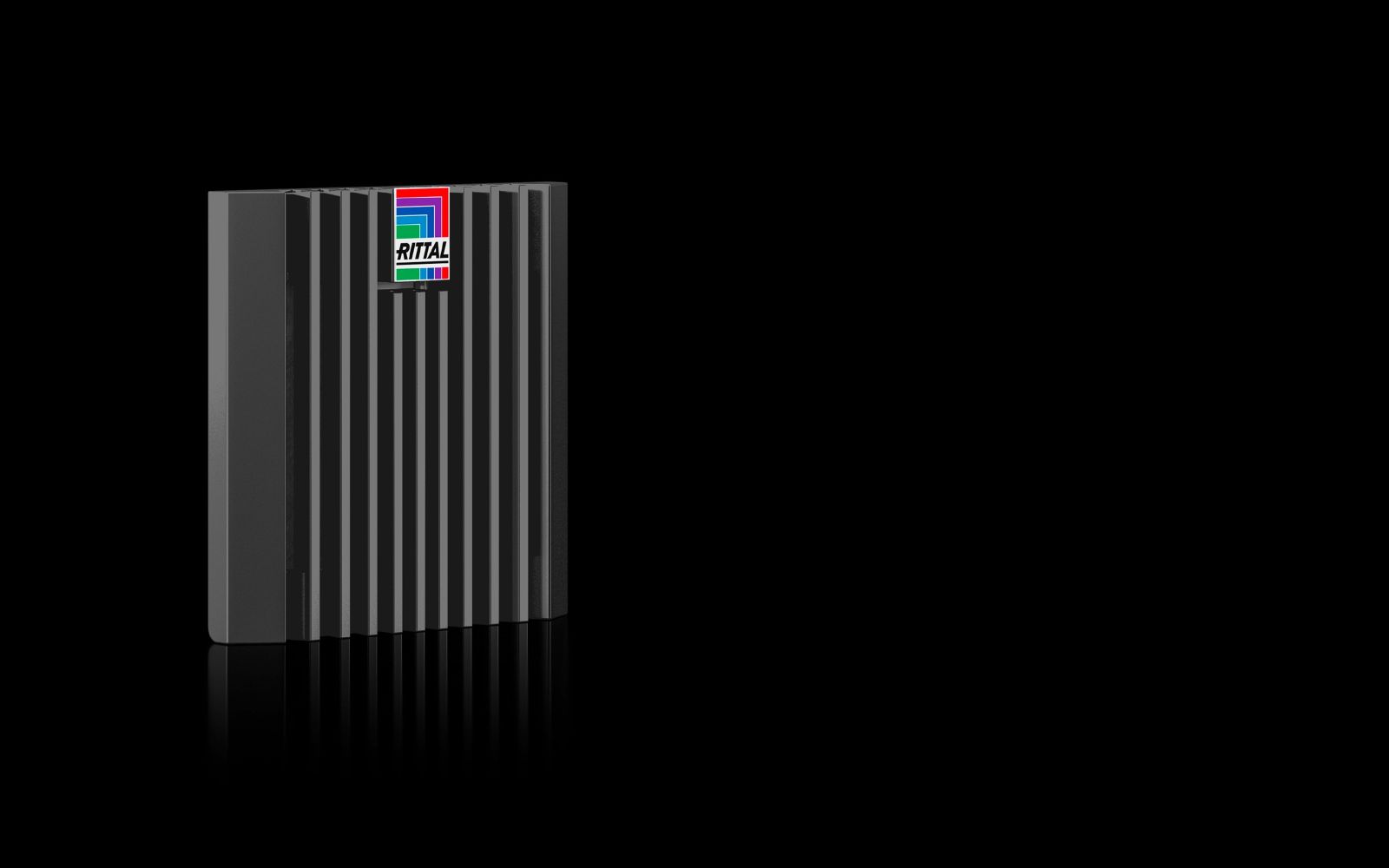

The Rittal SK 3237.308 is an outlet filter for filter fans of the SK 3237.7xx series, designed as a wall-mounted installation. It serves to control the discharge of waste heat from enclosures and supports ventilation to protect temperature-sensitive components. The function is achieved by direct intake of ambient air, which must have a temperature below the permissible enclosure internal temperature. The device is made of plastic and is available in the colour RAL 9005 (black). Dimensions are 116.5 mm width, 116.5 mm height, and 33.2 mm depth. The mounting cutout requires a 92 mm width and 92 mm height opening in the enclosure.

Applications

The outlet filter is designed for use in industrial enclosures where continuous ventilation and cooling are required. It is used in combination with filter fans of the SK 3237.7xx series to regulate internal enclosure temperature. Applications include environments requiring a certain degree of protection against dust and splashing water, such as production plants, automation technology, or process industries.

Functions and Equipment in Detail

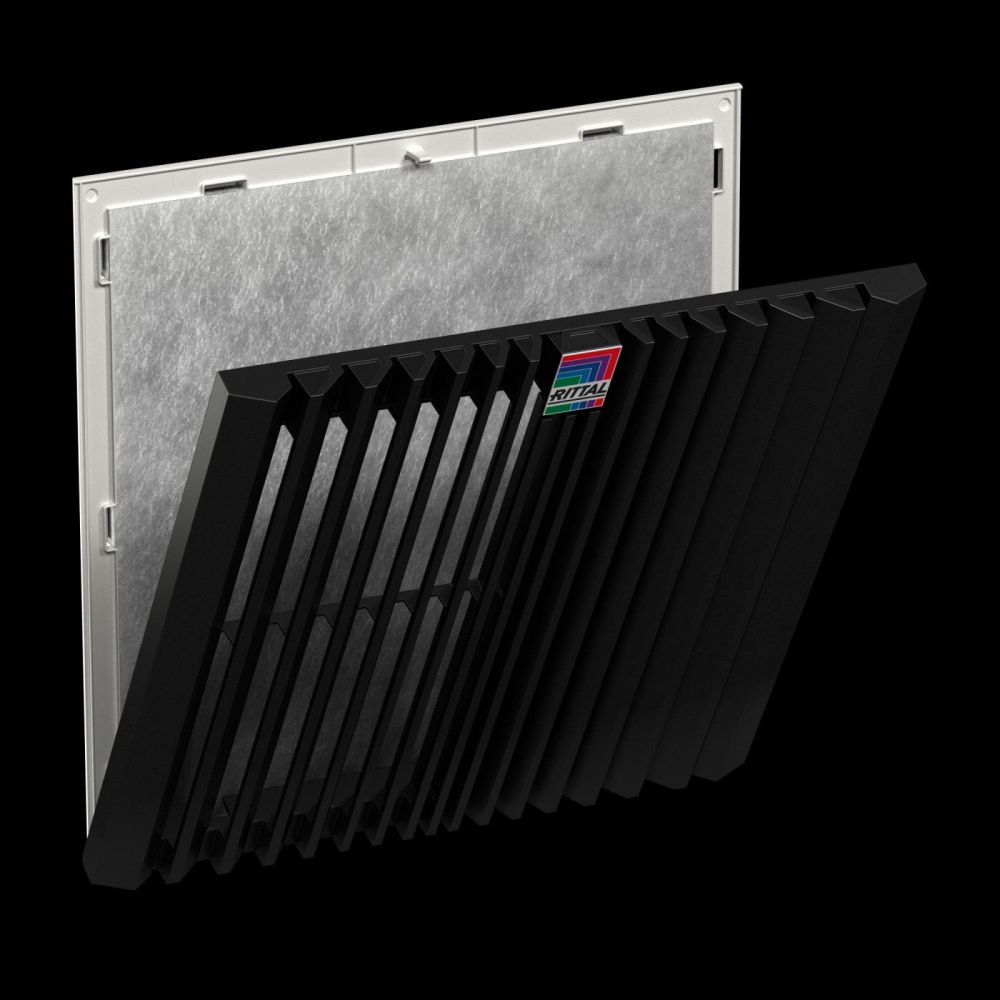

A key advantage of the SK 3237.308 is the easy filter replacement enabled by a new opening mechanism on the louver grille. This allows for quick and simple maintenance without tools. Mounting to the enclosure is tool-free and accelerated by optimised snap hooks. The delivery includes the outlet filter and a non-woven filter mat serving as the filter medium to ensure clean air intake.

Technology Explained Simply

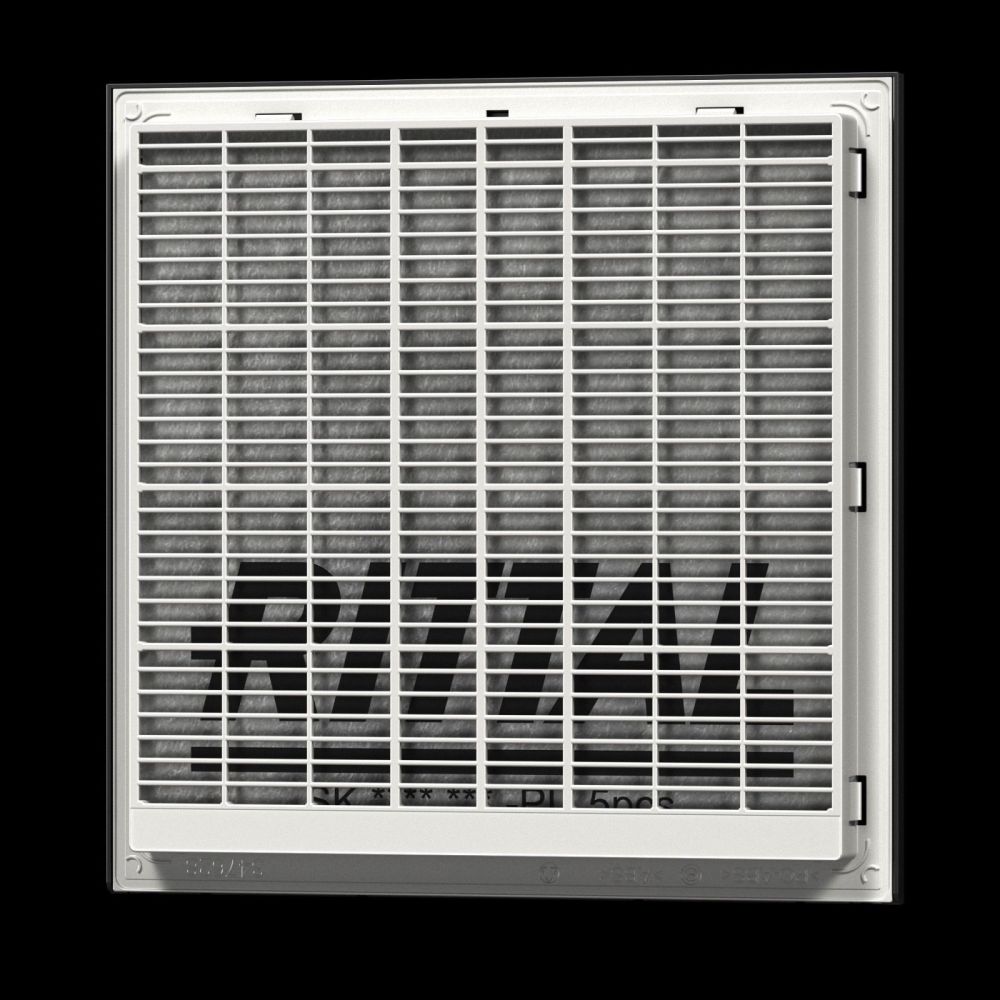

The filter operates in conjunction with a filter fan, which draws air through the enclosure. The outlet filter ensures that the exhausted air does not escape uncontrollably, but is discharged through a structured louver grille. The non-woven filter mat retains fine particles and prevents dirt from entering the enclosure. Protection class IP 54 is achieved when the filter is operated with the non-woven filter mat. According to NEMA standards, the device achieves Type 12 with non-woven filter, and Type 3, 3R with non-woven filter and spray hood.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans of the SK 3237.7xx series. Available accessories include a spray hood for SK 3237.xxx stainless steel and a SK blanking cover for mounting cutout SK 3237.7xx/32. The spray hood increases the protection class and protects the filter against splashing water. The blanking cover is used to seal unused mounting cutouts.

Mounting and Installation

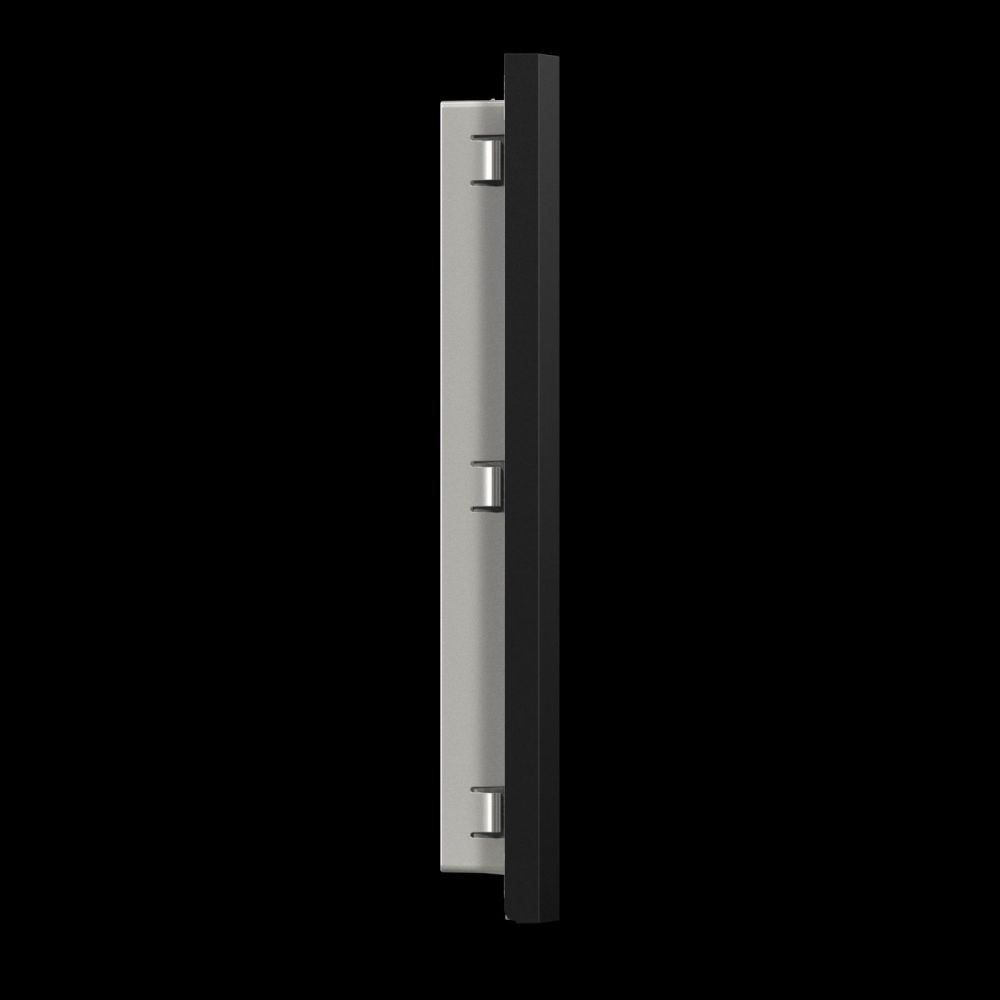

Installation is tool-free at the designated location in the enclosure. The required mounting cutout measures 92 mm in width and height. Optimised snap hooks enable quick and secure fastening. Installation is carried out in combination with the matching filter fan SK 3237.7xx, directing airflow through the enclosure.

Advantages in Operation

The SK 3237.308 provides a reliable and maintenance-friendly solution for enclosure climate control. Tool-free mounting and easy filter replacement reduce maintenance time. The integrated non-woven filter mat ensures effective particle separation. Protection classes IP 54 and IP 54 (with spray hood) allow use in various environmental conditions. Combination with filter fans from the SK 3237.7xx series ensures efficient cooling and ventilation of the enclosure.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryexhaust filter, non-woven filter mat
Mounting cutoutCutout width: 92 mm, cutout height: 92 mm
Suitable for part no.SK 3237.7xx
Width116,5 mm
Height116,5 mm
Depth33,2 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3237308, EAN: 4028177998421

Questions & answers

What is the delivery time of Rittal 3237308 Blue e+ outlet filter, RAL 9005?

The article Rittal 3237308 Blue e+ outlet filter, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237308 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237308 Blue e+ outlet filter, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3237308 Blue e+ outlet filter, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
