Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005

Your rating:
Average rating
product review for Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005
( 4 / 5 ) 2 ratings
Rittal 3237208
This image may differ from the desired article.
Rittal 3237208Rittal 3237208Rittal 3237208Rittal 3237208
-9% 21,51 EUR 23,74 EUR
( 25,60 EUR incl. VAT )
≈ £18.00  |  ≈ $23.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005
Datasheet:file_download Download
Lieske Part No.:1884587
Mfg Part No: 3237208
UPC/EAN: 4028177663435
Weight:0.14 kg
Type:SK 3237208

Product information for Rittal 3237208:

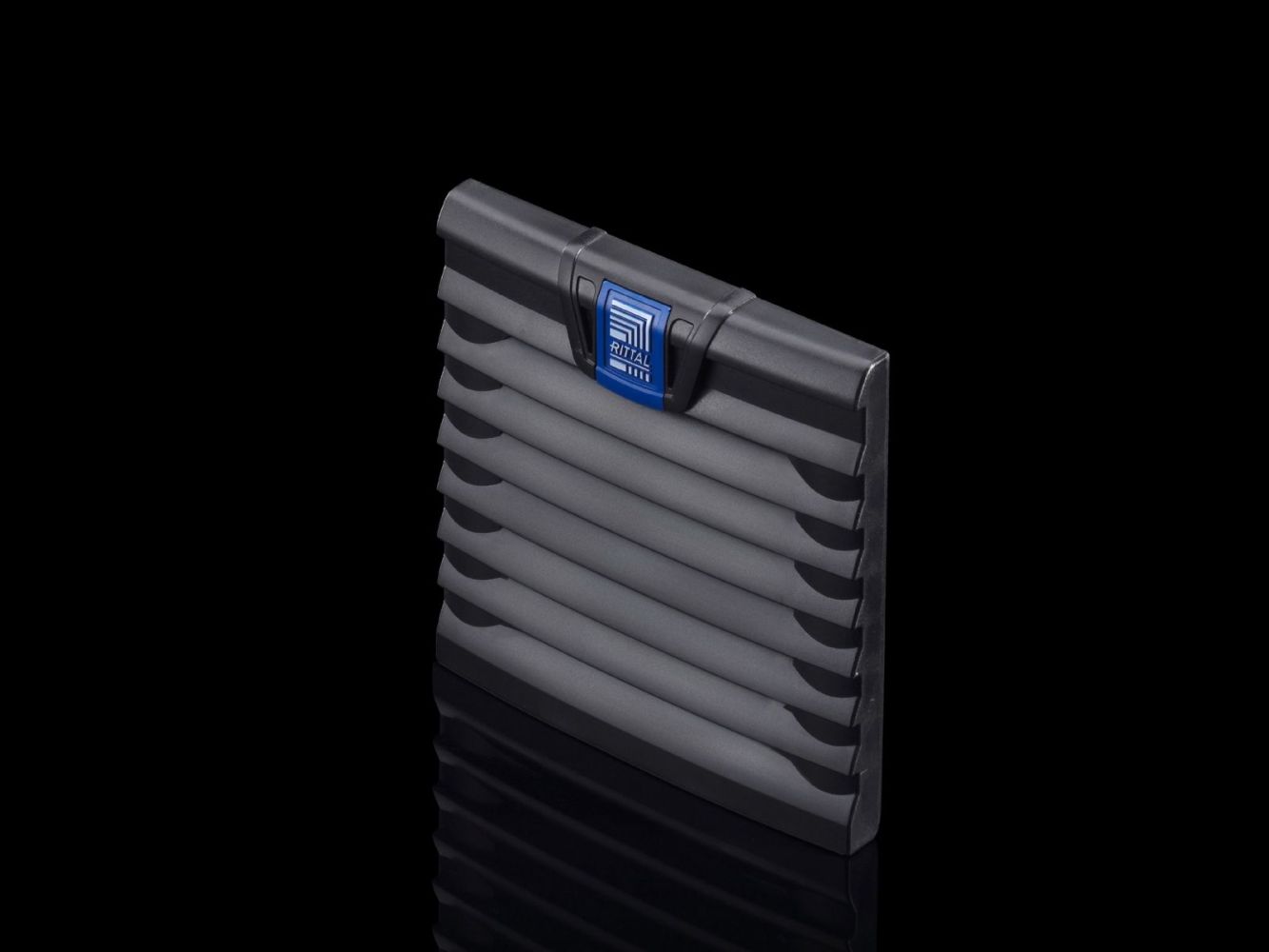

The Rittal SK 3237208 is an outlet filter for enclosures, used for ventilation by convection. It serves as an air outlet in the upper or lower section of the enclosure and enables orderly air circulation, thereby regulating the internal temperature within the enclosure. The device is made of ABS and is available in the colour RAL 9005 (black). Dimensions are 116.5 mm (width) × 116.5 mm (height) × 16 mm (depth), with the mounting cutout requiring a clearance of 92 mm (width) × 92 mm (height). The filter is specifically designed for the enclosure series SK 3237.1xx.

Applications

The outlet filter is used in industrial installations where passive ventilation by natural convection is sufficient to ensure heat dissipation within the enclosure. It is suitable for applications where no additional fan system is required, for example in machine controls, distribution boxes, or installations with low heat generation. Its use in the upper or lower section of the enclosure enables optimal airflow, with positioning adjustable according to heat sources inside.

Functions and Equipment in Detail

The product is supplied with an outlet filter and a nonwoven filter mat. The nonwoven filter mat provides mechanical separation of dust and particles from the air, protecting the internal components of the enclosure from contamination. The filter mat is easily replaceable, enabling maintenance with minimal effort. The choice of ABS material ensures high mechanical stability and resistance to environmental influences such as humidity and temperature fluctuations.

Technology Explained Simply

Convection ventilation works through the natural upward movement of warm air. The outlet filter allows warm air to be expelled from the enclosure without requiring a fan. The integrated nonwoven filter mat filters fine particles from the air, extending the service life of electrical components inside. The protection rating IP 54 (with nonwoven filter) and IP 54 (with nonwoven filter and spray water hood) ensures high protection against dust and splashing water, enabling use in industrial environments with demanding environmental conditions. The protection rating NEMA Type 12 (with nonwoven filter), Type 3 and Type 3R (with nonwoven filter and spray water hood) complies with international standards for use in indoor and outdoor environments with humid or dusty conditions.

Compatibility and Accessories

The outlet filter is specifically developed for the enclosure series SK 3237.1xx and fits precisely into the designated mounting openings. As a compatible accessory, the Blue e+ outlet filter, RAL 9005 is offered, representing an alternative version.

Mounting and Installation

Installation is carried out by inserting the unit into the designated mounting cutout with dimensions 92 mm (width) × 92 mm (height). No additional tools or mounting accessories are required, as the filter is directly inserted into the pre-defined opening. Positioning in the upper or lower section of the enclosure is determined according to the required airflow.

Operational Advantages

Using the outlet filter enables a cost-efficient and low-maintenance ventilation solution. Passive convection ventilation reduces energy consumption, as no electric fans need to be operated. The integrated nonwoven filter mat ensures continuous air purification, increasing the reliability of electrical components installed in the enclosure. The high protection ratings IP 54 to IP 54 and NEMA classification Type 12, Type 3, and Type 3R make the filter suitable for a wide range of industrial operating conditions.

General
MaterialABS
ColourRAL 9005
Scope of deliveryexhaust filter, non-woven filter mat
Mounting cutoutCutout width: 92 mm, cutout height: 92 mm
Suitable for part no.SK 3237.1xx
Width116,5 mm
Height116,5 mm
Depth16 mm
NEMA degree of protectionType 12 with felt filter, Type 3, Type 3R with felt filter and spray hood
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3237208, EAN: 4028177663435

Questions & answers

What is the delivery time of Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005?

The article Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237208 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3237208 Outlet filter for SK 3237.1x8 RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
