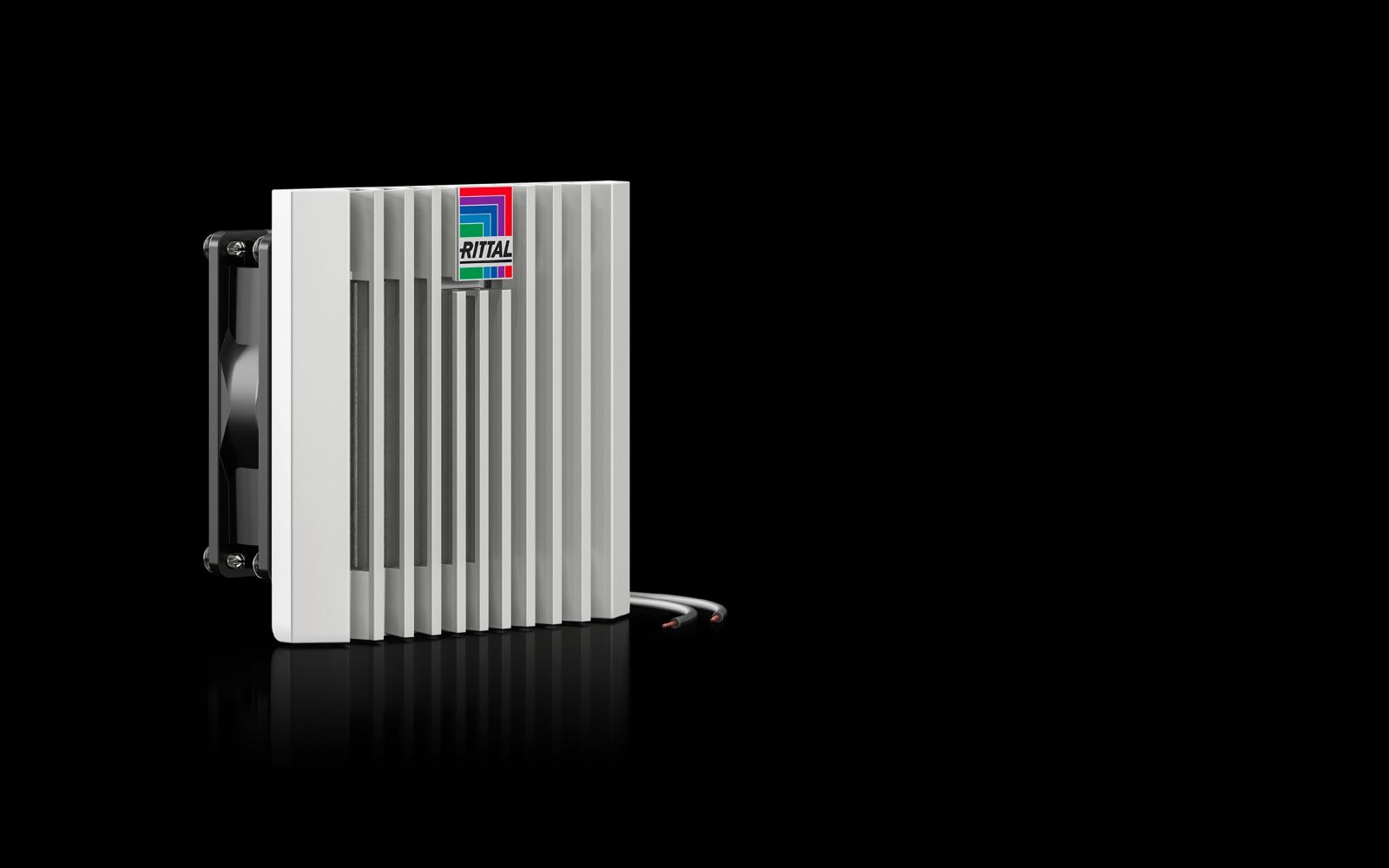

Rittal 3237700 Blue e+ filter fan 20/25 m³/h, 230 V, RAL 7035
|
58,39 EUR |
|
|
( 69,48 EUR incl. VAT ) ≈ £48.87 | ≈ $64.17 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683777 |
| Mfg Part No: | 3237700 |
| UPC/EAN: | 4028177997776 |
| Weight: | 0.464 kg |
| Type: | SK 3237.700 |
Product information for Rittal 3237700:
Applications
The filter fan is suitable for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suited for installations operated in rooms with high dust loads, as the integrated non-woven filter reduces contamination of internal components. The unit is designed for operation in an ambient temperature range of -15 °C to 55 °C, with storage up to 70 °C possible. The protection rating IP 54 (with non-woven filter) provides protection against dust and splashing water, making the fan suitable for use in slightly damp or dusty environments. With an additional spray water hood, the protection rating increases to IP 56, making it suitable for environments with increased moisture exposure. According to NEMA standards, the unit corresponds to Type 12 (with non-woven filter) and Type 3, 3R (with non-woven filter and spray water hood).
Functions and Equipment in Detail
The fan features diagonal fan technology, providing higher pressure stability and thus ensuring more uniform and consistent air circulation within the enclosure. The diagonal exhaust direction improves heat dissipation and prevents local overheating. The integrated axial fan with split-pole motor ensures efficient air movement. Air performance is 20 m³/h at 50 Hz and 25 m³/h at 60 Hz in free-blowing operation with non-woven filter. When using an additional outlet filter, air performance reduces to 15 m³/h (50 Hz) or 18 m³/h (60 Hz). The rated power is 13 W (50 Hz) or 11.1 W (60 Hz), and the rated current is up to 0.1 A (50 Hz) or 0.09 A (60 Hz). The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz. The fuse is rated at 2 A to protect the fan against overloads.
Technology Explained Simply
The diagonal fan technology enables more even air distribution within the enclosure, as air is discharged diagonally rather than vertically. This reduces pressure losses and ensures a constant air volume, even under increased resistance within the enclosure. The non-woven filter mat filters fine particles from the incoming air, extending the service life of electronic components inside the enclosure. The sound pressure level is 42 dB(A) at 50 Hz and 47 dB(A) at 60 Hz, ensuring quiet operation. The installation depth is 46 mm, allowing the fan to be installed in enclosures with limited space behind the front panel. The mounting cutout measures 92 mm (width) × 92 mm (height), enabling integration into standard enclosure front panels.
Compatibility and Accessories
The fan can be combined with various accessories to extend functionality and protection class. These include an outlet filter in RAL 7035, which reduces air performance but enhances filtration. A spray water hood for SK 3237.xxx increases the protection rating to IP 54. For precise temperature control, a thermostat or digital temperature display and control can be used. A speed controller allows adjustment of air performance according to operating conditions. If the fan is not installed, a blanking plate can be used to cover the mounting cutout. A hygrostat can be used for humidity control within the enclosure.
Mounting and Installation
Mounting is tool-free via snap hooks, enabling quick and secure attachment to the enclosure. The unit is inserted into a pre-cut mounting opening of 92 mm × 92 mm. Electrical connection is made via two individual conductors, each approximately 300 mm in length, connected directly to the device. This distinguishes the fan 3237.XXX from other models, which use a spring-loaded clamp connection.
Operational Advantages
The fan provides a reliable and low-maintenance ventilation solution. Tool-free mounting and easy filter replacement via a new opening mechanism on the louver grille reduce maintenance time. The diagonal fan technology ensures even air distribution, improving cooling performance within the enclosure. The integrated non-woven filter mat protects internal components from contamination, increasing operational reliability. The unit is designed for use in industrial installations where continuous and stable air circulation is required.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including felt filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 20 m³/h, At 60 Hz: 25 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 15 m³/h, at 60 Hz: 18 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 13 W, At 60 Hz: 11.1 W |
| Rated current max. | At 50 Hz: 0.1 A, At 60 Hz: 0.09 A |
| Width | 116,5 mm |
| Height | 116,5 mm |
| Depth | 64,5 mm |
| Built-in depth | 46 mm |
| Mounting cutout | Cutout width: 92 mm, cutout height: 92 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R with felt filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 42 dB(A), At 60 Hz: 47 dB(A) |
