Rittal 3237300 Blue e+ outlet filter, RAL 7035

Your rating:
Average rating
product review for Rittal 3237300 Blue e+ outlet filter, RAL 7035
( 5 / 5 ) 2 ratings
Rittal 3237300
This image may differ from the desired article.
Rittal 3237300Rittal 3237300Rittal 3237300Rittal 3237300Rittal 3237300Rittal 3237300Rittal 3237300Rittal 3237300
17,93 EUR
( 21,34 EUR incl. VAT )
≈ £15.01  |  ≈ $19.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3237300 Blue e+ outlet filter, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683770
Mfg Part No: 3237300
UPC/EAN: 4028177998438
Weight:0.155 kg
Type:SK 3237.300

Product information for Rittal 3237300:

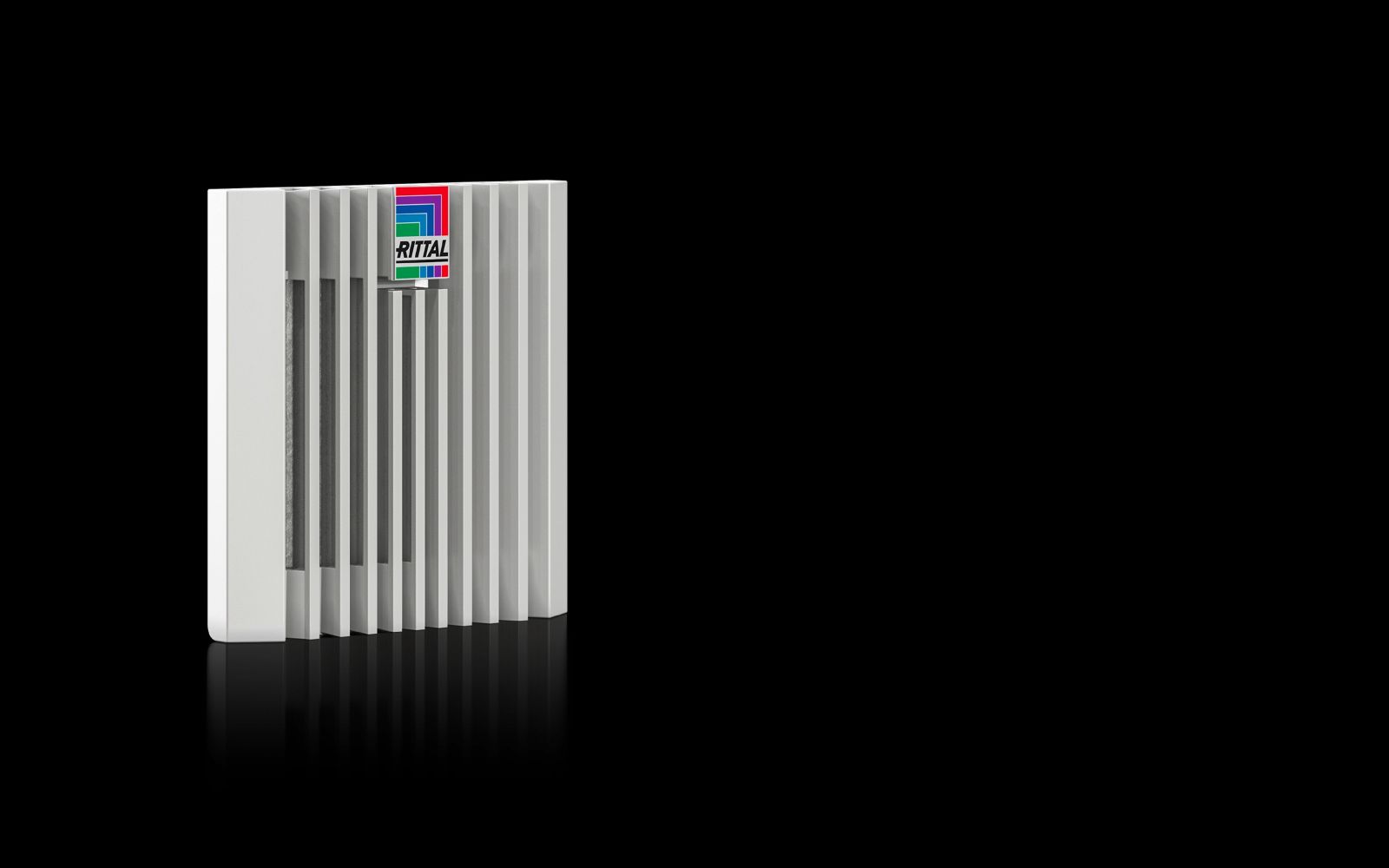

The Rittal SK 3237.300 is an outlet filter for filter fans of the SK 3237.7xx series, designed as a wall-mounted installation and intended for climate control of enclosures. It serves to dissipate waste heat, ventilate the interior of the enclosure, and protect temperature-sensitive components by directly supplying ambient air, the temperature of which must be below the permissible enclosure internal temperature. The device is made of plastic and is finished in RAL 7035, enabling visual harmonization with other enclosure components.

Applications

The outlet filter is used in industrial plants where controlled ventilation and cooling of enclosures are required. It is specifically designed for use with filter fans of the SK 3237.7xx series, which are installed in enclosures for heat dissipation and air purification. The application is in environments requiring a certain degree of protection against dust and splashing water, for example in production halls, manufacturing technology, or plants with increased contamination risk.

Functions and Equipment in Detail

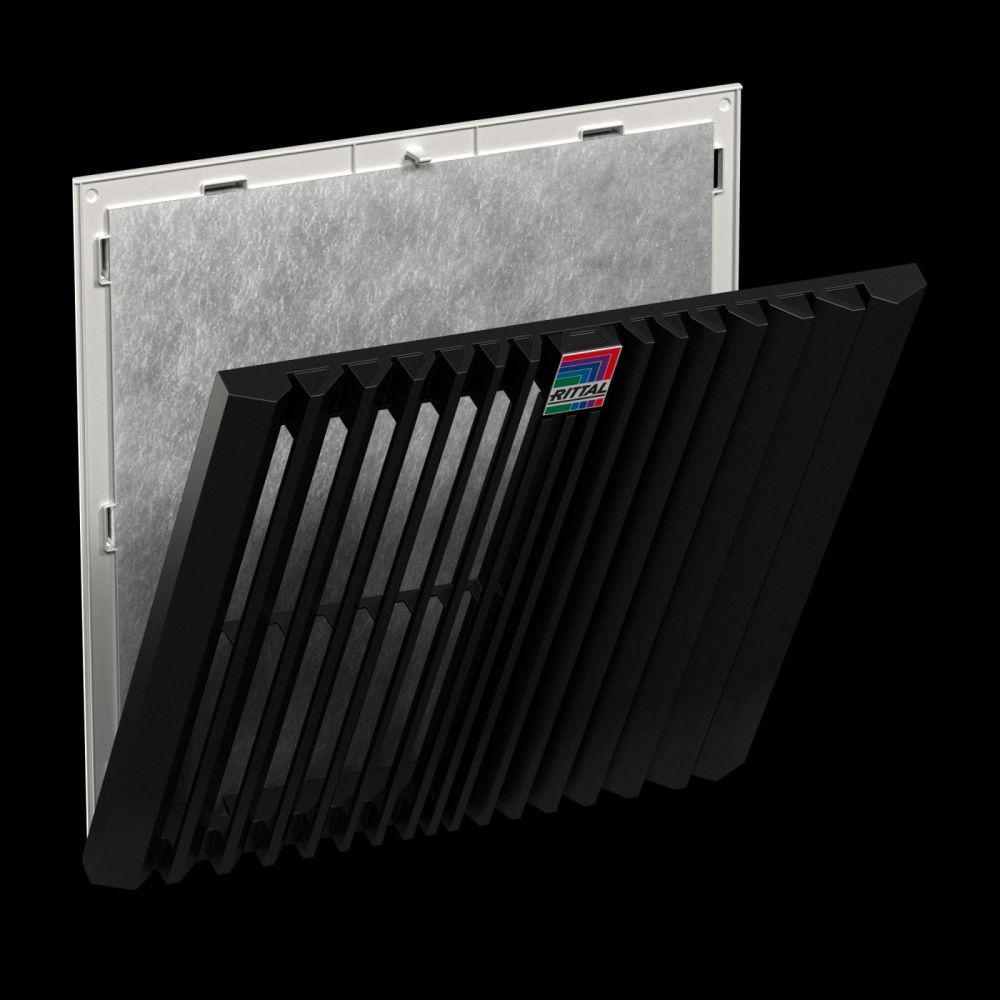

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Installation on the enclosure is achieved via optimized snap hooks, enabling faster and tool-free mounting. The delivery includes the outlet filter and a non-woven filter mat, which serves as the filter medium. The non-woven filter mat is designed for the separation of fine particles from ambient air and contributes to air purification within the enclosure.

Technology Explained Simply

The outlet filter has external dimensions of 116.5 mm width and 116.5 mm height, with a depth of 33.2 mm. The mounting cutout in the enclosure requires a break-out of 92 mm width and 92 mm height. The construction is designed to allow tool-free mounting on the enclosure wall. The non-woven filter mat ensures efficient particle separation, improving air quality within the enclosure. The filter mat is easily replaceable, simplifying maintenance.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans of the SK 3237.7xx series. Additional accessories are available, including a spray water hood for enhanced protection against splashing water, a blanking cover for unused mounting cutouts, and additional non-woven filter mats. The spray water hood can be used in combination with the outlet filter and the non-woven filter to increase the protection rating. The blanking cover is used to seal unused mounting openings.

Mounting and Installation

Mounting is tool-free on the enclosure wall. The optimized snap hooks enable quick and secure fastening. The mounting cutout in the enclosure must have dimensions of 92 mm width and 92 mm height. Installation is carried out in conjunction with a filter fan of the SK 3237.7xx series, with the outlet filter enabling air exhaust from the enclosure.

Operational Advantages

The outlet filter offers simple and quick mounting, as well as easy filter replacement via the new opening mechanism on the louver grille. Tool-free mounting reduces installation time and labor effort. The use of the non-woven filter mat ensures continuous air purification, which can extend the service life of electronic components within the enclosure. The protection rating IP 54 with non-woven filter and IP 54 with non-woven filter and spray water hood provides sufficient protection against dust and splashing water, enabling use in various industrial environments. The protection rating NEMA Type 12 with non-woven filter, as well as Type 3 and 3R with non-woven filter and spray water hood, complies with international standards for use in industrial plants.

Protection Rating and Environmental Conditions

The outlet filter achieves protection rating IP 54 when operated with the non-woven filter mat, and IP 54 when additionally equipped with a spray water hood. The IP protection rating according to IEC 60 529 ensures protection against dust and splashing water. The NEMA protection ratings Type 12, Type 3, and Type 3R with non-woven filter and spray water hood are suitable for use in industrial environments where protection against dust, splashing water, and light rain is required. The combination of non-woven filter and spray water hood increases the protection class and expands the application range of the filter in humid or contaminated environments.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryexhaust filter, non-woven filter mat
Mounting cutoutCutout width: 92 mm, cutout height: 92 mm
Suitable for part no.SK 3237.7xx
Width116,5 mm
Height116,5 mm
Depth33,2 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3237300, EAN: 4028177998438

Questions & answers

What is the delivery time of Rittal 3237300 Blue e+ outlet filter, RAL 7035?

The article Rittal 3237300 Blue e+ outlet filter, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237300 Blue e+ outlet filter, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3237300 Blue e+ outlet filter, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
