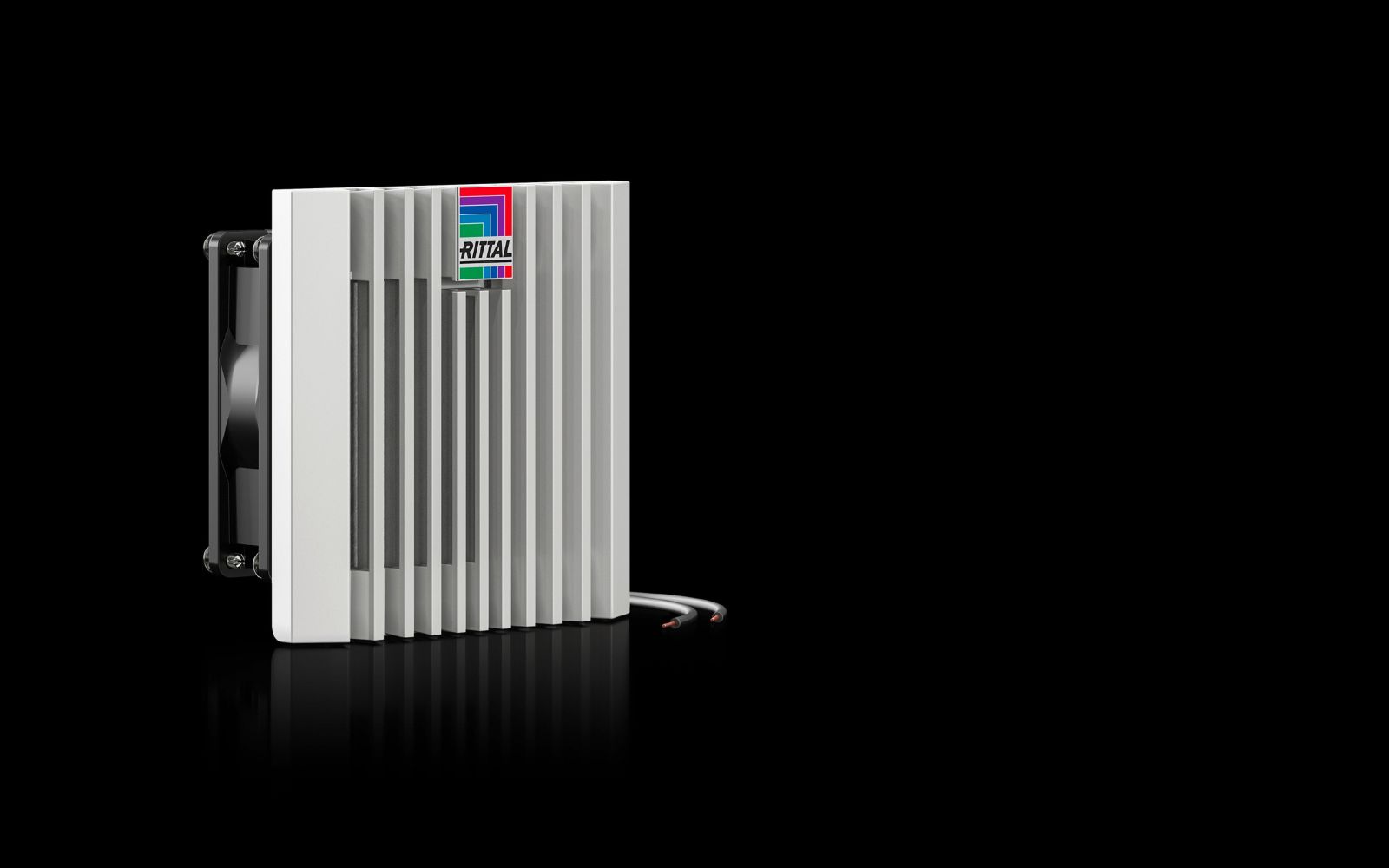

Rittal 3237724 Blue e+ filter fan 20 m³/h, 24 V DC, RAL 7035

Your rating:
Average rating
product review for Rittal 3237724 Blue e+ filter fan 20 m³/h, 24 V DC, RAL 7035
( 4.4 / 5 ) 5 ratings
Rittal 3237724
This image may differ from the desired article.
Rittal 3237724Rittal 3237724Rittal 3237724Rittal 3237724Rittal 3237724
65,38 EUR 65,48 EUR
( 77,80 EUR incl. VAT )
≈ £54.72  |  ≈ $71.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3237724 Blue e+ filter fan 20 m³/h, 24 V DC, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683783
Mfg Part No: 3237724
UPC/EAN: 4028177998278
Weight:0.292 kg
Type:SK 3237.724

Product information for Rittal 3237724:

The Rittal SK 3237.724 is a filter fan for enclosure climate control, designed as a wall-mounted unit. It serves for controlled ventilation of enclosures to regulate internal temperature and support cooling of electronic components. The device is made of plastic and available in the colour RAL 7035. It features diagonal fan technology, ensuring higher pressure stability and more consistent airflow. The diagonal exhaust direction provides more even cooling of the enclosure. The unit is fully ready for installation and includes a non-woven filter mat. Electrical connection is made via two individual wires with a length of approximately 300 mm at the device.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for systems where temperature control is critical for the functionality of electronic components. The protection rating IP 54 (with non-woven filter) and IP 56 (with non-woven filter and spray water hood) allow use in environments with dust and splashing water. The corresponding NEMA protection ratings Type 12 (with non-woven filter) and Type 3, 3R (with non-woven filter and spray water hood) extend the range of applications in industrial systems with higher environmental requirements.

Functions and Equipment in Detail

The fan operates with an axial fan and a DC motor. The airflow rate is 20 m³/h free blowing (with non-woven filter) and 15 m³/h when used with a matching outlet filter including non-woven filter. The rated operating voltage is 24 V (DC), the rated power is 1.4 W, and the maximum rated current is 0.06 A. The operating temperature range is from -15 °C to 55 °C, while the storage temperature range is from -30 °C to 70 °C. The sound pressure level is 42 dB(A), indicating low operating noise. The installation depth is 46 mm, and the mounting cutout has a cutout width and height of 92 mm each.

Technology Explained Simply

The diagonal fan technology ensures more uniform and consistent airflow within the enclosure due to higher pressure stability. The air exits diagonally, enabling better air distribution inside the enclosure and thus more efficient cooling of electronic components. Tool-free installation is achieved via optimised snap hooks, allowing faster and easier mounting on the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille.

Compatibility and Accessories

Various accessories are available for this filter fan to extend its functionality. These include a Blue e+ outlet filter in RAL 7035, a thermostat for internal temperature control, a digital temperature display and control for 100–230 V, a spray water hood made of stainless steel, a blanking cover for the mounting cutout, and a non-woven filter mat specifically for the filter fan series SK 3237.7xx/32. A hygrostat can also be combined to monitor humidity levels inside the enclosure.

Installation and Mounting

Installation is tool-free on the enclosure wall. The unit is inserted into the designated mounting cutout (92 mm x 92 mm) and secured using snap hooks. The installation depth of 46 mm must be considered in the enclosure. Electrical connection is made via the two individual wires on the device. A fuse with a rated current of 2 A is required.

Operational Advantages

The filter fan provides reliable and quiet ventilation with low energy consumption. The integrated non-woven filter mat ensures effective particle filtration, reducing contamination of electronic components inside the enclosure. Tool-free installation and easy filter replacement enhance serviceability. The high pressure stability of the diagonal fan technology ensures consistent airflow, even under demanding conditions.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including felt filter mat
FanAxial, DC motor
Airflow free-blowing (with filter)For DC: 20 m³/h
Airflow with associated exhaust filter including felt filterFor DC: 15 m³/h
Rated operating voltage24 V (DC)
Rated power PelAt DC: 1.4 W
Rated current max.At DC: 0.06 A
Width116,5 mm
Height116,5 mm
Depth64,5 mm
Built-in depth46 mm
Mounting cutoutCutout width: 92 mm, cutout height: 92 mm
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt DC: 42 dB(A)


Product data sheet
Datasheet for Rittal 3237724, EAN: 4028177998278
