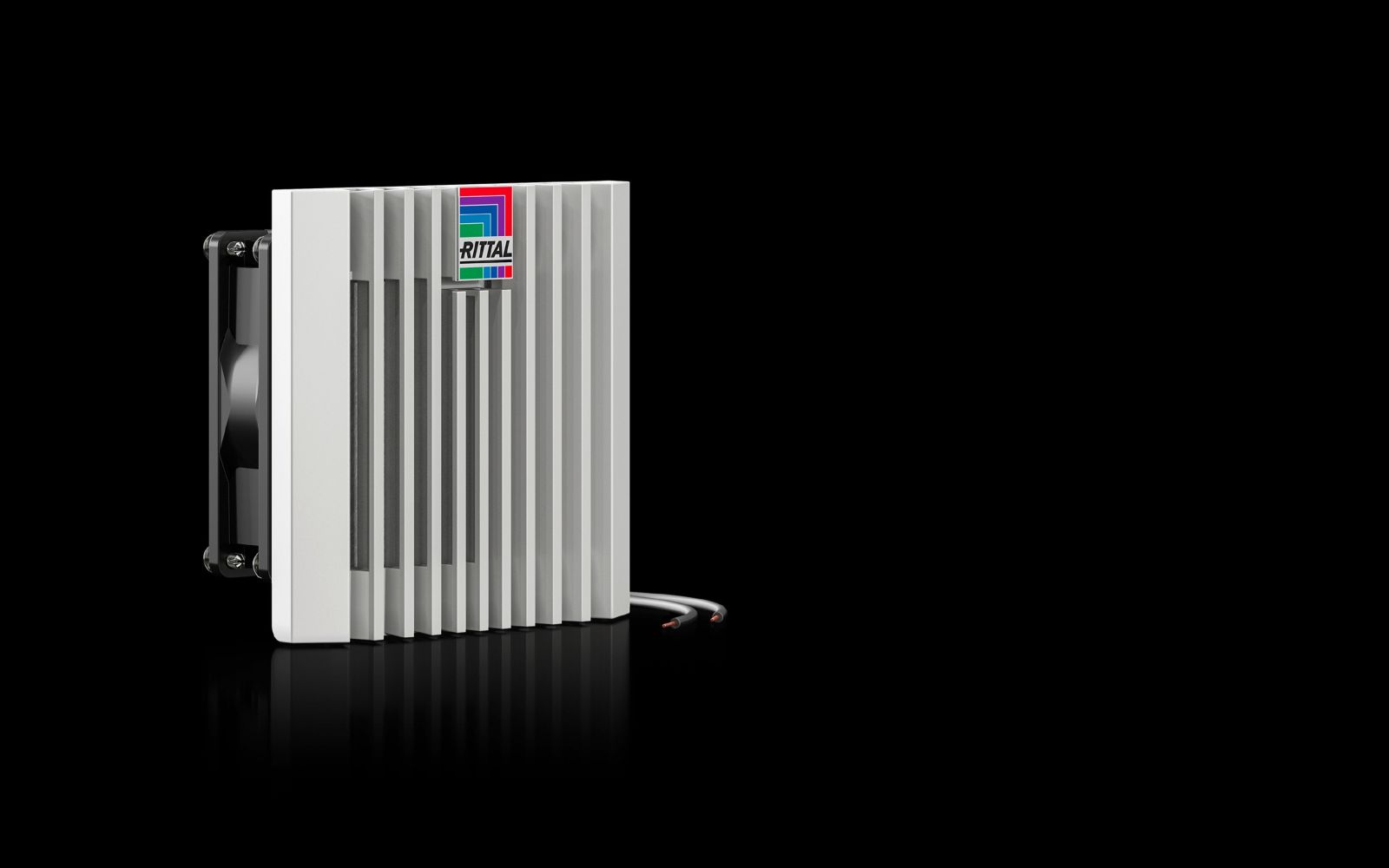

Rittal 3237710 Blue e+ filter fan 20/25 m³/h, 115 V, RAL 7035
|
58,42 EUR |
|
|
( 69,52 EUR incl. VAT ) ≈ £48.90 | ≈ $64.20 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683781 |
| Mfg Part No: | 3237710 |
| UPC/EAN: | 4028177998292 |
| Weight: | 0.466 kg |
| Type: | SK 3237.710 |
Product information for Rittal 3237710:
Applications
The filter fan is intended for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations operated in rooms with moderate dust and humidity levels. The integrated non-woven filter mat ensures that particles from ambient air are retained, maintaining the cleanliness of the enclosure interior. The protection rating IP 54 (with non-woven filter) provides protection against dust and splashing water, while combining it with a spray water hood increases the protection rating to IP 56. According to NEMA standards, the device corresponds to Type 12 (with non-woven filter) and Type 3, 3R (with non-woven filter and spray water hood), confirming its suitability for industrial applications under various environmental conditions.
Functions and equipment in detail
The fan features diagonal fan technology, which provides higher pressure stability and thus ensures more consistent airflow. The diagonal discharge direction enables more even cooling of the enclosure. The airflow rate is free blowing (with non-woven filter) 20 m³/h at 50 Hz and 25 m³/h at 60 Hz. When using an additional outlet filter, the airflow rate reduces to 15 m³/h at 50 Hz and 18 m³/h at 60 Hz. The rated power is 12 W at 50 Hz and 10 W at 60 Hz, with a rated current of up to 0.14 A at 50 Hz and 0.13 A at 60 Hz. The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz. The fuse is rated at 2 A. Electrical connection is made via two individual conductors, each approximately 300 mm long, attached to the device.
Technology explained simply
The fan is an axial fan with a split-pole motor, designed for efficient air movement in compact enclosures. The diagonal fan technology ensures that air flows diagonally out of the device rather than vertically, enabling more even distribution within the enclosure. The non-woven filter mat is included in the delivery scope and can be easily replaced thanks to a new opening mechanism on the louver grille. Tool-free mounting is achieved via optimised snap hooks, allowing quick and secure attachment to the enclosure.
Compatibility and accessories
The filter fan can be combined with various accessories to extend its functionality. These include a Blue e+ outlet filter in RAL 7035, which reduces airflow but increases filtration performance. A spray water hood for SK 3237.xxx stainless steel can be used to increase the protection rating to IP 54. Other compatible components include a thermostat for internal temperature control, a speed controller for filter fans and air/air heat exchangers, a digital temperature display and control for 100–230 V, and a hygrostat for humidity control. A blanking cover is also available to close mounting cutouts.
Mounting and installation
Mounting is tool-free via integrated snap hooks, which are hooked into the designated mounting openings. The installation depth of 46 mm allows secure mounting in standard enclosures. The mounting opening in the enclosure must have dimensions of 92 mm width and 92 mm height. The device’s ready-to-install feature is supported by the pre-integrated non-woven filter mat and pre-mounted connection wires.
Advantages in operation
The operating temperature range is between -15 °C and 55 °C, enabling use in a wide range of environments. The storage temperature can reach up to 70 °C. The sound pressure level is 42 dB(A) at 50 Hz and 47 dB(A) at 60 Hz, ensuring quiet operation. The combination of tool-free mounting, easy filter replacement, and high pressure stability makes the SK 3237.710 a reliable solution for enclosure climate control in industrial applications.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including felt filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 20 m³/h, At 60 Hz: 25 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 15 m³/h, at 60 Hz: 18 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 12 W, At 60 Hz: 10 W |
| Rated current max. | At 50 Hz: 0.14 A, At 60 Hz: 0.13 A |
| Width | 116,5 mm |
| Height | 116,5 mm |
| Depth | 64,5 mm |
| Built-in depth | 46 mm |
| Mounting cutout | Cutout width: 92 mm, cutout height: 92 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R with felt filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 42 dB(A), At 60 Hz: 47 dB(A) |
