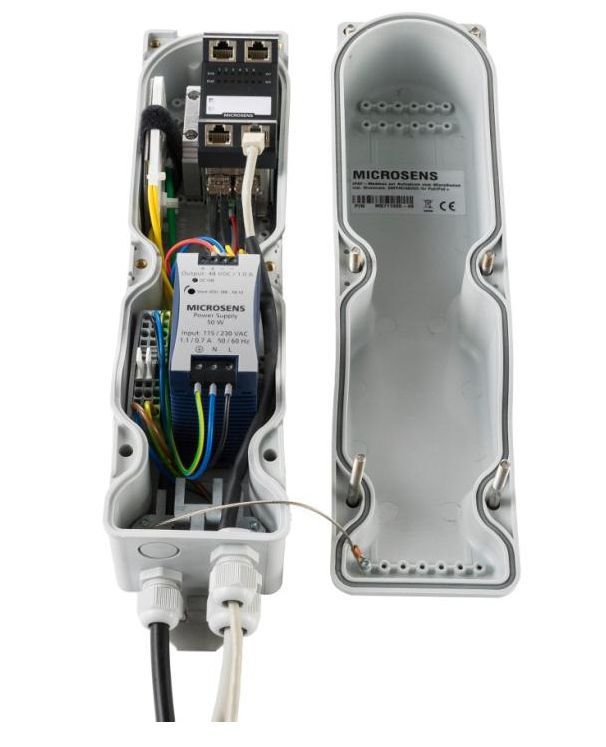

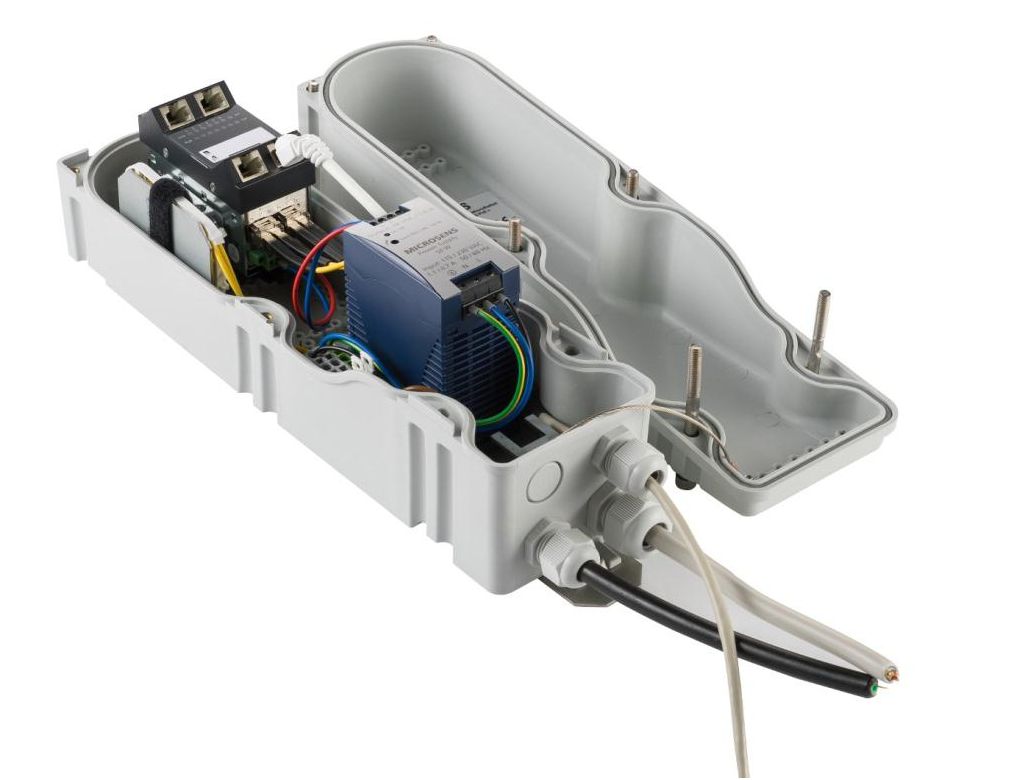

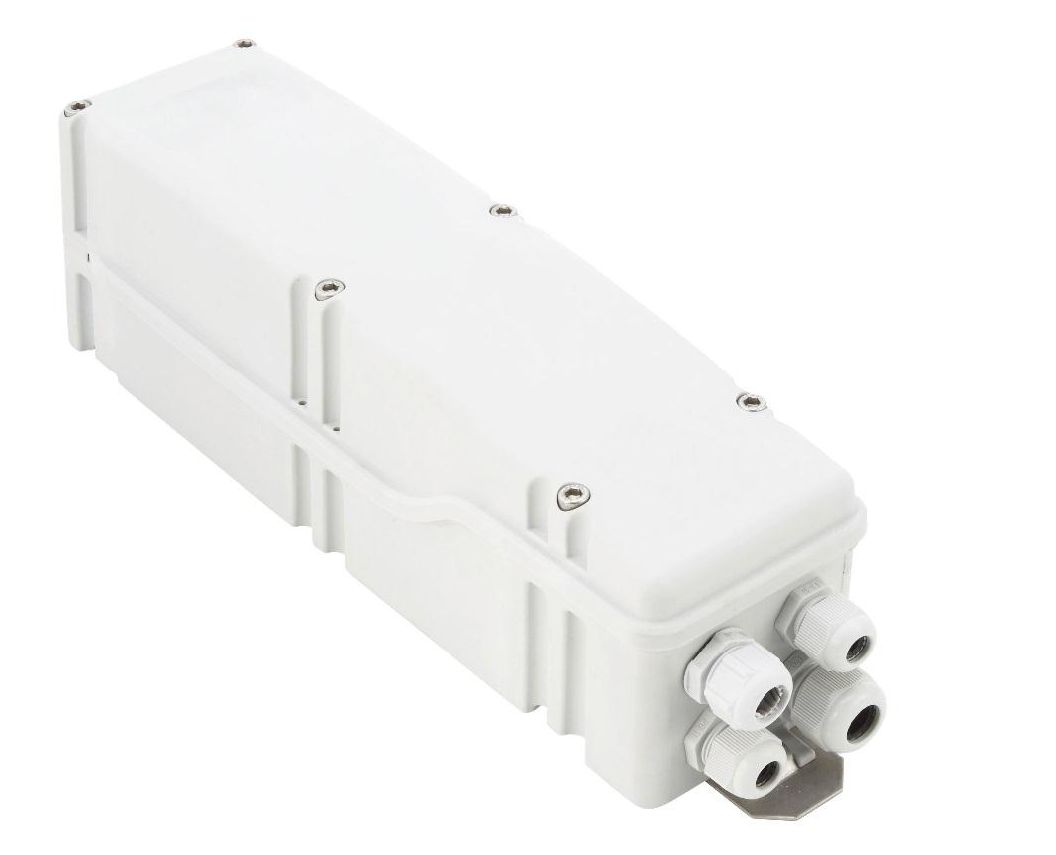

pre-assembled IP67 mast box for outdoor use to accommodate a micro switch with PoE/PoE+ function , 230VAC terminals, incl. 48 VDC power supply, fiber cassette, 1x PG16 + 2x PG11 screw connections, without micro switchThe MICROSENS IP67 Mastbox is a pre-configured enclosure designed for pole mounting, specifically engineered for the integration of the Ruggedized Micro Switch. This compact and robust enclosure is perfect for outdoor use, connecting devices such as WLAN access points, surveillance cameras, weather stations, barrier systems, and other control or monitoring systems to an IP network. With its IP67 rating, the Mastbox provides maximum protection against dust and water, making it ideal for challenging outdoor environments.

The enclosure includes an integrated DIN rail for housing the Ruggedized Micro Switch and features a fiber tray for neat fiber-optic cabling. Power is supplied via 230 VAC, with a variant offering an integrated 48 VDC power supply for PoE applications. The Mastbox comes equipped with multiple PG cable glands, ensuring secure and weatherproof cable entry.

Installation is versatile, supporting pole mounting with hooks, band clamps, or brackets. Its compact design also allows for installation inside pole structures. The Mastbox is delivered pre-configured for quick and easy setup.

Technical details:

Enclosure:

• Type: IP67 Mastbox
• Material: Plastic, UV-resistant
• Color: Grey RAL 7035
• Weight:
- Empty: 1,700 g
- Fully equipped: 2,300 g

• Dimensions: 100 x 410 x 120 mm (W x L x H, without connections)
• Protection class: IP67

Cable entries:

• 2x PG11
• 1x PG16
• 1x PG13 (pre-drilled)

Power supply (only MS711000-230NT48):

• Type: Compact power supply (DIN rail)
• Input: 85–264 V AC, 120–370 V DC, 2-pole terminal block (N/L)
- Input current: 0.8 A
- Frequency: 47–63 Hz
- Inrush current: 60 A @ 230 V AC (full load)

• Output: Adjustable 48–55 V DC, max. 1.25 A, power: 60 W
• Temperature range: -30 °C to +70 °C
• Indicators: DC-On LED (green), Power Good Signal

Mounting:

• Pole mounting using hooks or band clamps
• Wall mounting via rear-mounted metal bracket (also serves as a drilling template)

Key features:

• Fiber tray for fiber-optic connections
• PG cable glands for weatherproof cabling
• Pre-configured for simple and fast deployment

Scope of delivery:

• 1x IP67 Mastbox (pre-configured incl. power supply and fiber tray)
• 3x terminal blocks
• 1x DIN rail (equipped with power supply)
• 1x DIN rail (empty, for Ruggedized Micro Switch)
• 2x PG11, 1x PG16

Ruggedized Micro Switch:

• Not included in delivery (compatible models available separately)

Ordering information:

• MS711000: IP67 Mastbox for outdoor use incl. DIN rail, PG cable glands, mounting bracket
• MS711000-230NT48: IP67 Mastbox with PoE+ functionality incl. fiber tray, 48 VDC power supply, pre-wired
• MS711000-230: IP67 Mastbox incl. fiber tray, pre-wired without PoE+
• Accessories:
- Pole hook (MS711000-PH)
- Cable protection adapter (MS711000-KS)
- Mastbox/Micro Bridge mounting adapter (MS711000-MK)
