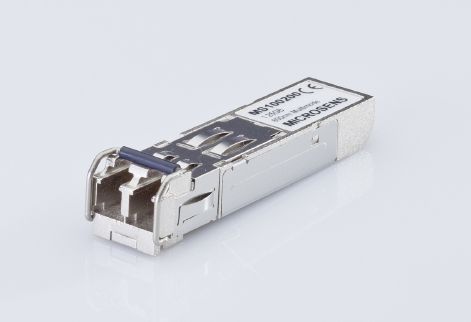

Microsens Mini-GBIC, WDM 1.25GB, SM, simplex/LC, MS100221DXA

The Small Form Factor Pluggable (SFP) is an exchangeable transceiver module used in compatible active devices. Its compact design makes it smaller than all currently available form factors, providing the highest density per line interface. Many modern networking devices are already equipped with slots for modular optical transceivers, offering users maximum flexibility in network configuration. Thanks to its special design, the SFP module can also be replaced during operation (hot-swap) without disrupting network performance.

The SFP module is selected based on the cable medium used (multimode, single mode, simplex, twisted pair) and the required bandwidth. Standards like the Multi Source Agreement (MSA) and the SFF-8472 specification ensure standardized design and optional digital diagnostic functions, extending the functionality of the transceivers.

SFP modules support a maximum bandwidth of up to 1.25 GBit/s and are compatible with Gigabit Ethernet and Gigabit Fibre Channel. Different models are optimized for various ranges, wavelengths, and temperature conditions, including options for extended operating temperatures and long-distance transmission.

Technical Specifications:

• Product Type: SFP (Small Form Factor Pluggable)
• Connector: LC Duplex or LC Simplex (depending on model)
• Interface: Multimode or Singlemode (model-specific)
• Supported Protocols: Gigabit Ethernet, Gigabit Fibre Channel
• Bandwidth: 1063 to 1250 MBit/s
• Transmission Ranges:
- Multimode: Up to 0.55 km
- Singlemode: 10 km to 120 km (depending on model)

• Wavelengths:
- TX (Transmit): 850 nm, 1310 nm, 1550 nm (model-specific)
- RX (Receive): Model-dependent

• Operating Temperature:
- Standard: 0 to +70°C
- Extended: -40 to +85°C (model-specific)

• Digital Diagnostic Monitoring (DDM): Yes (model-specific)
• Power Budget: 8.5 to 32 dB (depending on model)
• Laser Class: Class 1 (safe under normal operation)

Included Items:

• 1x SFP Transceiver Module (model-specific)
• User manual (if applicable)

Safety Information:

• Never look directly into optical outputs – risk of irreversible eye damage from visible and invisible laser light.
• Always cover unused optical connectors with protective caps.
• The transmission line should only be activated after all connections have been fully installed.

Order Information:

• SFP GbE Transceiver 1.25G SX, Multimode 850nm, LC (Part No.: MS100200)
• SFP GbE Transceiver 1.25G SX, Multimode 850nm, DDM, LC (Part No.: MS100200D)
• SFP GbE Transceiver 1.25G SX, Multimode 850nm, DDM, LC, -40..+85°C (Part No.: MS100200DX)
• SFP GbE Transceiver 1.25G LX, SingleMode 1310nm, 10km, LC (Part No.: MS100210)
• Additional models can be found in the order information.
