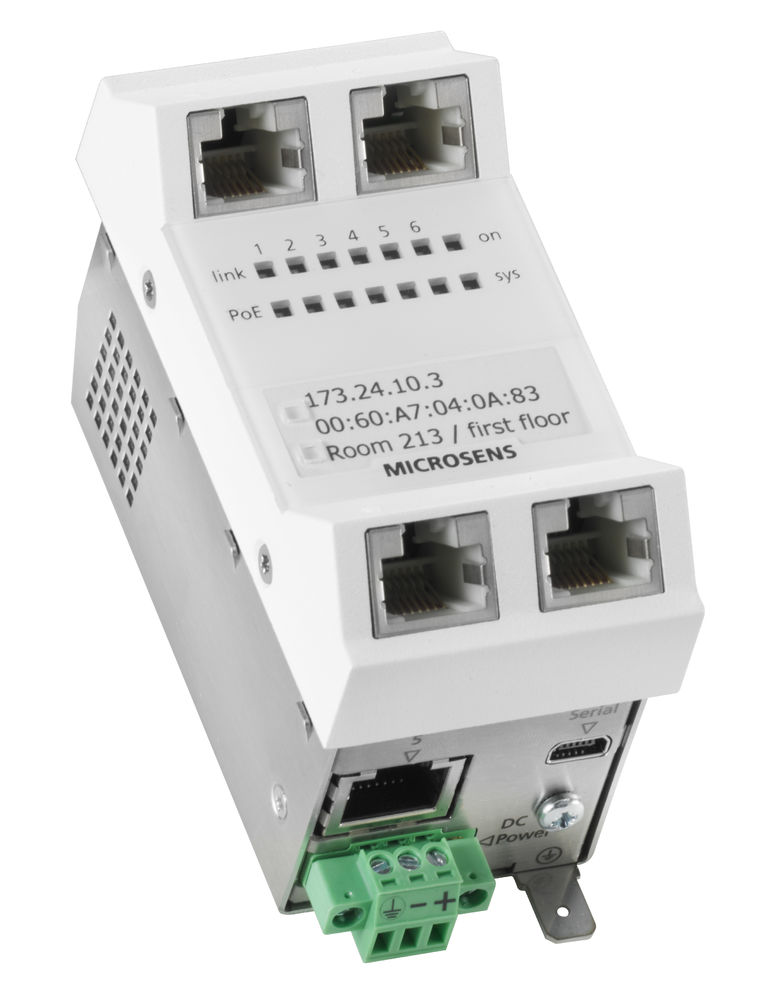

GBE installation switch 4x10/100/1000Base-T + PoE/PoE+, uplink: 1x10/100/1000Base-TX, downlink: 1x10/100/1000Base-TX + PoE+, vertical installation, 44..57 VDC power supply, 6x RJ-45, 1x 3-pin DCThe 6-Port GbE Micro Switch G6 with Twisted Pair Uplink and Downlink connections by MICROSENS is an innovative network solution for structured cabling. Thanks to its compact design and high performance, the switch is ideal for integration into demanding IT environments. Featuring 6 Gigabit Ethernet ports, including one uplink port and optional PoE+ functionality, it offers flexible options for modern network infrastructures.

The PoE+ models allow power supply through the uplink port (PD) and power delivery to connected devices such as IP phones or access points via the 5 additional ports (PSE). Alternatively, a non-PoE variant powered by 230 V AC is also available. The switch supports the energy-efficient IEEE 802.3az standard and operates silently thanks to its fanless design. With easy snap-in mounting and robust construction, the switch can be installed in trunking channels, floor tanks, or surface-mounted housings without hassle.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer-2+), Store-and-Forward

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192, automatic learning and aging
• Jumbo frames: up to 10,240 bytes

Ports:

• Uplink: 1x RJ-45 (1000Base-T), optional with PoE+ PD function
• Local ports: 5x RJ-45 (10/100/1000Base-T), optional with PoE+ PSE function
• Auto MDI/MDI-X for flexible cable use

PoE+ Function (optional):

• IEEE 802.3at (max. 30 W/port)
• Total PoE power: max. 80 W

Network management:

• Linux-based operating system
• Web manager (HTTP/HTTPS), Telnet/SSH
• SNMP v1/v2c/v3, IPv4/IPv6 dual stack
• CLI scripting support and centralized management
• Firmware and configuration updates via FTP/SFTP/TFTP

Power supply:

• PoE variant: 44–57 V DC (typ. 54 V)
• Non-PoE variant: 230 V AC (195–265 V)
• Typical power consumption: 4.5 W (without PoE)

Mounting:

• Snap-in mounting for 45-mm installation systems
• Compatible with trunking channels, floor tanks, and surface-mounted housings

Dimensions & weight:

• Dimensions: 90 x 45 x 58 mm (L x W x H, without connectors)
• Weight: 325 g

Operating conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Reliability:

• MTBF: 100,000 hours (MIL-HDBK-217F)

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Key features:

• Supports up to 2 independent ring topologies
• Optional: microSD memory card for configuration and firmware

Applications:

• Office and industrial networks
• Integration into structured cabling systems
• Powering PoE devices such as cameras and access points

Quality:

• Manufactured in Germany, tested with strict quality controls and burn-in tests

Ordering information:

• MS450186PM-48G6+: PoE+ variant, horizontal form factor, RAL 9010
• MS450187PM-48G6+: PoE+ variant, vertical form factor, RAL 9010
• MS450186M-G6+: 230 V variant, horizontal form factor, RAL 9010
• MS450187M-G6+: 230 V variant, vertical form factor, RAL 9010
