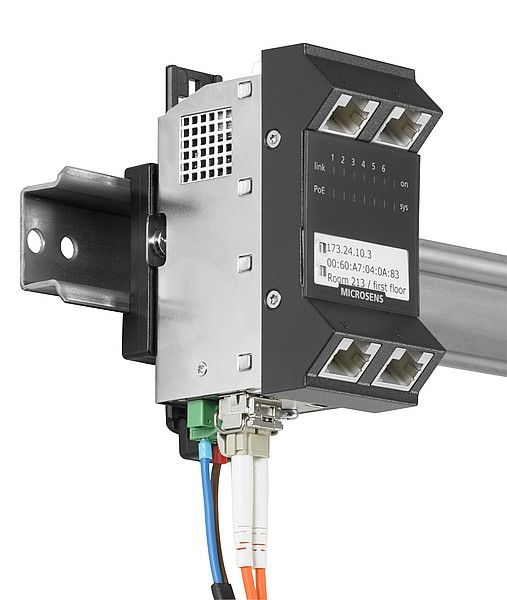

MICROSENS Gigabit Ethernet Ruggedized Micro-Switch, DIN rail, vertical, PoE +, 5xRJ45, 1xSFP, MS440217PMXH-48G6

The 6-Port GbE Ruggedized Micro Switch G6 with PoE+ functionality is a high-performance network solution specifically designed for industrial applications. With an extended operating temperature range from -25°C to +65°C, this switch is ideal for demanding environments. Its robust design and fanless construction ensure maximum reliability and easy integration into existing network systems. The standard 35-mm DIN rail mounting system allows for quick and flexible installation.

The switch is available in multiple variants, including horizontal and vertical designs with various connection options such as fiber or TP uplinks. Variants with two SFP uplinks support ring topologies and are fully compatible with the Profi Line, Profi Line+, and Profi Line Modular industrial switch series. With PoE+ (Power over Ethernet Plus) compliant with IEEE 802.3at, connected devices such as cameras or access points can be powered with up to 30 W per port.

Technical Specifications:

Switch:

• Type: Gigabit Ethernet Switch
• Layer 2+, IEEE 802.3 compliant
• Performance: Store-and-forward, full wire-speed, non-blocking on all ports
• MAC Addresses: 8,192, automatic learning and aging
• Jumbo Frames: max. 10,240 bytes

PoE+ (Power over Ethernet Plus):

• Standard: IEEE 802.3at
• Max Power: 30 W per port, max. 80 W total
• Ports: 4/5x 10/100/1000Base-T (RJ-45)
• External Power Supply: Typical 54 VDC

Connections:

• Uplink (Fiber Variants): 1x/2x 100/1000Base-X SFP slot
• Uplink (TP Variant): 1x 10/100/1000Base-T RJ-45 PD
• Local Ports: 4x/5x 10/100/1000Base-T (RJ-45)
• Expansion Port: RS-232 console port (mini USB or RJ-45)
• Auto MDI/MDI-X and Auto-Negotiation for all RJ-45 ports

Power Supply:

• Input Voltage: 44..57 VDC (typ. 54 V)
• Power Consumption: Typical 4.5 W (without PoE), max. 80 W (with PoE)
• Connector: 3-pin terminal block
• Additional Grounding: 6.3 mm flat connector

Operating Conditions:

• Operating Temperature: -25°C to +65°C
• Storage Temperature: -25°C to +85°C
• Humidity: 10..90 %, non-condensing

Mechanical:

• Dimensions incl. DIN Rail Mounting: 90 x 78.2 x 53.7 mm (L x W x H)
• Weight: 350 g

Network Management:

• CPU: High-Performance 800 MHz ARM CPU
• Operating System: Linux with fast boot time
• Management: Web Manager (HTTP/HTTPS), Telnet/SSH/Console, SNMP v1/v2c/v3
• Supports IPv4/IPv6 Dual Stack and central management platform (NMP)

Quality:

• Made in Germany: Manufactured and quality-controlled in Hamm, Germany
• Burn-in Test: 48 hours of stress testing to ensure reliability

Ordering Information:

• Horizontal Design:
- MS440209PMXH-48G6+: 1x SFP Uplink, 5x TP Ports with PoE+
- MS440207PMXH-48G6+: 2x SFP Uplinks, 4x TP Ports with PoE+
- MS450186PMXH-48G6+: 1x TP Uplink, 5x TP Ports with PoE+

• Vertical Design:
- MS440219PMXH-48G6+: 1x SFP Uplink, 5x TP Ports with PoE+
- MS440217PMXH-48G6+: 2x SFP Uplinks, 4x TP Ports with PoE+
- MS450187PMXH-48G6+: 1x TP Uplink, 5x TP Ports with PoE+


Accessories:

• SFP Transceivers:
- Multimode 850 nm, 1000Base-SX: MS100200DX
- Single Mode 1310 nm, 1000Base-LX: MS100210DX

• Console Cable: RS-232 (mini USB or RJ-45) to SUBD9 female
• Industrial Power Supplies:
- 48VDC/1.05A (50W): MS700455
- 48VDC/2.5A (120W): MS700456


Package Contents:

• 1x Ruggedized Micro Switch G6
• 1x Grounding Cable (20 cm)
• 1x Power Connector
• 1x DIN Rail Mount Installed
• 1x Set of Pictogram Stickers
